Product Description

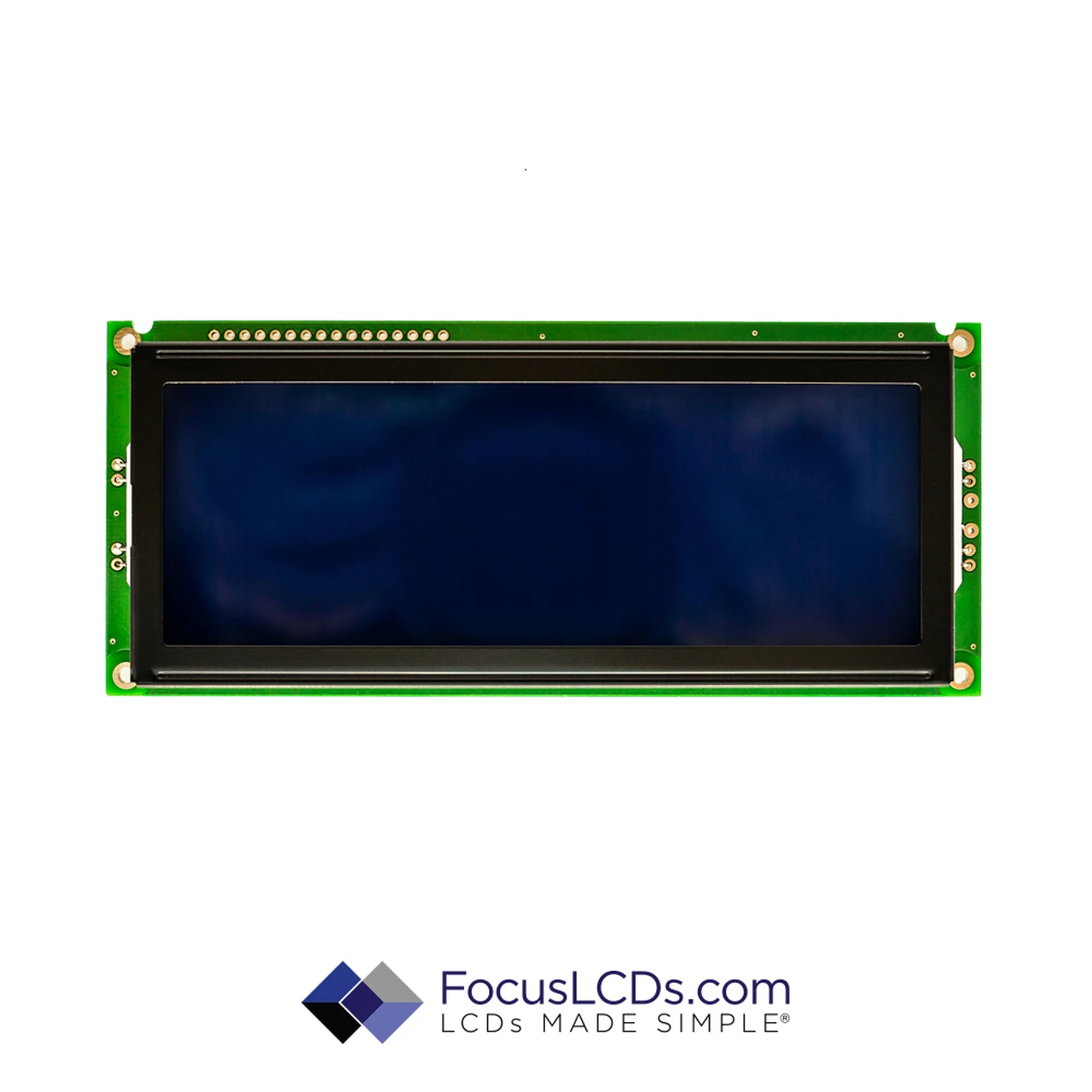

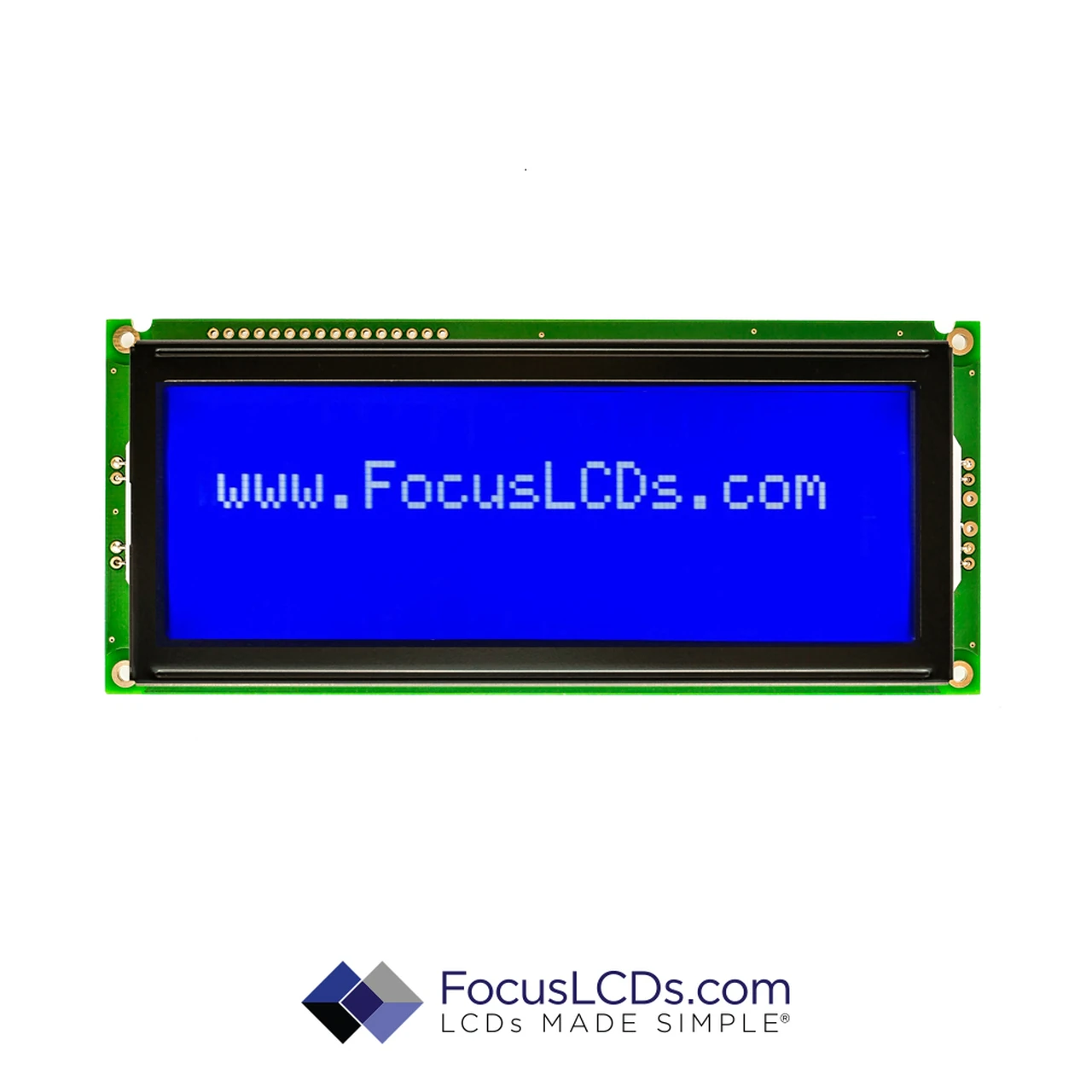

20x4 Character LCD Display | SC# C204B-BW-LW63
Module size: 146.0 x 62.5 mm
Driver: ST7066 or Equivalent
20x4, Module Size: 146x62.50 mm, Viewing Area: 123x42.5 mm, Character Size: 4.84x9.22 mm, STN Blue, Transmissive, White LED Backlight, Wide Temp (-20°- 70° operating/-30°- 80° storage), Bottom View, 3.3V LED, 3.3V LCD, RoHS Compliant.
STN (Super-twisted Nematic) provides a sharper image and wider viewing angle than TN (Twisted Nematic). The cost for STN if approximately 5% higher than TN. STN is an ideal fluid for outdoor products that need to be read at various angles.
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. When you have a need for a bright backlight with lower power drain, transmissive is a good choice.
DOCUMENTATION
ACCESSORIES
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
CONTACT US
Call between 7:30am to 4:30pm (MST) to talk to a real live human who will not send you to three different departments or to someone’s voicemail.
Call now for LIVE support at (480) 503-4295 OR Send us a message
Other Details
Contrast Adjust for 20x4 Character LCD
Typical LED Backlight Connections for 20x4 Character LCD
Typical LED Backlight Connections for PWM Dimming for 20x4 Character LCD
