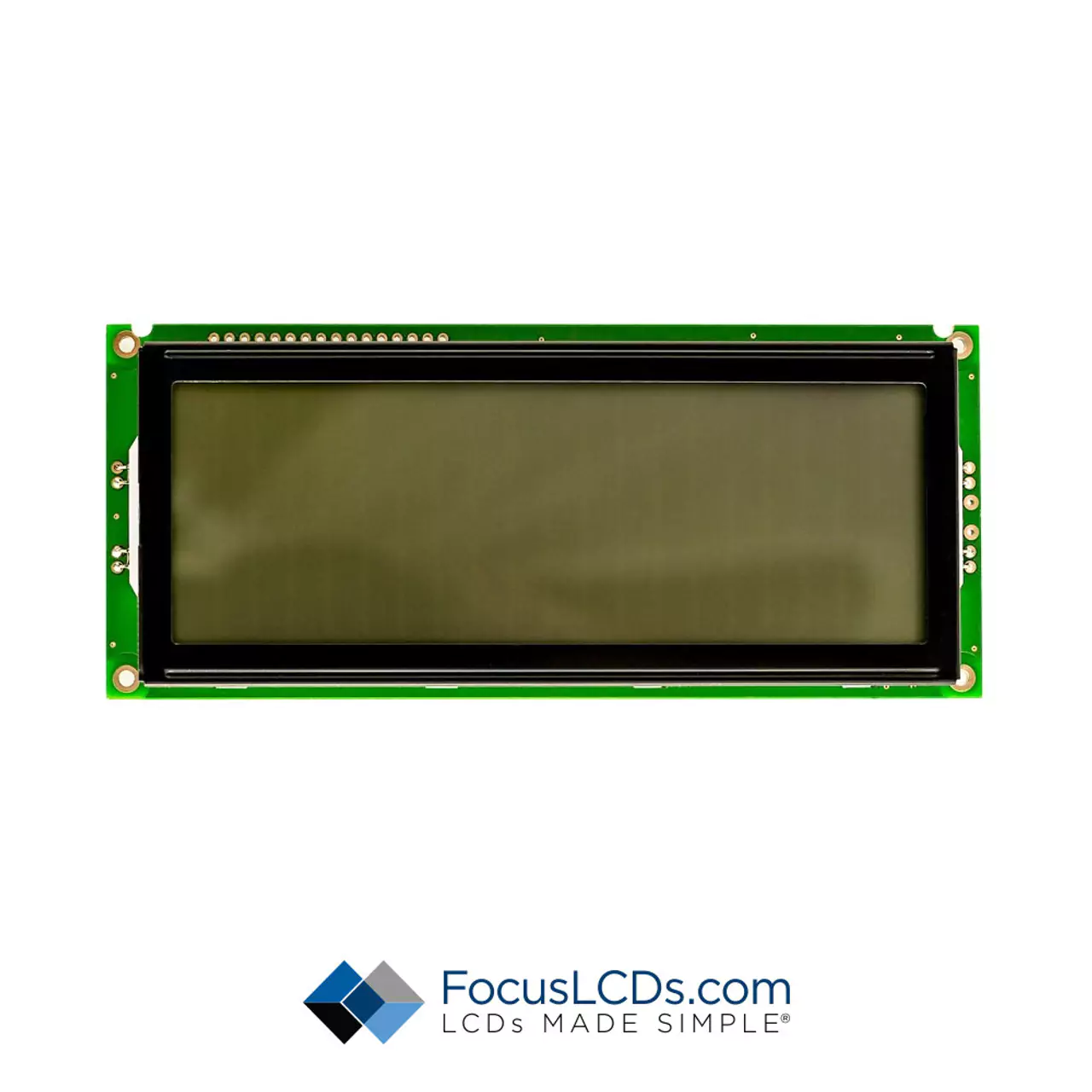

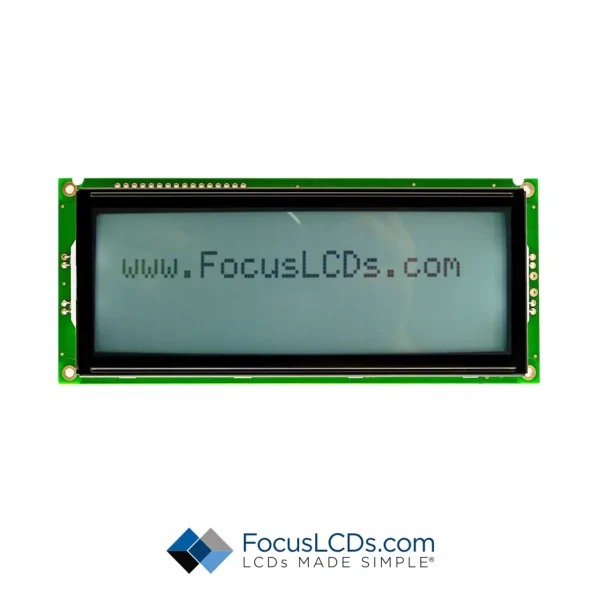

20x4 Character LCD Display | SC# C204B-FTW-LW63
Module size: 146.0 x 62.5 mm
Driver: ST7066 or Equivalent
20x4, Module Size: 146x62.50 mm, Viewing Area: 123x42.5 mm, Character Size: 4.84x9.22 mm, FSTN Gray Positive, Transflective, White LED Backlight, Wide Temp (-20°- 70° operating/-30°- 80° storage), Bottom View, 3.3V LED, 3.3V LCD, RoHS Compliant.
FSTN (Film-compensated Super-twisted Nematic) provides a sharper contrast than STN by adding a film. The cost is approximately 5% higher than STN. FSTN works great for indoor and outdoor applications and is mainly used in graphic displays and higher end products.
The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
Call between 7:30am to 4:30pm (MST) to talk to a real live human who will not send you to three different departments or to someone’s voicemail.
Call now for LIVE support at (480) 503-4295 OR Send us a message
Contrast Adjust for 20x4 Character LCD
Typical LED Backlight Connections for 20x4 Character LCD
Typical LED Backlight Connections for PWM Dimming for 20x4 Character LCD
