TFT Quality Inspection Standards

TFT Quality Inspection Standards

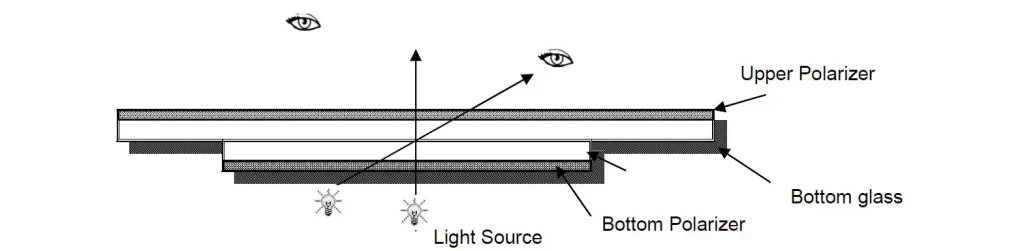

1. Inspection Conditions

Inspection performed under the following conditions is recommended:

  • Temperature: 25±5℃
  • Humidity: 65%±10%RH
  • Viewing Angle: Normal viewing angle.
  • Illumination: Single fluorescent lamp (300 to 700Lux)
  • Viewing distance: 30-50cm

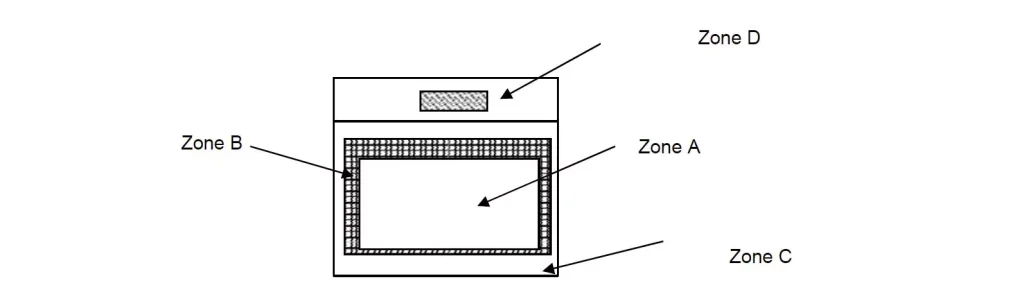

2. Definition

Zone A: Effective Viewing Area(Character or Digit can be seen)

Zone B: Viewing Area except Zone A

Zone C: Outside (Zone A+Zone B) which cannot be seen after assembly by customer.)

Zone D: IC Bonding Area

Note: As a general rule, visual defects in Zone C can be ignored when it doesn’t effect product function or appearance after assembly by customer.

3. Sampling Plan

According to GB/T 2828-2003; normal inspection, Class Ⅱ


LCD: Liquid Crystal Display, TP: Touch Panel, LCM: Liquid Crystal Module

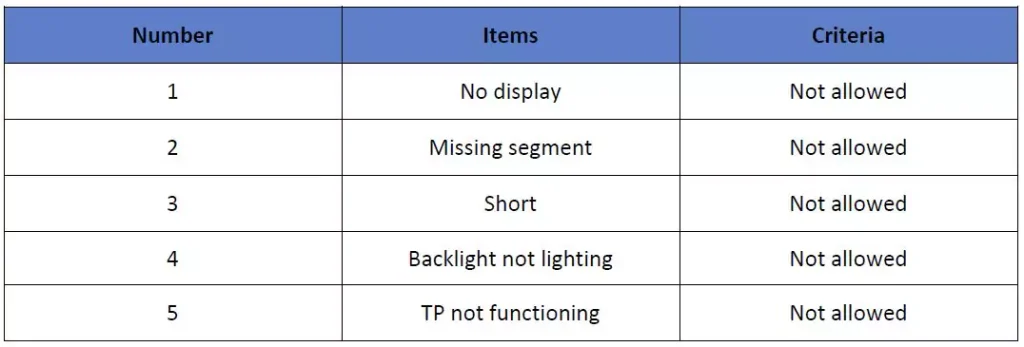

4. Criteria Visual

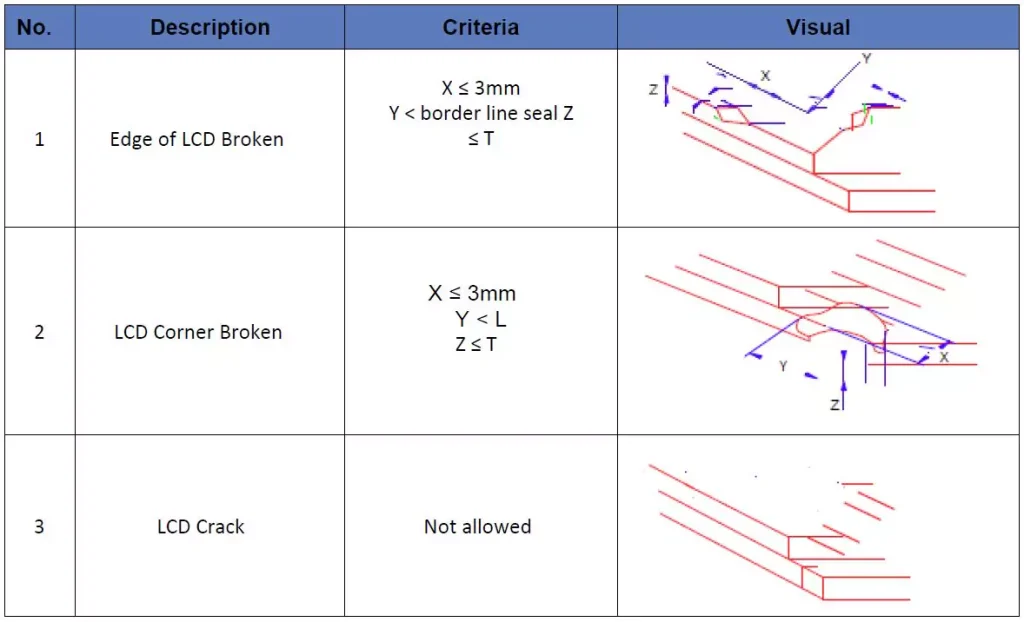

LCD Broken/Cracked:

Note: X=Length, Y=Width, Z=Height, L=Length of ITO, T=Height of LCD

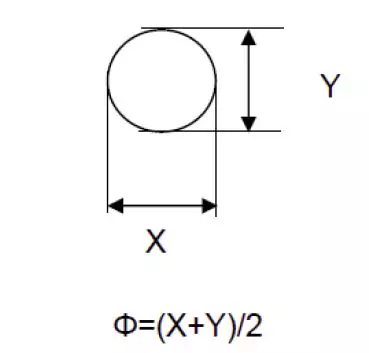

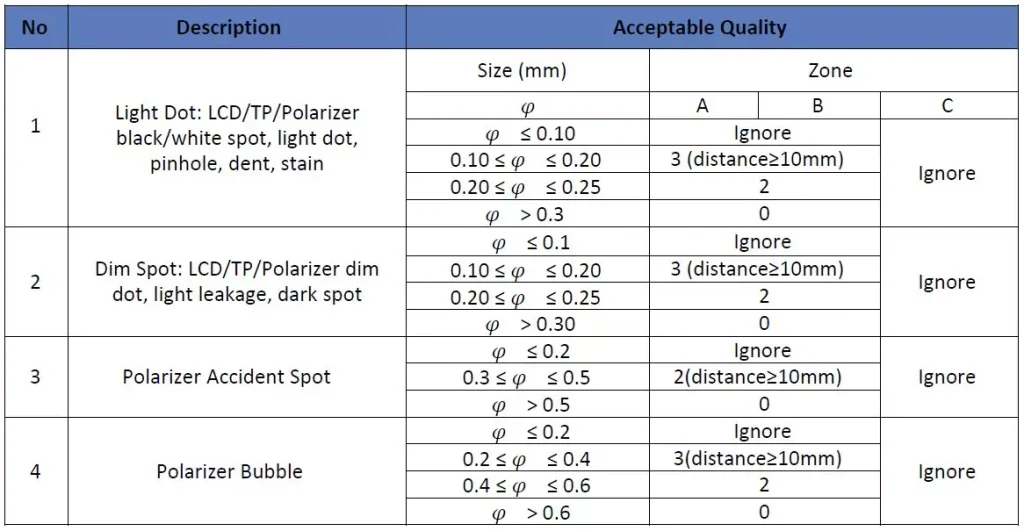

Spot Defect:

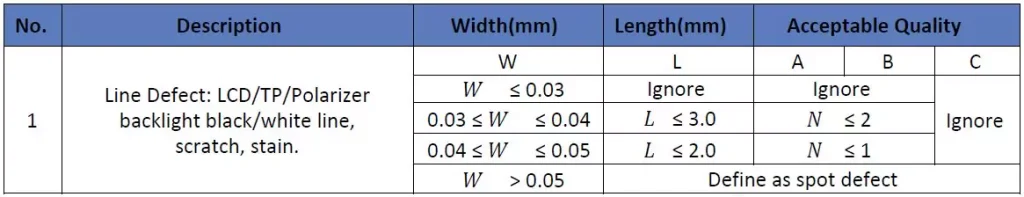

Line Defect:

5. Electronic Components SMT

According to IPC-A-610C class Ⅱ standard. Function defect and missing part are major defects, the others are minor defects.

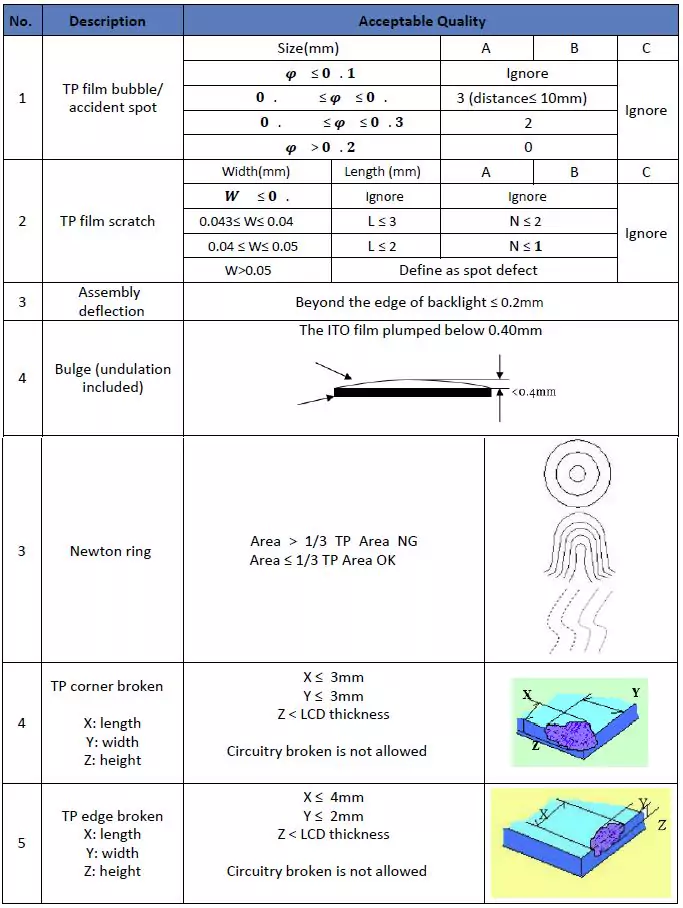

RTP Related:

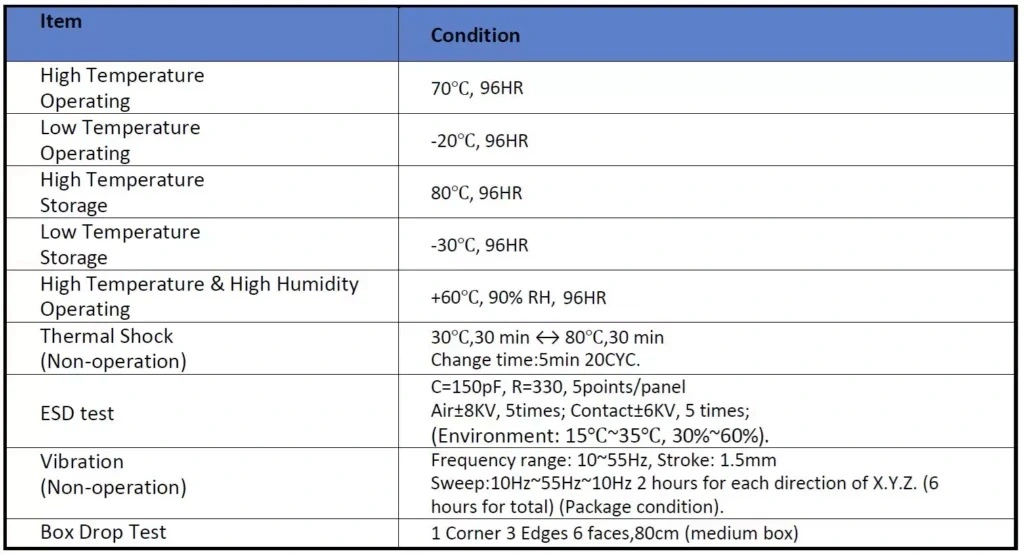

6. Reliability Test Result


Inspection After Test: Inspection after 2-4 hours storage at room temperature, the sample shall be free from defects:

  1. Air bubble in LCD
  2. Non-display
  3. Missing segments/line;
  4. Glass crack
  5. Current IDD is twice higher than initial value


  1. The test samples should be applied to only one test item.
  2. Sample size for each test item is 5~10pcs.
  3. For Damp Proof Test, Pure water (Resistance>10MΩ) should be used.
  4. In case of malfunction defect caused by ESD damage, if it would be recovered to normal state after resetting, it would be judged as a good part
  5. Failure Judgment Criterion: Basic Specification, Electrical Characteristic, Mechanical Characteristic, Optical Characteristic.
