Product Description

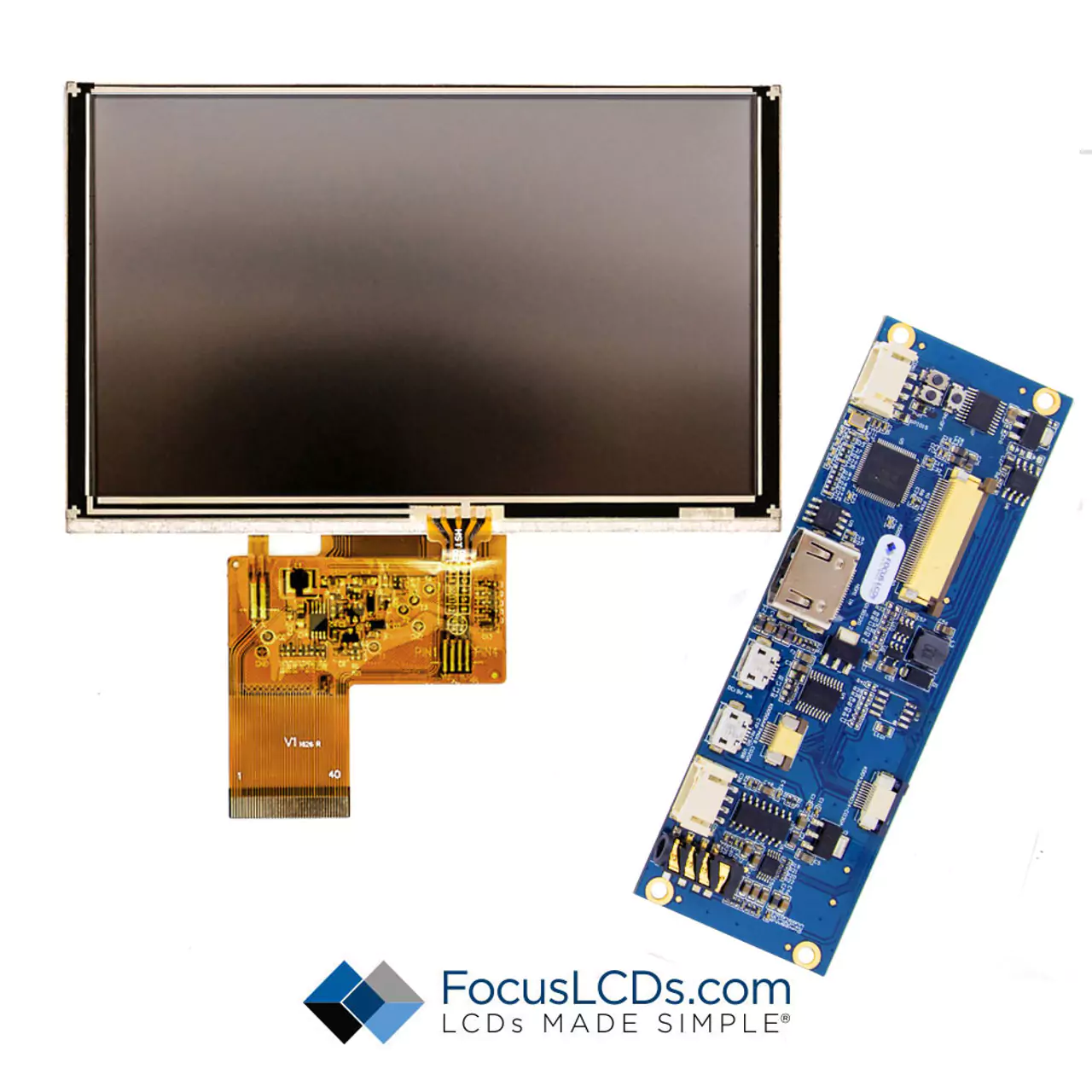

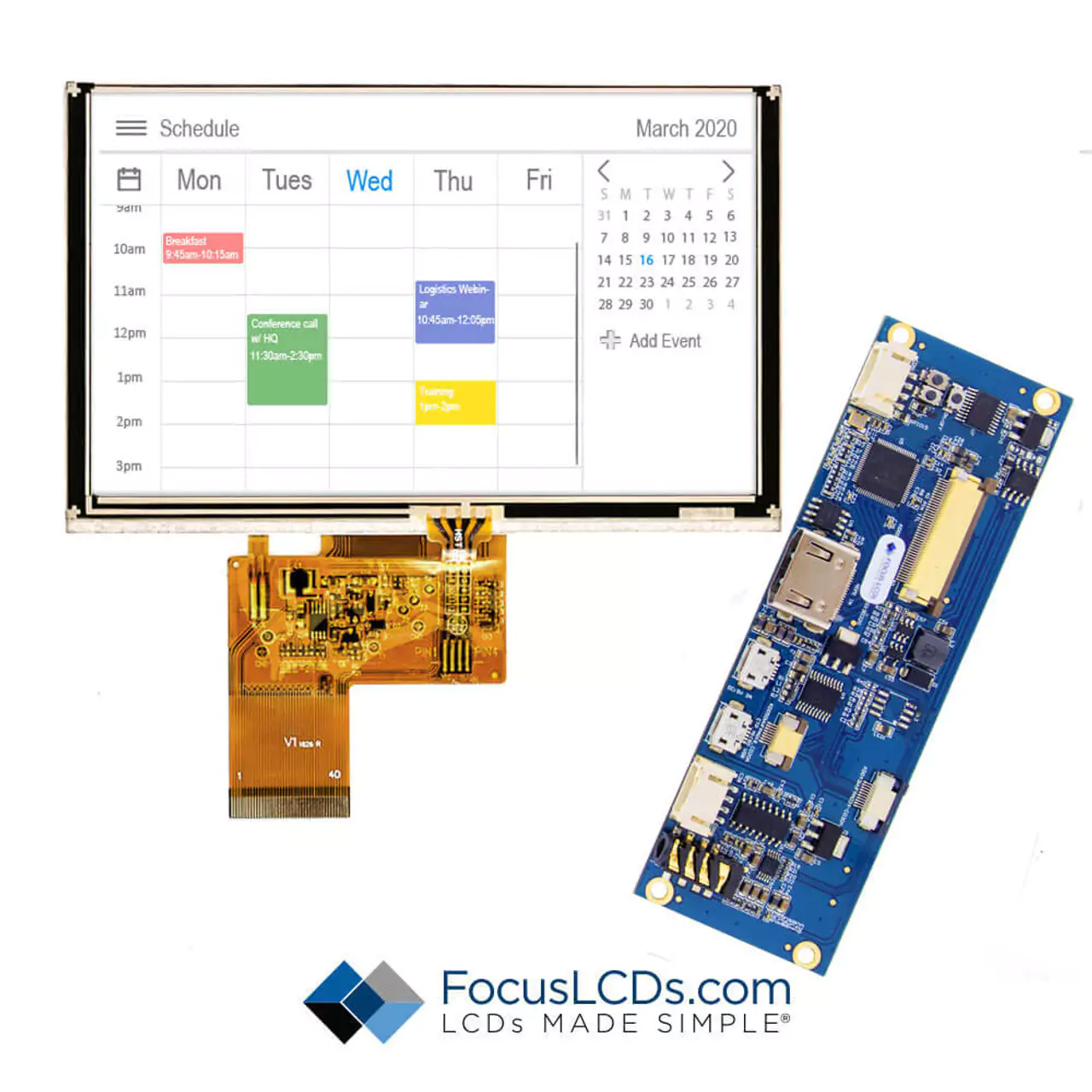

5.0-inch TFT HDMI Kit | SC# E50RB-FW280-R + M_E50RA_HD
This kit includes 1 piece of E50RB-FW280-R and 1 piece of M_E50RA_HD. Not Included: micro-usb to usb (male) cables and HDMI to HDMI cord. (both cables are required to power the kit)
SC# E50RB-FW280-R
Module size: 120.7 x 75.9 x 4.15 mm
TFT Driver: ILI5960/ILI6122
- 16/18/24-bit RGB Interface
- 800(RGB)x480 pixels
- 3.3V
- White LED back-light
- Transmissive/ Normally Black
- 4-wire Resistive Touch Screen
- 280 NITS
- RoHS Compliant
SC# M_E50RA_HD:
PCB size: 37.27 x 113.0 x 8.21 mm
Compatible with the following operating systems:
- Windows 7/8/10
- Android
- Raspberry Pi
- Ubuntu
