Product Description

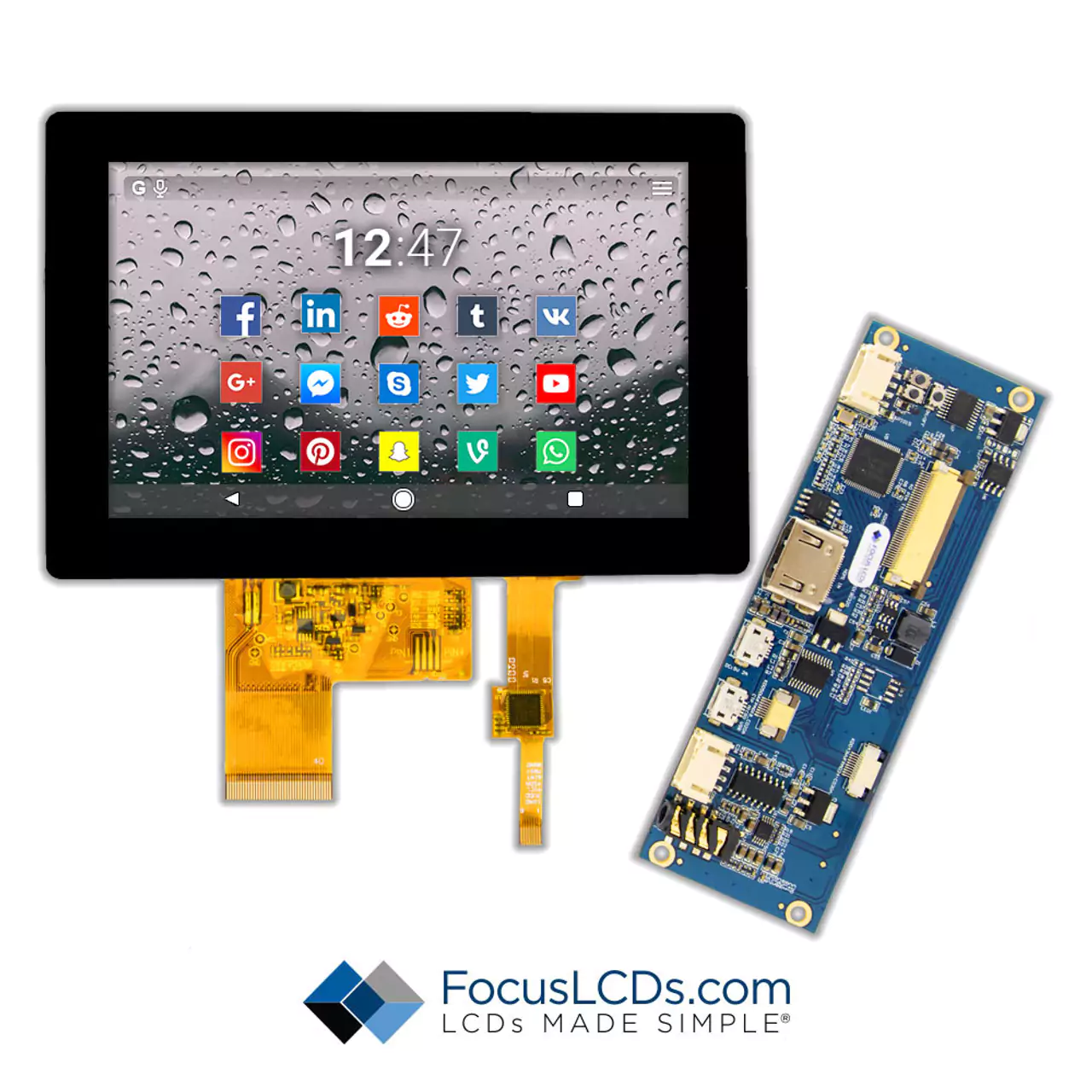

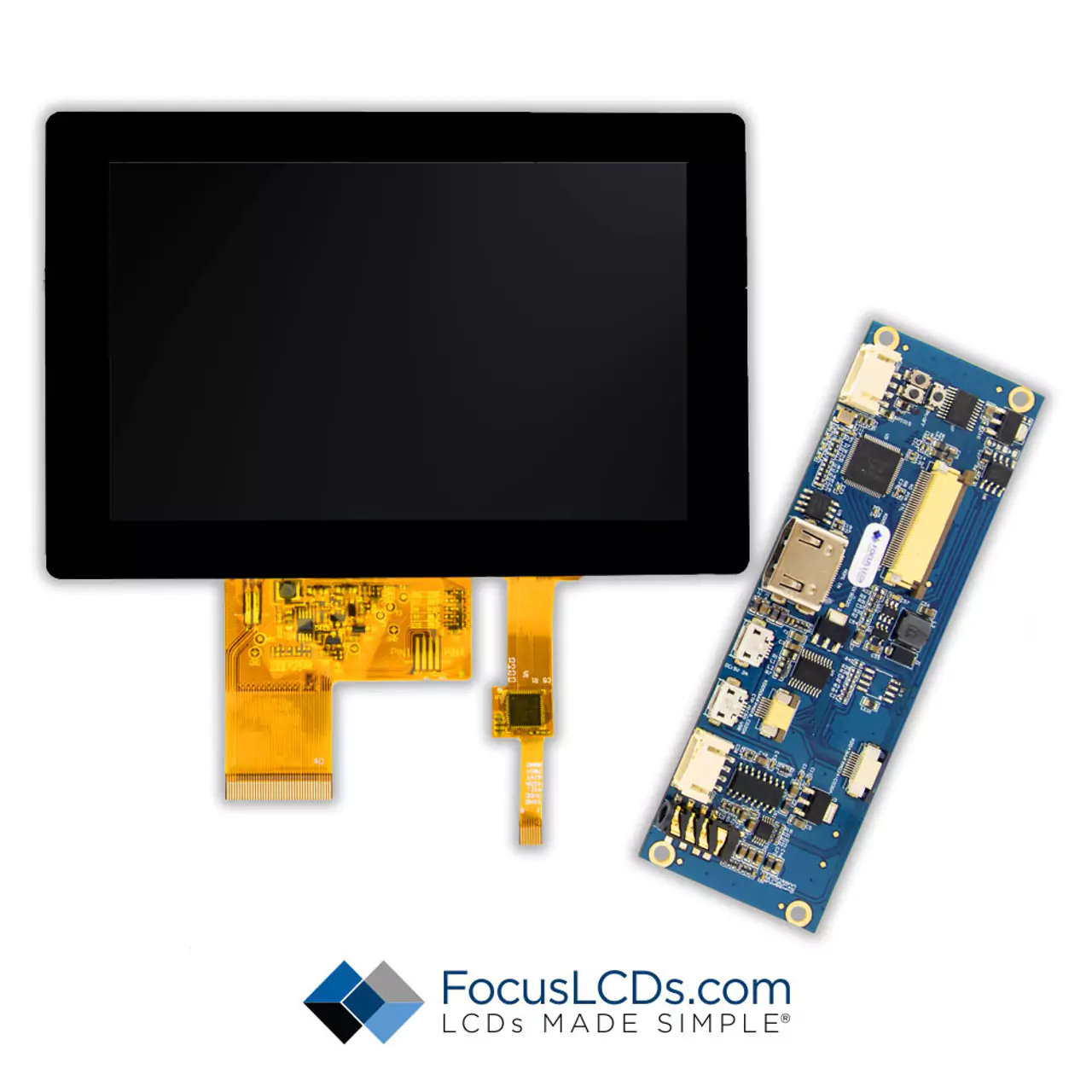

5.0-inch TFT HDMI Kit | SC# E50RG68048LW2M350-C + M_E50RA_HD
This kit includes 1 piece of E50RG68048LW2M350-C and 1 piece of M_E50RA_HD. Not Included: 2 micro-usb to usb (male) cables and HDMI to HDMI cord. (both cables are required to power the kit)
Module size: 132.72 x 87.8 x 4.13 mm
TFT Driver: ILI5960/ILI6122
- 16/18/24-bit RGB Interface
- 800x480 pixels
- 3.3V
- White LED back-light
- Transmissive/ Normally Black
- Capacitive Touch Screen
- 350 NITS
- RoHS Compliant
SC# M_E50RA_HD:
PCB size: 37.27 x 113.0 x 8.21 mm
Compatible with the following operating systems:
- Windows 7/8/10
- Android
- Raspberry Pi
- Ubuntu
