Product Description

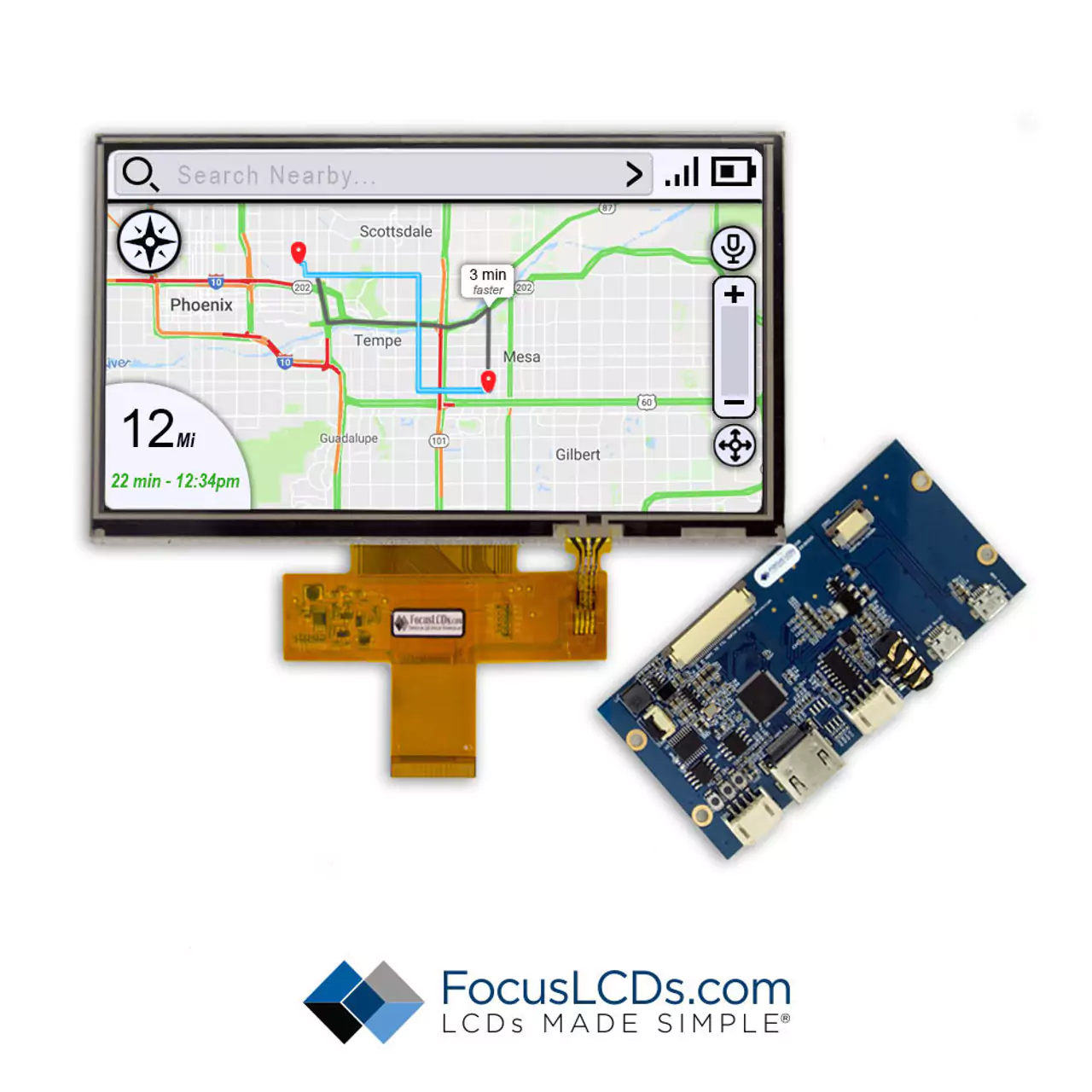

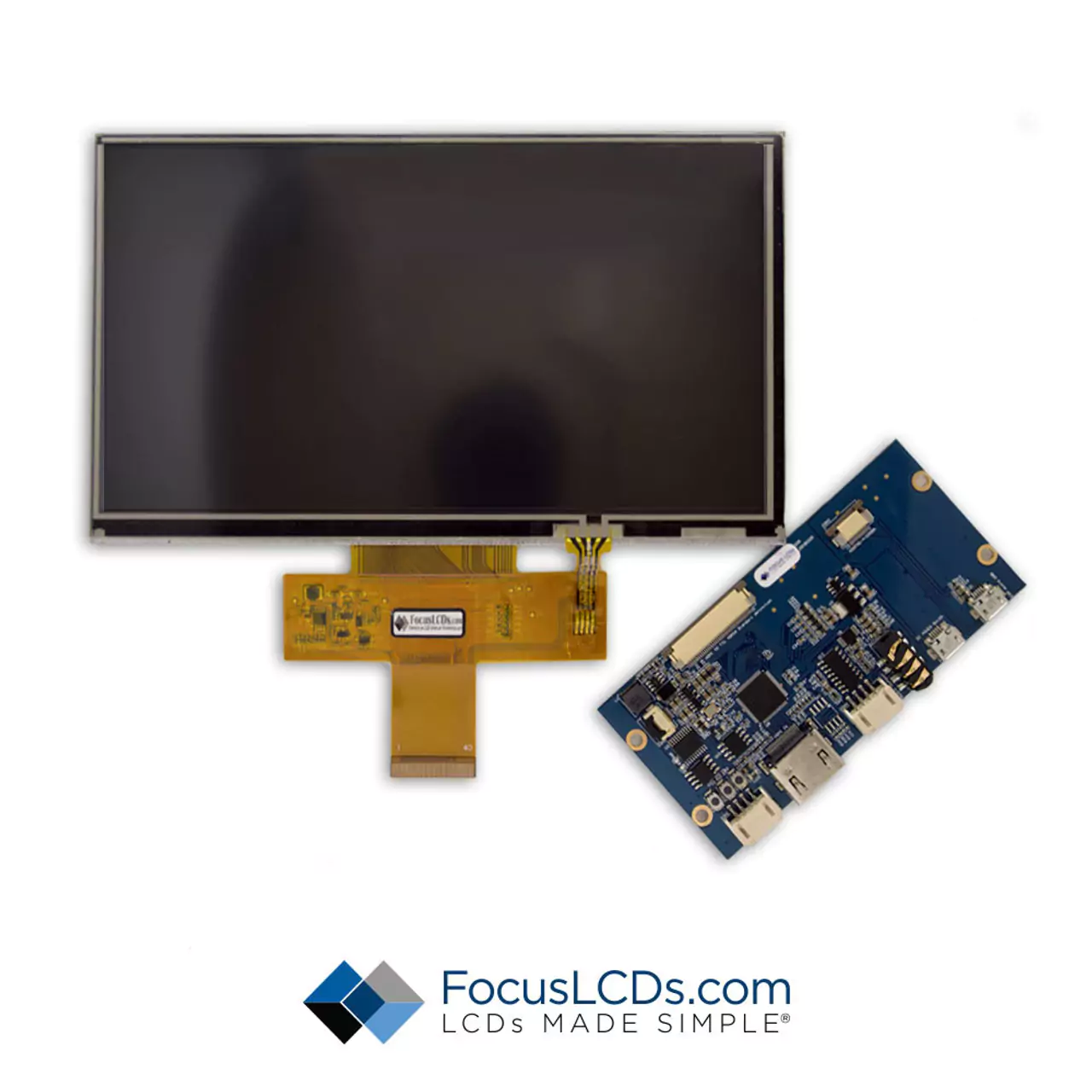

7.0-inch TFT HDMI Kit | SC# E70RG38048LW2M430-R + M_E70RA_HD
This kit includes 1 piece of E70RG38048LW2M430-R and 1 piece of M_E70RA_HD. Not Included: micro-usb to usb (male) cables and HDMI to HDMI cord. (both cables are required to power the kit)
Module size: 165.0 x 100.0 x 7.3 mm
TFT Driver: ILI5960/ILI6122
- 16/18/24-bit RGB Interface
- 800(RGB)x480 pixels
- 3.3V
- White LED back-light
- Transmissive/ Normally Black
- 430 NITS
- Four wire resistive-touch
- RoHS Compliant
SC# M_E70RA_HD:
PCB size: 47.50 x 98.43 x 8.20 mm
Compatible with the following operating systems:
- Windows 7/8/10
- Android
- Raspberry Pi
- Ubuntu
DOCUMENTATION
- 7.0" TFT Datasheet
- EK9713
- EK7330
- RoHS
- REACH
- CMRT
