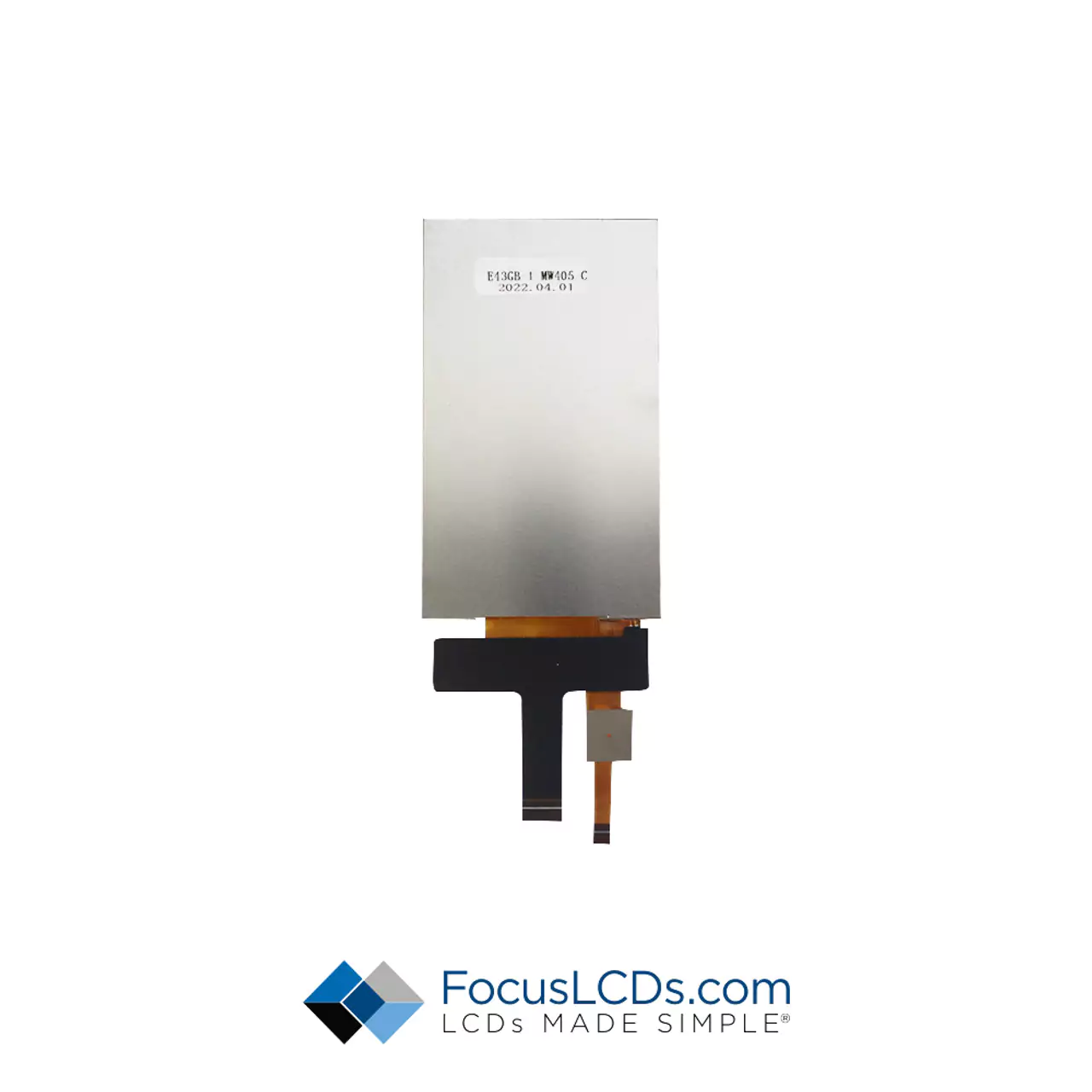

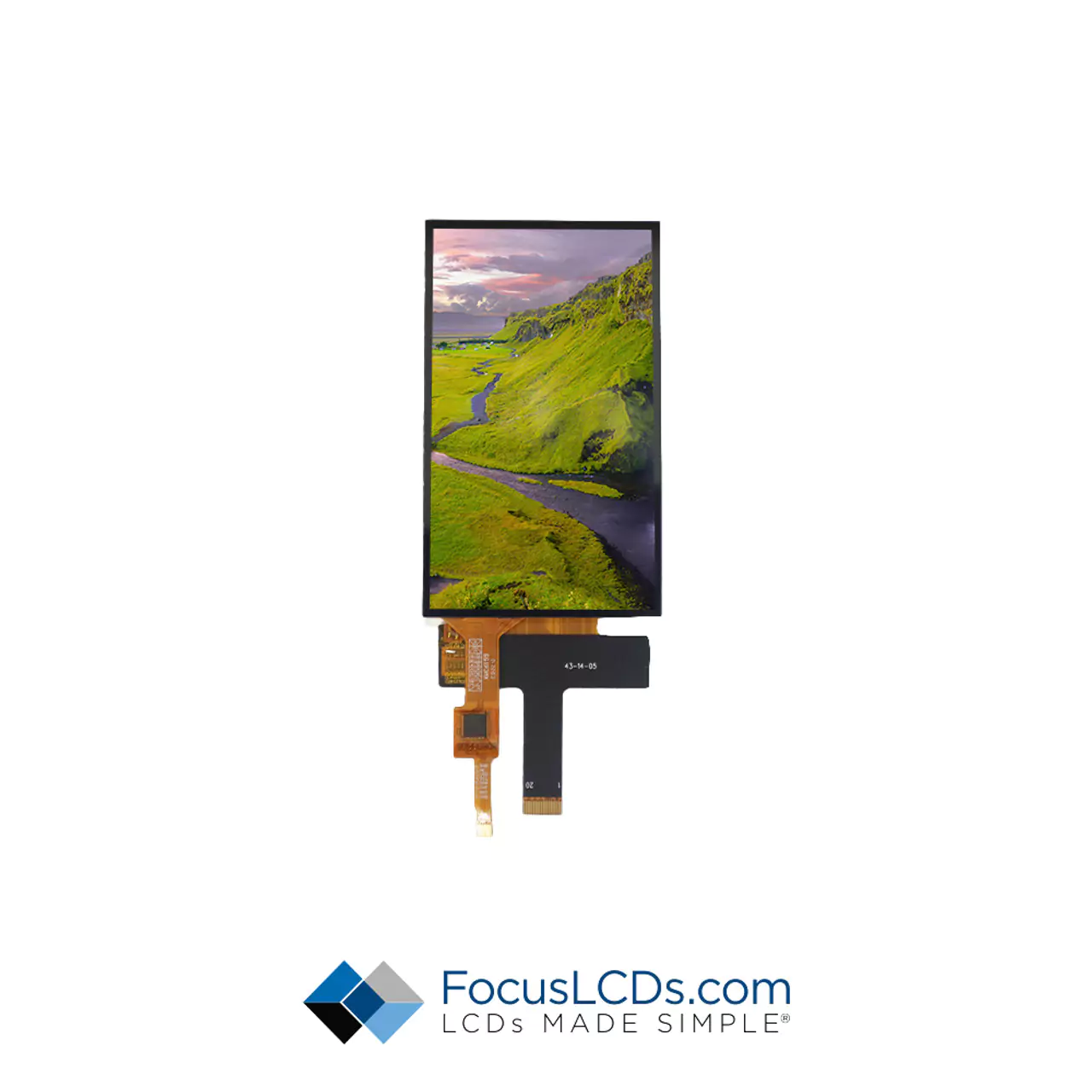

4.3-inch TFT Display | SC# E43GB-I-MW405-C
Module size: 62.50 x 105.55 x 3.93 mm
480 x RGB x 800 Dots
MIPI/DSI, All View, Wide (-20°- 70° operating/-30°- 80° storage), Transmissive, Capacitive touch panel, 410 nits, RoHS Compliant.
The Capacitive touch panel is activated with anything containing an inductive load such as a finger or stylus. It allows for multi-touch options. When using the capacitive touch screen, the display needs a separate controller to interface with the touch panel. The display for capacitive touch is brighter since the touch panel is transparent.
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.
- 4.3" TFT Datasheet
- ILI9806E LCD Controller
- GT911 CTP Driver
MIPI/DSI Source Code
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
