  • E43RB1-FW405-C
  • E43RB1-FW405-C
  • E43RB1-FW405-C
  • E43RB1-FW405-C
  • E43RB1-FW405-C E43RB1-FW405-C E43RB1-FW405-C

    E43RB1-FW405-C

    MSRP:
    Now: $76.80
    (You save )
    Availability:
    Ships within 1-2 business days.

    Adding to cart… category.add_cart_announcement
    • Overview

    Product Description

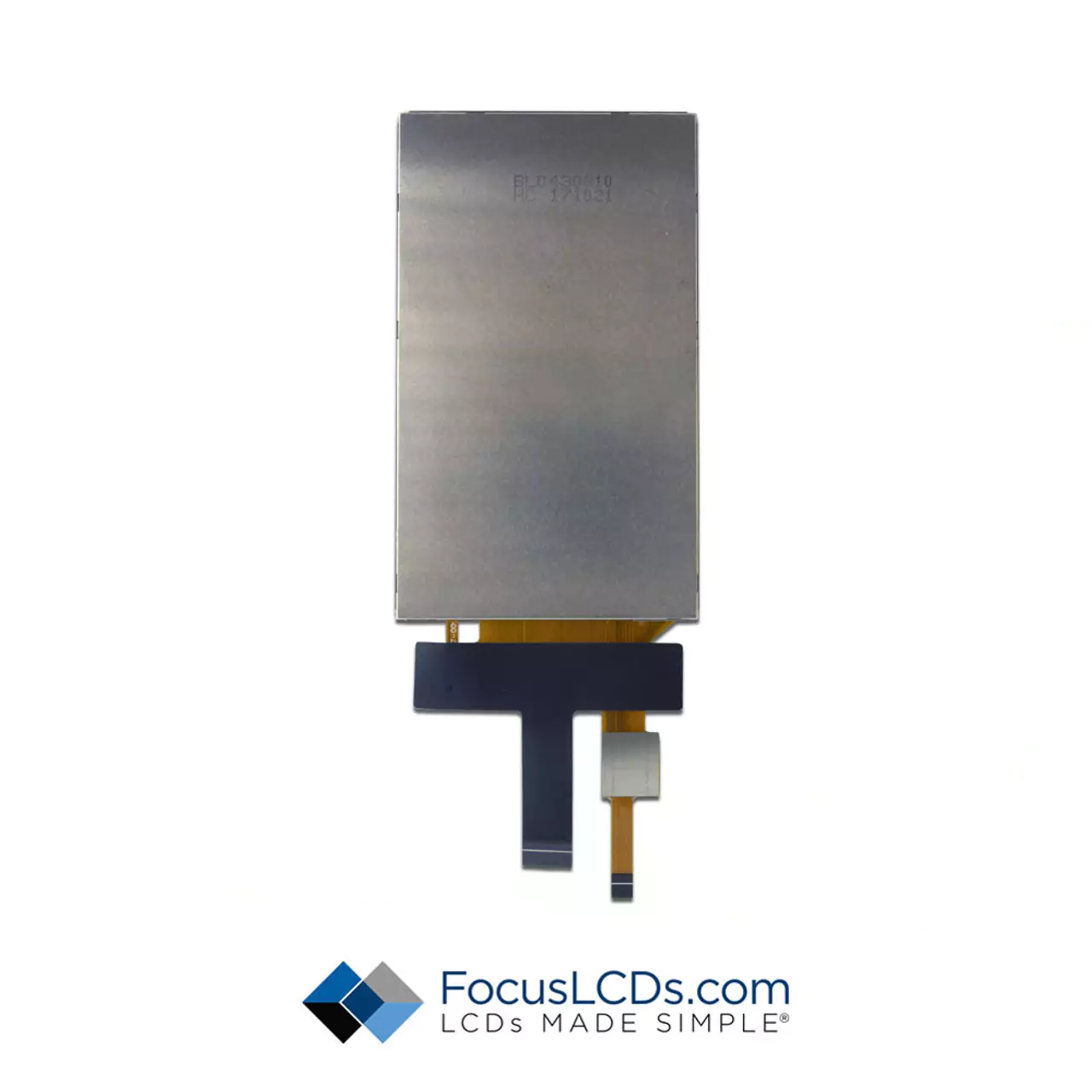

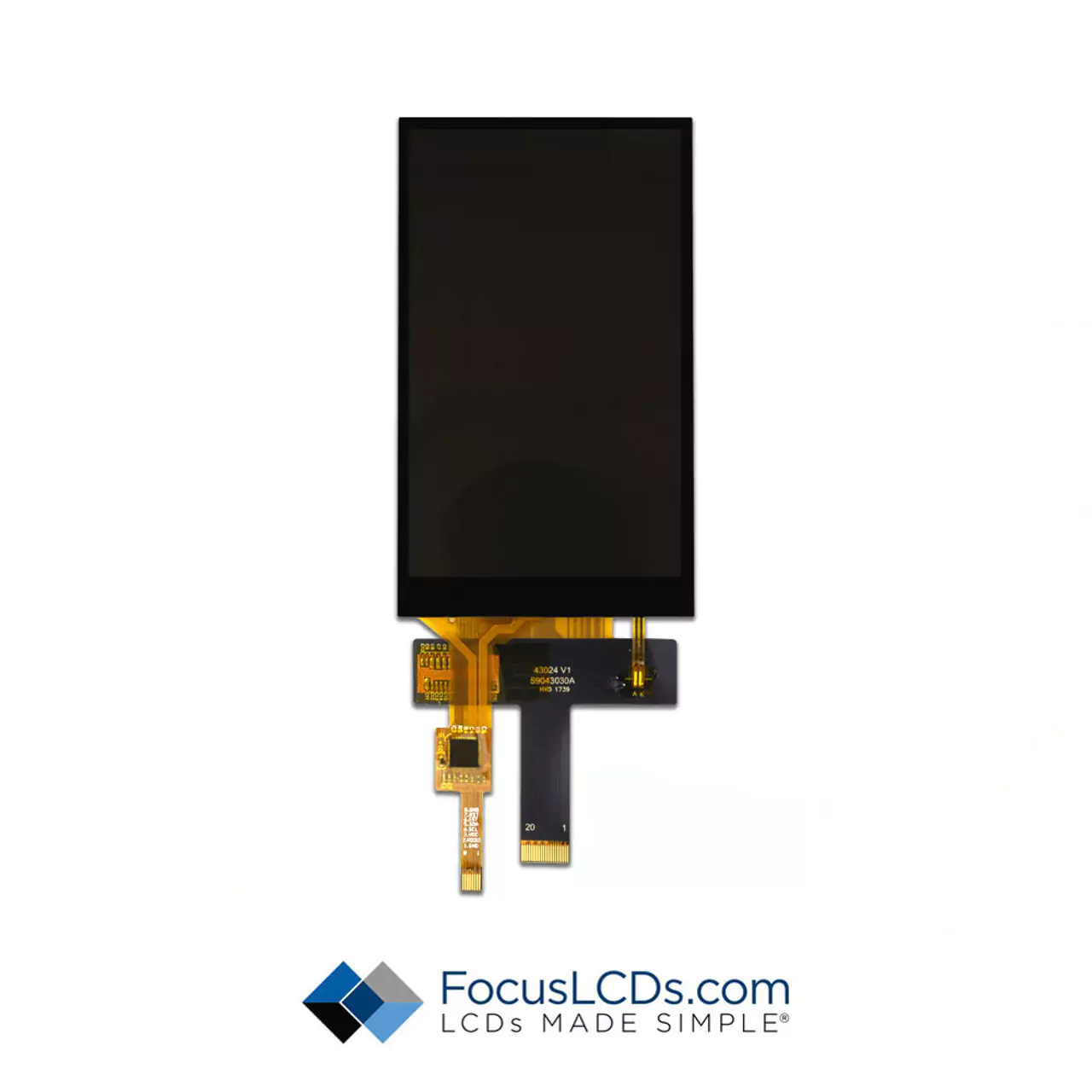

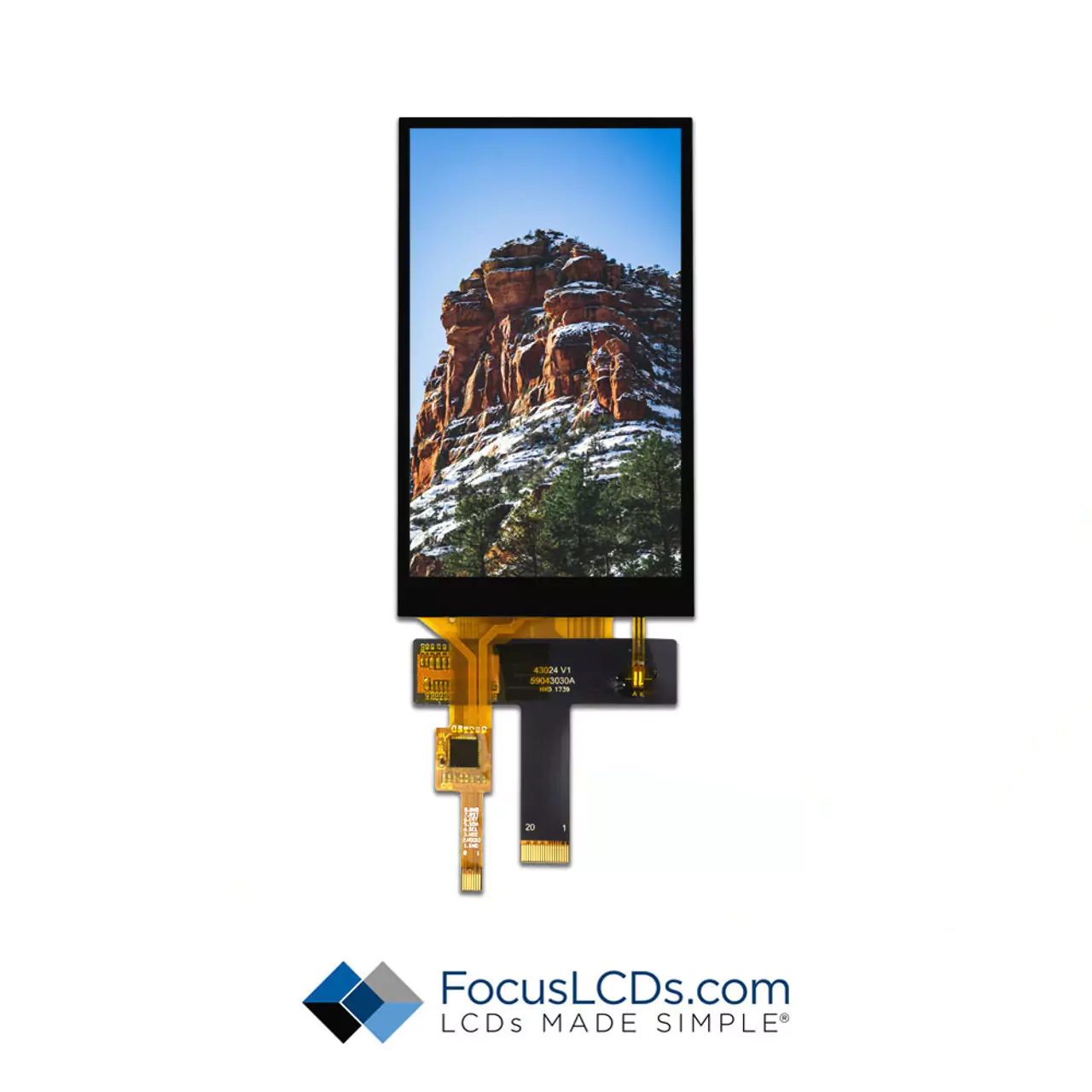

    4.3-inch TFT Display   |  SC# E43RB1-FW405-C

    DOCUMENTATION

    • 4.3" TFT Datasheet
    • ILI9806E LCD Controller
    • GT911 CTP Driver
    • RoHS
    • REACH
    • CMRT
      MIPI/DSI
      Source Code     MIPI/DSI CODE
      Schematic   2 Lane MIPI

    Module size: 62.50 x 105.55 x 3.93 mm

    480 x RGB x 800 Dots

    Driver: ILI9806E

    MIPI/DSI, All View, Wide (-20°- 70° operating/-30°- 80° storage), Transmissive, Capacitive touch panel, 405 nits, RoHS Compliant.

    The Capacitive touch panel is activated with anything containing an inductive load such as a finger or stylus. It allows for multi-touch options. When using the capacitive touch screen, the display needs a separate controller to interface with the touch panel. The display for capacitive touch is brighter since the touch panel is transparent.

    The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.


    ACCESSORIES

    Focus LCDs can provide many accessories to go with your display.  If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.  Get in touch with a team member today to accessorize your display!

    WARRANTY

    Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.

    CONTACT US

    Call between 7:30am to 4:30pm (MST) to talk to a real live human who will not send you to three different departments or to someone’s voicemail.

    Call now for LIVE support at (480) 503-4295   OR   Send us a message

    Product Videos

    Custom Field

    Diagonal Size 4.3 Inches
    Module Size 62.5x105.55mm
    Viewing Area 56.76x94.6mm
    Resolution 480x800
    Display Type IPS
    Brightness 405
    Touch Panel Capacitive
    CTP Controller GT911
    Operating Temperature -20C to 70C
    Specifications https://focuslcds.com/content/E43RB1-FW405-C_spec.pdf
