Product Description

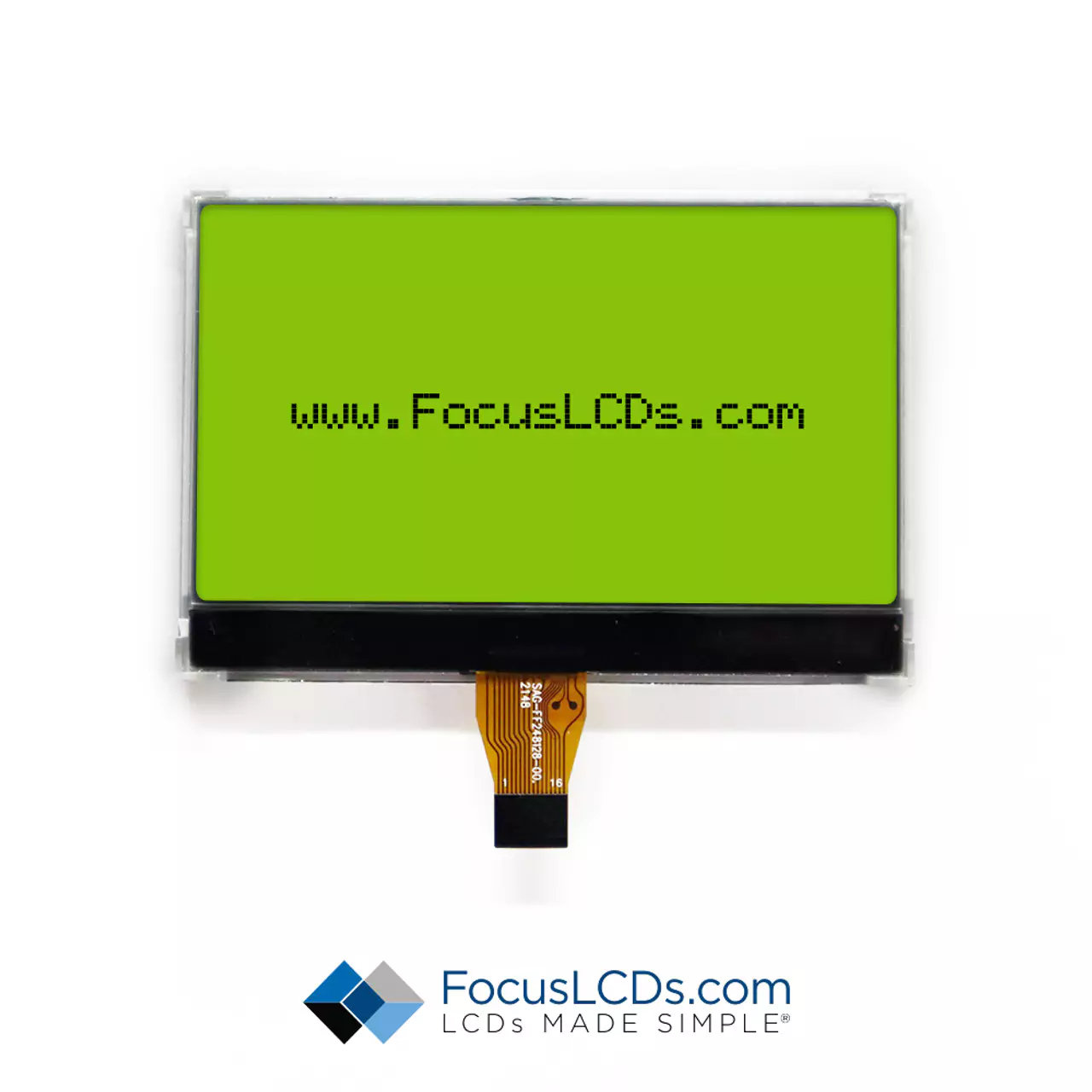

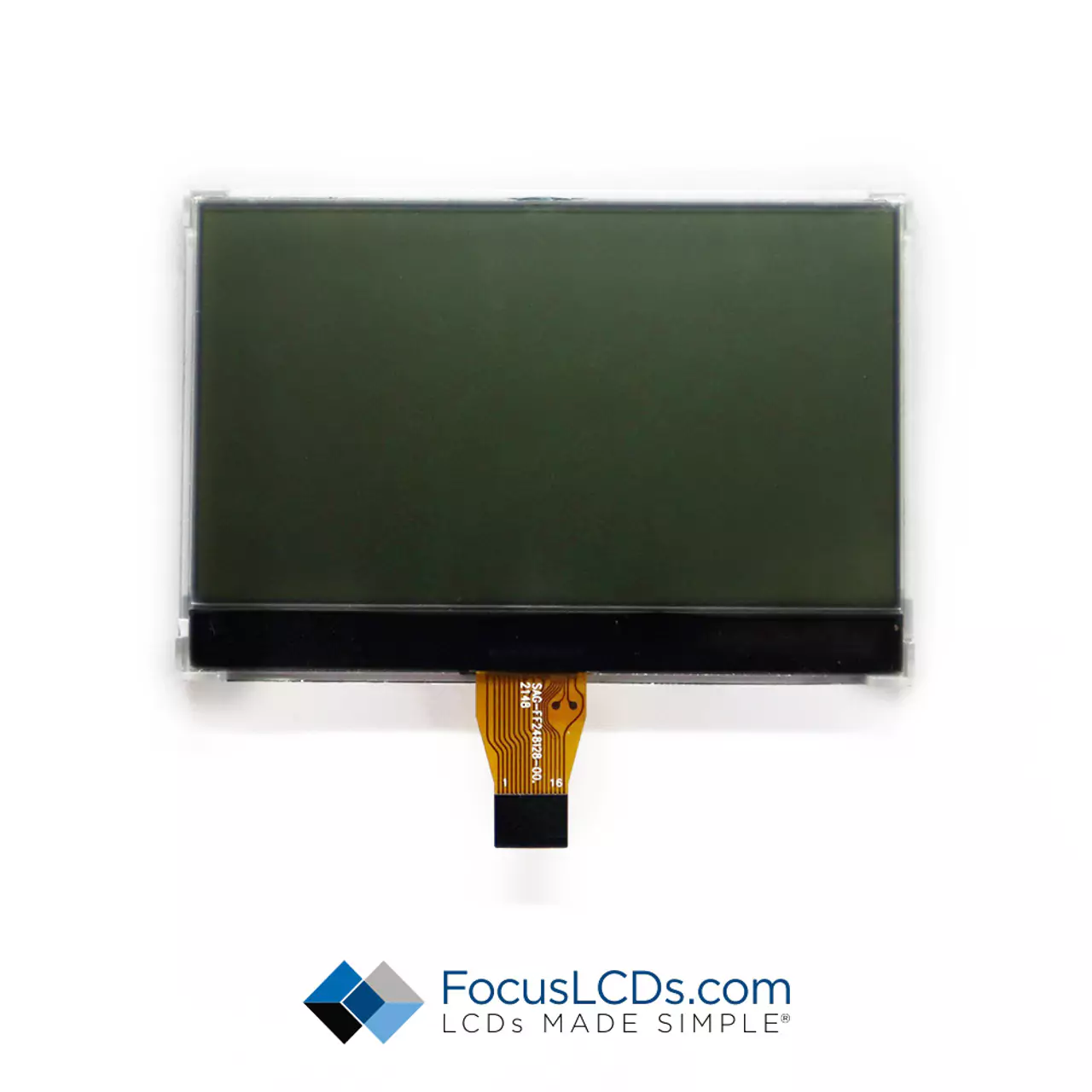

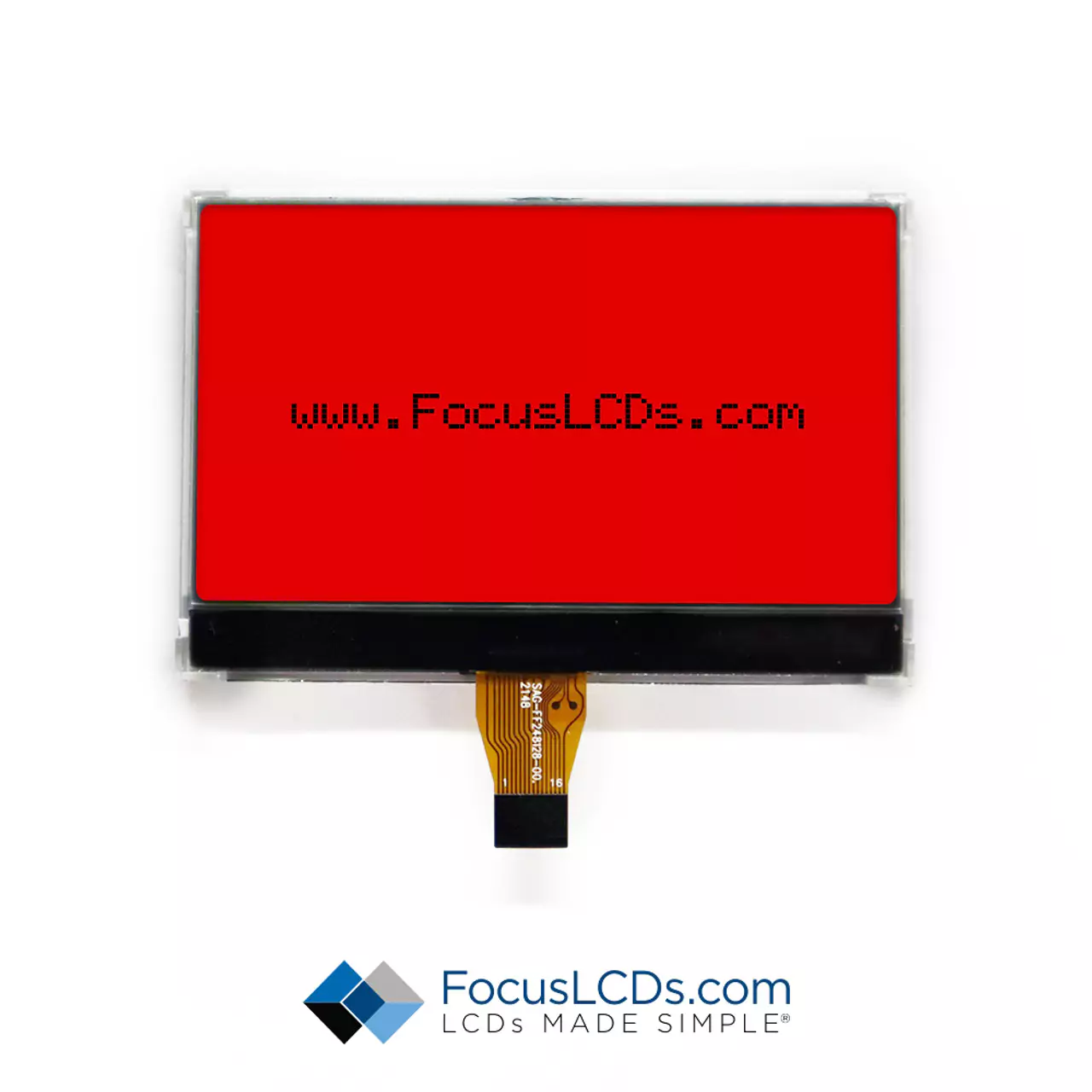

248x128 Graphic LCD Display | SC# G248128B-FT3-DS63
Module size: 84.48mm x 57.28mm
Driver: ST75256
Graphic LCD: 248x128 (84.48x57.28), FSTN Gray Positive, Transflective, RGB LED Backlight, Special Temperature Range, Operating Temp: -10°C to +60°C, Storage Temp: -20°C to +70°C, Bottom View, 3.2V LED, 3.1V LCD, RoHS Compliant. Controller #: ST75256
FSTN (Film-compensated Super-twisted Nematic) provides a sharper contrast than STN by adding a film. The cost is approximately 5% higher than STN. FSTN works great for indoor and outdoor applications and is mainly used in graphic displays and higher end products.
DOCUMENTATION.
ACCESSORIES

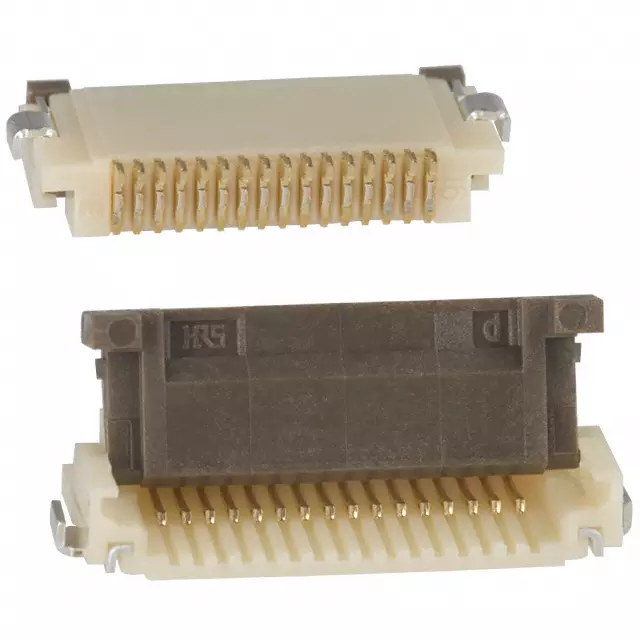

Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
