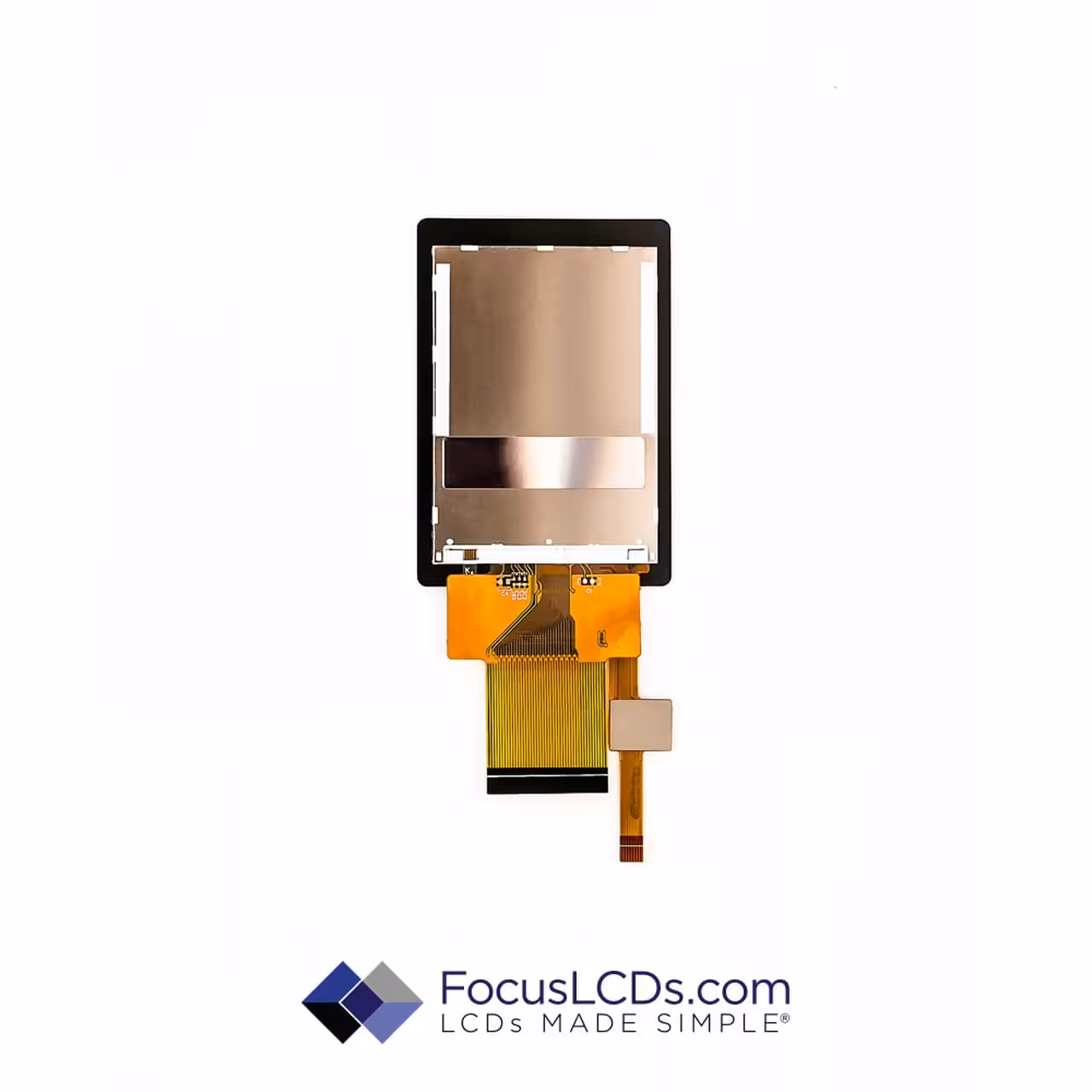

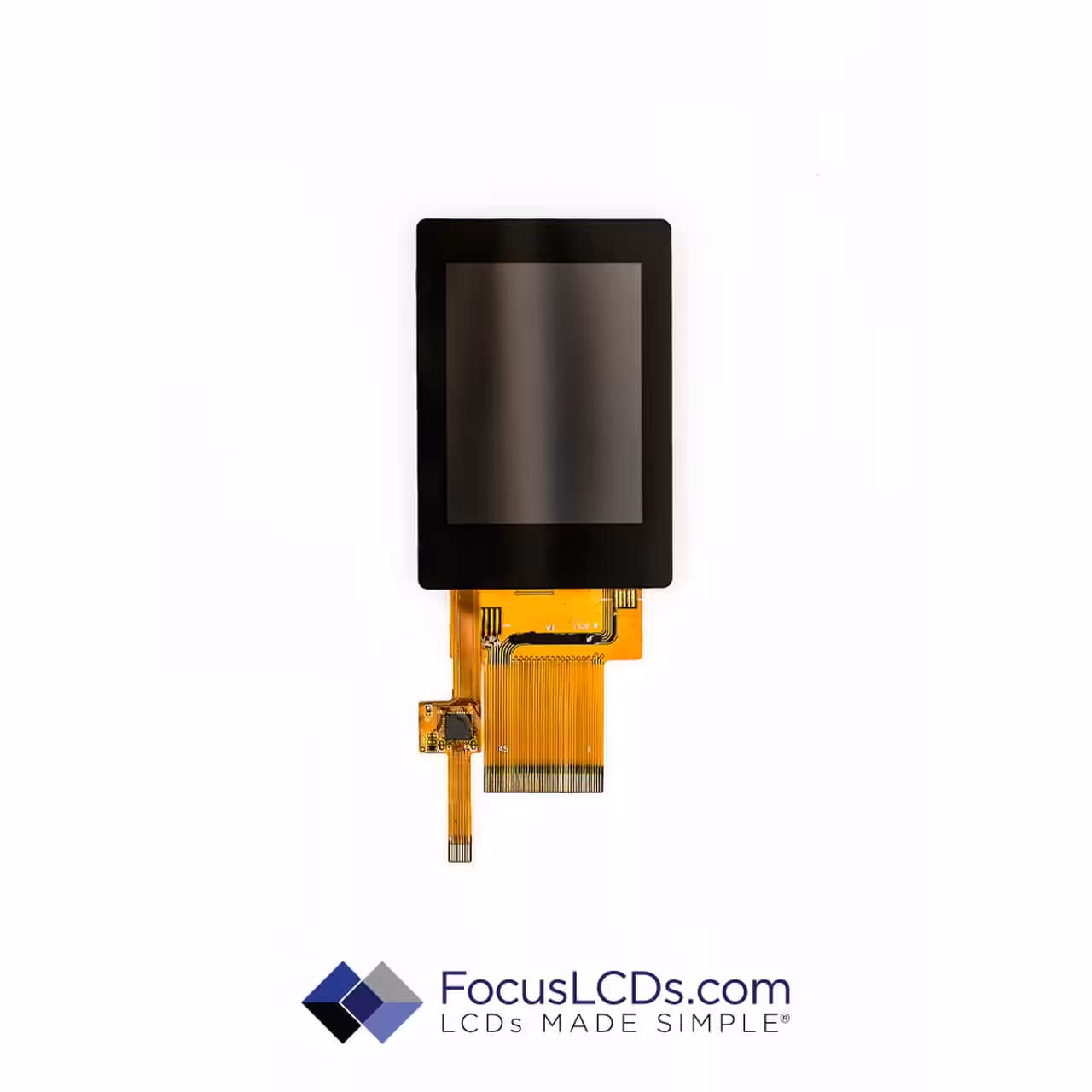

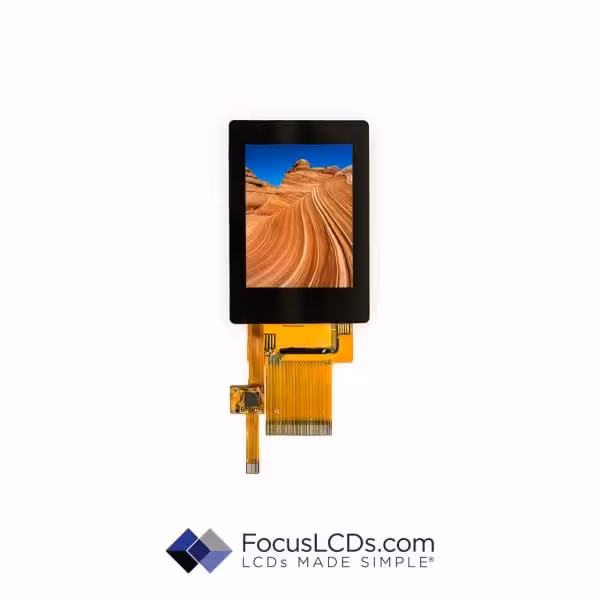

E24RG12432LWIM800-C

$44.52

23 in stock

SKU: E24RG12432LWIM800-C
Attribute Value
Diagonal Size 2.4 Inches
Module Size 42.72 x 60.26mm
Viewing Area 38.32 x 50.56mm
Resolution 240 x 320
Interface 8/9/16/18-Bit MCU, 16/18-Bit RGB, 3/4-SPI
Brightness 450 Nits
Touch Panel Type Capacitive
TFT Controller ST7789V
CTP Controller FT6236
Display Type IPS
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

2.4" TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E24RG12432LWIM800-C Specification Sheet8-Bit MCU Schematic8-Bit MCU CodeRoHS
E24RG12432LWIM800-C DWG16-Bit MCU Schematic16-Bit MCU CodeREACH
ST7789V Specification Sheet--18-bit MCU CodeCMRT
FT6236 Specification Sheet3SPI Schematic3SPI Code
 3SPI + 16-Bit RGB Schematic3SPI + 16-Bit RGB Code
 3SPI + 18-Bit RGB Schematic3SPI + 18-Bit RGB Code
 4SPI Schematic4SPI Code
 4SPI + 16-Bit RGB Schematic4SPI + 16-Bit RGB Code
 4SPI + 18-Bit RGB Schematic4SPI + 18-Bit RGB Code

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

Selectable RGB, MCU, or SPI Interface: Our versatile TFT LCDs with selectable RGB, MCU, or SPI interfaces offer unparalleled flexibility for integration with various systems and devices. These adaptable displays cater to a wide range of applications, from multimedia systems to embedded solutions, ensuring optimal compatibility and performance regardless of your project requirements.

QVGA Resolution: Our QVGA (Quarter Video Graphics Array) TFT LCDs have a resolution of 320x240 pixels which provides a compact display solution for a wide range of applications. This resolution creates sharp visuals and delivers reliable performance, making them ideal for use in handheld devices, industrial control systems and other applications where space is limited, and efficiency is crucial.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
