Product Description

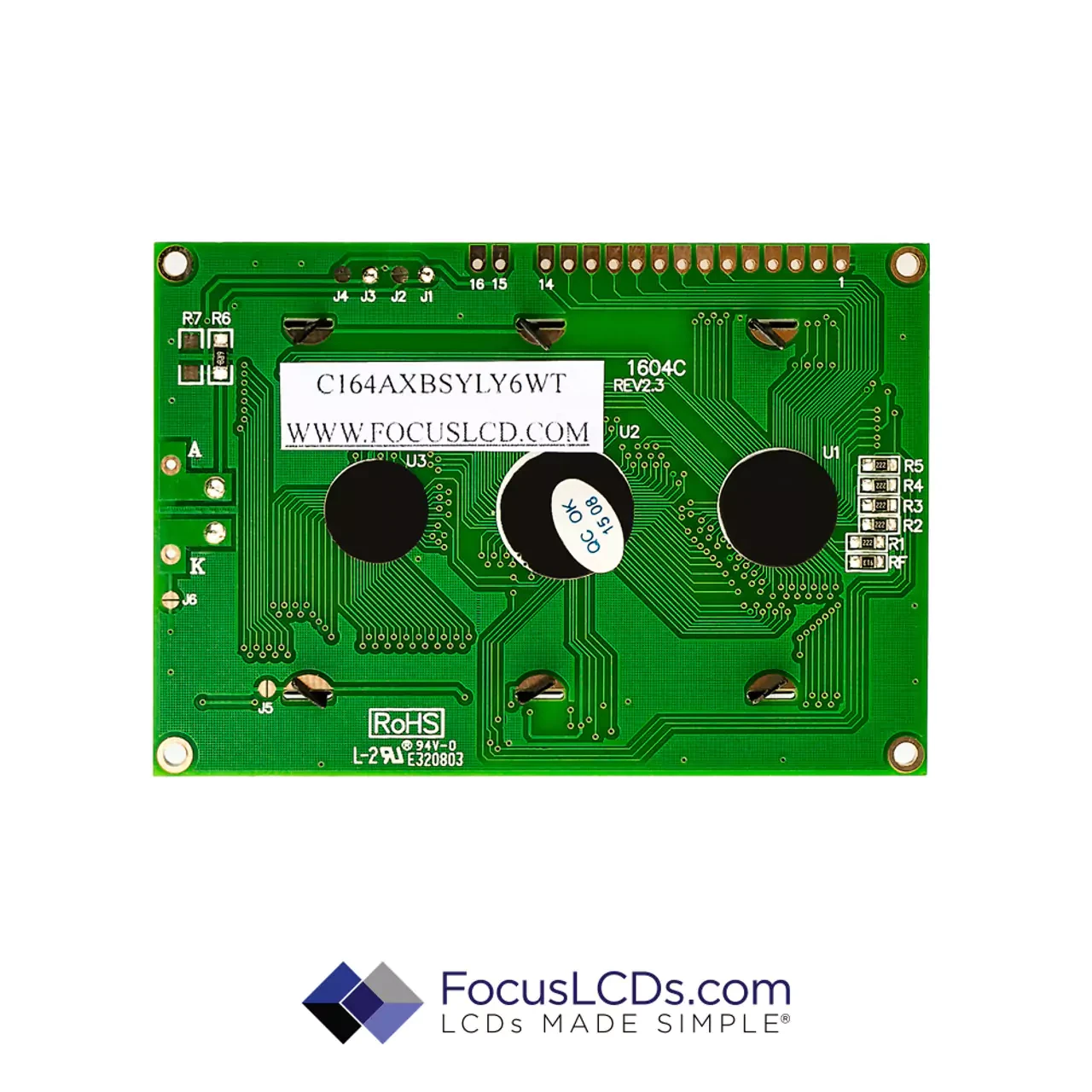

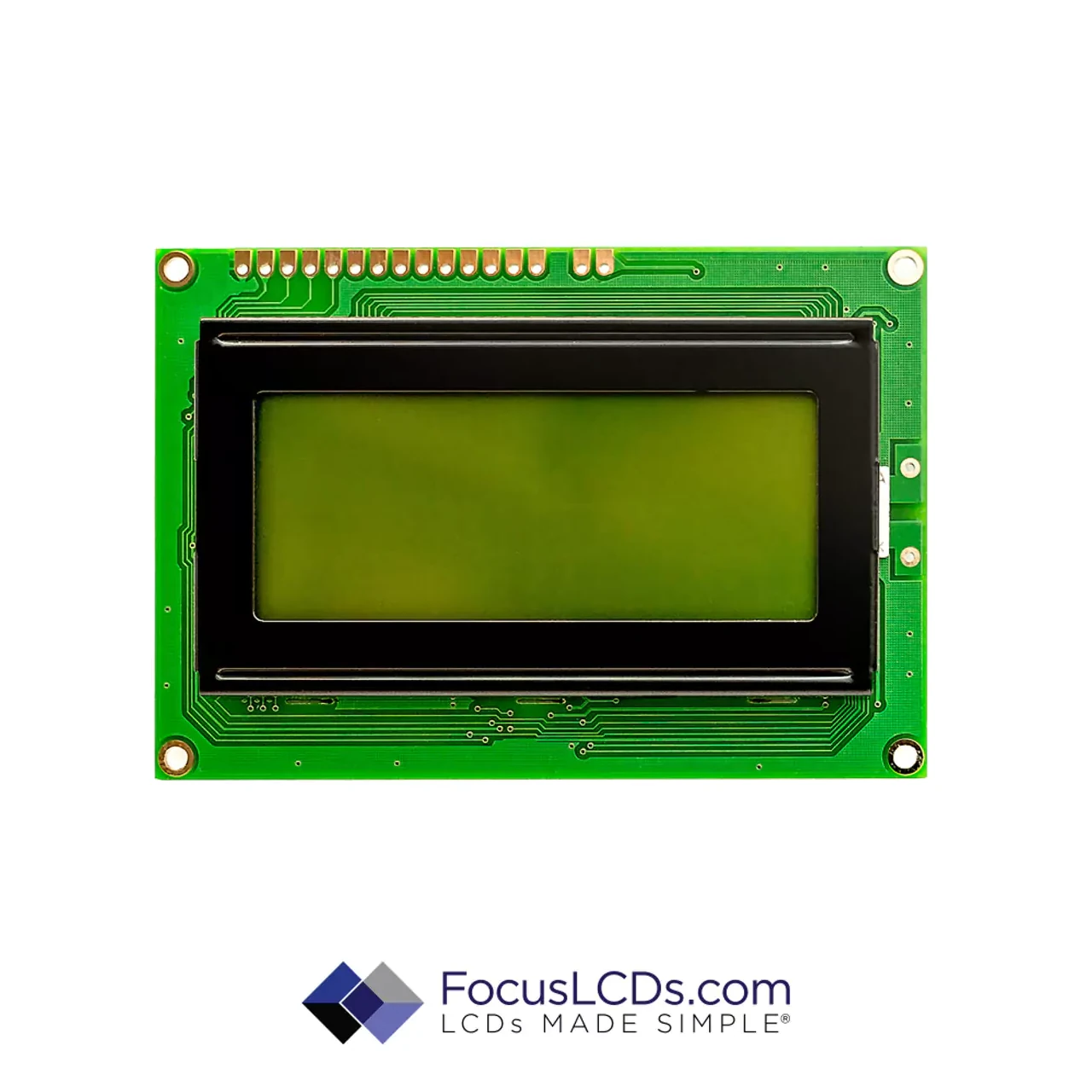

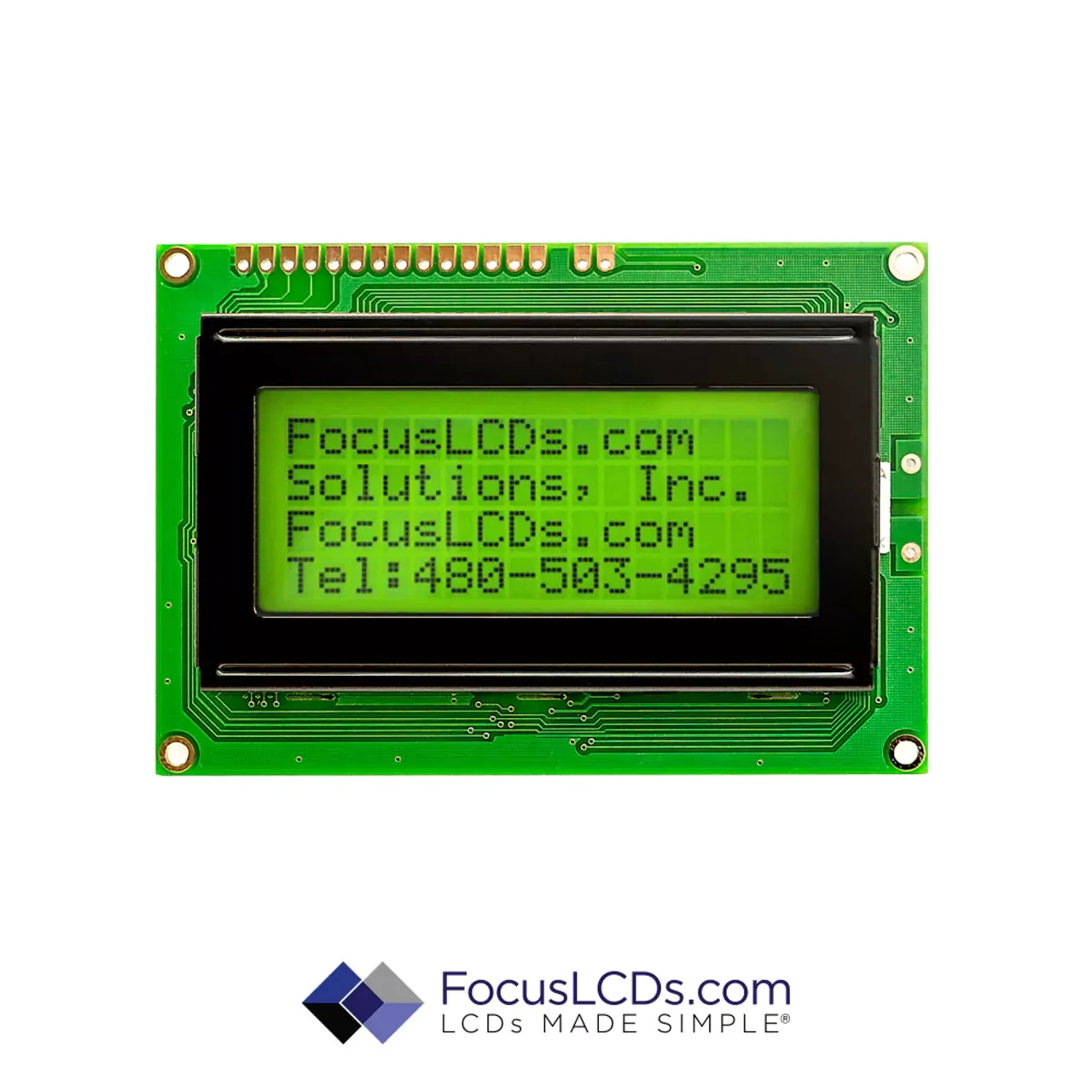

16x4 Character LCD Display   |  SC# C164AXBSYLY6WT FOR NEW ORDERS, SEE ITEM # C164A-YTY-XW65

AKA: 1604 Character Display Module
Module size: 87.0 mm x 60.0 mm

Driver: ST7066U

STN Yellow background color with Y/G LED backlight, bottom (or 6:00) viewing angle, Transflective (positive), ROHS Compliant. This 16x4 LCD has a wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit).

STN (Super-twisted Nematic) provides a sharper image and wider viewing angle than TN (Twisted Nematic). The cost for STN if approximately 5% higher than TN. STN is an ideal fluid for outdoor products that need to be read at various angles.  The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.

DOCUMENTATION

• 16x4 Character Display Datasheet
• ST7066U Controller
• RoHS
• REACH
• CMRT

ACCESSORIES

Focus LCDs can provide many accessories to go with your display.  If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.  Get in touch with a team member today to accessorize your display!

WARRANTY

Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
