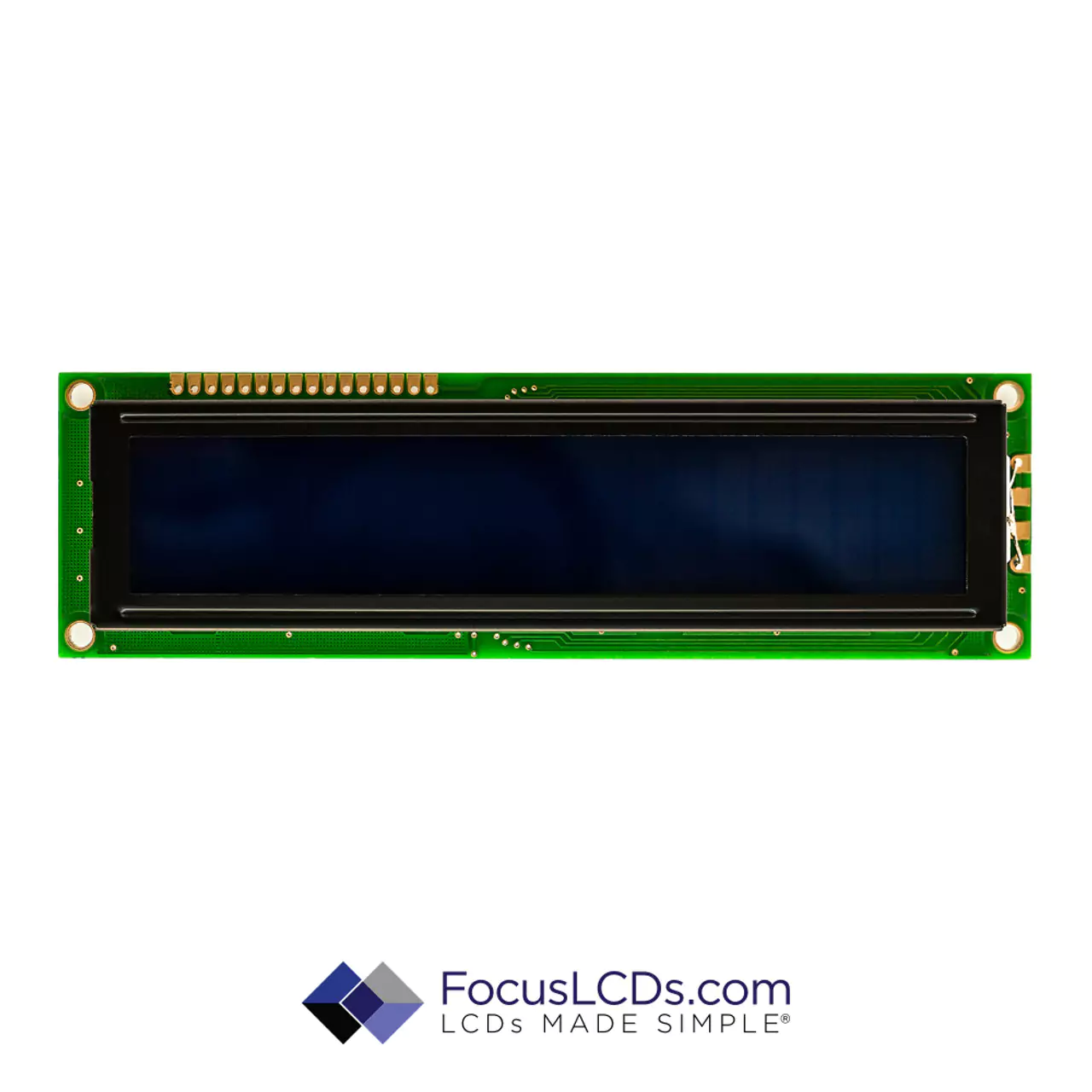

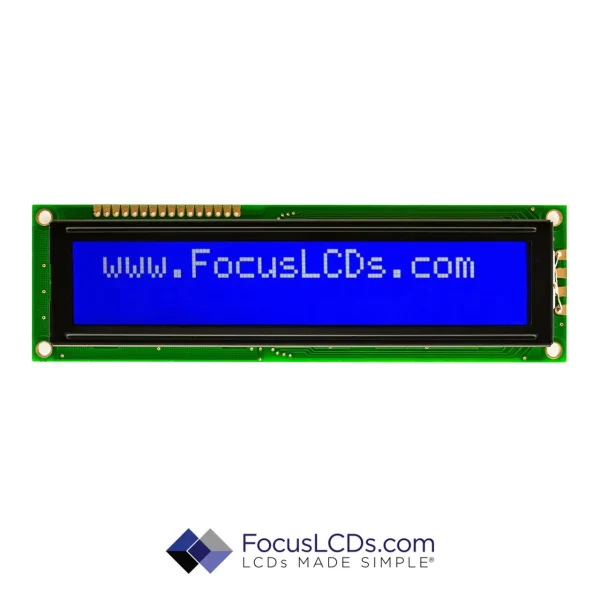

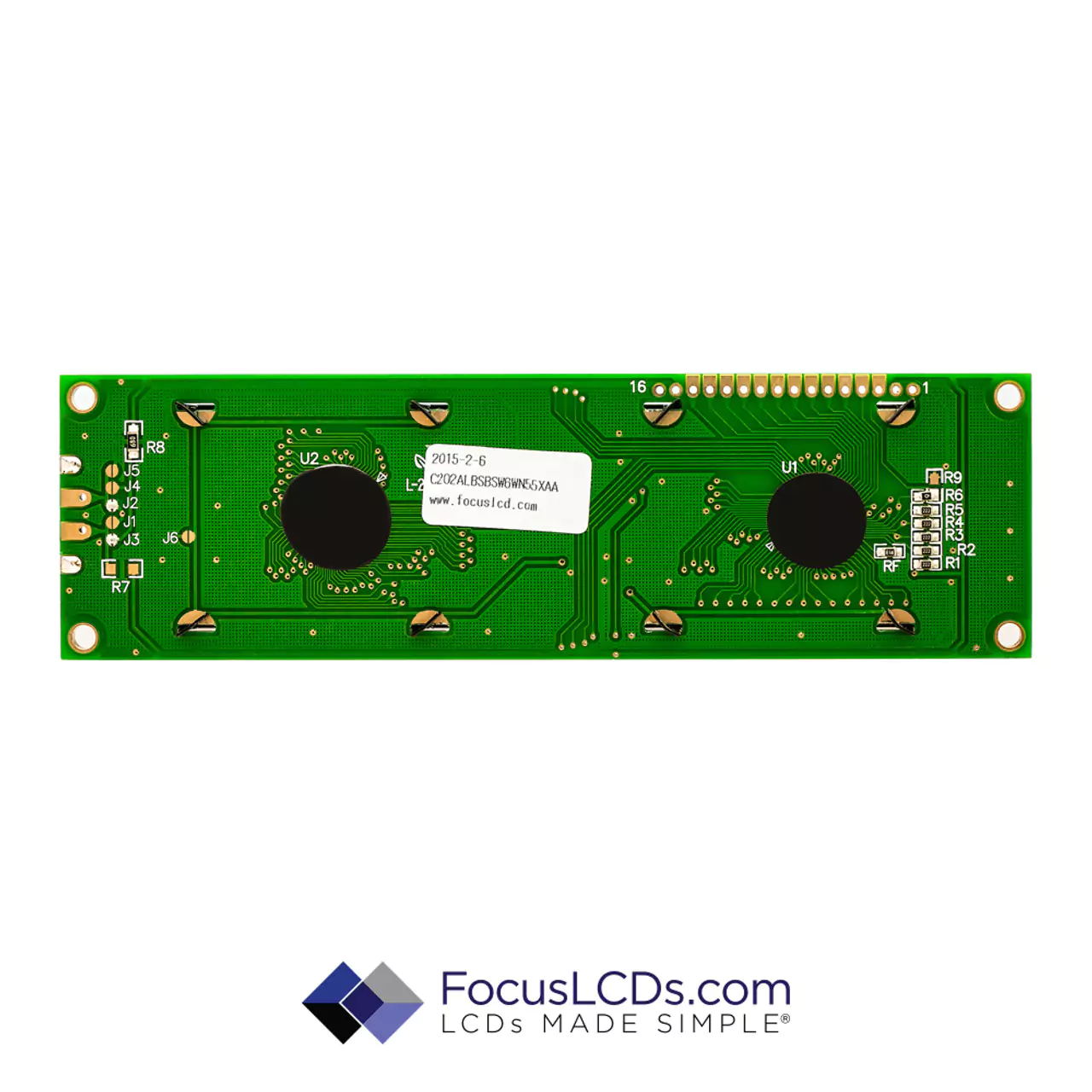

20x2 Character LCD Display | SC# C202ALBSBSW6WN55XAA FOR NEW ORDERS, SEE ITEM # C202C-BW-LW65
AKA: 2002 Alphanumeric Display Module
Module size: 146.0 x 43.0 mm
STN, Blue background, White Edge lit, bottom (or 6:00) viewing angle, Transmissive (negative), RoHS Compliant. Available in both 3V or 5V power supply options. This 20x2 has a wide temperature range: -20°Celcius to +70°Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit).
STN (Super-twisted Nematic) provides a sharper image and wider viewing angle than TN (Twisted Nematic). The cost for STN if approximately 5% higher than TN. STN is an ideal fluid for outdoor products that need to be read at various angles. The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. When you have a need for a bright backlight with lower power drain, transmissive is a good choice.
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
Call between 7:30am to 4:30pm (MST) to talk to a real live human who will not send you to three different departments or to someone’s voicemail.
Call now for LIVE support at (480) 503-4295 OR Send us a message
Contrast Adjust for 20x2 Character LCD
Typical LED Backlight Connections for 20x2 Character LCD
Typical LED Backlight Connections for PWM Dimming for 20x2 Character LCD
