Product Description

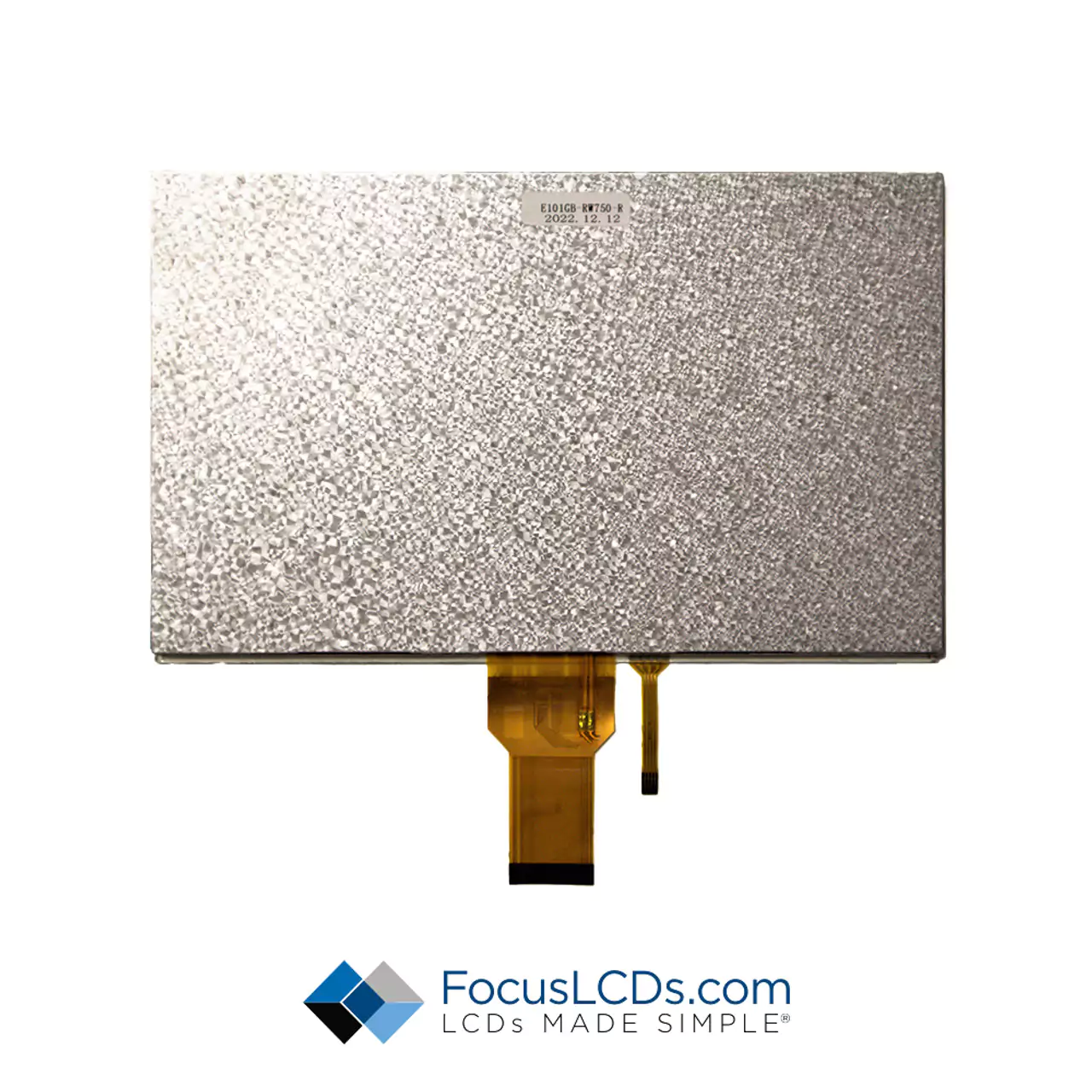

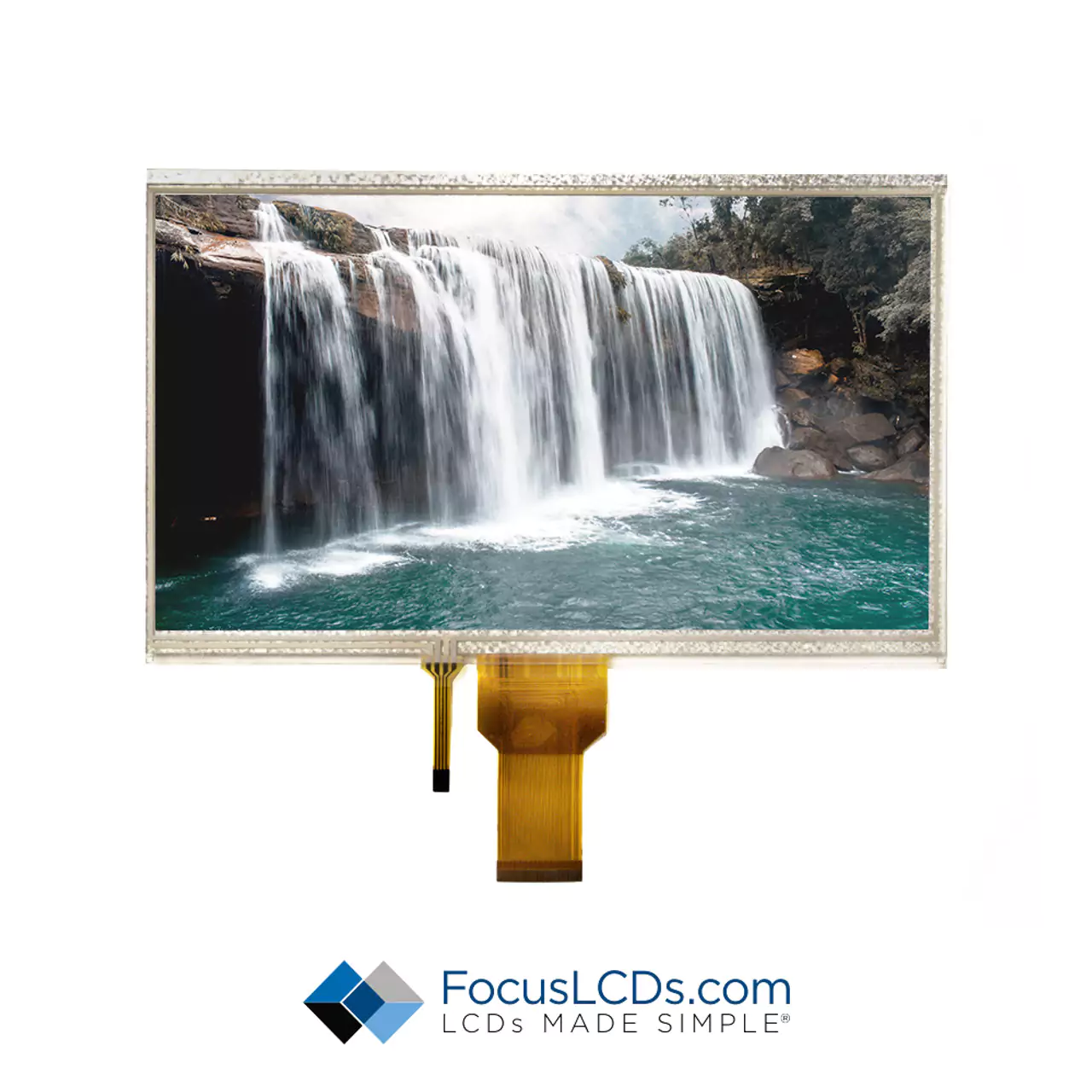

10.1-inch TFT Display | SC# E101GB-RW750-R
DOCUMENTATION
Module size: 235 x 143 x 6.45 mm
1024 x RGB x 600 Dots
Driver: HX8282A01
10.1" TFT: 1024x600 (235x143), RGB Interface, Bottom View, Wide Temp (-20°- 70° operating/-30°- 80° storage), Transmissive, Resistive touch panel, 750 Nits, RoHS Compliant.
Controller #: HX8282A01.
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD.
The Resistive touch panel senses a touch by measuring where contact is made on the glass. It is independent of temperature and humidity and simple to integrate independent of a separate controller chip.
ACCESSORIES
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
