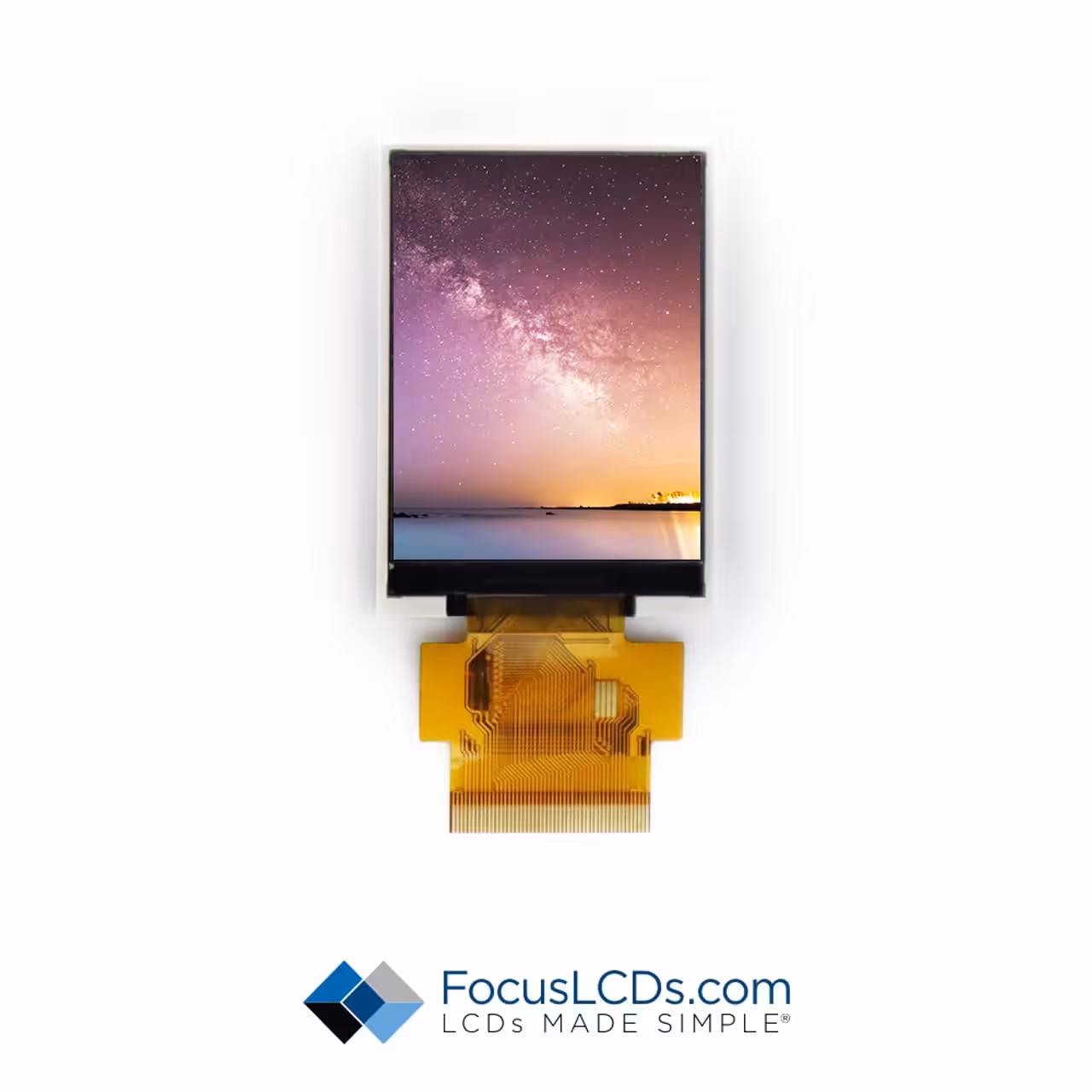

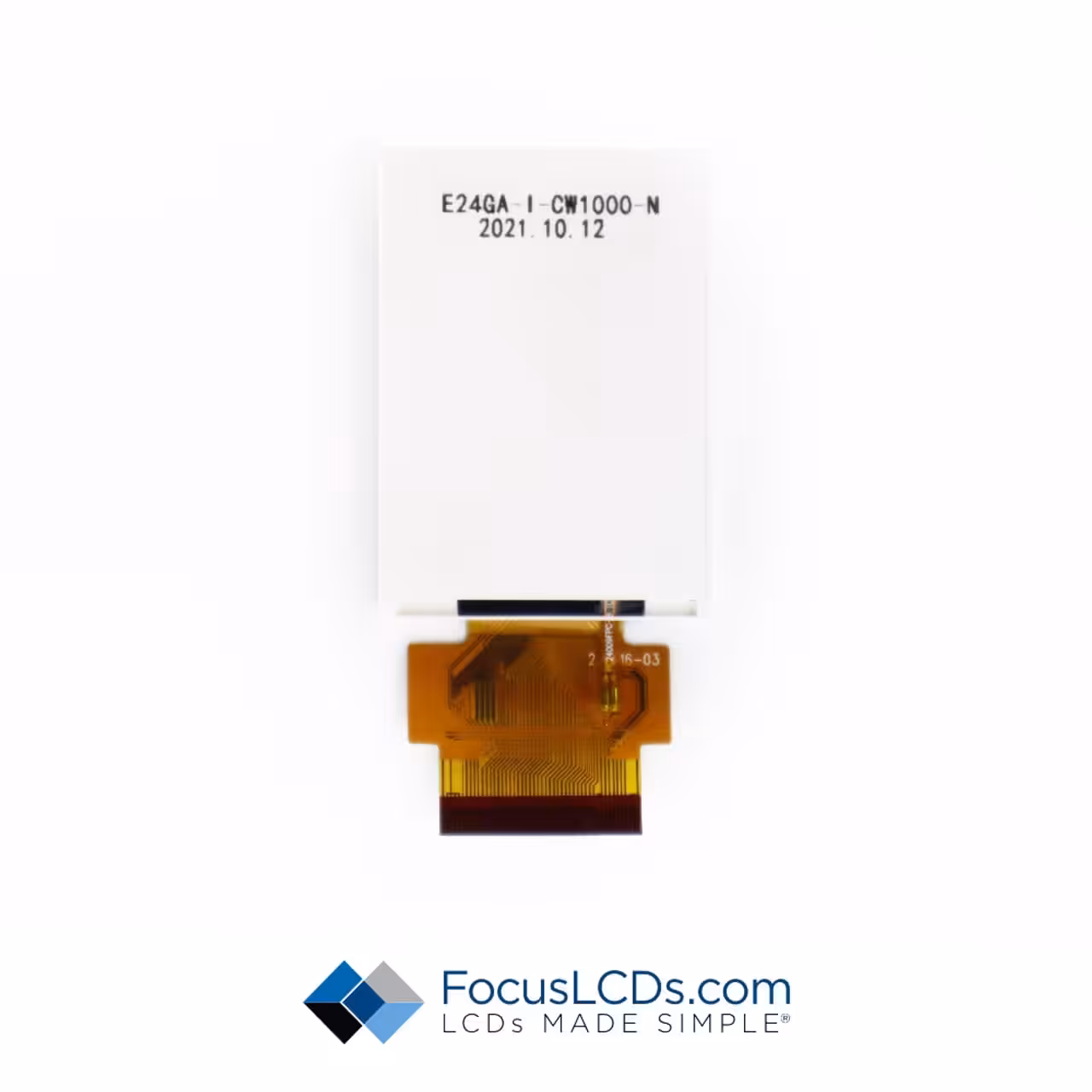

2.4-inch TFT Display | SC# E24GA-I-CW1000-N
Module size: 42.72 x 60.06 x 2.15 mm
240 x RGB x 320 Dots
2.4" TFT: 240x320 (42.72x60.06), MCU Interface, All View, Wide Temp (-20°- 70° operating/-30°- 80° storage), IPS, No touch panel, 1000 nits, RoHS Compliant. Controller: ST7789V2
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
