    E35RC-FW115-N

    MSRP:
    Now: $96.48
    (You save )
    Availability:
    Ships within 1-2 business days.

    Adding to cart… category.add_cart_announcement
    • Overview

    Product Description

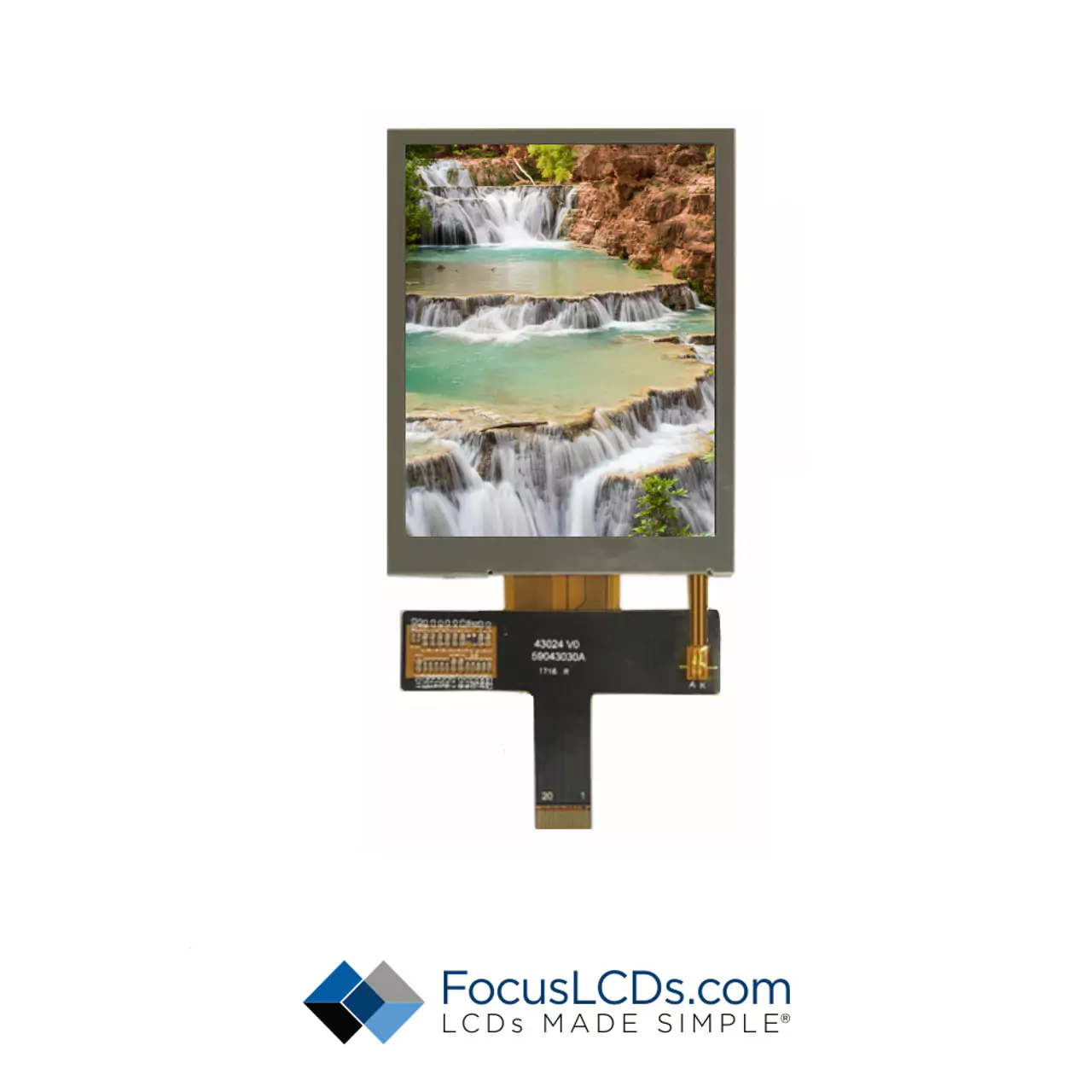

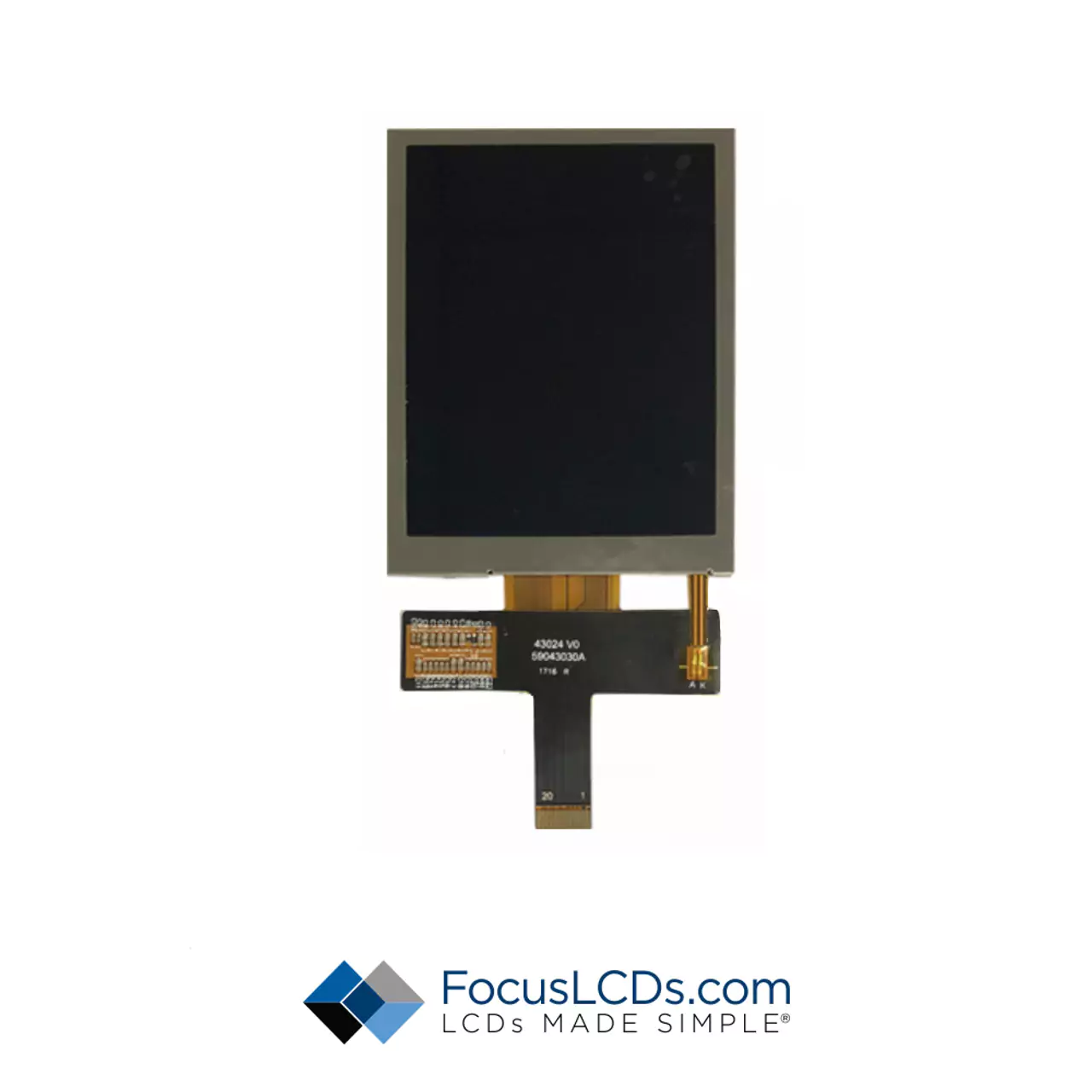

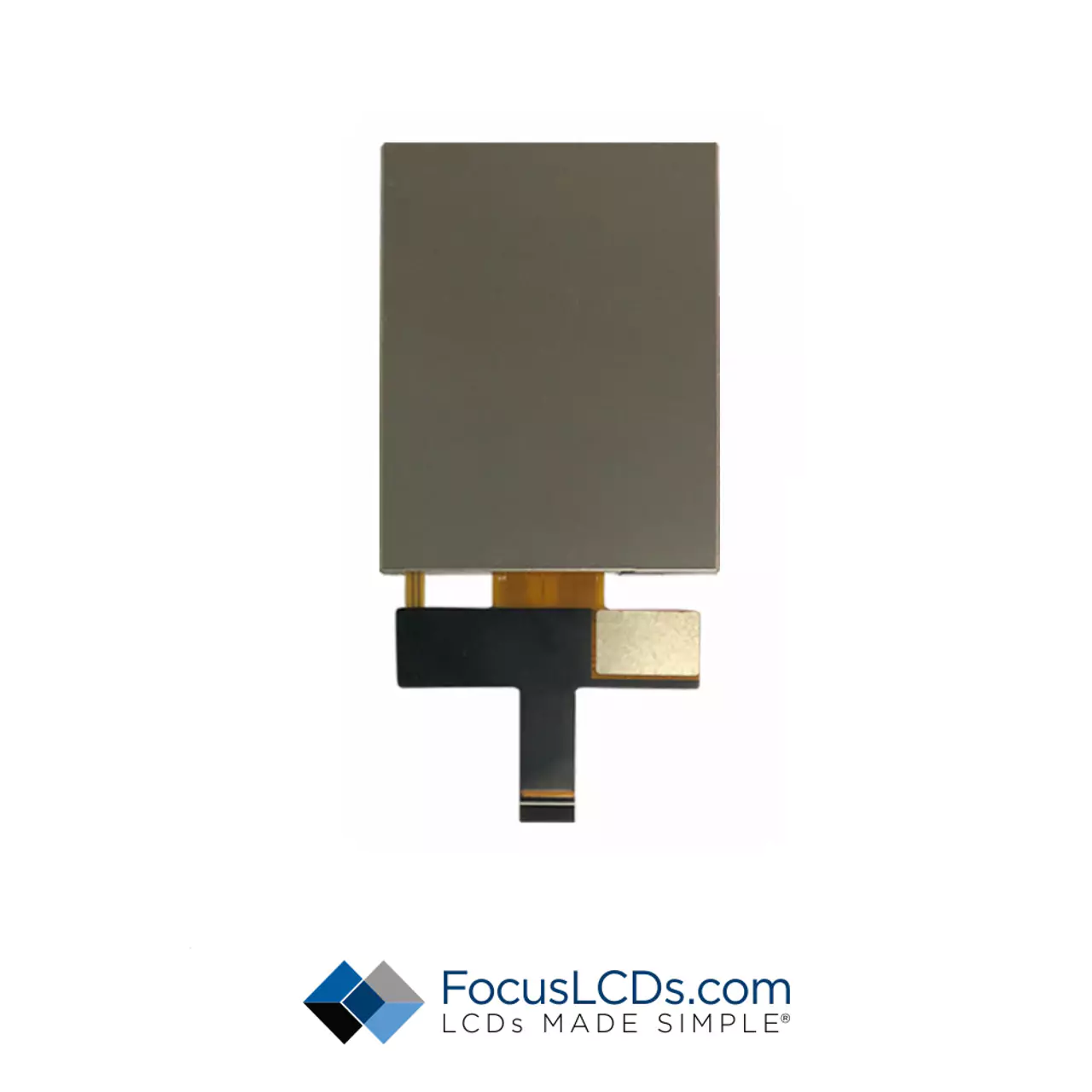

    3.5-inch TFT Display   |  SC# E35RC-FW115-N

    Module size: 64.00 x 85.00 mm

    480 x RGB x 640 Dots

    Driver: HX8363-A

    MIPI/DSI, Wide View, Wide Temp (-20°- 70° operating/-30°- 80° storage), Transflective, No touch panel, 115 nits, RoHS Compliant.

    The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.

    DOCUMENTATION

    • 3.5" TFT Datasheet
    • HX8363-A Controller
    • RoHS
    • REACH
    • CMRT
      MIPI/DSI
      Source Code
    • MIPI/DSI CODE



    ACCESSORIES

    Focus LCDs can provide many accessories to go with your display.  If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.  Get in touch with a team member today to accessorize your display!

    WARRANTY

    Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.

    CONTACT US

    Call between 7:30am to 4:30pm (MST) to talk to a real live human who will not send you to three different departments or to someone’s voicemail.

    Call now for LIVE support at (480) 503-4295   OR   Send us a message

    Product Videos

    Custom Field

    Diagonal Size 3.5 Inches
    Module Size 64x85mm
    Viewing Area 53.57x71.42mm
    Resolution 480x640
    Display Type Other
    Brightness 100-299 Nits
    Touch Panel None
    CTP Controller N/A
    Operating Temperature -20C to 70C
    Specifications /content/E35RC-FW115-N_Spec.pdf
