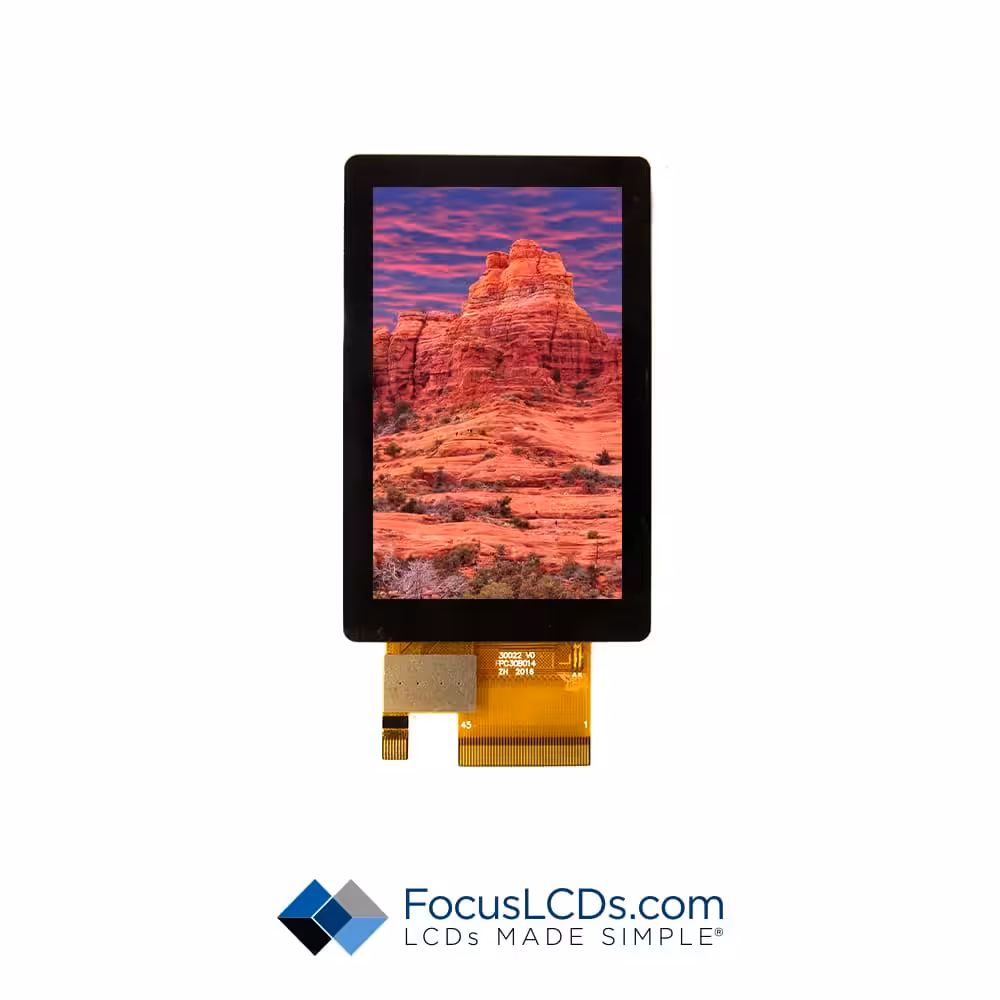

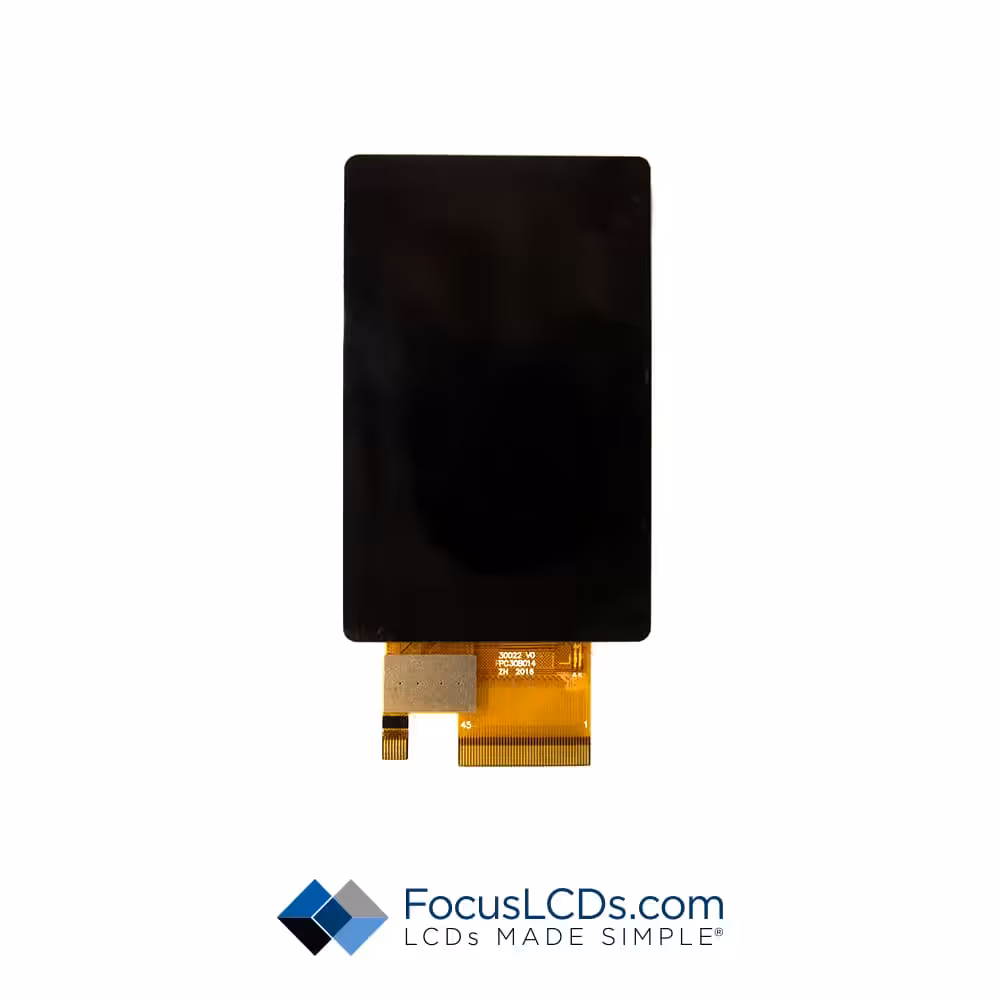

3.0-inch TFT Display
$58.14
13 in stock
3.0-inch TFT Display
IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.
RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.
SPI Interface: Our SPI Interface TFT LCDs provide a fast and efficient communication channel, ideal for low-power and compact devices such as wearables, IoT gadgets, and portable electronics. These displays enable quick updates and seamless data transfer, ensuring a responsive and smooth user experience.
FWVGA Resolution: Our FWVGA (Full Wide Video Graphics Array) TFT LCDs feature a resolution of 854x480 pixels, providing a slightly wider aspect ratio compared to WVGA displays. These versatile screens are perfect for portable devices and small screens, such as entry-level smartphones and portable navigation systems, where a balance between image quality and resource efficiency is essential.
Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.
Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.
Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.
RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
