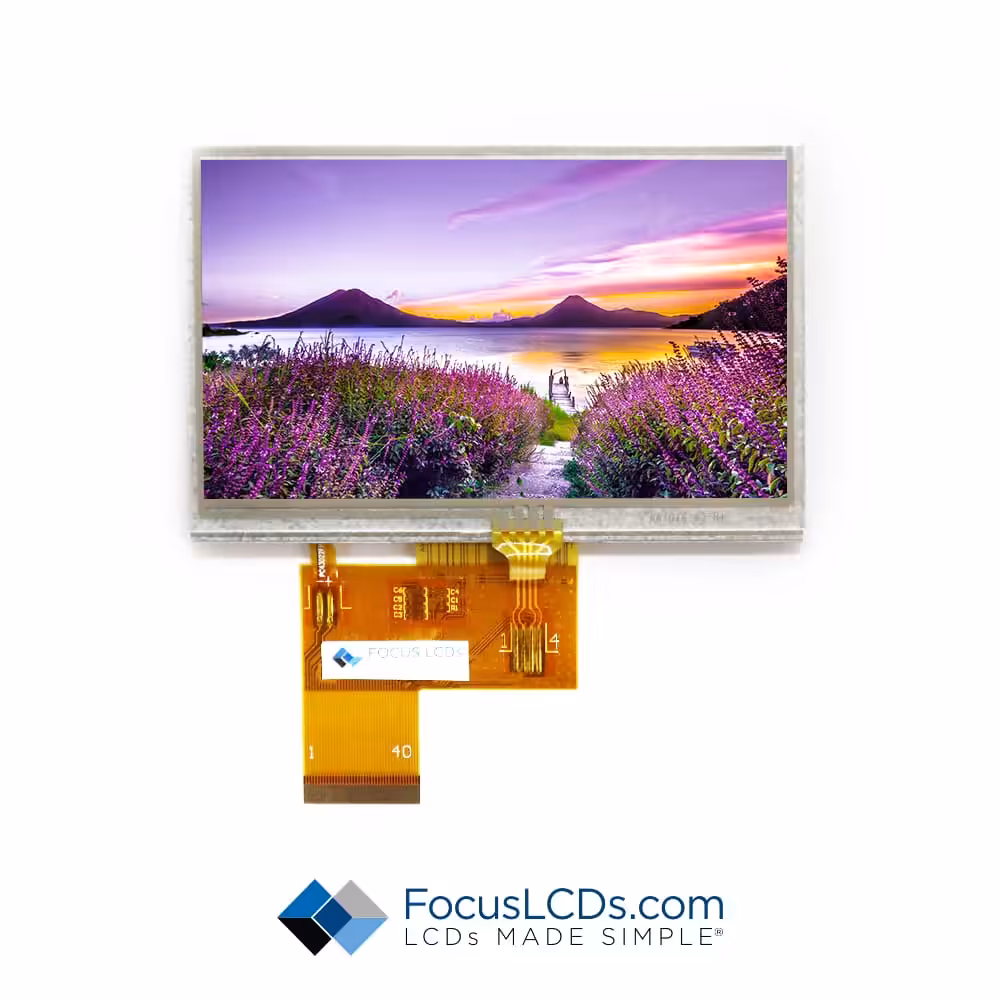

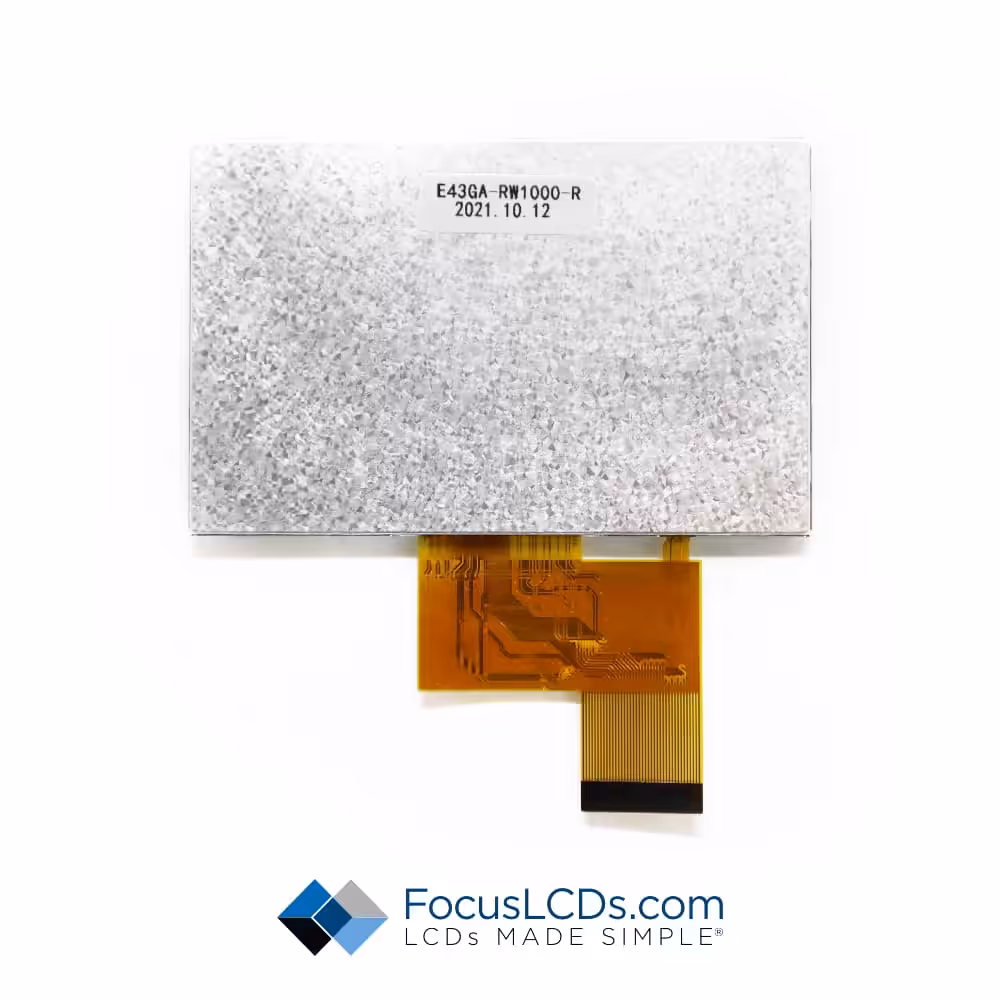

4.3-inch TFT Display | SC# E43GA-RW1000-R
Module size: 105.5 x 67.2 x 4.1 mm
480 x RGB x 272 Dots
4.3" TFT: 480x272 (105.5x67.2), RGB Interface, Top View, Wide Temp (-20°- 70° operating/-30°- 80° storage), Transmissive, Resistive Touch Panel, 1000 Nits, RoHS Compliant. Controller #: ST7282-G4.
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD.
The Resistive Touch Panel senses a touch by measuring where contact is made on the glass. It is independent of temperature and humidity and simple to integrate independent of a separate controller chip.
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
