    E50GB-RW800-R

    MSRP:
    Now: $39.12
    (You save )

    Adding to cart… category.add_cart_announcement
    • Overview

    Product Description

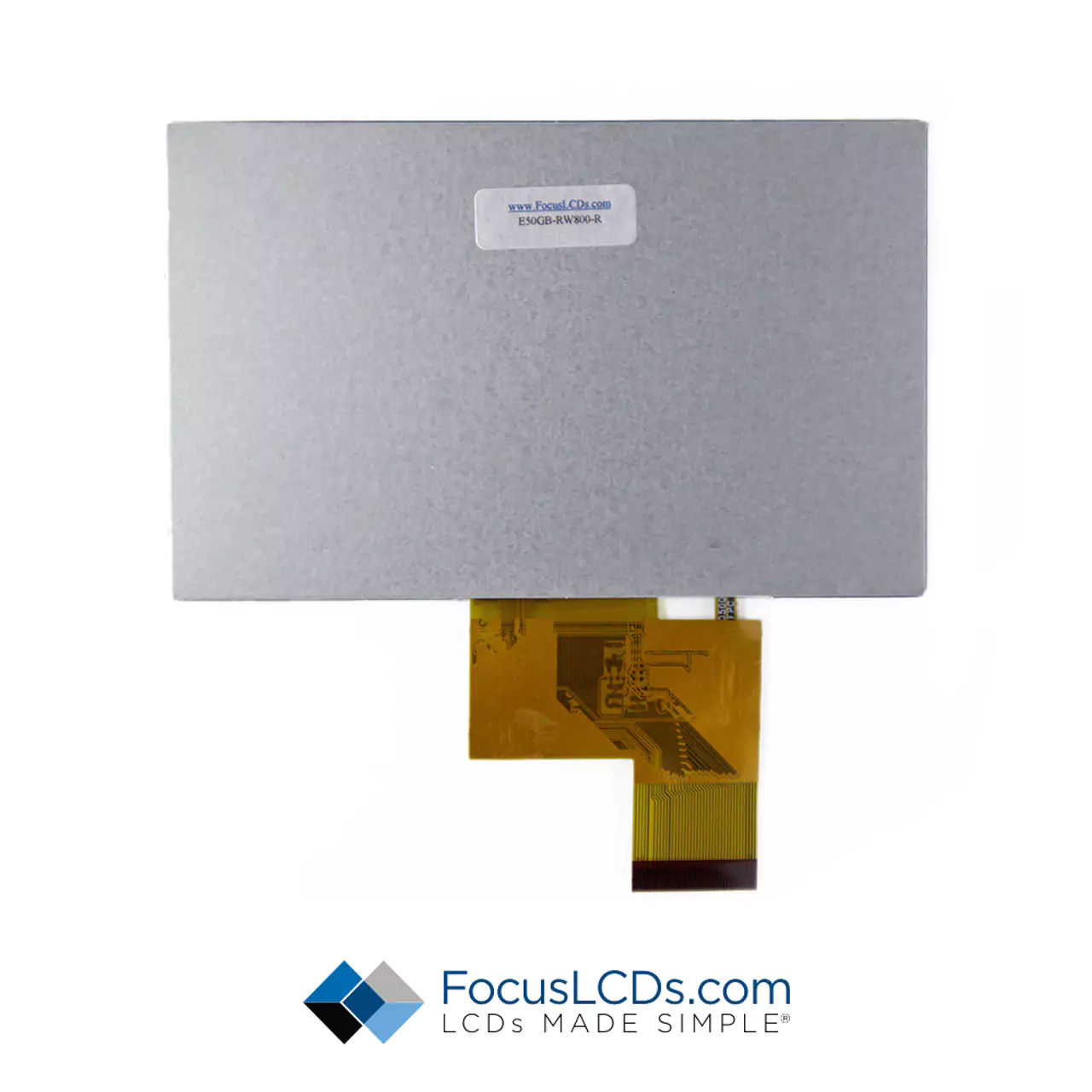

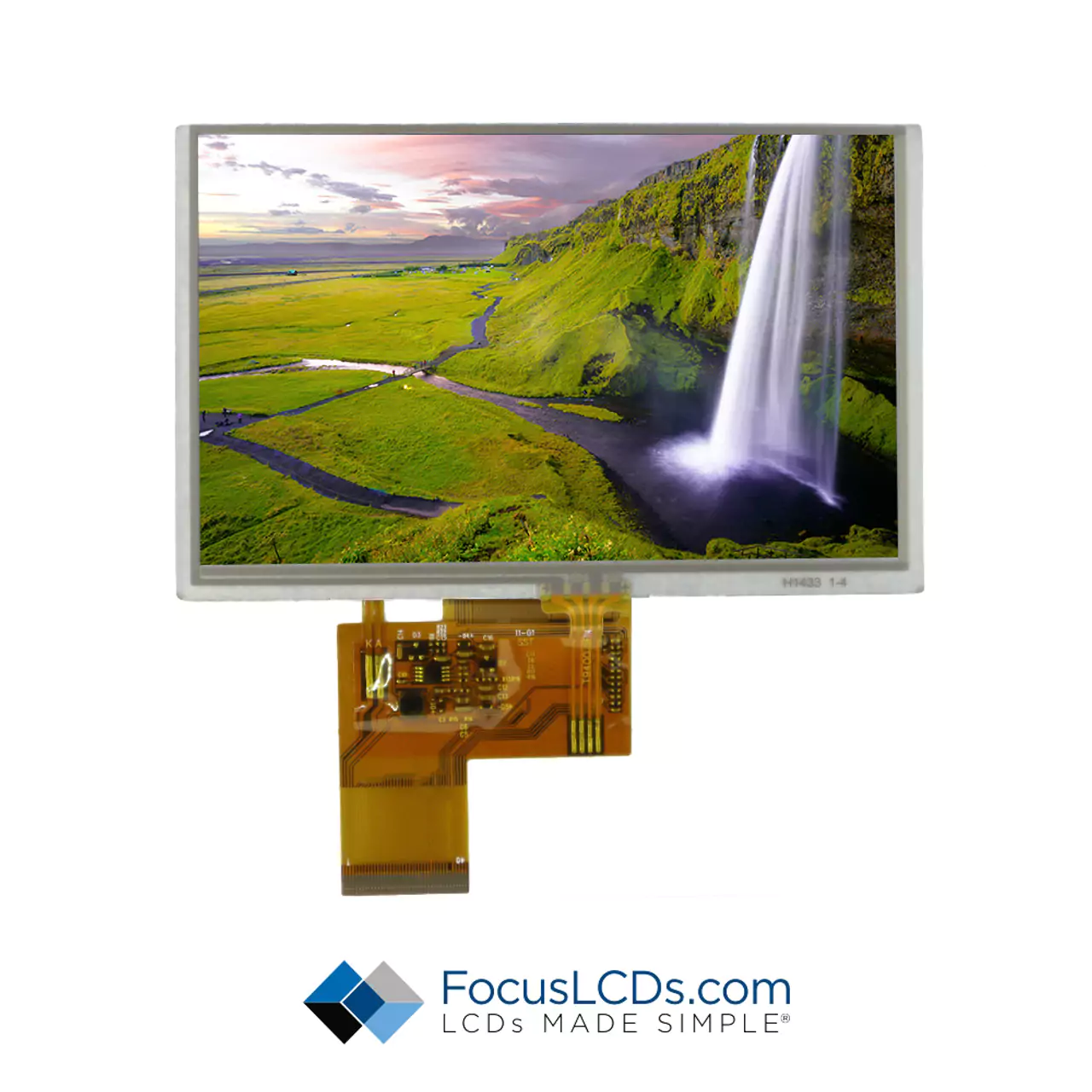

    5.0-inch TFT Display   |  SC# E50GB-RW800-R

    Module size: 120.7x75.8mm

    800 x RGB x 480 Dots

    Driver: ILI6126 + ILI5960

    5.0" TFT: 800x480 (120.7x75.8mm), RGB Interface, Top View, Wide Temp (-20°- 70° operating/-30°- 80° storage), Transmissive, Resistive touch panel, 800 nits, RoHS Compliant. Controller: ILI6126+ILI5960

    The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD.

    The Resistive touch panel senses a touch by measuring where contact is made on the glass. It is independent of temperature and humidity and simple to integrate independent of a separate controller chip.

    DOCUMENTATION

    • 5.0" TFT Datasheet
    • ILI6126 / ILI5960
    • GT911 CTP Driver
    • RoHS
    • REACH
    • CMRT

    ACCESSORIES

    Focus LCDs can provide many accessories to go with your display.  If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.  Get in touch with a team member today to accessorize your display!

    WARRANTY

    Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.

    CONTACT US

    Call between 7:30am to 4:30pm (MST) to talk to a real live human who will not send you to three different departments or to someone’s voicemail.

    Call now for LIVE support at (480) 503-4295   OR   Send us a message

    Product Videos

    Custom Field

    Diagonal Size 5 Inches
    Module Size 120.7x75.8mm
    Viewing Area 108x64.8mm
    Resolution 800x480
    Display Type TN
    Brightness 800 Nits
    Touch Panel Resistive
    Controller ILI6126+ILI5960
    Operating Temperature -20C to 70C
    Specifications https://focuslcds.com/content/E50GB-RW800-R_Spec.pdf
