    E26RE-RW300-N

    MSRP:
    Now: $21.09
    (You save )
    Availability:
    Ships within 1-2 business days.

    Adding to cart… category.add_cart_announcement
    • Overview

    Product Description

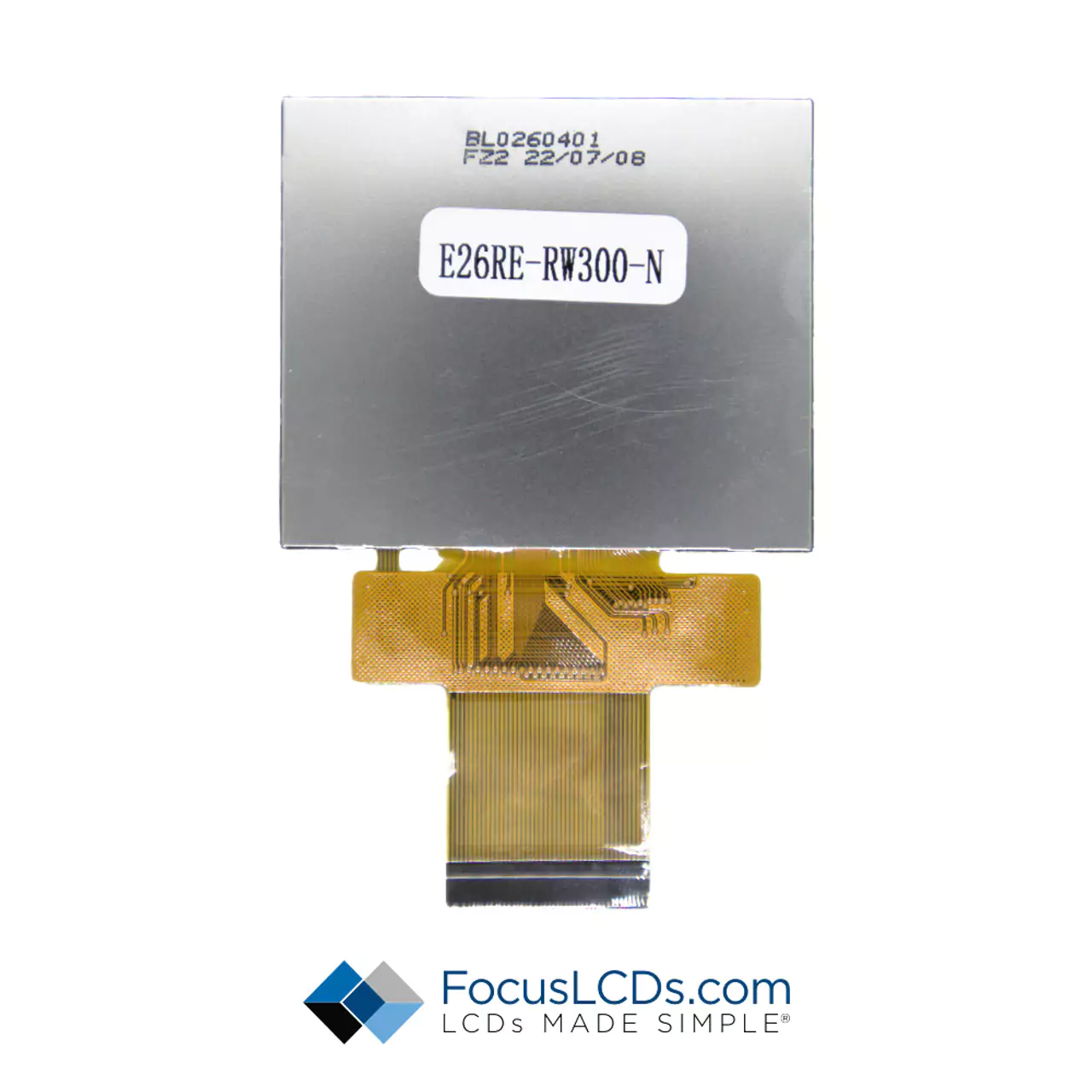

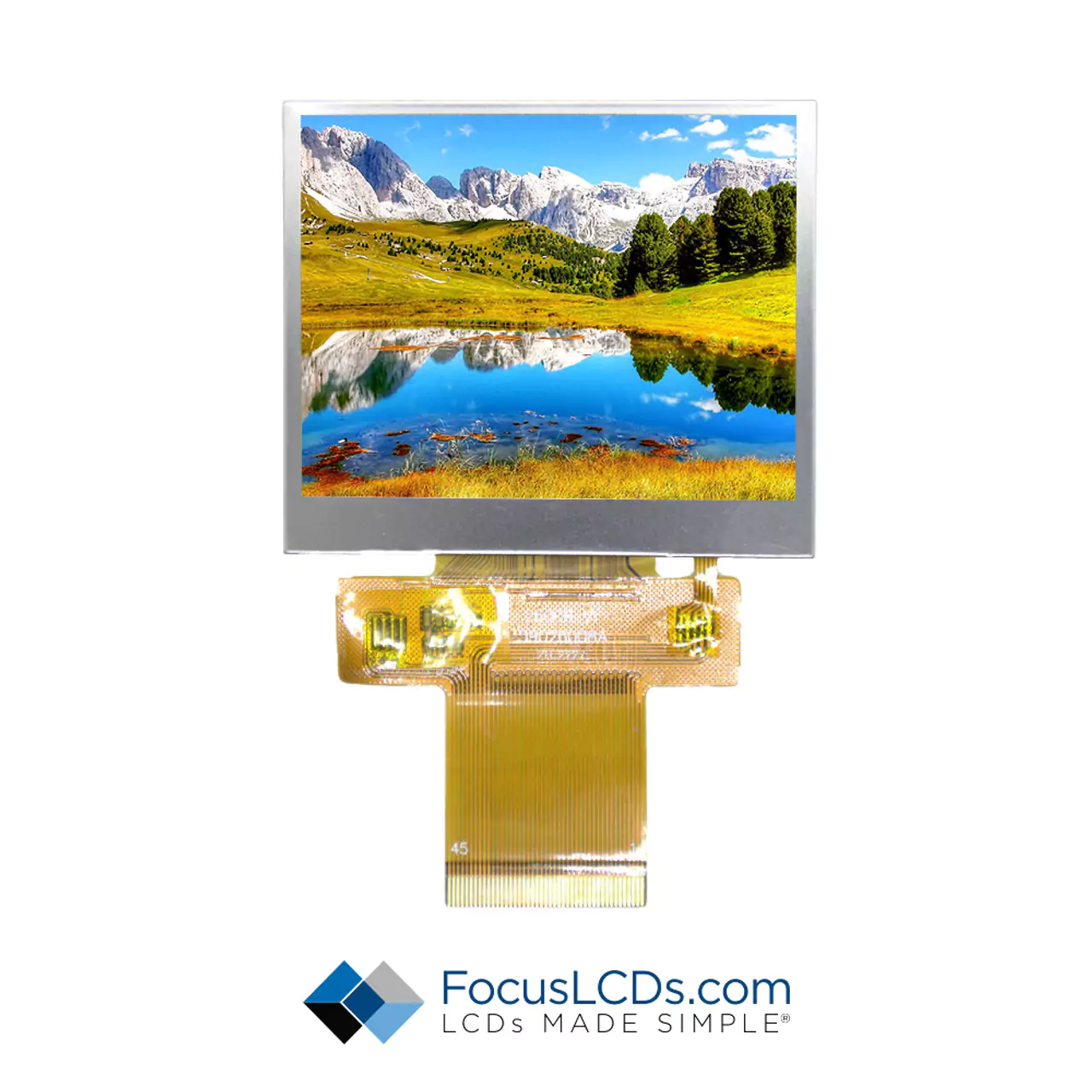

    2.6-inch TFT Display   |  SC# E26RE-RW300-N

    Module size: 60.30 x 51.15 mm

    320 x RGB x 240 Dots

    Driver: ILI9342C

    2.6" TFT: 320x240 (51.5x60.3), RGB Interface, Top View, Wide Temp (-20°- 70° operating/-30°- 80° storage), Transmissive,  No touch panel, 300 Nits, RoHS Compliant.

    The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD.

    DOCUMENTATION

    • 2.6" TFT Datasheet
    • ILI9342C Controller
    • RoHS
    • REACH
    • CMRT



      MCU RGB SPI
     Schematics
    • 8-bit Schematic
    • 9-bit Schematic
    • 16-bit Schematic
    • 18-bit Schematic
    • 3SPI+16Bit Schematic
    • 3SPI+18Bit Schematic
    • 4SPI+16Bit Schematic
    • 4SPI+18Bit Schematic
    • 3SPI Schematic
    • 4SPI Schematic
     Source Code
    • 8/16-bit CODE
    • 3SPI+16BIT CODE
    • 3SPI+18BIT CODE
    • 4SPI+16BIT CODE
    • 4SPI+18BIT CODE
    • 3SPI + MCU CODE
    • 4SPI + MCU CODE



     ACCESSORIES

    Focus LCDs can provide many accessories to go with your display.  If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.  Get in touch with a team member today to accessorize your display!

    WARRANTY

    Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.

    CONTACT US

    Call between 7:30am to 4:30pm (MST) to talk to a real live human who will not send you to three different departments or to someone’s voicemail.

    Call now for LIVE support at (480) 503-4295   OR   Send us a message

    Product Videos

    Custom Field

    Diagonal Size 1-2.99 Inches
    Module Size 60.3x51.15mm
    Viewing Area 39.6x52.8mmResolution=320x240"Display Type=TN"Brightness=300-499 Nits"Touch Panel=None"CTP Controller=None"Operating Temperature=-20C to 70C"Specifications"Interface=16/18 BitRGB, 8/9/16/18 Bit MCU
