  • Home
  • TFT LCD
  • E35GF-RW350-N
  • E35GF-RW350-N
  • E35GF-RW350-N
  • E35GF-RW350-N E35GF-RW350-N

    E35GF-RW350-N

    MSRP:
    Now: $34.20
    (You save )
    Availability:
    Ships within 1-2 business days.

    Adding to cart… category.add_cart_announcement
    • Overview

    Product Description

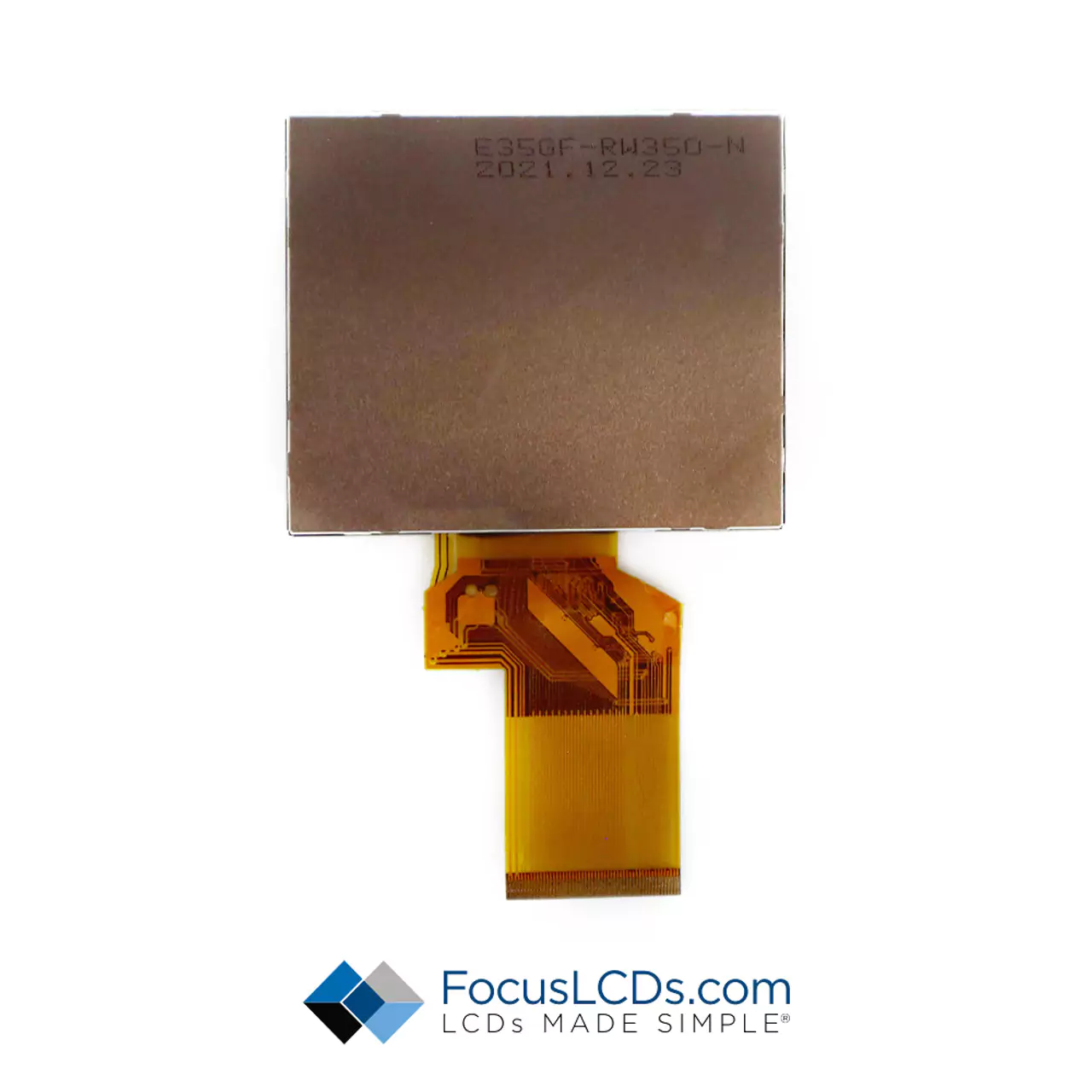

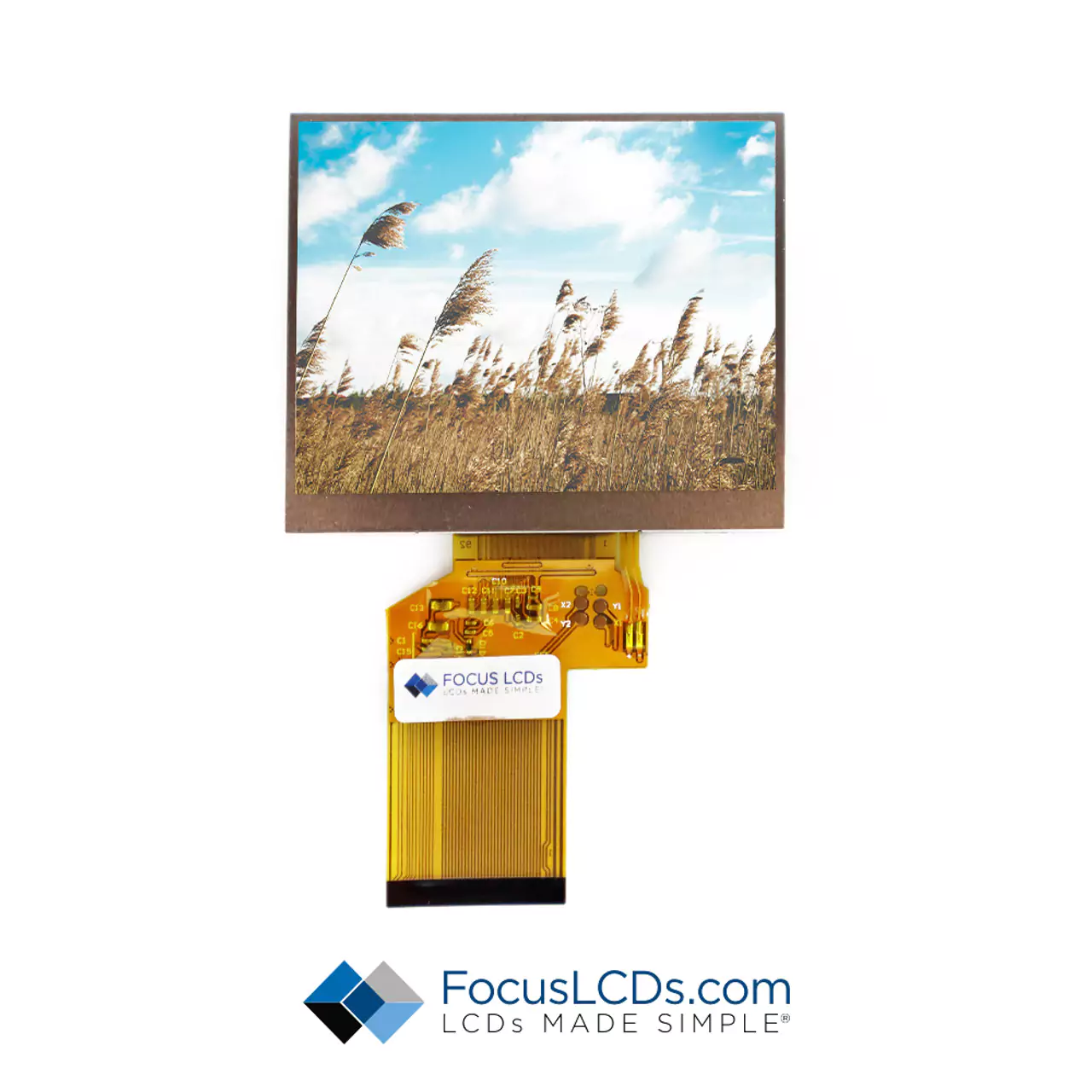

    3.5-inch TFT Display   |  SC# E35GF-RW350-N

    DOCUMENTATION

    • 3.5" TFT Datasheet
    • HX8238 Controller
    • RoHS
    • REACH
    • CMRT

    Module size: 76.9 x 63.9 mm

    320 x RGB x 240 Dots

    Driver: HX8238

    3.5" TFT: 320x240 (76.9x63.9), RGB Interface, Top View, Wide Temp (-20°- 70° operating/-30°- 80° storage), Transmissive,  No touch panel, 350 Nits, RoHS Compliant. Controller #: HX8238.

    The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.

    ACCESSORIES

    Focus LCDs can provide many accessories to go with your display.  If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.  Get in touch with a team member today to accessorize your display!

    WARRANTY

    Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.

    CONTACT US

    Call between 7:30am to 4:30pm (MST) to talk to a real live human who will not send you to three different departments or to someone’s voicemail.

    Call now for LIVE support at (480) 503-4295   OR   Send us a message

    Product Videos

    Custom Field

    Diagonal Size 3.5 Inches
    Module Size 76.9x63.9mm
    Viewing Area 72.88x54.96
    Resolution 320x240
    Display Type TN
    Brightness 350 Nits
    Touch Panel None
    CTP Controller HX8238
    Operating Temperature -20C to 70C
    Specifications https://focuslcds.com/content/E35GF-RW350-N_SFTC.pdf
