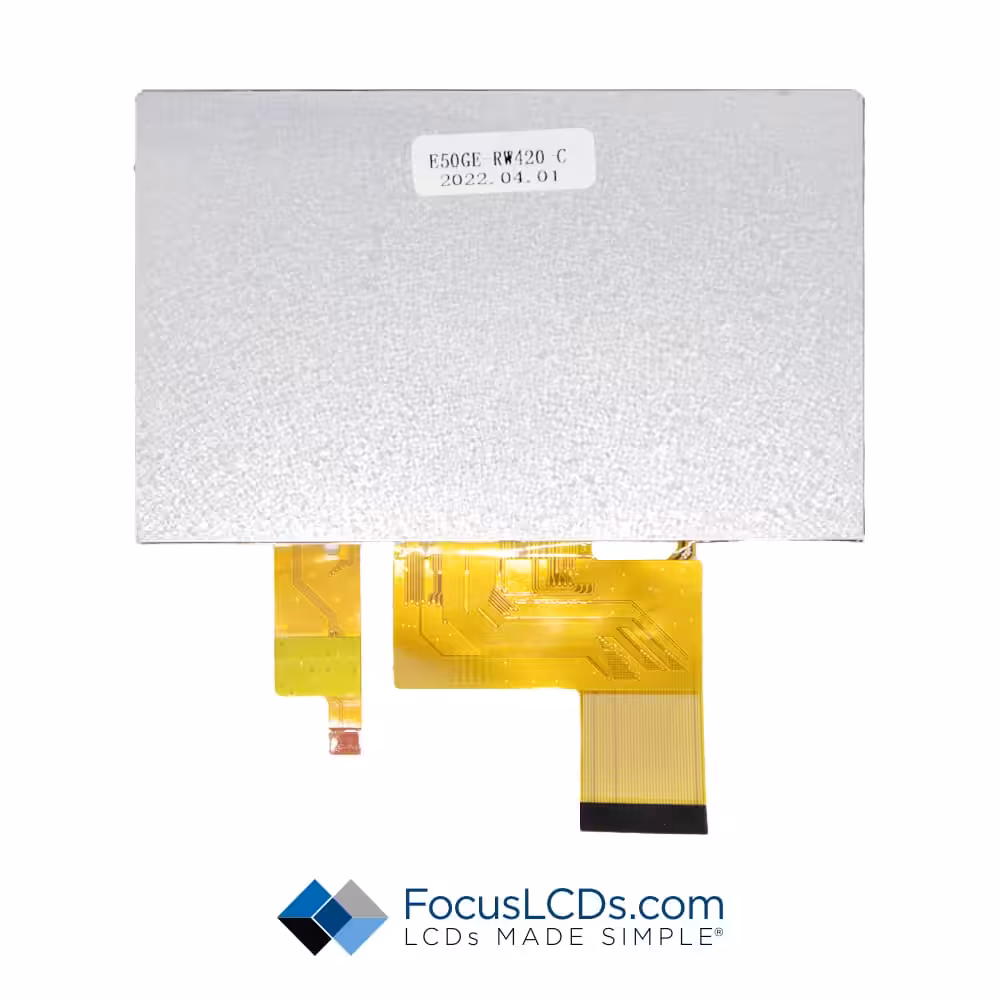

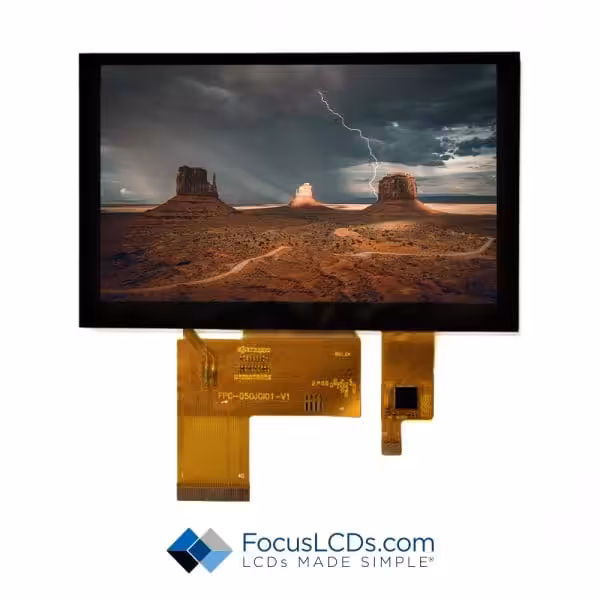

5.0-inch TFT Display | SC# E50GE-I-RW420-C
Module size: 120.7 x 76.3 x 5.25mm
800 x RGB x 480 Dots
5.0" TFT: 800x480 (120.7x76.3), RGB Interface, All View, Wide Temp (-20°- 70° operating/-30°- 80° storage), IPS, Capacitive touch panel, 420 Nits, RoHS Compliant. Controller #: ST7262 CTP Controller#: GT911
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD.
The Capacitive touch panel is activated with anything containing an inductive load such as a finger or stylus. It allows for multi-touch options. When using the capacitive touch screen, the display needs a separate controller to interface with the touch panel. The display for capacitive touch is brighter since the touch panel is transparent.
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
