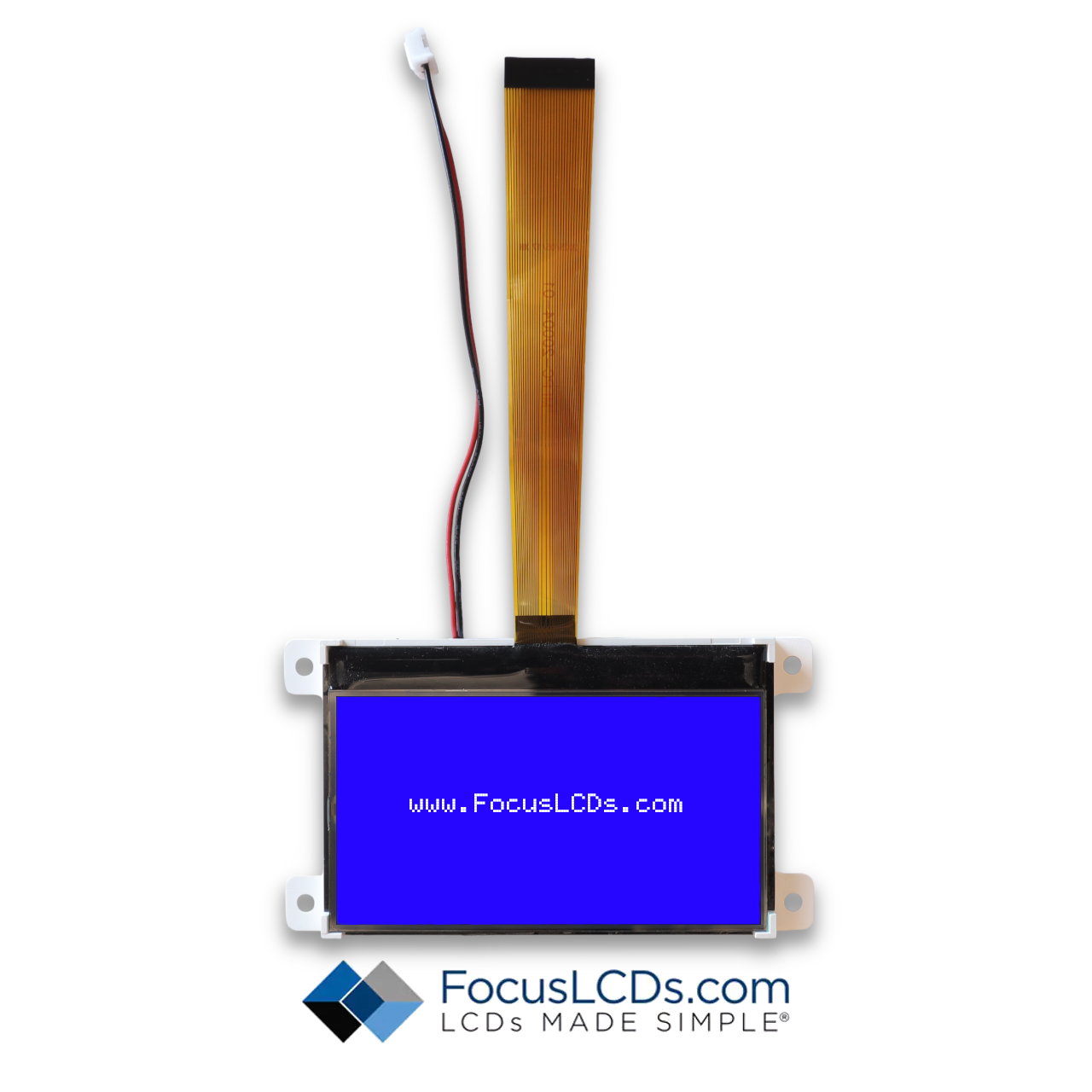

G12864A-BW-LW63

$15.46

172 in stock

SKU: G12864A-BW-LW63
AttributeValue
Module Size89.70 x 49.80mm
Viewing area69.00 x 36.50mm
Resolution128 x 64
Backlight ColorWhite
Display TypeSTN Blue
PolarizerTransmissive
Operating Temperature-20C to 70C
InterfaceParallel, SPI

Documentation

128x64 Graphic LCD Display

Specification SheetsQuality Documentation
G12864A-BW-LW63 Specification SheetRoHS
NT7534 Specification SheetREACH
 CMRT

Description

Graphic LCDs: Our Graphic LCDs are designed for diverse applications. These displays offer crisp, detailed visuals across a variety of resolutions, from compact to mid-sized screens. With versatile interface options including I2C, SPI, and Parallel, they ensure seamless integration. Ideal for everything from industrial controls to medical devices, our Graphic LCDs boast superior performance and durability. Choose our displays for reliable, high-quality visuals in any setting.

STN (Super-twisted Nematic) Blue: Our STN Blue Monochrome LCDs offer enhanced aesthetic appeal with a striking blue background, providing excellent contrast and readability. This makes them particularly suitable for sophisticated industrial equipment and high-end medical devices where display clarity and a modern look are essential. The blue hue offers a crisp, clear background for data display, ideal for precision instruments in industrial and medical applications.

Parallel Interface: Equipped with a Parallel Interface, these Monochrome LCDs facilitate rapid data transfer, essential for high-performance industrial and commercial applications. They are exemplary for use in robust industrial control systems, heavy mining equipment, or commercial appliances where direct and swift communication with the display enhances operational efficiency and user interaction.

SPI Interface: Featuring an SPI Interface, our Graphic LCDs are optimal for dynamic environments found in industrial automation or defense equipment. Compared to the I2C interface, the faster data transfer rate ensures real-time display updates, crucial for critical monitoring systems in manufacturing processes or in tactical military devices where rapid information relay is vital.

128x64 Resolution: Our 128x64 resolution Graphic LCDs offer a perfect balance between compact size and detailed display capability. This resolution is ideal for applications that require clear, concise imagery and text without the need for a large screen. The 128x64 resolution is particularly suitable for handheld devices and industrial controls, providing crisp visuals in a space-efficient design..

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Fully Customizable: While our Graphic LCDs come in a wide range of off-the-shelf solutions, at Focus LCDs, we pride ourselves on our extensive customization capabilities. Understanding that one size does not fit all, we offer tailor-made solutions to meet the specific needs of your application. Whether it's adapting dimensions, enhancing display characteristics, or integrating unique interface options, we specialize in crafting displays that align perfectly with your project's requirements. From modifying backlight colors to adjusting connector positions, we're equipped to make precise changes down to the smallest detail. With our comprehensive customization services, you can transform a standard product into a specialized component that not only fits your device but improves its overall functionality, reduces assembly overhead on the production line and enhances the user experience.

Development Accessories

Grapic Display Connectors


FH12-30S-0.5SH(55)

Graphic Connector

Backlight Mating Connectors


S2B-PH-K-S

Backlight Connector


B2B-PH-K-S

Backlight Connector


B2B-PH-SM4-TB

Backlight Connector


S2B-PH-SM4-TB

Backlight Connector


B2B-PH-SM4-TBT

Backlight Connector
