AM24RA-XS800-N

NPI
RND
NRND
EOL
Product Lifecycle Status: Recommended for New Designs

$45.64

8 in stock

Get Quote
SKU: AM24RA-XS800-N
Attribute Value
Diagonal Size 2.4 Inches
Module Size 38.72 x 51.56mm
Viewing Area 36.72 X 48.96mm
Resolution 450 x 600
Interface MCU/MIPI
Brightness 800 Nits
Touch Panel Type No Touch Panel
TFT Controller RM690B0
CTP Controller None
Operating Temperature -20C to 80C

Documentation

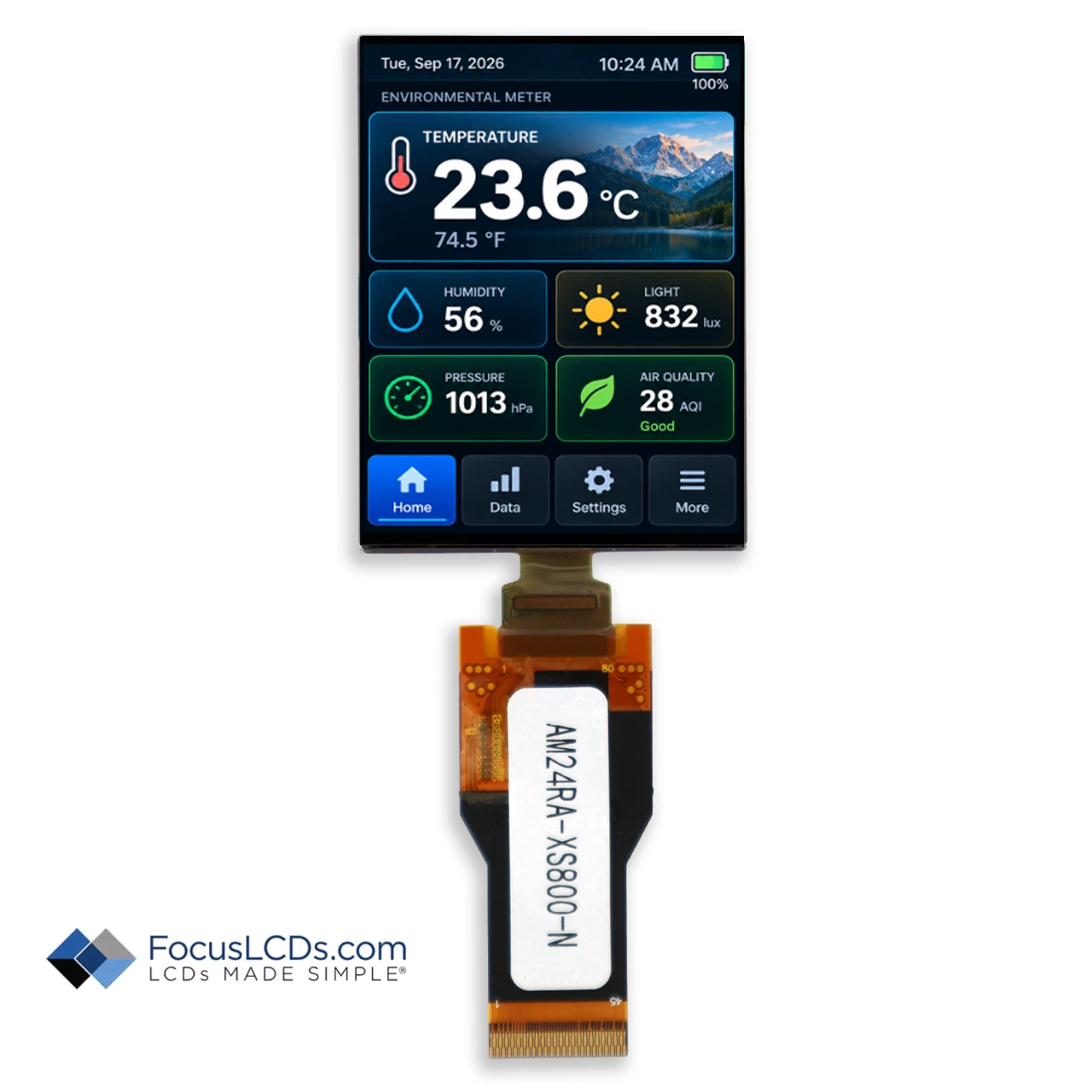

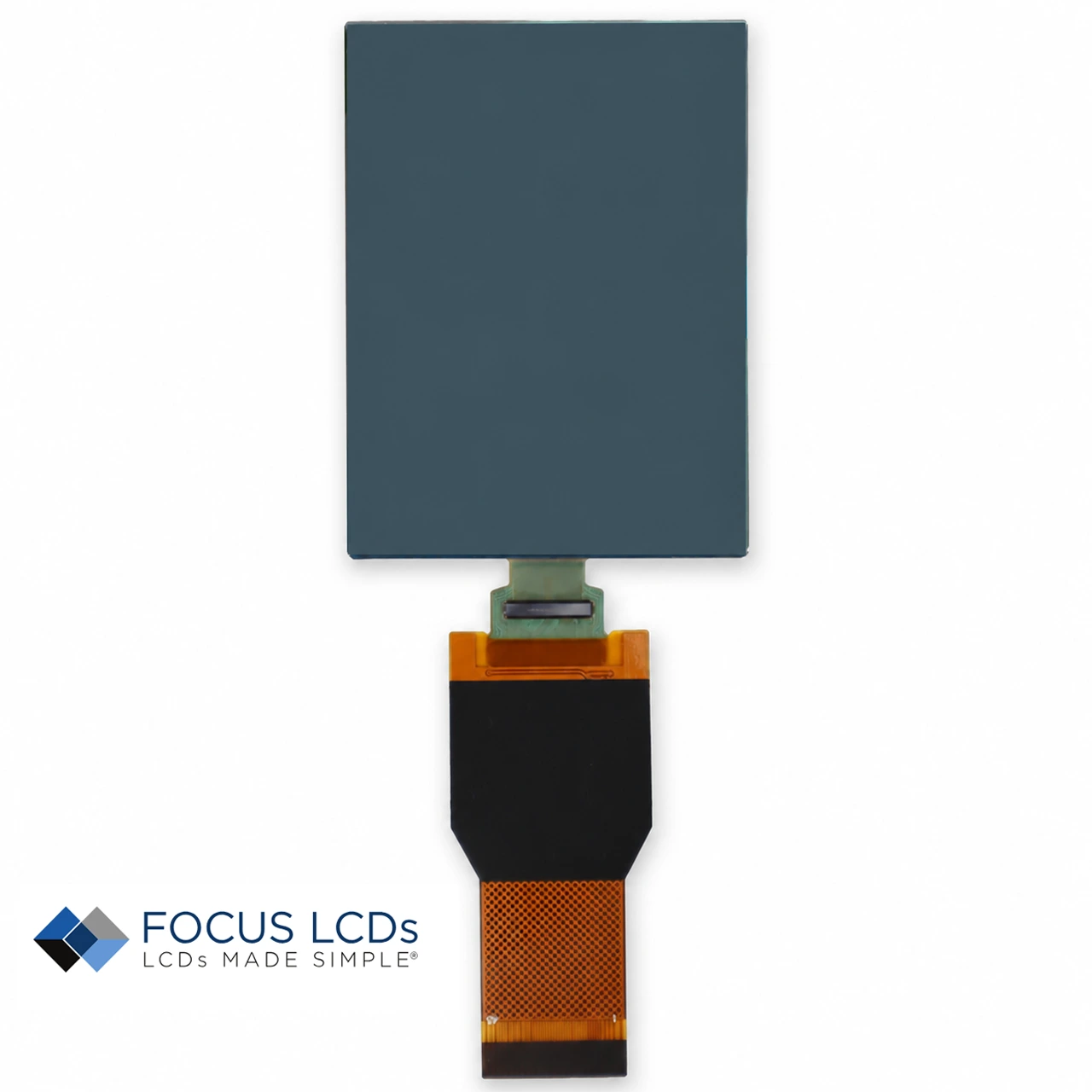

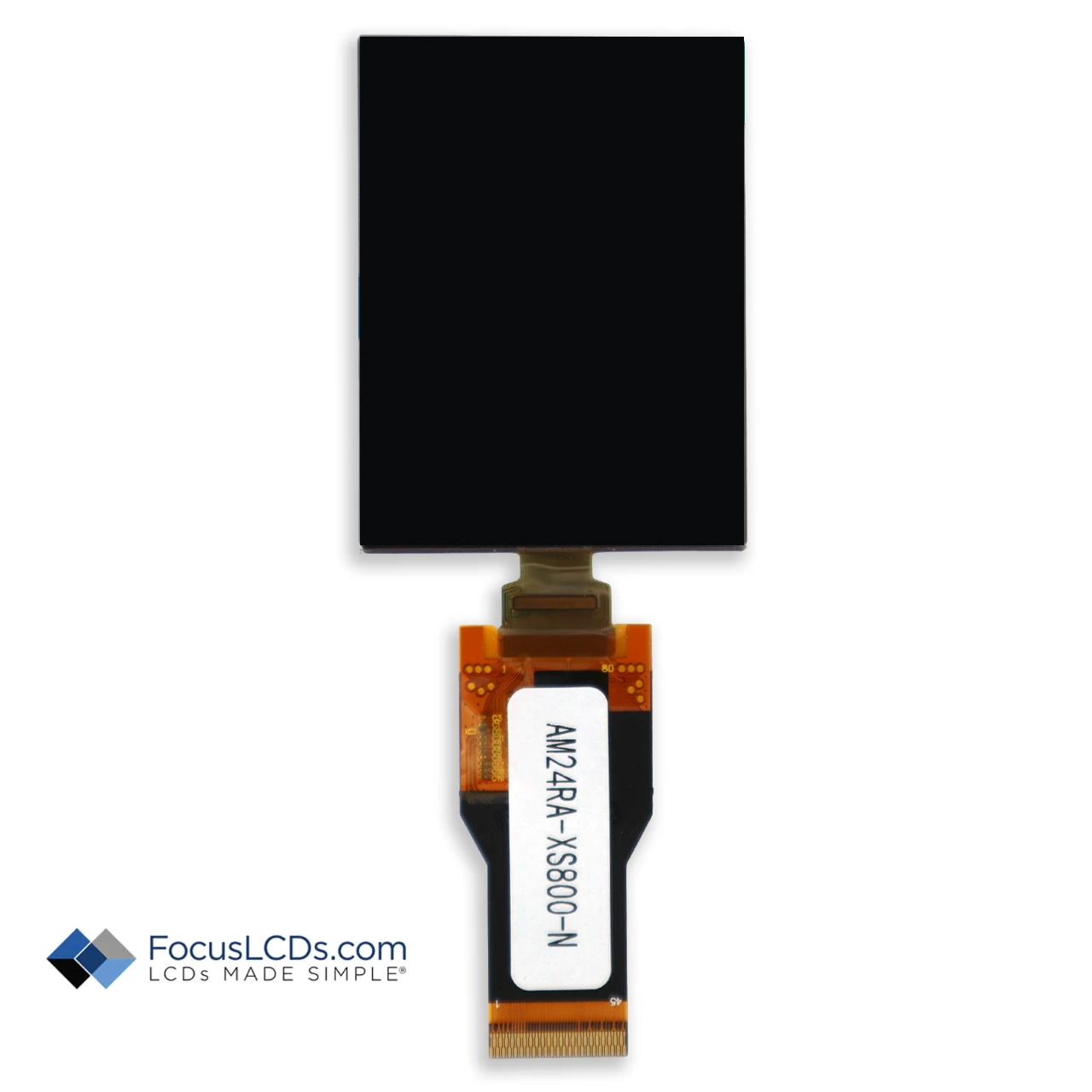

2.4-inch AMOLED Display

Description

Sunlight Readable: Our Sunlight Readable TFT LCDs, with brightness levels ranging from 700 to 1000 nits, are designed to deliver clear, vivid visuals even under direct sunlight. With advanced brightness technology, these displays offer superior visibility and color accuracy, enhancing usability in outdoor environments or high ambient light conditions. Ideal for outdoor kiosks, digital signage, and other sunlight-exposed applications.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Design Resources
