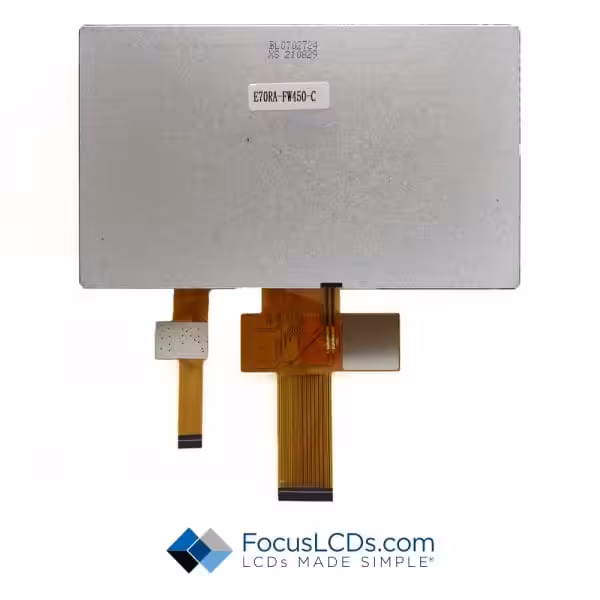

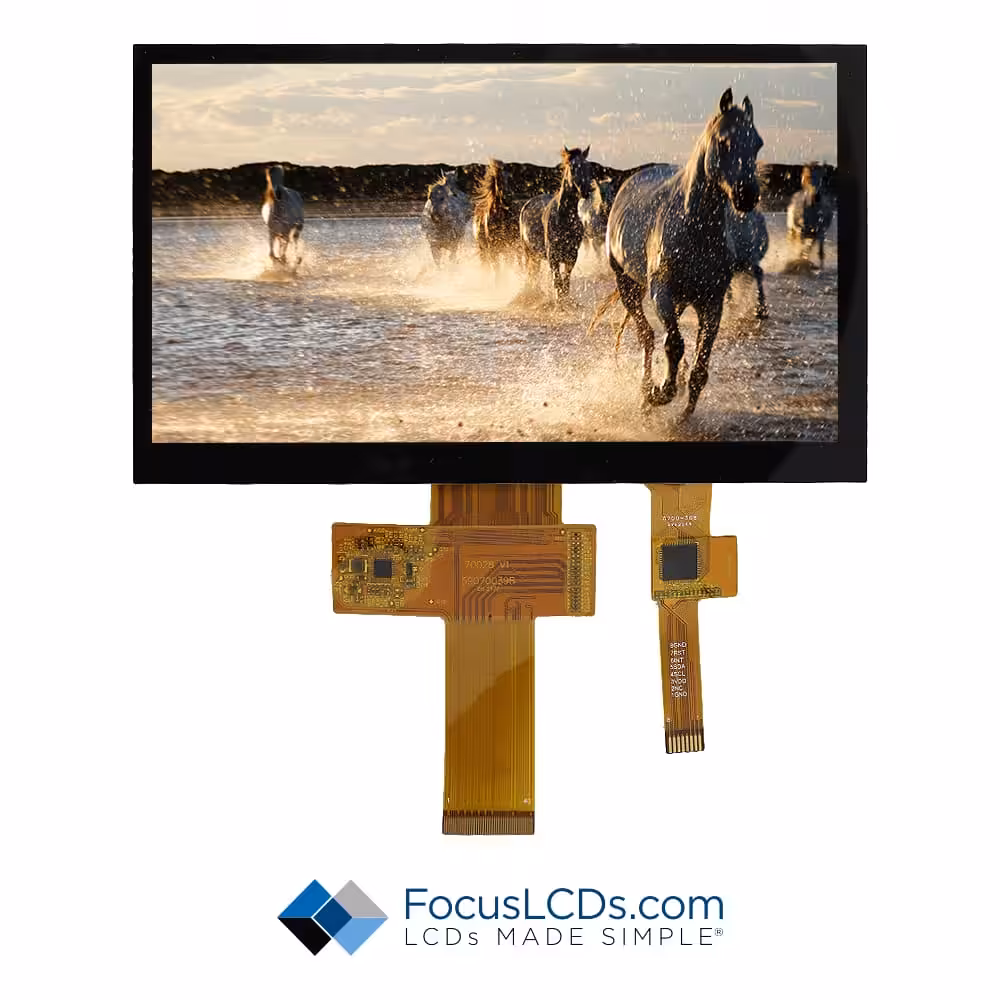

E70RA-FW450-C

$129.88

3 in stock

SKU: E70RA-FW450-C
AttributeValue
Diagonal Size7 Inches
Module Size165.00 x 100.00mm
Viewing Area154.21 x 85.92mm
Resolution1024 x 600
Interface6/8-Bit LVDS
Brightness450 Nits
Touch Panel TypeCapacitive
TFT ControllerEK73215, EK79001
CTP ControllerGT9271
Display TypeIPS
PolarizerTransmissive
Operating Temperature-20C to 70C

Documentation

7.0-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E70RA-FW450-C Specification Sheet6-Bit LVDS Schematic6-Bit LVDS CodeRoHS
E70RA-FW450-C DWG8-Bit LVDS Schematic8-Bit LVDS CodeREACH
EK73215 Specification SheetCMRT
EK79001 Specification Sheet
GT9271 Specification Sheet

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

LVDS Interface: Our TFT LCDs with LVDS Interface provide robust and reliable high-speed data transmission for exceptional image quality and performance. These displays are well-suited for use in demanding environments, such as medical imaging, avionics, and high-end computing systems, where data integrity and visual accuracy are crucial.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Development Accessories

Breakout Boards


KBB5040A

TFT Breakout Board

Connectors


FH12A-40S-0.5SH(55)

TFT Connector


FH12-8S-1SH(55)

CTP Connector

Design Resources

Application Notes

Landscape and Portrait Modes for TFT Displays

Why Temperature Compensation is Needed for LCDs

Display Viewing Angles

Level Shifting Voltages for LCDs

LCD Resources

Color Depth (65k, 262k, 16.7M colors)

TFT Quality Inspection Standards

Choosing a Microcontroller for Your Display

Recommended TFT Mounting Guide (PDF Download)

Graphics Controllers for High Speed Display Interfaces

LCD Voltage Inputs Explained

The MIPI and LVDS Interfaces

Temperature Consideration for Displays

Capacitive Touch Noise Prevention

Soldering Display Connectors and Surface Mount Devices

Choosing a Cover Glass for Your Display

Choosing Your Touch Panel – Resistive vs Capacitive

LCD Connection Types

How to Choose a Connector for a TFT
