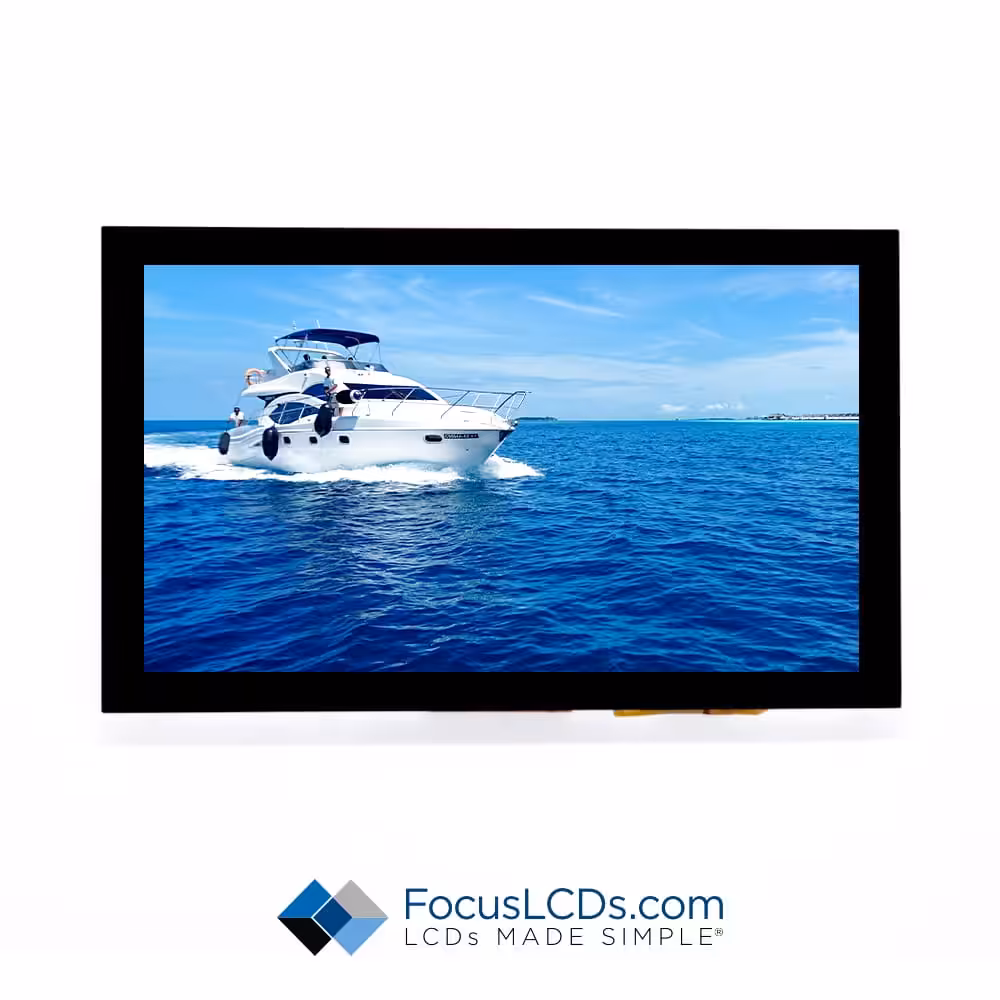

E70RA-I-HW600-C

$241.30

3 in stock

SKU: E70RA-I-HW600-C
Attribute Value
Diagonal Size 7 Inches
Module Size 165.00 x 100.00mm
Viewing Area 154.21 x 85.92mm
Resolution 1024 x 600
Interface HDMI
Brightness 600 Nits
Touch Panel Type Capacitive
TFT Controller EK73215, EK79001
CTP Controller FT5826QSL
Display Type IPS
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

7.0-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E70RA-I-HW600-C Specification Sheet6-Bit LVDS Schematic6-Bit LVDS CodeRoHS
E70RA-I-HW600-C DWG8-Bit LVDS Schematic8-Bit LVDS CodeREACH
EK73215 Specification SheetCMRT
EK79001 Specification Sheet

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

HDMI Interface: Our TFT LCDs equipped with HDMI Interface offer high-definition display capabilities, delivering exceptional image quality, vibrant colors, and crisp detail. The HDMI interface ensures reliable high-speed data transmission, enabling our displays to handle high-definition video and audio for a superior multimedia experience. These displays are the perfect solution for high-performance applications such as home entertainment systems, digital signage, and advanced computing devices, where crystal-clear visuals and sound are paramount.

High Brightness: Our High Brightness TFT LCDs, with brightness levels between 500 and 700 nits, ensure a luminous and vivid display even in bright indoor conditions. These high-brightness screens provide excellent visibility and color fidelity, making them an excellent choice for indoor applications that experience bright lighting, such as retail displays, commercial signage, and industrial control systems.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
