Documentation

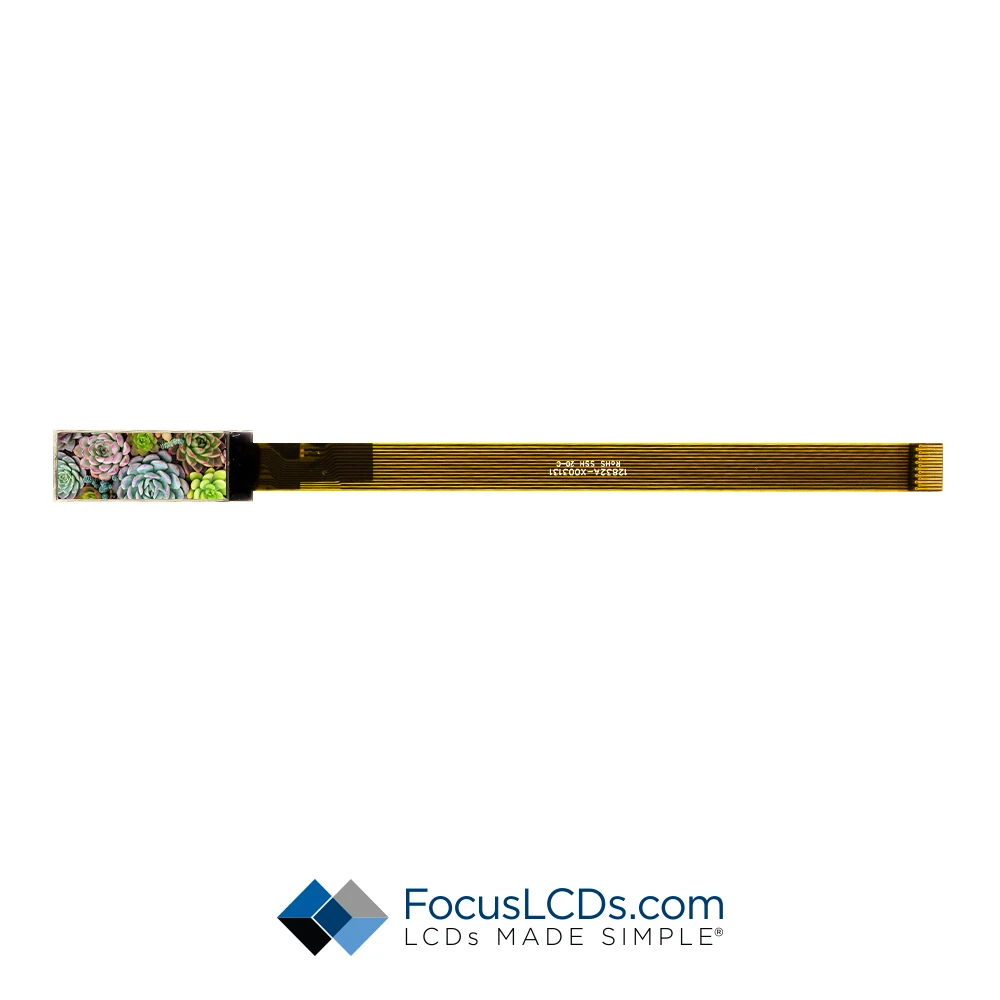

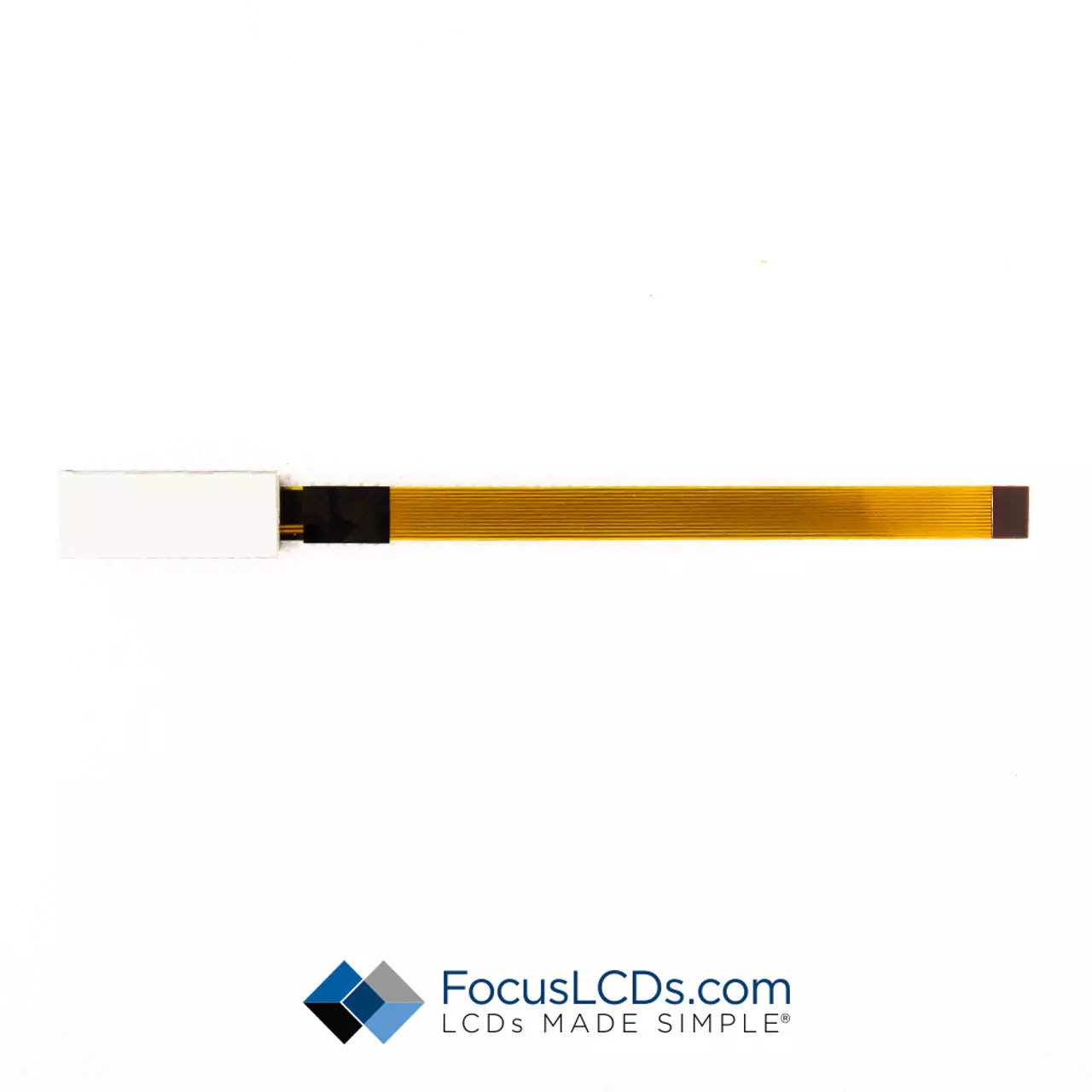

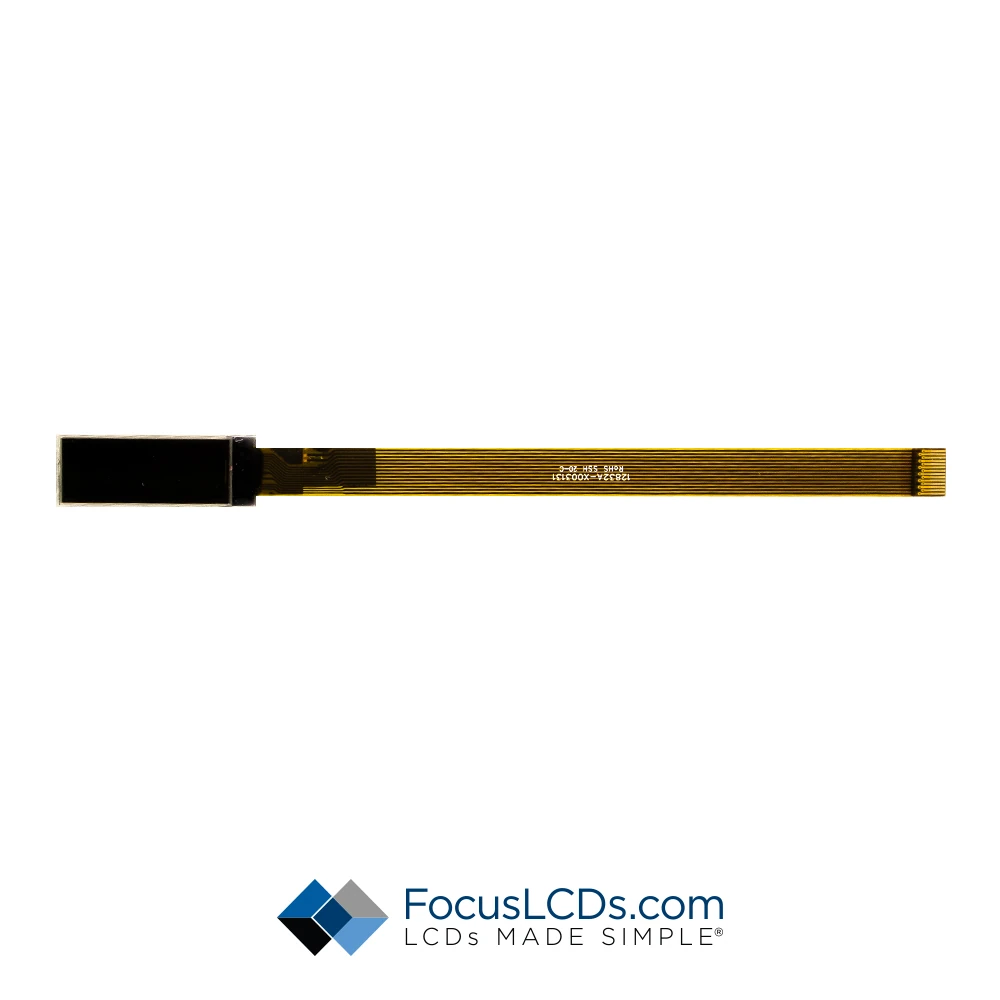

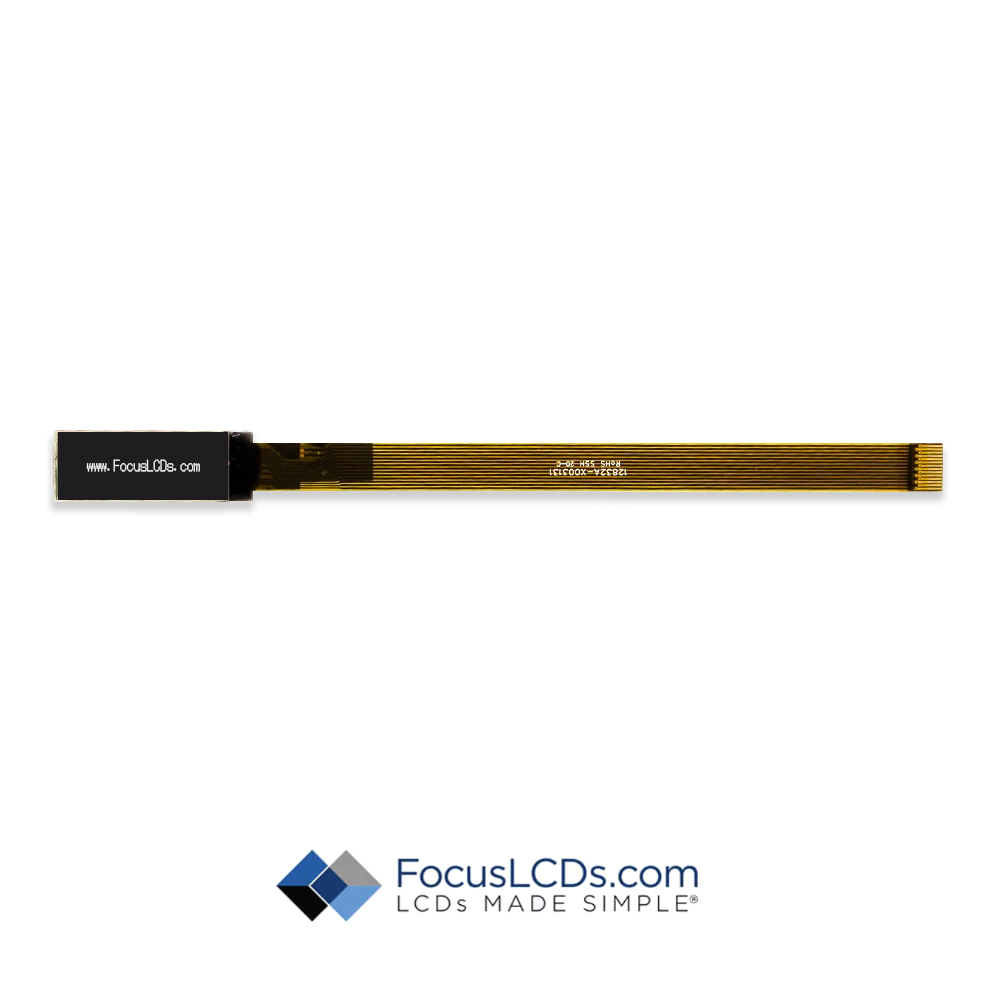

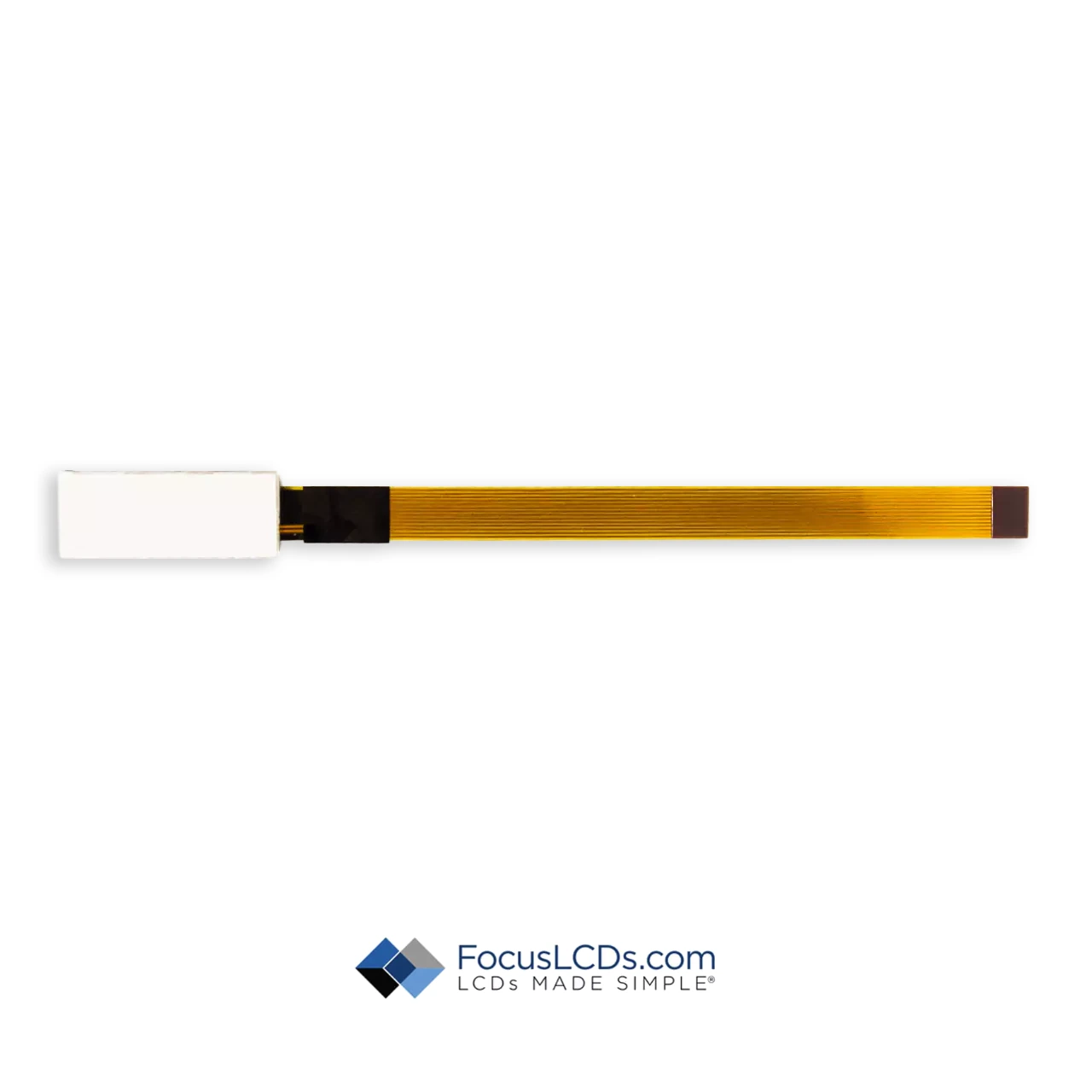

128x32 UWVD Graphic LCD Display
Specification Sheets | Quality Documentation |
---|---|
G12832A-UW-DW63 Specification Sheet | RoHS |
REACH | |
CMRT |
$8.98
19 in stock
128x32 UWVD Graphic LCD Display
Specification Sheets | Quality Documentation |
---|---|
G12832A-UW-DW63 Specification Sheet | RoHS |
REACH | |
CMRT |
Graphic LCDs: Our Graphic LCDs are designed for diverse applications. These displays offer crisp, detailed visuals across a variety of resolutions, from compact to mid-sized screens. With versatile interface options including I2C, SPI, and Parallel, they ensure seamless integration. Ideal for everything from industrial controls to medical devices, our Graphic LCDs boast superior performance and durability. Choose our displays for reliable, high-quality visuals in any setting.
I2C Interface: Our Graphic LCDs with the I2C Interface offer efficient two-wire communication, ideal for space-constrained and sophisticated medical devices or compact industrial controllers. With minimal I/O pin requirements, this interface is perfect for integration in advanced portable medical equipment or compact industrial monitoring systems, ensuring seamless communication and streamlined development.
SPI Interface: Featuring an SPI Interface, our Graphic LCDs are optimal for dynamic environments found in industrial automation or defense equipment. Compared to the I2C interface, the faster data transfer rate ensures real-time display updates, crucial for critical monitoring systems in manufacturing processes or in tactical military devices where rapid information relay is vital.
128x32 Resolution: The 128x32 resolution Graphic LCDs are designed for applications where space is at a premium, but clarity cannot be compromised. These displays offer a sleek, slimline profile, making them perfect for compact devices such as portable industrial controls, small-scale medical devices, or other applications where size constraints are critical.
3.3V Supply Voltage: Requiring only a 3.3V supply voltage, our 3.3V LCDs are specifically engineered to optimize power efficiency. Designed with energy-sensitive applications in mind, these 3.3V displays provide crisp, clear visuals while minimizing power consumption. This makes them exceptionally suitable for battery-operated devices where power management is crucial. Their low-voltage design significantly extends battery life, making these displays a perfect choice for portable electronics and other devices where energy efficiency is key.
Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.
RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
Fully Customizable: While our Graphic LCDs come in a wide range of off-the-shelf solutions, at Focus LCDs, we pride ourselves on our extensive customization capabilities. Understanding that one size does not fit all, we offer tailor-made solutions to meet the specific needs of your application. Whether it's adapting dimensions, enhancing display characteristics, or integrating unique interface options, we specialize in crafting displays that align perfectly with your project's requirements. From modifying backlight colors to adjusting connector positions, we're equipped to make precise changes down to the smallest detail. With our comprehensive customization services, you can transform a standard product into a specialized component that not only fits your device but improves its overall functionality, reduces assembly overhead on the production line and enhances the user experience.
