Documentation
16x1 Character LCD Display
Specification Sheets | Quality Documentation |
---|---|
C161A-FTW-LW63 Specification Sheet | RoHS |
ST7066 Specification Sheet | REACH |
CMRT |
$6.89
2 in stock

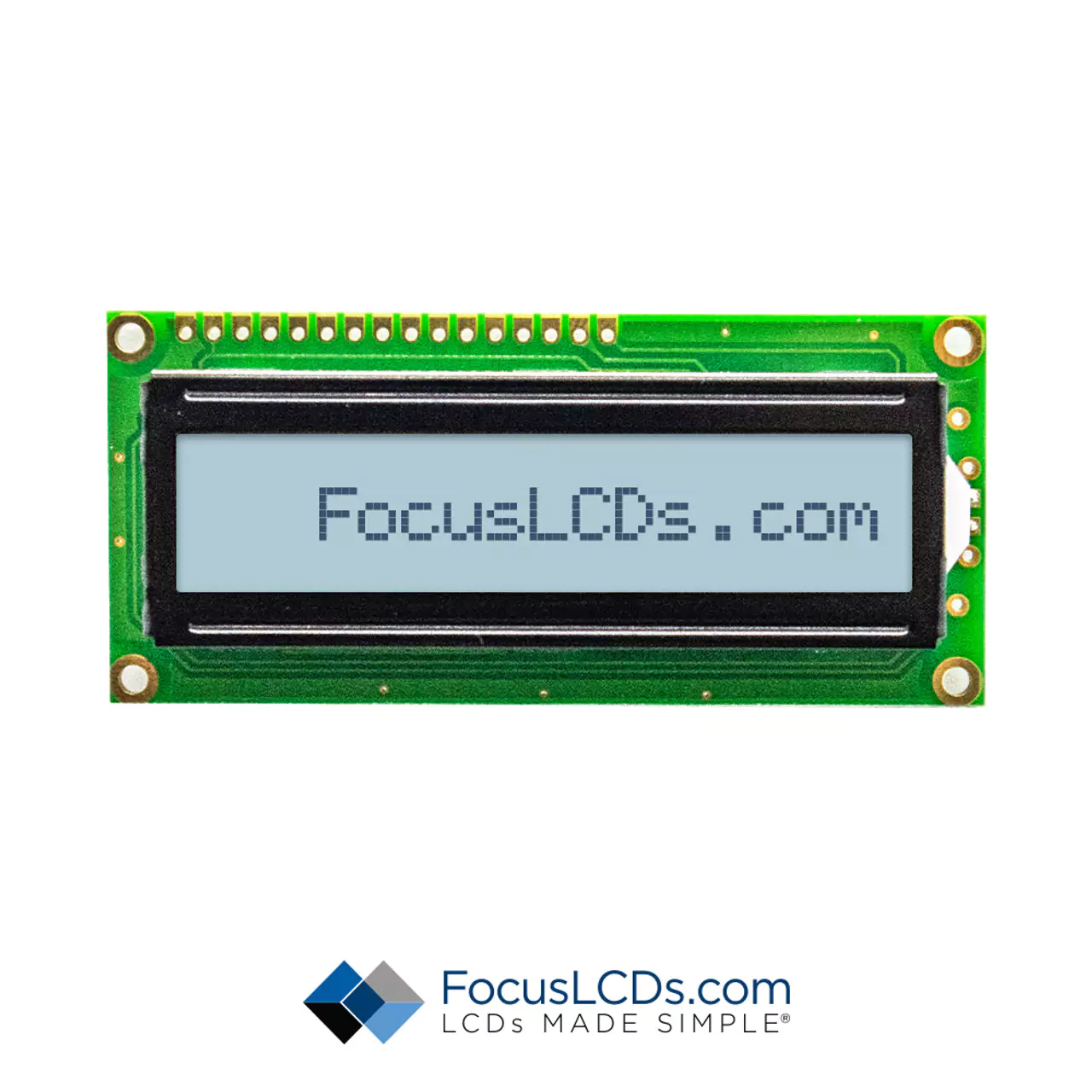

16x1 Character LCD Display
Specification Sheets | Quality Documentation |
---|---|
C161A-FTW-LW63 Specification Sheet | RoHS |
ST7066 Specification Sheet | REACH |
CMRT |
Character LCDs: Our Character LCDs are engineered for optimal performance in a wide range of uses. These displays provide clear, easy-to-read text in various character formats and sizes, suited for applications requiring precise data presentation. With a standardized pinout and driver set with preprogrammed fonts, our Character LCDs offer straightforward integration with your systems. They are especially ideal for applications where clarity of information is key, such as in commercial appliances, industrial monitoring systems, and medical devices. Durable and reliable, our Character LCDs ensure consistent, high-quality text display in any operational environment, making them the go-to choice for clear and efficient data communication.
16x1 Character LCD: Our 16x1 Character LCDs provide a longer display line, ideal for applications that require more data in a single line format. These are perfect for various industrial and commercial devices where elongated yet compact information display is necessary, such as shelf labeling or simple status monitors.
FSTN Gray: Our FSTN Gray LCDs combine the benefits of high contrast and a neutral gray background, making them versatile for various applications, from commercial appliances to industrial monitors. Their balanced contrast and subtle background hue ensure clear visibility in a range of lighting conditions. These displays are perfect for applications where readability and a classic aesthetic are key, such as in user interfaces of operating room equipment, commercial kitchen appliances or industrial control panels.
Transflective Polarizer: Transflective Polarizer LCDs are the optimal choice for devices that will be used in all lighting conditions, offering excellent readability in both direct sunlight and low-light conditions. These displays reflect ambient light for outdoor visibility while allowing backlighting to shine through in darker environments. This dual functionality makes them highly versatile, suited for devices that transition between various lighting conditions, such as field-operated industrial equipment, outdoor medical devices, and commercial appliances used in varying light settings. With transflective polarizers, your displays remain consistently clear, reliable, and energy-efficient under all lighting conditions.
LED Backlight: Our energy-efficient LED Backlights are designed to enhance the readability and visual appeal of your LCD while providing a robust, low power and long-life lighting solution. Our LED backlights provide uniform brightness, ensuring clear and consistent visibility across various lighting conditions. Perfect for demanding environments in the medical, industrial, and defense sectors, these backlights offer long-lasting performance with minimal power consumption. The slim profile and flexible design options allow seamless integration into any device, making them ideal for portable medical equipment, rugged industrial machines, and advanced commercial appliances. Enhance your product's user experience with our LED Backlights, where durability meets brilliance.
3.3V Supply Voltage: Requiring only a 3.3V supply voltage, our 3.3V LCDs are specifically engineered to optimize power efficiency. Designed with energy-sensitive applications in mind, these 3.3V displays provide crisp, clear visuals while minimizing power consumption. This makes them exceptionally suitable for battery-operated devices where power management is crucial. Their low-voltage design significantly extends battery life, making these displays a perfect choice for portable electronics and other devices where energy efficiency is key.
Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.
RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
Fully Customizable: While our Character LCDs come in a wide range of off-the-shelf solutions, at Focus LCDs, we pride ourselves on our extensive customization capabilities. Understanding that one size does not fit all, we offer tailor-made solutions to meet the specific needs of your application. Whether it's adapting dimensions, enhancing display characteristics, or integrating unique interface options, we specialize in crafting displays that align perfectly with your project's requirements. From modifying backlight colors to adjusting connector positions, we're equipped to make precise changes down to the smallest detail. With our comprehensive customization services, you can transform a standard product into a specialized component that not only fits your device but improves its overall functionality, reduces assembly overhead on the production line and enhances the user experience.
