Documentation
20x2 Character LCD Display
Specification Sheets | Quality Documentation |
---|---|
C202C-BW-LW63 Specification Sheet | RoHS |
ST7066 Specification Sheet | REACH |
CMRT |
$17.45
18 in stock

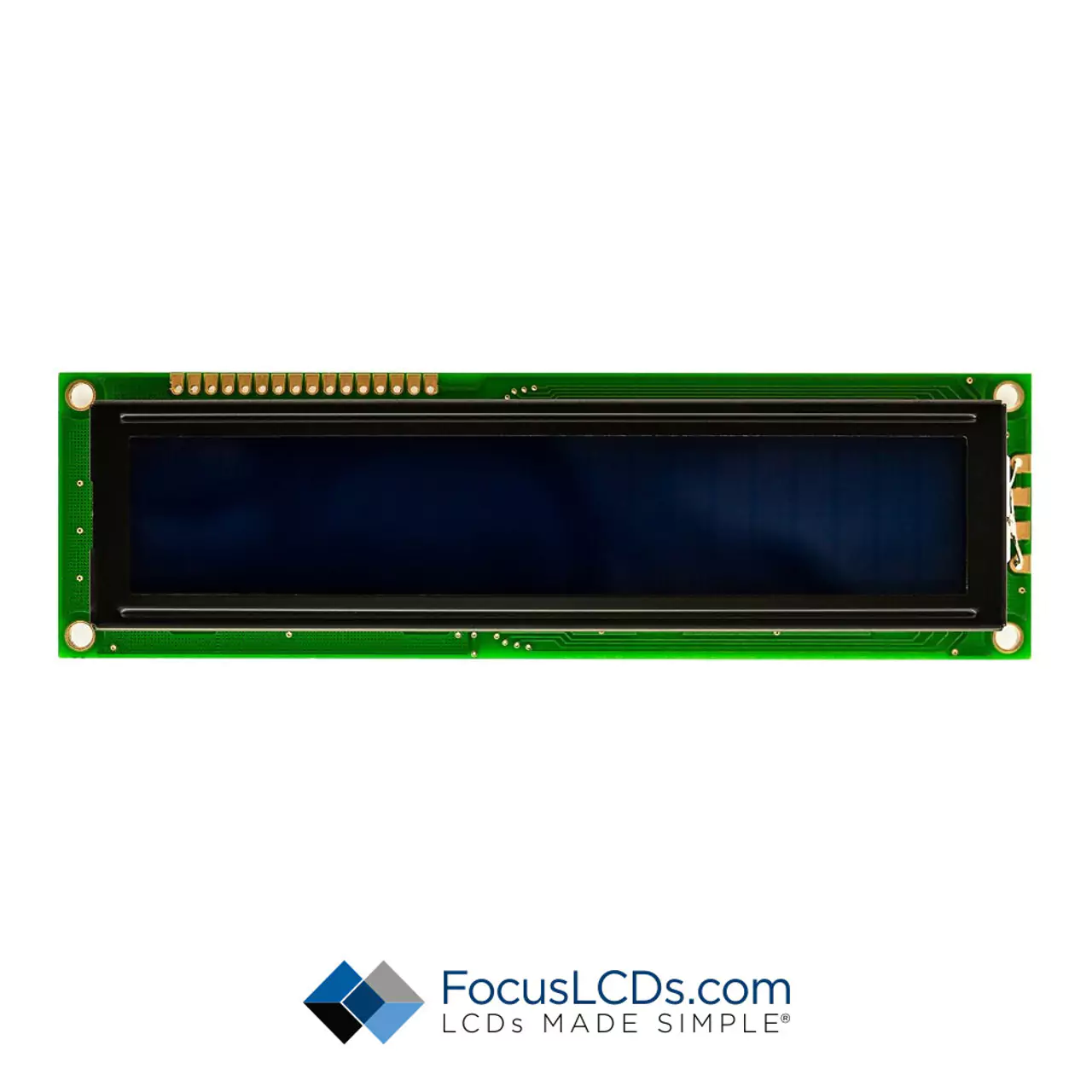

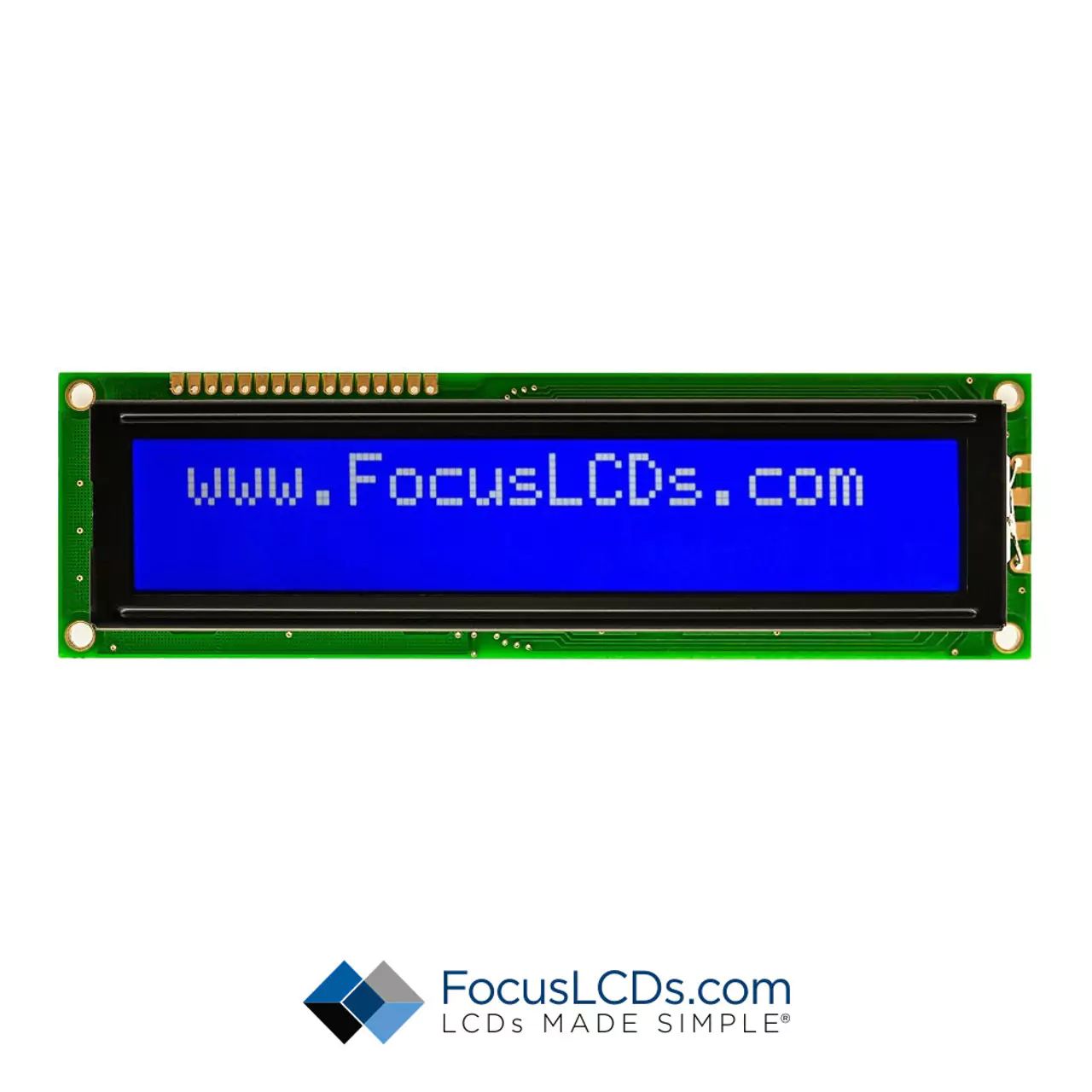

20x2 Character LCD Display
Specification Sheets | Quality Documentation |
---|---|
C202C-BW-LW63 Specification Sheet | RoHS |
ST7066 Specification Sheet | REACH |
CMRT |
Character LCDs: Our Character LCDs are engineered for optimal performance in a wide range of uses. These displays provide clear, easy-to-read text in various character formats and sizes, suited for applications requiring precise data presentation. With a standardized pinout and driver set with preprogrammed fonts, our Character LCDs offer straightforward integration with your systems. They are especially ideal for applications where clarity of information is key, such as in commercial appliances, industrial monitoring systems, and medical devices. Durable and reliable, our Character LCDs ensure consistent, high-quality text display in any operational environment, making them the go-to choice for clear and efficient data communication.
20x2 Character LCD: The 20x2 Character LCDs offer an extended width, enabling more information per line. This format is ideal for applications requiring detailed text display, such as sophisticated control panels, advanced user interfaces in medical equipment, or detailed readouts in industrial monitoring systems.
STN (Super-twisted Nematic) Blue: Our STN Blue Monochrome LCDs offer enhanced aesthetic appeal with a striking blue background, providing excellent contrast and readability. This makes them particularly suitable for sophisticated industrial equipment and high-end medical devices where display clarity and a modern look are essential. The blue hue offers a crisp, clear background for data display, ideal for precision instruments in industrial and medical applications.
Transmissive Polarizer: Our LCDs with Transmissive Polarizers are designed for high visibility in indoor and low-light conditions. These displays require backlighting, which illuminates the screen from behind, ensuring bright and vivid output. Ideal for indoor applications where lighting conditions are controlled, such as medical diagnostic equipment, industrial control panels, and commercial kitchen appliances, Transmissive Polarizer LCDs deliver brilliant clarity and contrast, enhancing the user interface experience. Their vibrant display makes them a great choice for applications where display quality and legibility are of utmost importance.
LED Backlight: Our energy-efficient LED Backlights are designed to enhance the readability and visual appeal of your LCD while providing a robust, low power and long-life lighting solution. Our LED backlights provide uniform brightness, ensuring clear and consistent visibility across various lighting conditions. Perfect for demanding environments in the medical, industrial, and defense sectors, these backlights offer long-lasting performance with minimal power consumption. The slim profile and flexible design options allow seamless integration into any device, making them ideal for portable medical equipment, rugged industrial machines, and advanced commercial appliances. Enhance your product's user experience with our LED Backlights, where durability meets brilliance.
3.3V Supply Voltage: Requiring only a 3.3V supply voltage, our 3.3V LCDs are specifically engineered to optimize power efficiency. Designed with energy-sensitive applications in mind, these 3.3V displays provide crisp, clear visuals while minimizing power consumption. This makes them exceptionally suitable for battery-operated devices where power management is crucial. Their low-voltage design significantly extends battery life, making these displays a perfect choice for portable electronics and other devices where energy efficiency is key.
Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.
RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
Fully Customizable: While our Character LCDs come in a wide range of off-the-shelf solutions, at Focus LCDs, we pride ourselves on our extensive customization capabilities. Understanding that one size does not fit all, we offer tailor-made solutions to meet the specific needs of your application. Whether it's adapting dimensions, enhancing display characteristics, or integrating unique interface options, we specialize in crafting displays that align perfectly with your project's requirements. From modifying backlight colors to adjusting connector positions, we're equipped to make precise changes down to the smallest detail. With our comprehensive customization services, you can transform a standard product into a specialized component that not only fits your device but improves its overall functionality, reduces assembly overhead on the production line and enhances the user experience.
