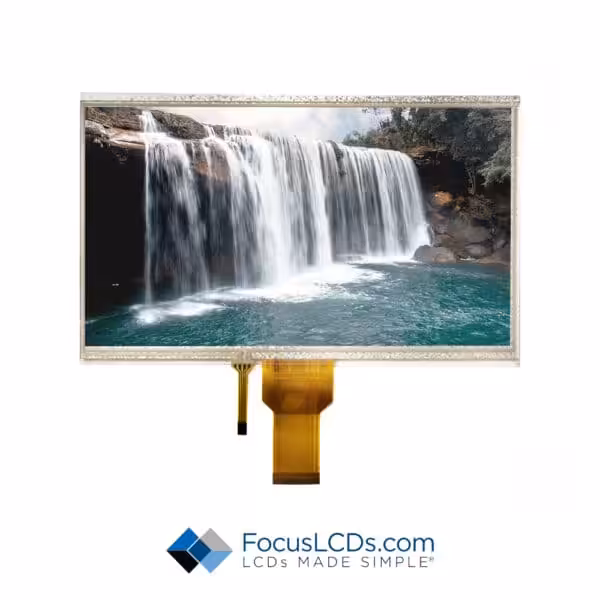

E101GB-RW200-R

$63.25

Out of stock

SKU: E101GB-RW200-R
AttributeValue
Diagonal Size10.1 Inches
Module Size235.00 x 143.00mm
Viewing Area224.70 x 127.30mm
Resolution1024 x 600
Interface24-Bit RGB
Brightness200 Nits
Touch Panel TypeResistive
TFT ControllerHX8282A01, HX8696A01
CTP ControllerNone
Display TypeTN
PolarizerTransmissive
Operating Temperature-20C to 70C

Documentation

10.1-inch TFT Display

Specification SheetsQuality Documentation
E101GB-RW200-R Specification SheetRoHS
E101GB-RW200-R DWGREACH
 CMRT

Description

TN TFT: Our TN types of TFTs offer rapid response times making them ideal for fast-paced applications. With a cost-effective production process, the TN type of display is suitable for any application requiring a dynamic and responsive color display.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

Resistive Touch Panel: Our Resistive Touch Panel TFT LCDs offer a cost-effective and highly responsive touch interface. They are perfect for use in environments where gloves are worn, such as industrial settings or cold climates, and are resistant to liquids and contaminants, ensuring durability and long-lasting performance.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
