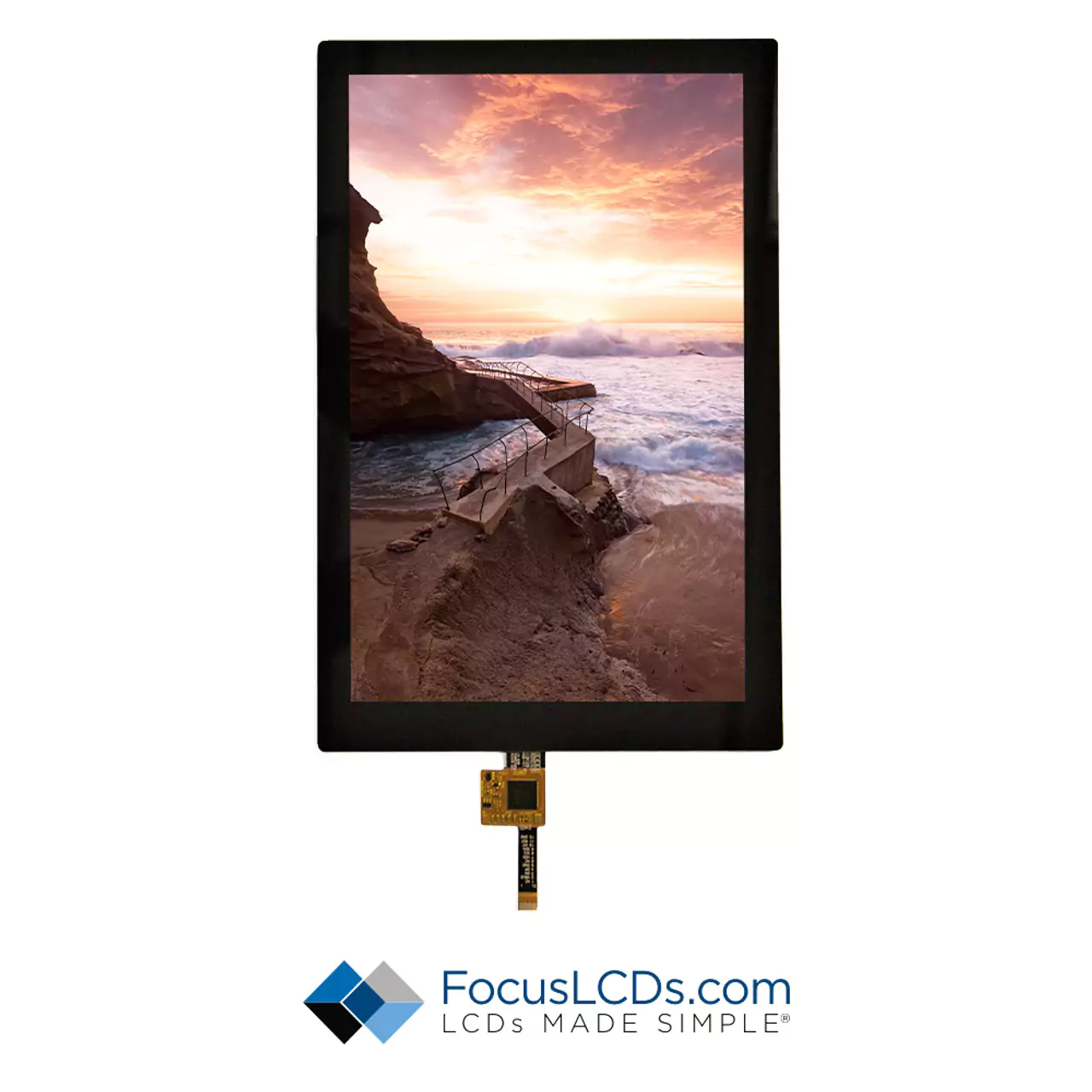

E101RA1-I-MS300-C

$207.20

3 in stock

SKU: E101RA1-I-MS300-C
AttributeValue
Diagonal Size10.1 Inches
Module Size159.00 x 244.60mm
Viewing Area136.40 x 217.60mm
Resolution1200 x 1920
Interface4-Lane MIPI DSI
Brightness300 Nits
Touch Panel TypeCapacitive
TFT ControllerNT51021
CTP ControllerILI2511
Display TypeIPS
PolarizerTransmissive
Operating Temperature-10C to 50C

Documentation

10.1-inch TFT Display

Specification SheetsCodeQuality Documentation
E101RA1-MS300-C Specification Sheet4 Lane MIPI CodeRoHS
NT51021 Specification SheetREACH
ILI2511 Specification SheetCMRT

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

MIPI-DSI Interface: Our MIPI-DSI Interface TFT LCDs deliver high-resolution visuals and rapid data transfer for a superior display experience. These advanced displays are perfect for cutting-edge applications such as smartphones, tablets, and other high-performance devices, where stunning graphics and ultra-fast refresh rates are essential.

WUXGA Resolution: Our WUXGA (Wide Ultra Extended Graphics Array) TFT LCDs feature a resolution of 1920x1200 pixels, providing a broader aspect ratio for an even more captivating display experience. These widescreen displays are ideal for high-resolution applications such as digital cinema, professional graphics workstations, and large-scale digital signage systems.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Development Accessories

Connectors


FH12-12S-0.5SH(55)

CTP Connector

Design Resources

Application Notes

Initializing MIPI DSI Displays in Command Mode

MIPI DSI Video Mode

Landscape and Portrait Modes for TFT Displays

Display Viewing Angles

Level Shifting Voltages for LCDs

LCD Resources

Color Depth (65k, 262k, 16.7M colors)

TFT Quality Inspection Standards

Choosing a Microcontroller for Your Display

Recommended TFT Mounting Guide (PDF Download)

Graphics Controllers for High Speed Display Interfaces

LCD Voltage Inputs Explained

The MIPI and LVDS Interfaces

Temperature Consideration for Displays

MIPI Display Serial Interface (DSI)

MIPI DSI Display Memory

Capacitive Touch Noise Prevention

Soldering Display Connectors and Surface Mount Devices

Choosing a Cover Glass for Your Display

Choosing Your Touch Panel – Resistive vs Capacitive

LCD Connection Types

How to Choose a Connector for a TFT
