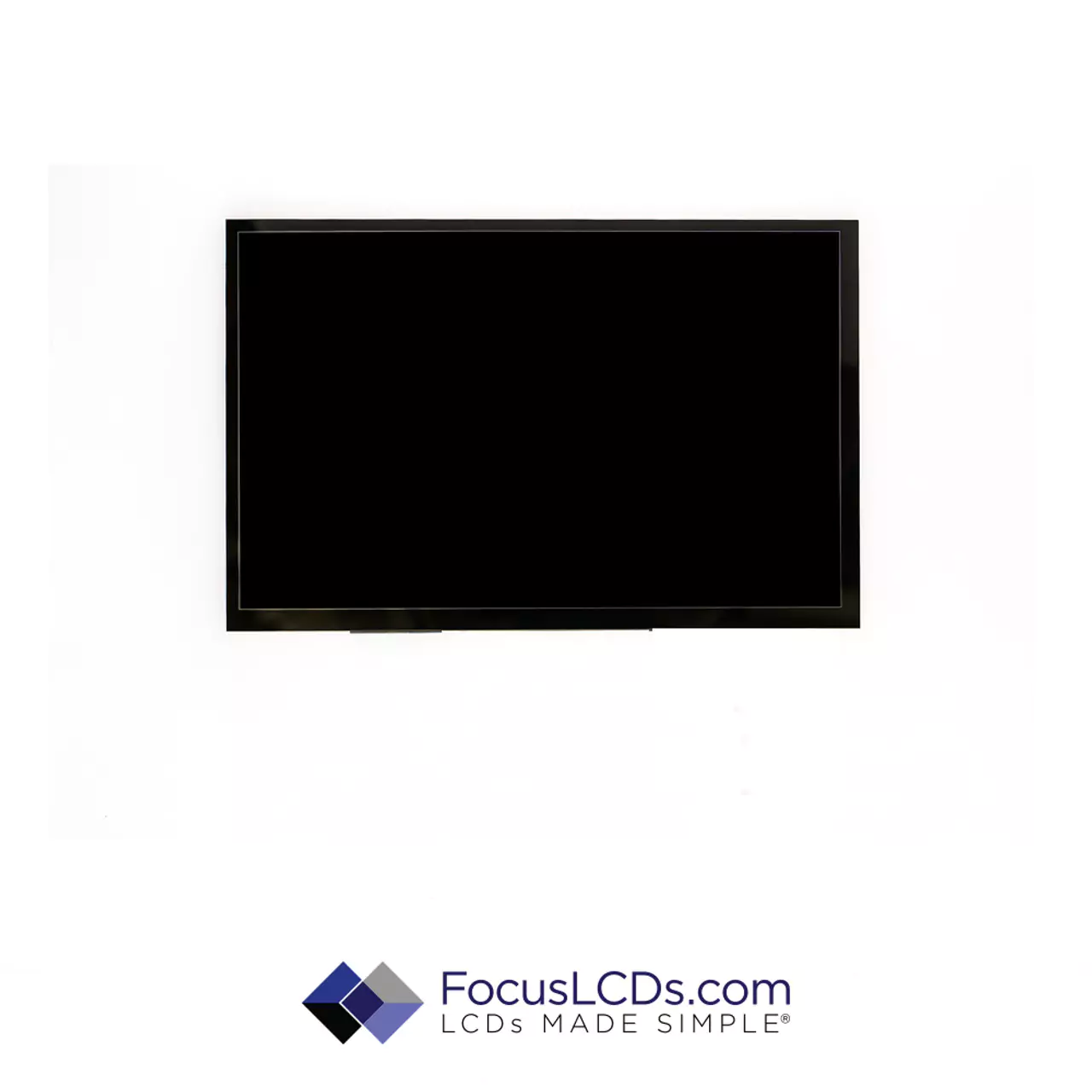

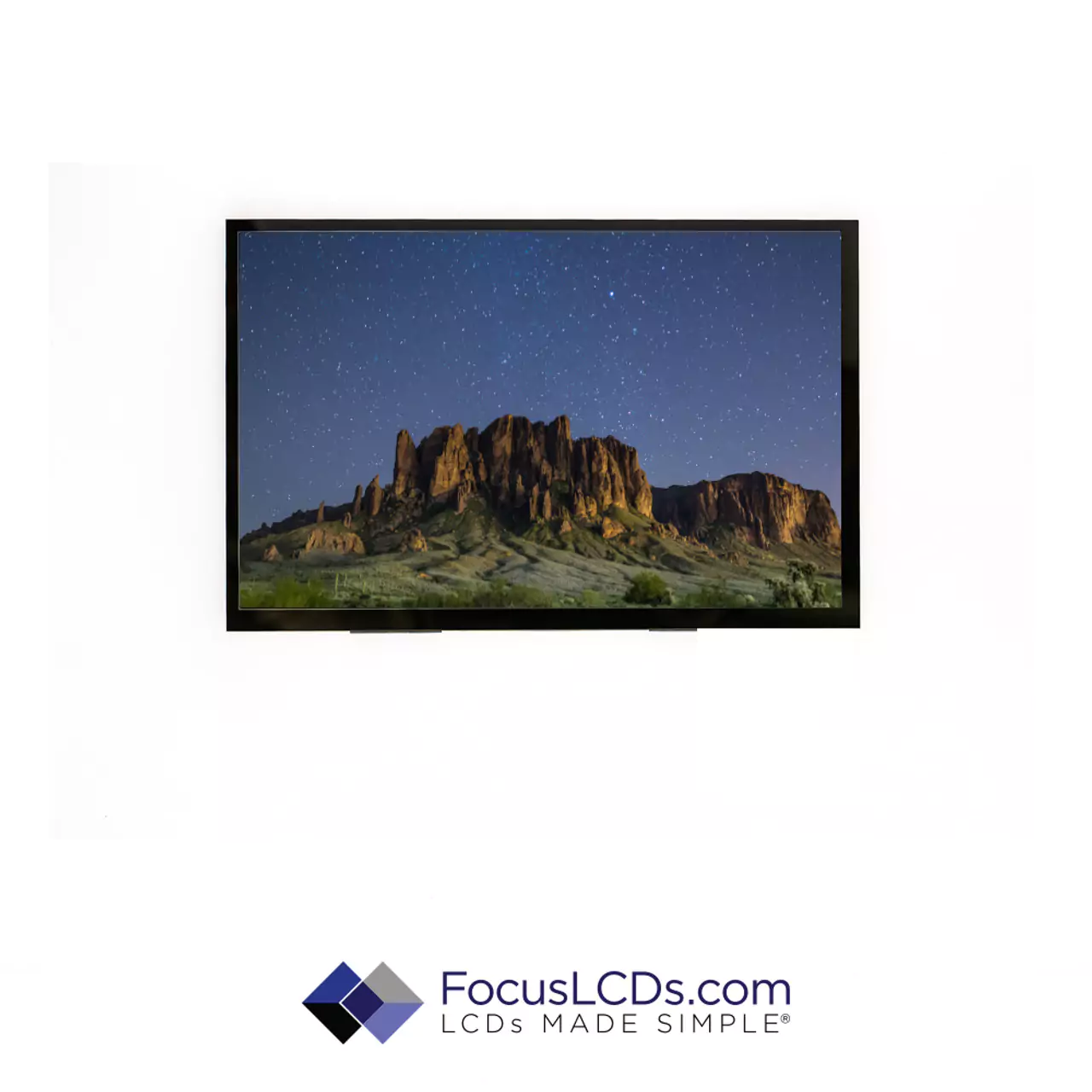

E101RGD1280LBAM350-C

$217.84

3 in stock

SKU: E101RGD1280LBAM350-C
AttributeValue
Diagonal Size10.1 Inches
Module Size149.10 x 229.50mm
Viewing Area216.96 x 135.60mm
Resolution1280 x 800
Interface4-Lane LVDS
Brightness350 Nits
Touch Panel TypeCapacitive
TFT ControllerFT5826QSL
CTP ControllerFT5826QSL
Display TypeIPS
PolarizerTransflective
Operating Temperature0C to 50C

Documentation

10.1-inch TFT Display

Specification SheetsQuality Documentation
E101RGD1280LBAM350-C Specification SheetRoHS
E101RGD1280LBAM350-C DWGREACH
 CMRT

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

LVDS Interface: Our TFT LCDs with LVDS Interface provide robust and reliable high-speed data transmission for exceptional image quality and performance. These displays are well-suited for use in demanding environments, such as medical imaging, avionics, and high-end computing systems, where data integrity and visual accuracy are crucial.

HD Resolution: Our WXGA (Wide Extended Graphics Array) TFT LCDs feature a resolution of 1280x800 pixels, providing a wider aspect ratio for an immersive display experience. These widescreen displays are perfect for use in multimedia systems, laptops, and digital signage applications where an expansive viewing area and high-quality visuals are essential.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transflective Polarizer: Our Transflective Polarizer TFT LCDs provide a perfect balance between transmissive and reflective properties, ensuring optimum visibility in various lighting conditions. These versatile displays work well in both indoor and outdoor environments, such as retail signage and mobile devices, where adaptability to lighting is crucial.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
