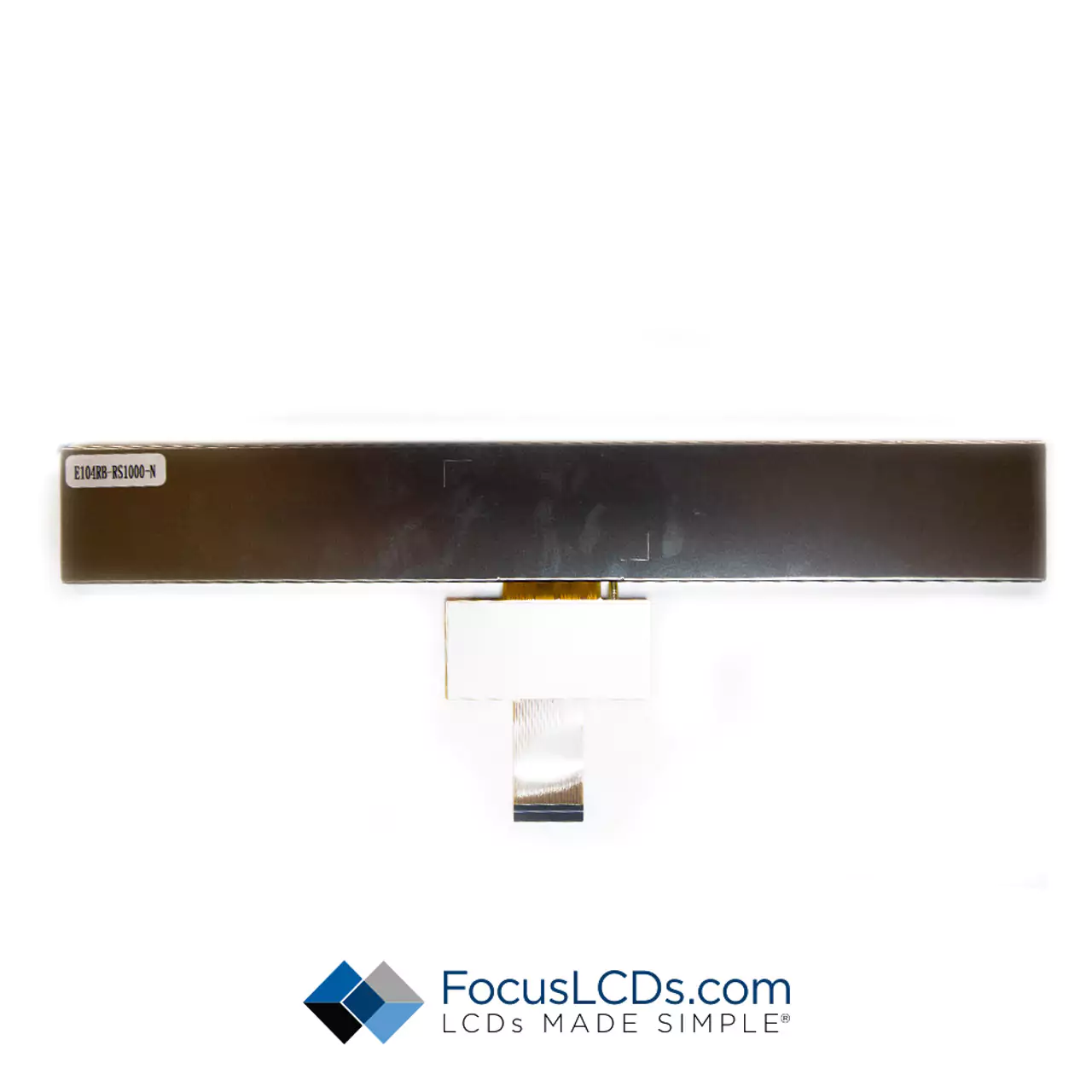

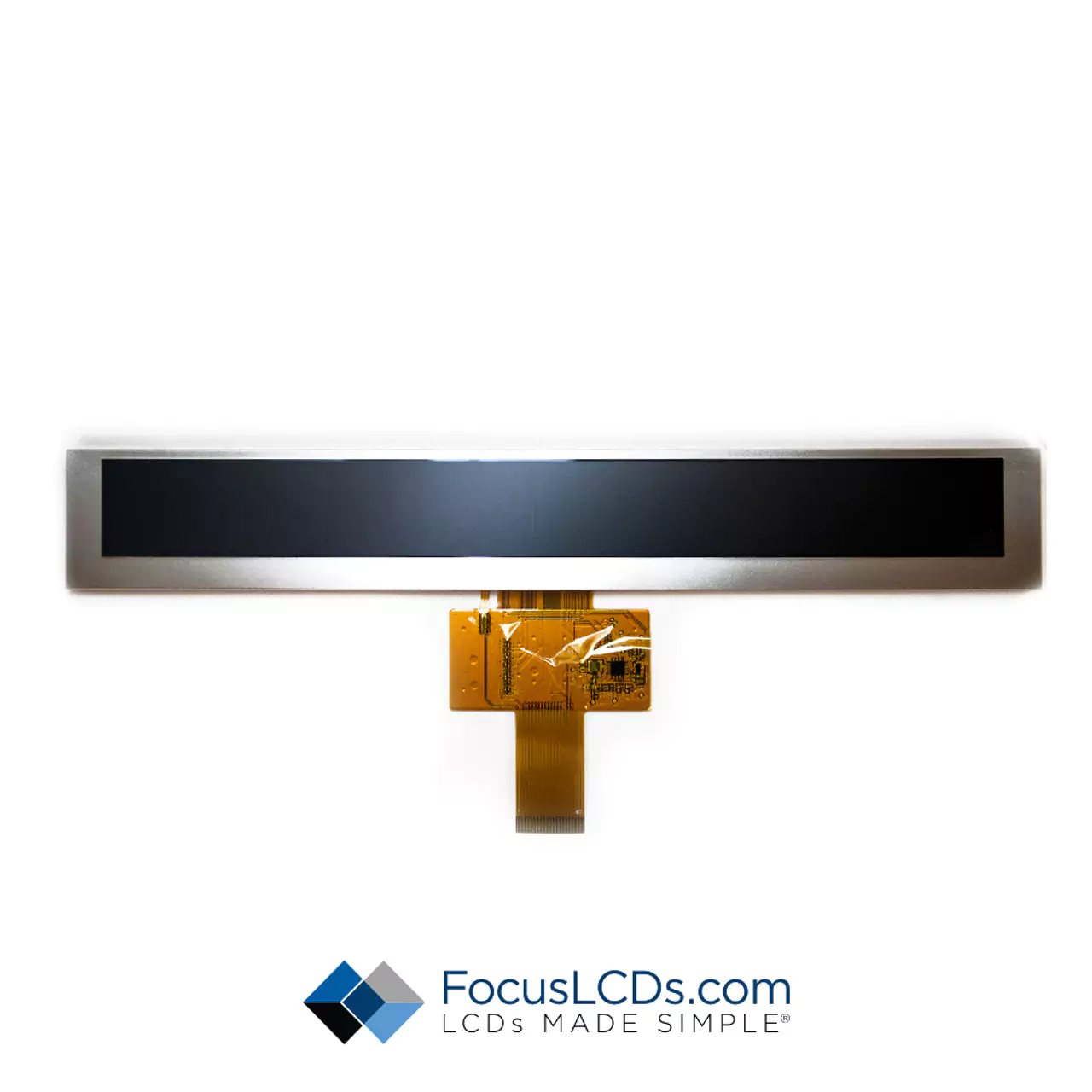

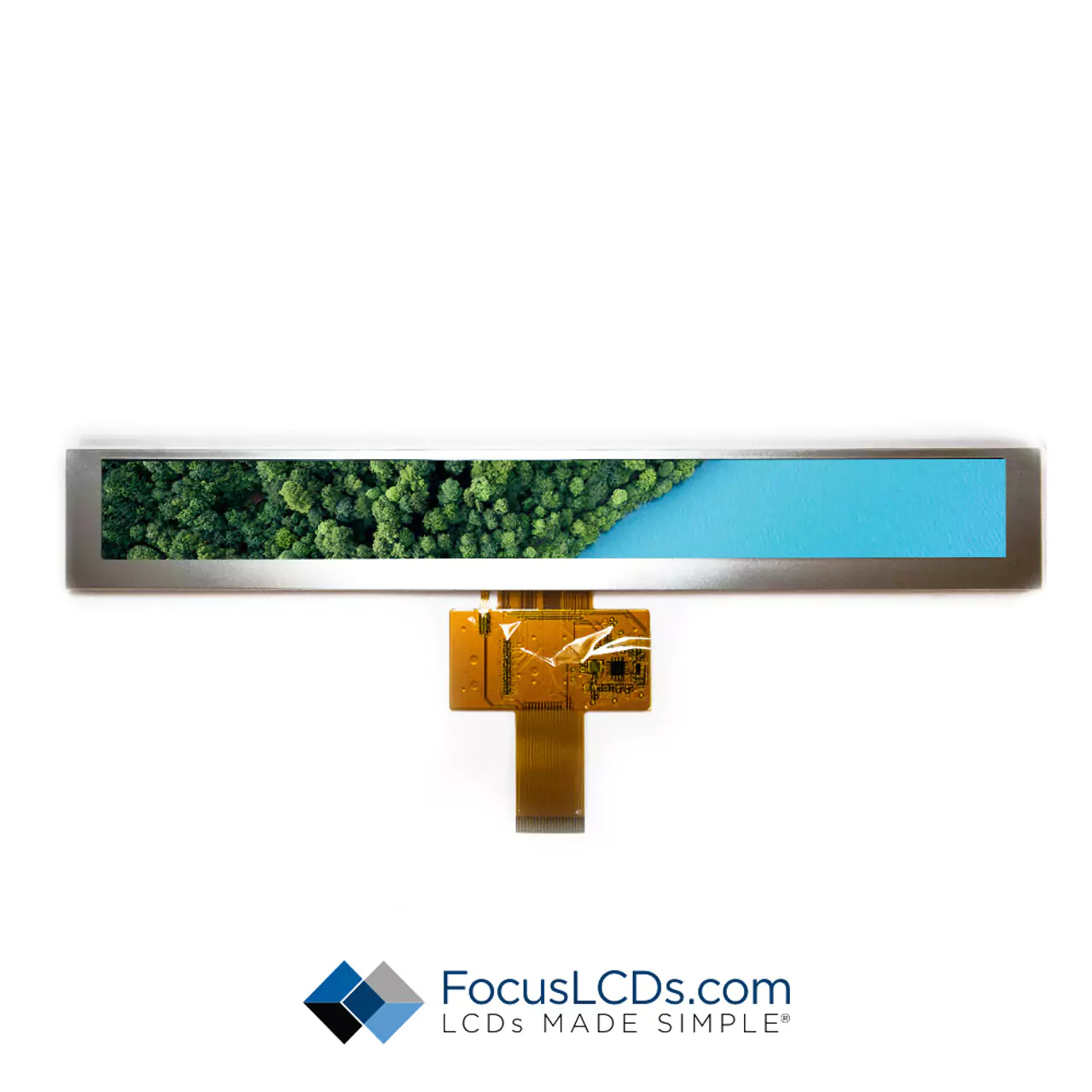

E104RB-RS1000-N

$98.98

7 in stock

SKU: E104RB-RS1000-N
AttributeValue
Diagonal Size10.4 Inches
Module Size288.92 x 41.50mm
Viewing Area267.40 x 29.00mm
Resolution1024 x 100
Interface24-Bit RGB
Brightness900 Nits
Touch Panel TypeNo Touch Panel
TFT ControllerHX8282, HX8678
CTP ControllerNone
Display TypeTN
PolarizerTransmissive
Operating Temperature0C to 50C

Documentation

10.4-inch TFT Display

Specification SheetsCodeQuality Documentation
E104RB-RS1000-N Specification SheetRGB Timing CodeRoHS
E104RB-RS1000-N DWGREACH
HX8282 Specification SheetCMRT

Description

TN TFT: Our TN types of TFTs offer rapid response times making them ideal for fast-paced applications. With a cost-effective production process, the TN type of display is suitable for any application requiring a dynamic and responsive color display.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

Sunlight Readable: Our Sunlight Readable TFT LCDs, with brightness levels ranging from 700 to 1000 nits, are designed to deliver clear, vivid visuals even under direct sunlight. With advanced brightness technology, these displays offer superior visibility and color accuracy, enhancing usability in outdoor environments or high ambient light conditions. Ideal for outdoor kiosks, digital signage, and other sunlight-exposed applications.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Development Accessories

Breakout Boards


KBB5040A

TFT Breakout Board

Connectors


FH12A-40S-0.5SH(55)

TFT Connector
