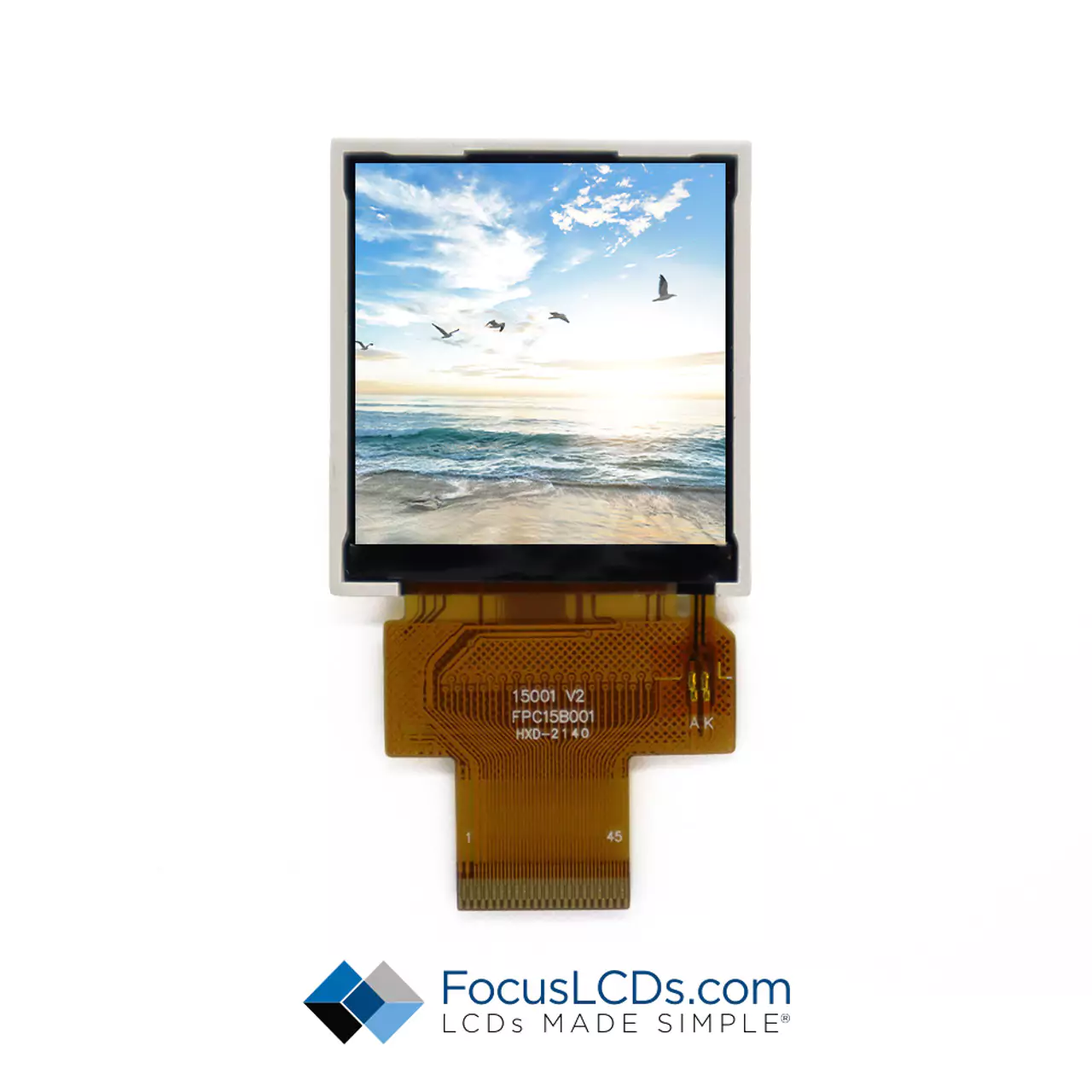

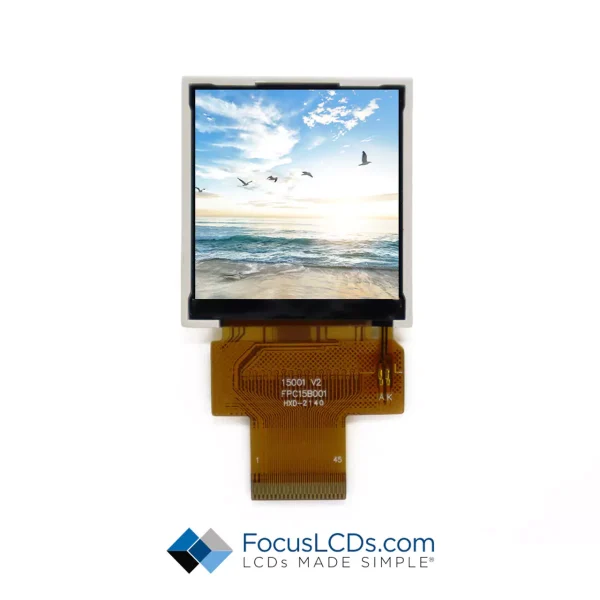

E15RA-FW255-N

$11.97

17 in stock

SKU: E15RA-FW255-N
Attribute Value
Diagonal Size 1.5 Inches
Module Size 33.32 x 36.06mm
Viewing Area 27.72 x 27.72mm
Resolution 240 x 240
Interface 8/16-Bit MCU, 16/18-Bit RGB, 3/4-wire Serial, 3/4-SPI
Brightness 255 Nits
Touch Panel Type No Touch Panel
TFT Controller ST7789V
CTP Controller None
Display Type IPS
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

1.5-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E15RA-FW255-N Specification Sheet8-Bit MCU Schematic8-Bit MCU CodeRoHS
ST7789V Spec Sheet9-Bit MCU Schematic--REACH
E15RA-FW255-N DWG16-Bit MCU Schematic16-Bit MCU CodeCMRT
 18-Bit MCU Schematic--
 3SPI Schematic--
 --3SPI MCU Code
 3SPI + 16-Bit RGB Schematic3SPI + 16-Bit RGB Code
 3SPI + 18-Bit RGB Schematic3SPI + 18-Bit RGB Code
 4SPI Schematic--
 --4SPI MCU Code
 4SPI + 16-Bit RGB Schematic4SPI + 16-Bit RGB Code
 4SPI + 18-Bit RGB Schematic4SPI + 18-Bit RGB Code

Description

Offering high quality TFT LCDs for medical, defense, and industrial applications. Our displays offer exceptional performance and durability. A wide range of sizes, resolutions, and interfaces to fit your needs. We provide custom display solutions tailored to your unique requirements and we offer a long production life to ensure your application will be supported for years to come.
E15RA-FW255-N
Small LCDs: Offering compact efficiency, our range of small LCDs are expertly engineered to deliver exceptional visual performance in a diminutive package. These displays are the optimal choice for applications where space is limited and quality cannot be compromised. From sophisticated medical instruments to handheld test and measurement devices, our small LCDs provide clear and vibrant visuals, ensuring optimal readability and user interaction.
IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.
Selectable RGB, MCU, or SPI Interface: Our versatile TFT LCDs with selectable RGB, MCU, or SPI interfaces offer unparalleled flexibility for integration with various systems and devices. These adaptable displays cater to a wide range of applications, from multimedia systems to embedded solutions, ensuring optimal compatibility and performance regardless of your project requirements.
E15RA-FW255-N
Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.
Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.
RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
E15RA-FW255-N
FocusLCDS Homepage

Small LCDs: Offering compact efficiency, our range of small LCDs are expertly engineered to deliver exceptional visual performance in a diminutive package. These displays are the optimal choice for applications where space is limited and quality cannot be compromised. From sophisticated medical instruments to handheld test and measurement devices, our small LCDs provide clear and vibrant visuals, ensuring optimal readability and user interaction.

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

Selectable RGB, MCU, or SPI Interface: Our versatile TFT LCDs with selectable RGB, MCU, or SPI interfaces offer unparalleled flexibility for integration with various systems and devices. These adaptable displays cater to a wide range of applications, from multimedia systems to embedded solutions, ensuring optimal compatibility and performance regardless of your project requirements.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
