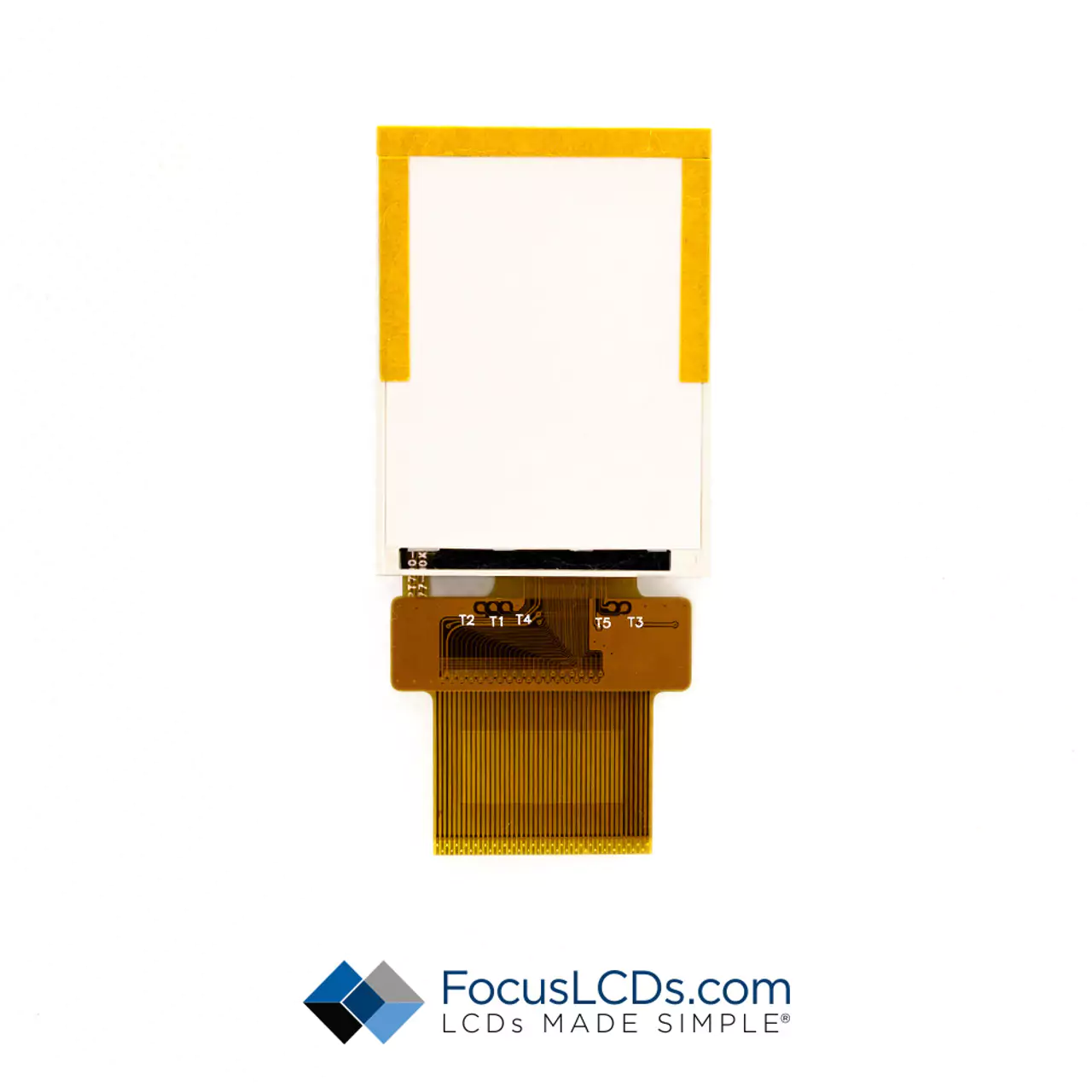

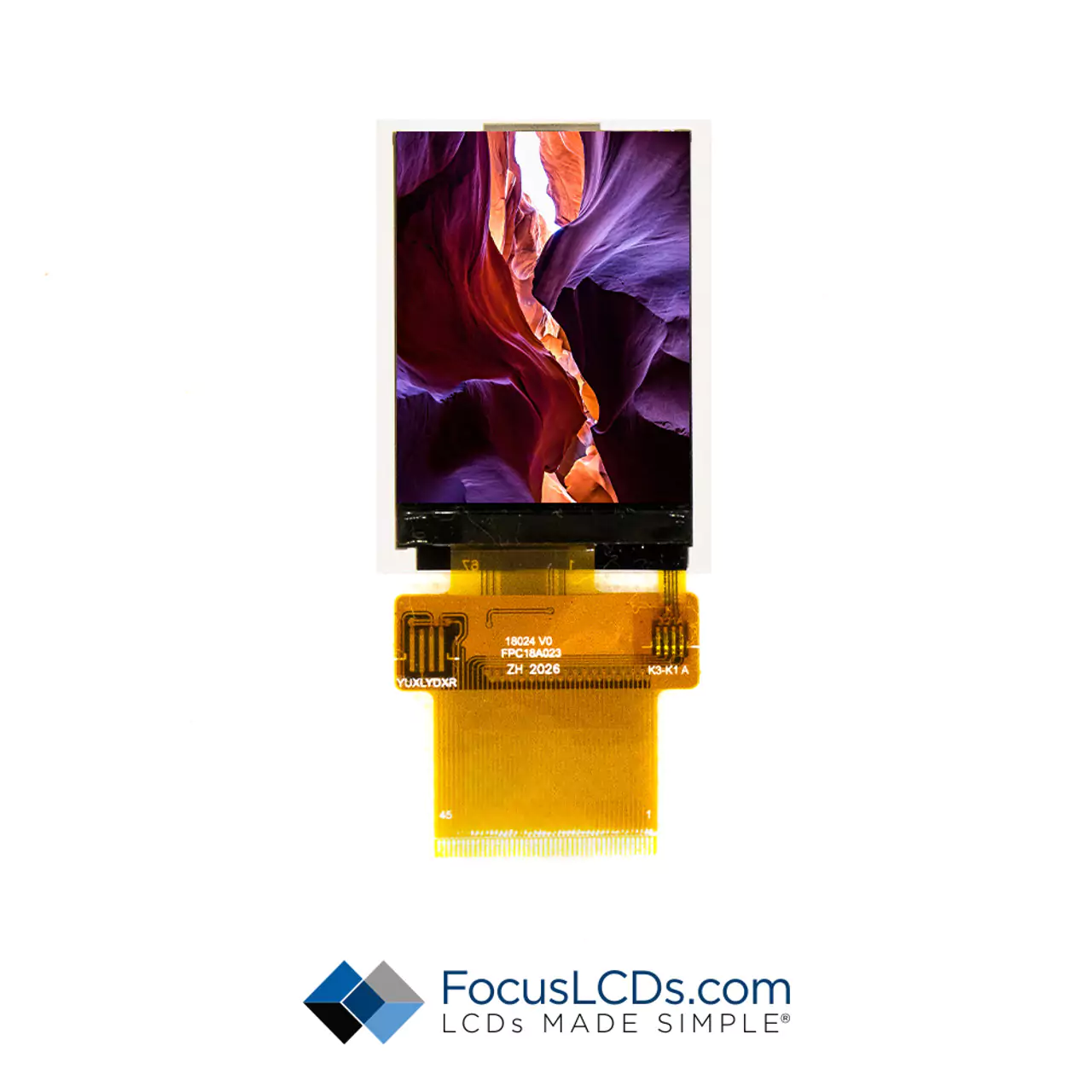

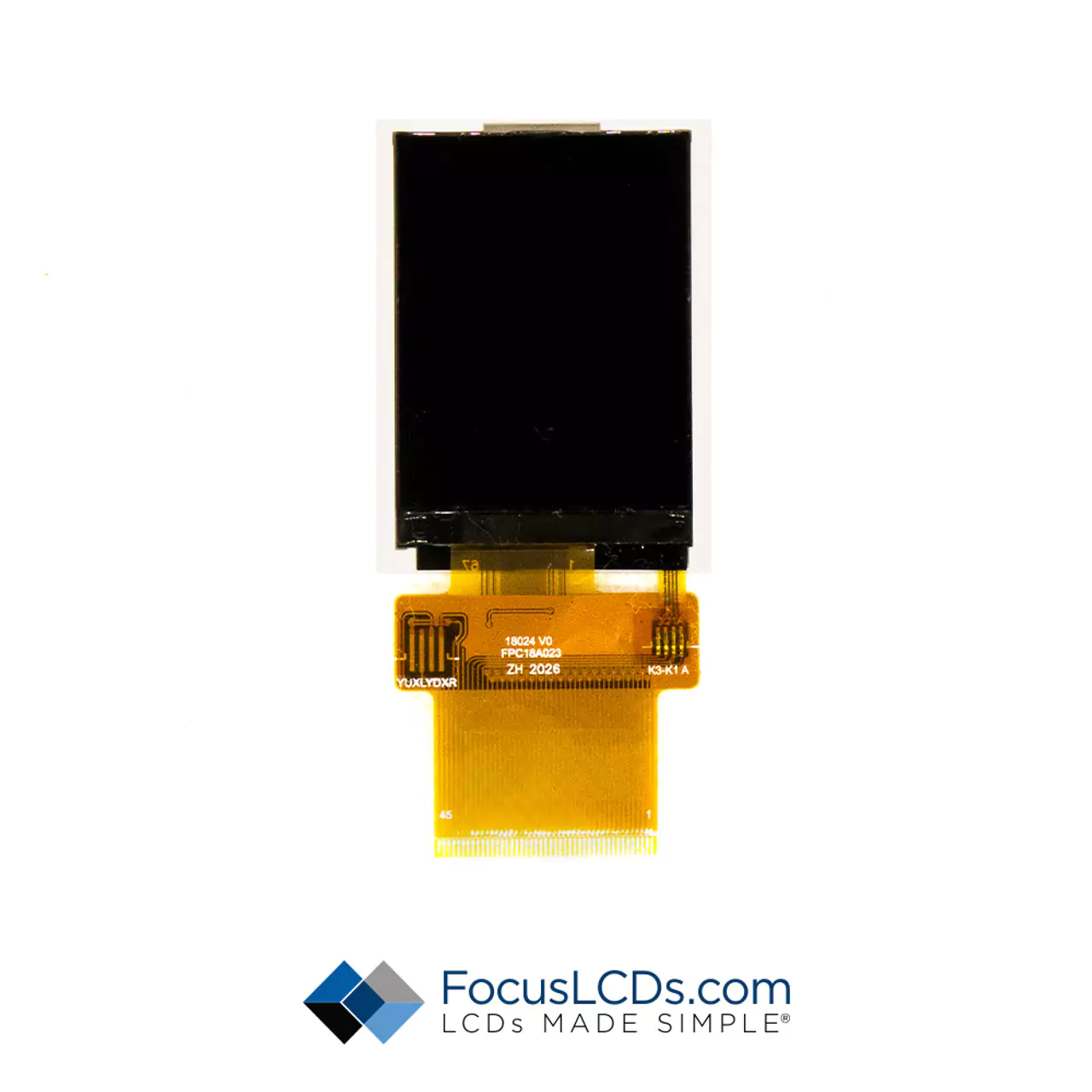

E18RA1-FW450-N

$28.86

10 in stock

SKU: E18RA1-FW450-N
AttributeValue
Diagonal Size1.8 Inches
Module Size34.70 x 46.70mm
Viewing Area26.64 x 35.52mm
Resolution240 x 320
Interface8/9/16/18-Bit MCU, 16/18-Bit RGB, 3/4-SPI
Brightness450 Nits
Touch Panel TypeNo Touch Panel
TFT ControllerST7789S
CTP ControllerNone
Display TypeIPS
PolarizerTransmissive
Operating Temperature-20C to 70C

Documentation

1.8-inch TFT Display

Specification SheetsQuality Documentation
E18RA1-FW450-N Specification SheetRoHS
E18RA1-FW450-N DWGREACH
ST7789S Specification SheetCMRT

Description

Small LCDs: Offering compact efficiency, our range of small LCDs are expertly engineered to deliver exceptional visual performance in a diminutive package. These displays are the optimal choice for applications where space is limited and quality cannot be compromised. From sophisticated medical instruments to handheld test and measurement devices, our small LCDs provide clear and vibrant visuals, ensuring optimal readability and user interaction.

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

Selectable RGB, MCU, or SPI Interface: Our versatile TFT LCDs with selectable RGB, MCU, or SPI interfaces offer unparalleled flexibility for integration with various systems and devices. These adaptable displays cater to a wide range of applications, from multimedia systems to embedded solutions, ensuring optimal compatibility and performance regardless of your project requirements.

QVGA Resolution: Our QVGA (Quarter Video Graphics Array) TFT LCDs have a resolution of 320x240 pixels which provides a compact display solution for a wide range of applications. This resolution creates sharp visuals and delivers reliable performance, making them ideal for use in handheld devices, industrial control systems and other applications where space is limited, and efficiency is crucial.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
