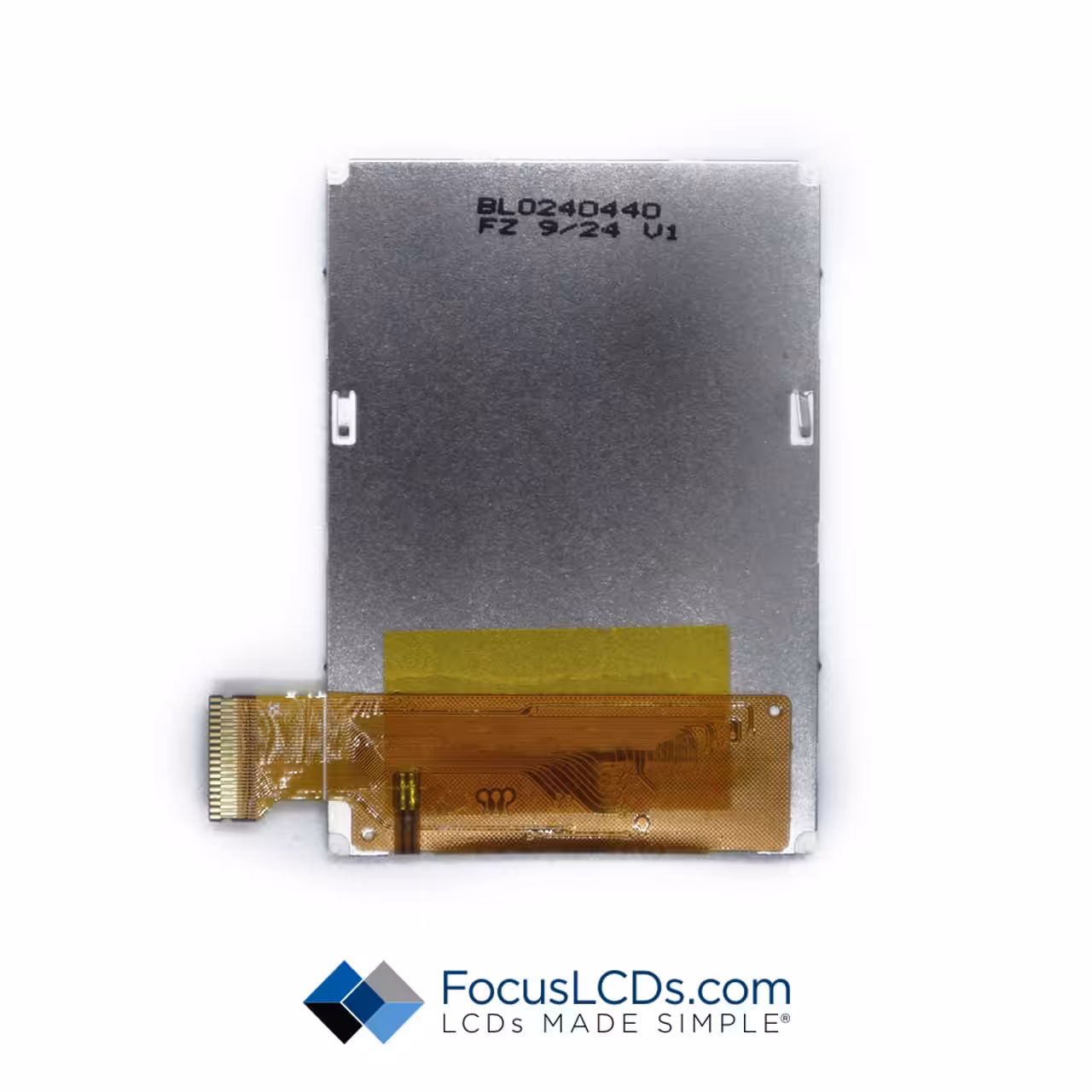

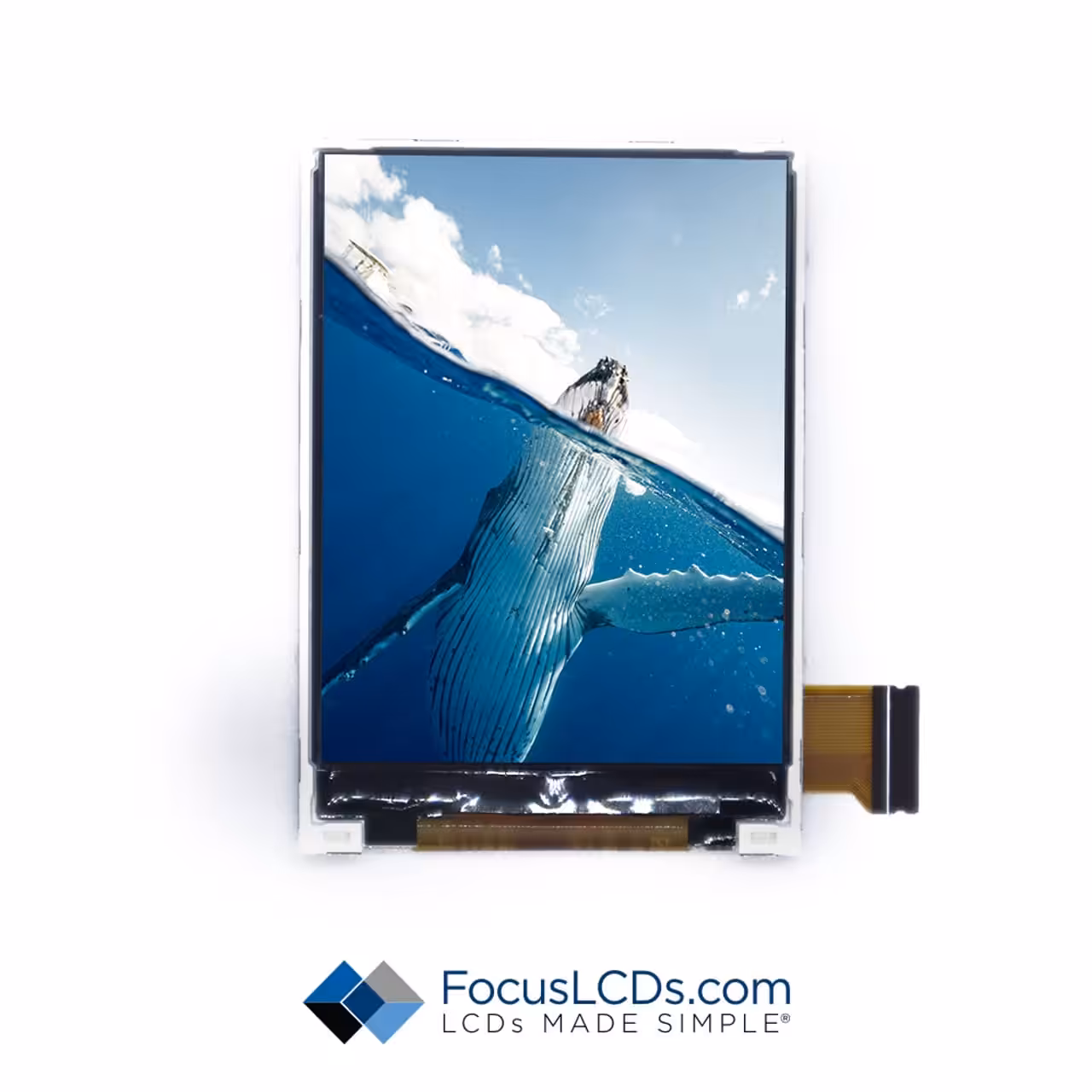

E24RA1-FW420-N

$18.56

18 in stock

SKU: E24RA1-FW420-N
Attribute Value
Diagonal Size 2.4 Inches
Module Size 42.72 x 60.40mm
Viewing Area 36.72 X 48.96mm
Resolution 240 x 320
Interface 16/18-Bit RGB, 3 SPI
Brightness 420 Nits
Touch Panel Type No Touch Panel
TFT Controller ST7789V
CTP Controller None
Display Type IPS
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

2.4-inch TFT Display

Specification SheetsQuality Documentation
E24RA1-FW420-N Specification SheetRoHS
ST7789V Specification SheetREACH
 CMRT

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

SPI Interface: Our SPI Interface TFT LCDs provide a fast and efficient communication channel, ideal for low-power and compact devices such as wearables, IoT gadgets, and portable electronics. These displays enable quick updates and seamless data transfer, ensuring a responsive and smooth user experience.

QVGA Resolution: Our QVGA (Quarter Video Graphics Array) TFT LCDs have a resolution of 320x240 pixels which provides a compact display solution for a wide range of applications. This resolution creates sharp visuals and delivers reliable performance, making them ideal for use in handheld devices, industrial control systems and other applications where space is limited, and efficiency is crucial.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
