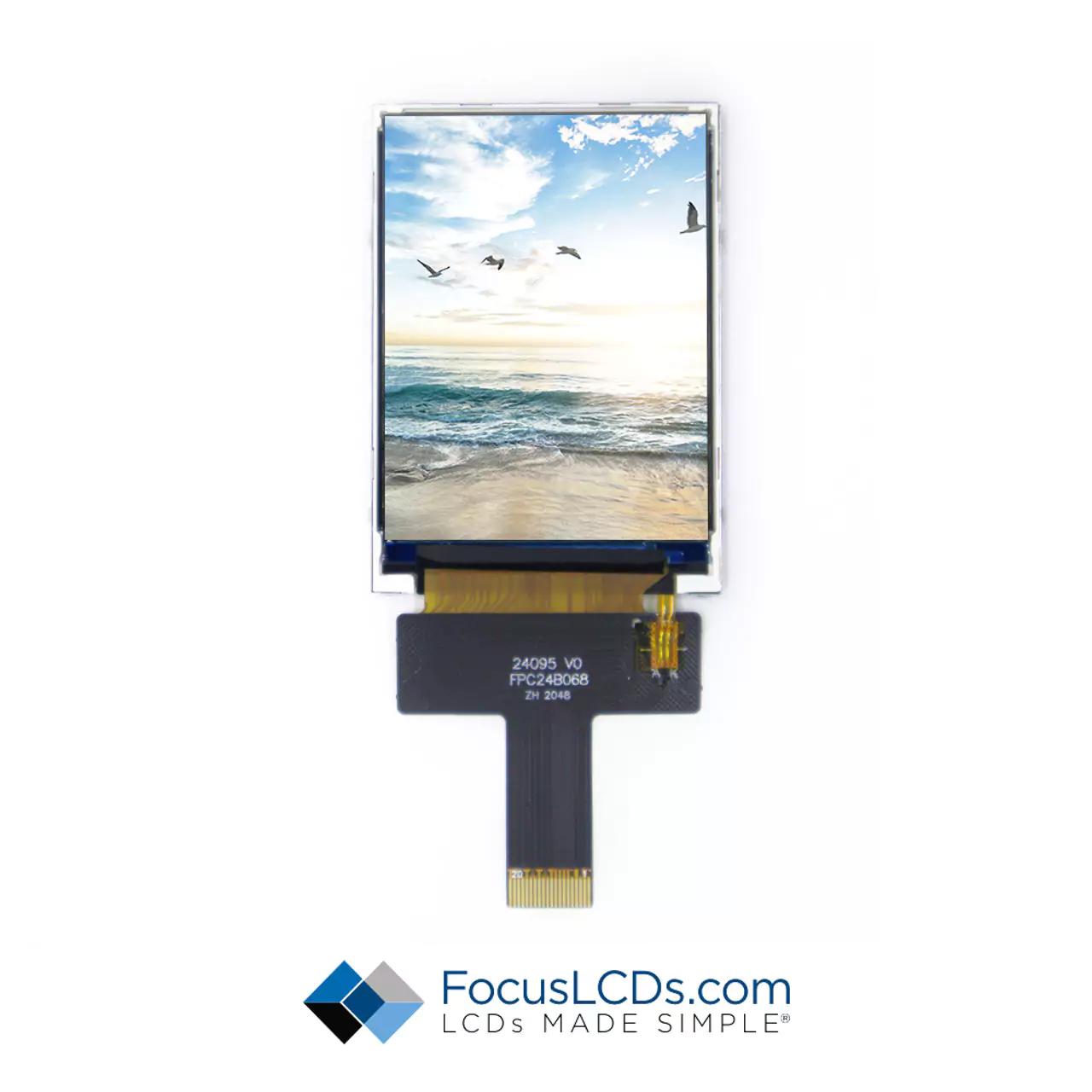

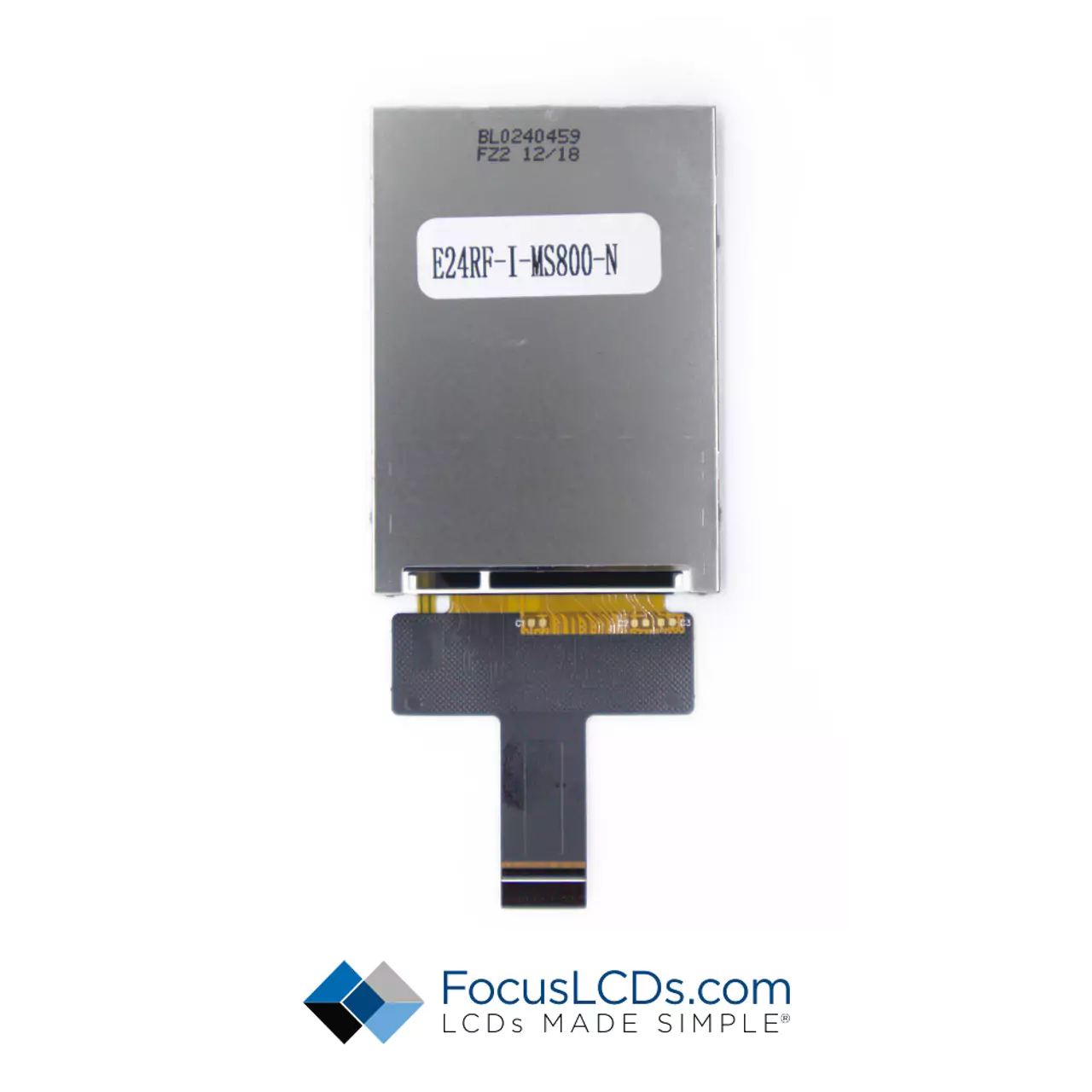

E24RF-I-MS800-N

$40.39

7 in stock

SKU: E24RF-I-MS800-N
AttributeValue
Diagonal Size2.4 Inches
Module Size42.92 x 60.26mm
Viewing Area37.72 x 49.86mm
Resolution480 x 640
Interface2-Lane MIPI DSI
Brightness800 Nits
Touch Panel TypeNo Touch Panel
TFT ControllerST7701SI
CTP ControllerNone
Display TypeIPS
PolarizerTransmissive
Operating Temperature-30C to 80C

Documentation

2.4-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E24RF-I-MS800-N Specification Sheet2 Lane MIPI Schematic2 Lane MIPI CodeRoHS
E24RF-I-MS800-N DWGREACH
ST7701SI Specification SheetCMRT

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

MIPI-DSI Interface: Our MIPI-DSI Interface TFT LCDs deliver high-resolution visuals and rapid data transfer for a superior display experience. These advanced displays are perfect for cutting-edge applications such as smartphones, tablets, and other high-performance devices, where stunning graphics and ultra-fast refresh rates are essential.

VGA Resolution: Our VGA (Video Graphics Array) TFT LCDs boast a resolution of 640x480 pixels, offering superior image quality and enhanced clarity for more demanding applications. These displays are perfect for use in high-resolution devices like industrial monitors, professional camera systems, and advanced gaming consoles where sharp visuals and accurate color reproduction are essential.

Sunlight Readable: Our Sunlight Readable TFT LCDs, with brightness levels ranging from 700 to 1000 nits, are designed to deliver clear, vivid visuals even under direct sunlight. With advanced brightness technology, these displays offer superior visibility and color accuracy, enhancing usability in outdoor environments or high ambient light conditions. Ideal for outdoor kiosks, digital signage, and other sunlight-exposed applications.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
