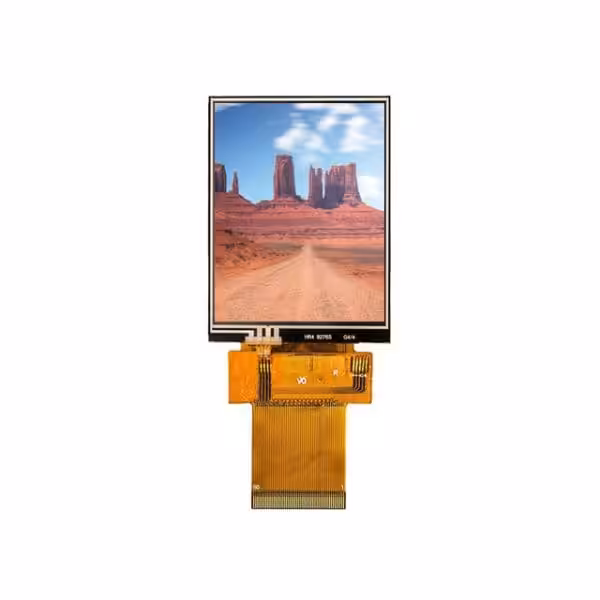

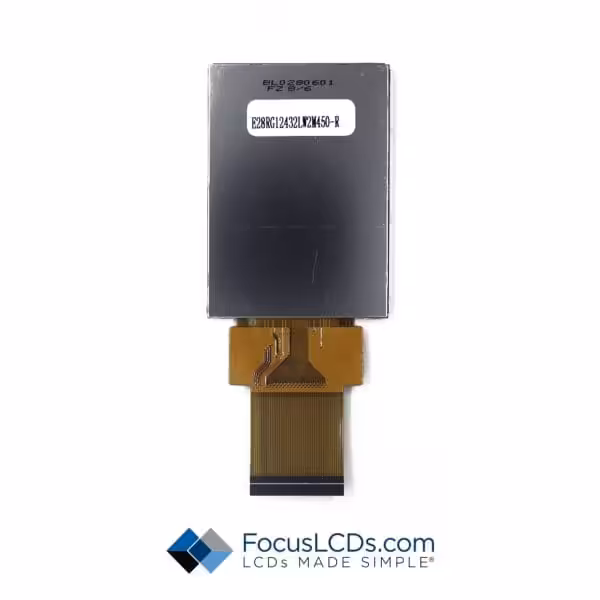

E28RG12432LW2M450-R

$22.57

13 in stock

SKU: E28RG12432LW2M450-R
Attribute Value
Diagonal Size 2.8 Inches
Module Size 50.50 x 69.70mm
Viewing Area 43.20 x 57.60mm
Resolution 240 x 320
Interface 8/9/16/18-Bit MCU, 16/18-Bit RGB, 3/4-wire Serial, 3/4-SPI
Brightness 450 Nits
Touch Panel Type Resistive
TFT Controller ST7789V
CTP Controller None
Display Type TN
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

2.8-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E28RG12432LW2M450-R Specification Sheet8-Bit MCU Schematic8-Bit MCU CodeRoHS
E28RG12432LW2M450-R DWG9-Bit MCU Schematic9-Bit MCU CodeREACH
ST7789V Specification Sheet16-Bit MCU Schematic16-Bit MCU CodeCMRT
 18-Bit MCU Schematic18-Bit MCU Code
 3SPI Schematic3SPI Code
 3SPI + 16-Bit RGB Schematic3SPI +16-Bit RGB Code
 3SPI + 18-Bit RGB Schematic3SPI +18-Bit RGB Code
 4SPI Schematic4SPI Code
 4SPI + 16-Bit RGB Schematic4SPI + 16-Bit RGB Code
 4SPI + 18-Bit RGB Schematic4SPI + 18-Bit RGB Code

Description

TN TFT: Our TN types of TFTs offer rapid response times making them ideal for fast-paced applications. With a cost-effective production process, the TN type of display is suitable for any application requiring a dynamic and responsive color display.

Selectable RGB, MCU, or SPI Interface: Our versatile TFT LCDs with selectable RGB, MCU, or SPI interfaces offer unparalleled flexibility for integration with various systems and devices. These adaptable displays cater to a wide range of applications, from multimedia systems to embedded solutions, ensuring optimal compatibility and performance regardless of your project requirements.

QVGA Resolution: Our QVGA (Quarter Video Graphics Array) TFT LCDs have a resolution of 320x240 pixels which provides a compact display solution for a wide range of applications. This resolution creates sharp visuals and delivers reliable performance, making them ideal for use in handheld devices, industrial control systems and other applications where space is limited, and efficiency is crucial.

Resistive Touch Panel: Our Resistive Touch Panel TFT LCDs offer a cost-effective and highly responsive touch interface. They are perfect for use in environments where gloves are worn, such as industrial settings or cold climates, and are resistant to liquids and contaminants, ensuring durability and long-lasting performance.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
