Documentation
3.5-inch TFT Display
Specification Sheets | Code | Quality Documentation |
---|---|---|
E35RB-B-RW600-N Specification Sheet | 3SPI + 16-Bit RGB Code | RoHS |
E35RB-B-RW600-N DWG | 3SPI + 18-Bit RGB Code | REACH |
ILI9806E Specification Sheet | CMRT |
$74.40
6 in stock

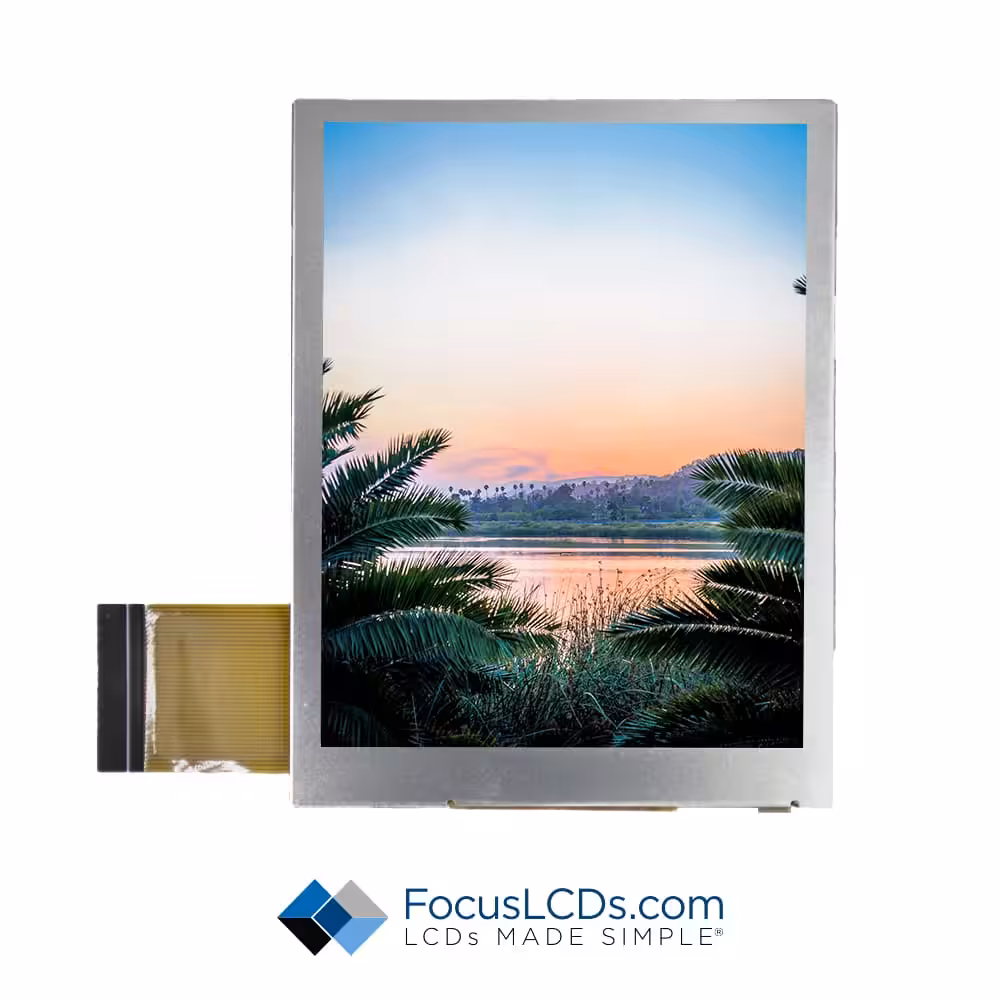

3.5-inch TFT Display
Specification Sheets | Code | Quality Documentation |
---|---|---|
E35RB-B-RW600-N Specification Sheet | 3SPI + 16-Bit RGB Code | RoHS |
E35RB-B-RW600-N DWG | 3SPI + 18-Bit RGB Code | REACH |
ILI9806E Specification Sheet | CMRT |
Blanview: Our Blanview TFT LCDs utilize innovative technology to achieve superior sunlight readability while maintaining low power consumption. Ideal for outdoor and mobile applications, these displays provide the perfect balance between performance, readability, and energy efficiency.
RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.
SPI Interface: Our SPI Interface TFT LCDs provide a fast and efficient communication channel, ideal for low-power and compact devices such as wearables, IoT gadgets, and portable electronics. These displays enable quick updates and seamless data transfer, ensuring a responsive and smooth user experience.
VGA Resolution: Our VGA (Video Graphics Array) TFT LCDs boast a resolution of 640x480 pixels, offering superior image quality and enhanced clarity for more demanding applications. These displays are perfect for use in high-resolution devices like industrial monitors, professional camera systems, and advanced gaming consoles where sharp visuals and accurate color reproduction are essential.
High Brightness: Our High Brightness TFT LCDs, with brightness levels between 500 and 700 nits, ensure a luminous and vivid display even in bright indoor conditions. These high-brightness screens provide excellent visibility and color fidelity, making them an excellent choice for indoor applications that experience bright lighting, such as retail displays, commercial signage, and industrial control systems.
Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.
Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.
RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
