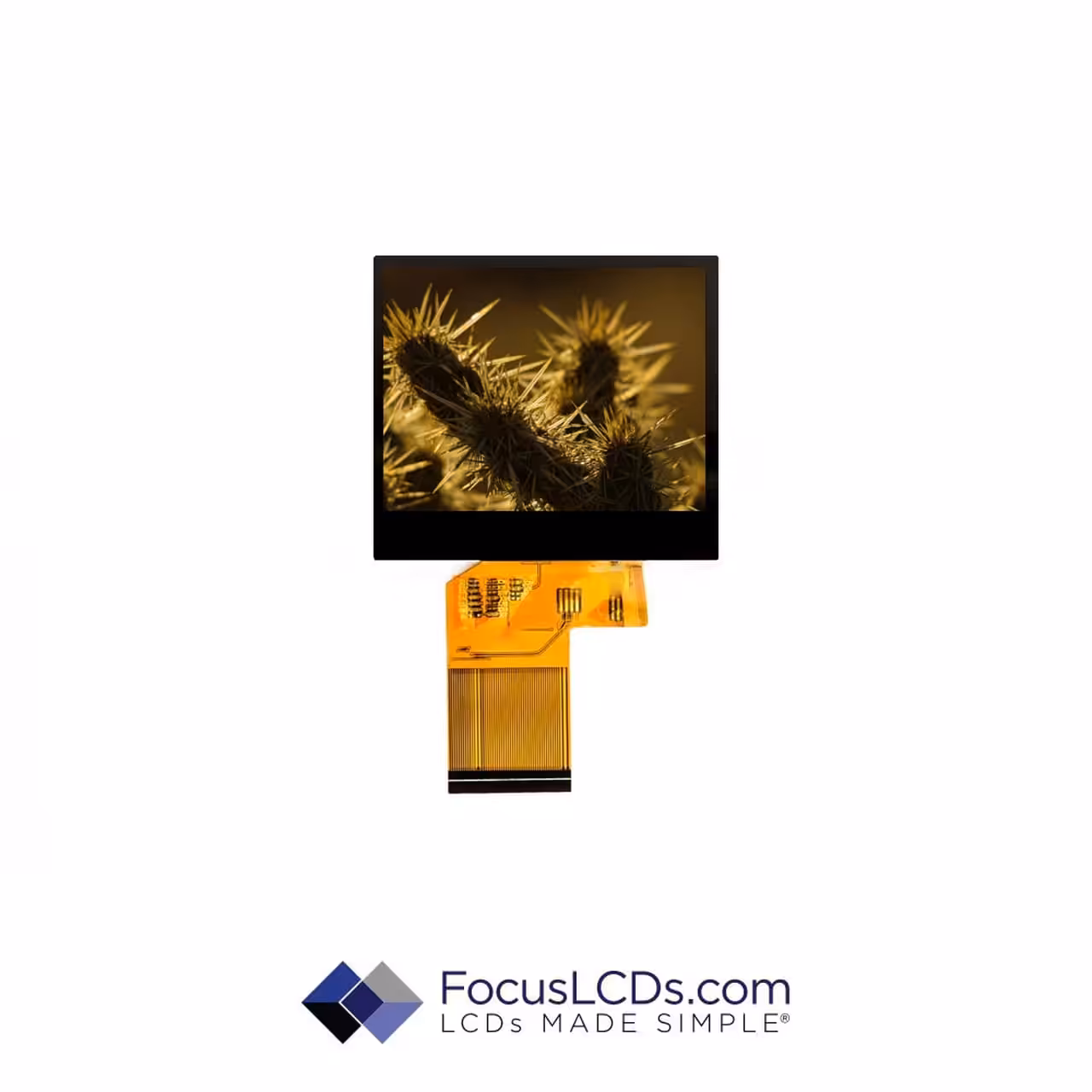

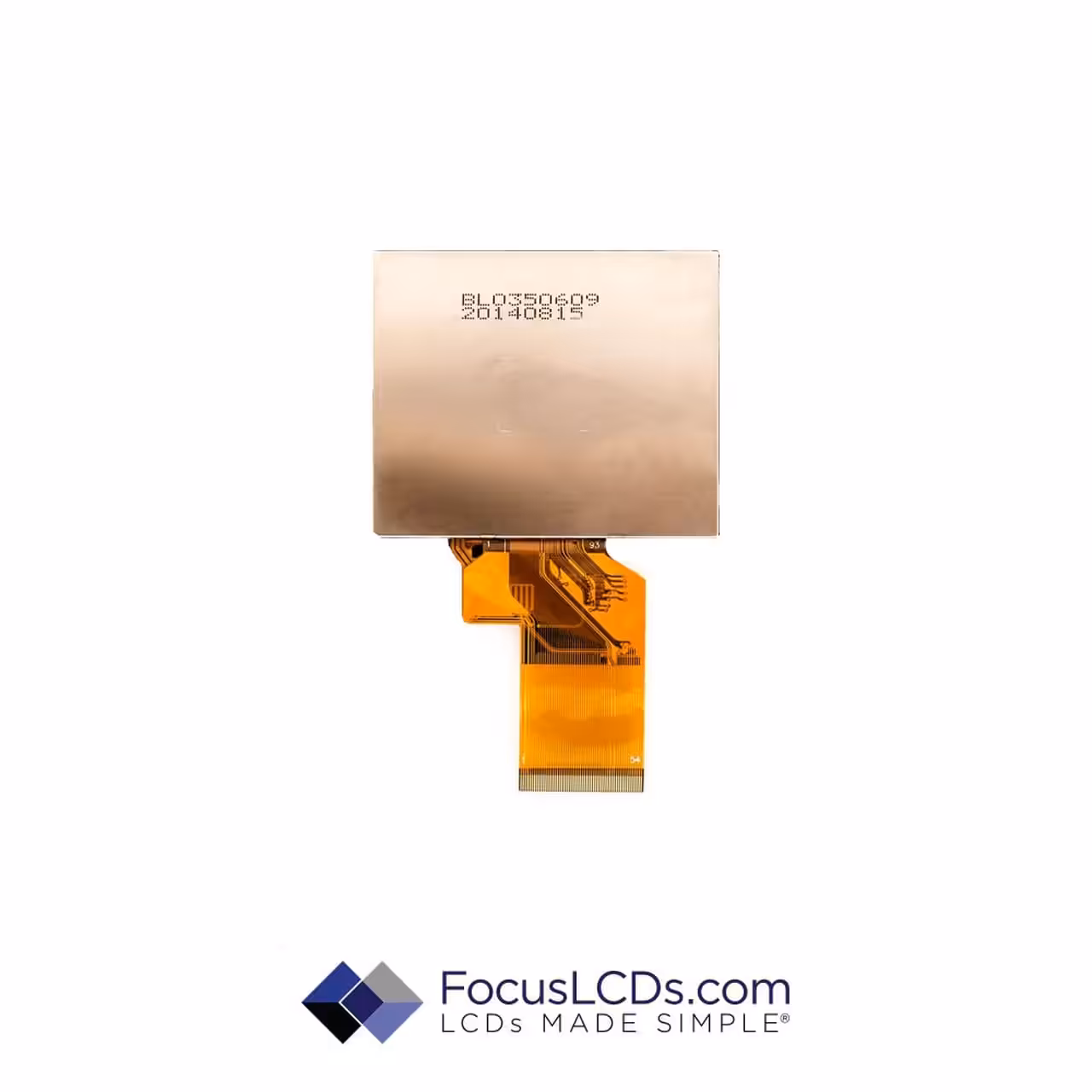

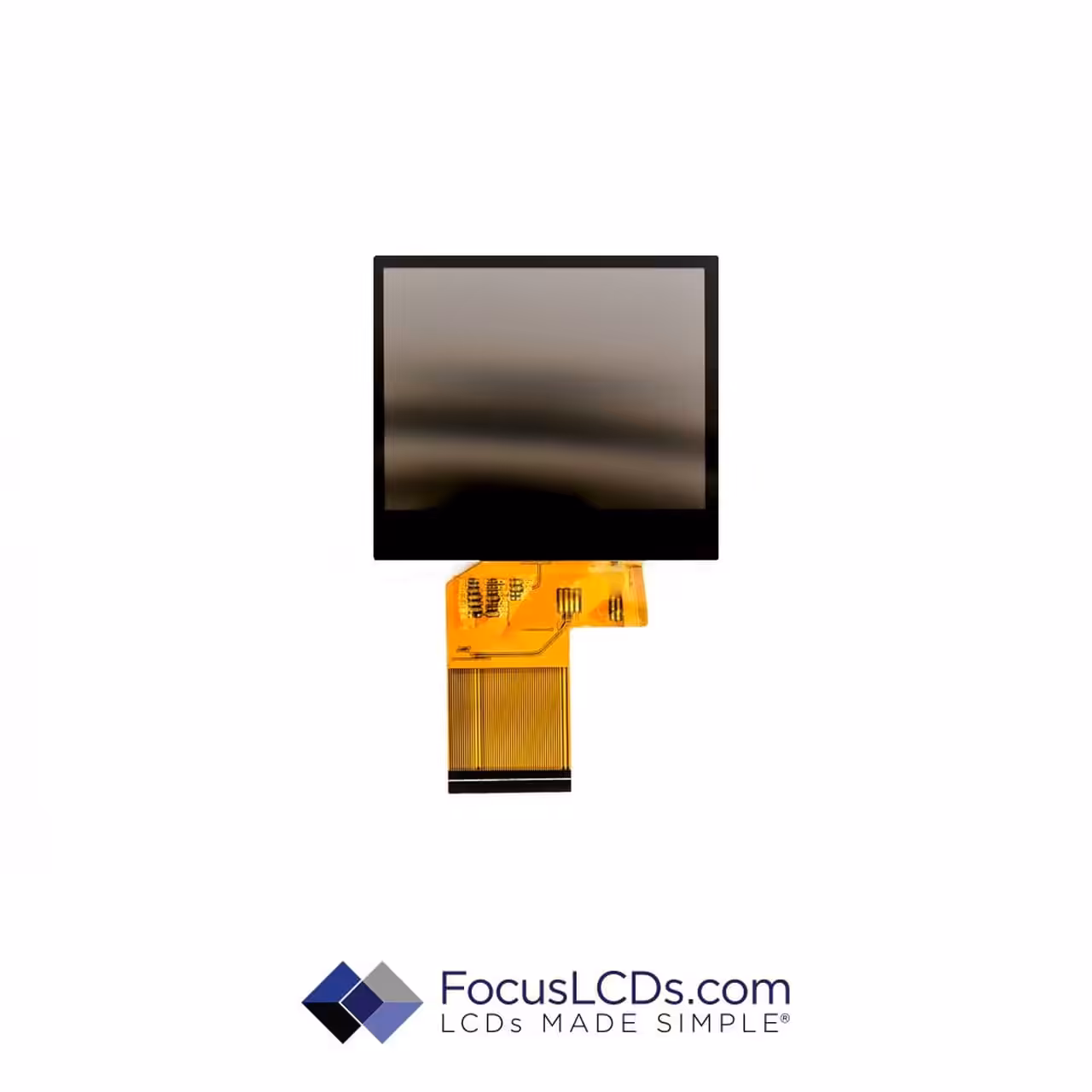

E35RG63224LW2M350-N

$36.94

5 in stock

SKU: E35RG63224LW2M350-N
Attribute Value
Diagonal Size 3.5 Inches
Module Size 76.84 x 63.84mm
Viewing Area 70.08 x 52.56mm
Resolution 320 x 240
Interface 16/18/24-Bit RGB
Brightness 350 Nits
Touch Panel Type No Touch Panel
TFT Controller HX8238-D
CTP Controller None
Display Type TN
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

3.5-inch TFT Display

Specification SheetsSchematicsQuality Documentation
E35RG63224LW2M350-N Specification Sheet16-Bit RGB SchematicRoHS
E35RG63224LW2M350-N DWG18-Bit RGB SchematicREACH
HX8238-D Specification Sheet24-Bit RGB SchematicCMRT

Description

TN TFT: Our TN types of TFTs offer rapid response times making them ideal for fast-paced applications. With a cost-effective production process, the TN type of display is suitable for any application requiring a dynamic and responsive color display.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

QVGA Resolution: Our QVGA (Quarter Video Graphics Array) TFT LCDs have a resolution of 320x240 pixels which provides a compact display solution for a wide range of applications. This resolution creates sharp visuals and delivers reliable performance, making them ideal for use in handheld devices, industrial control systems and other applications where space is limited, and efficiency is crucial.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
