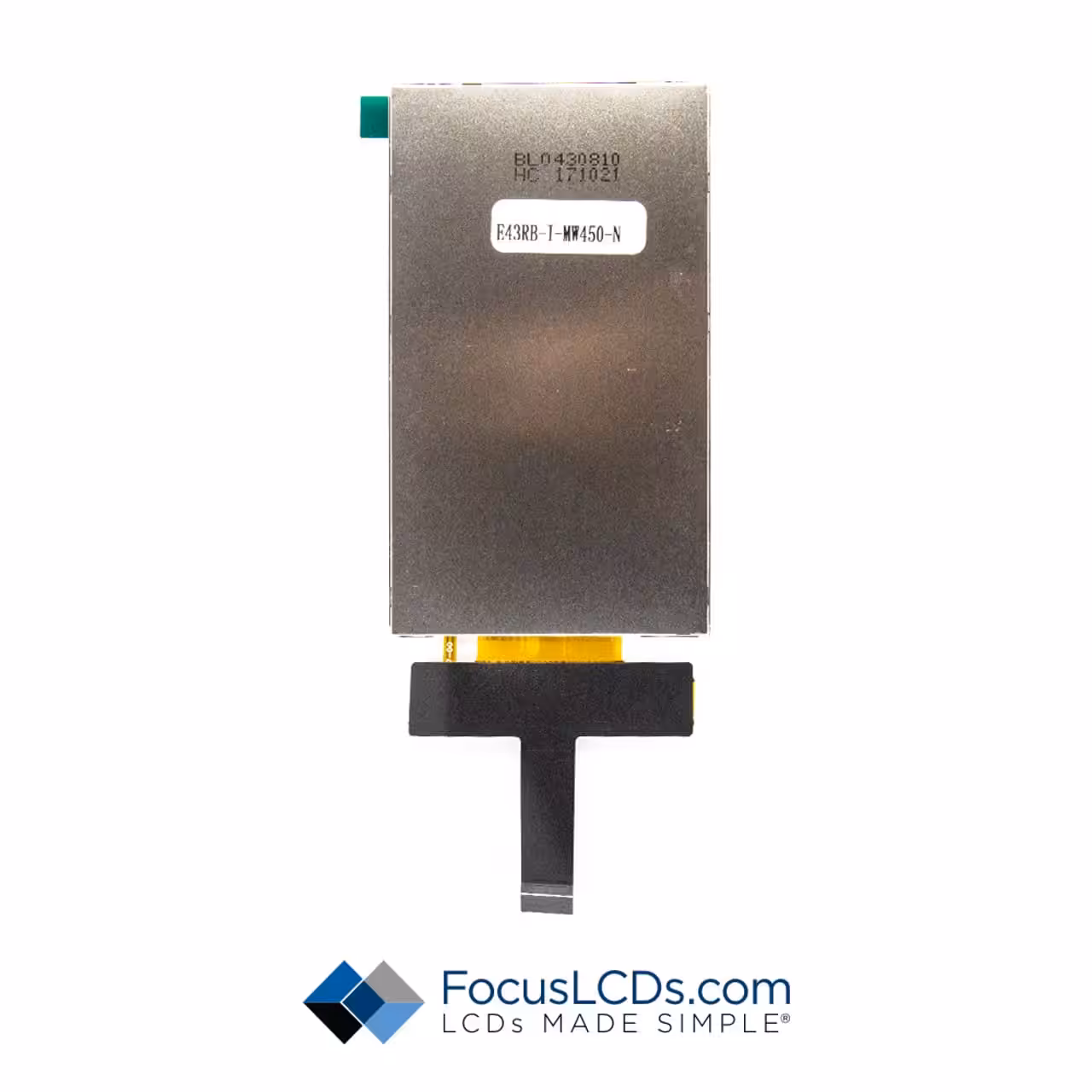

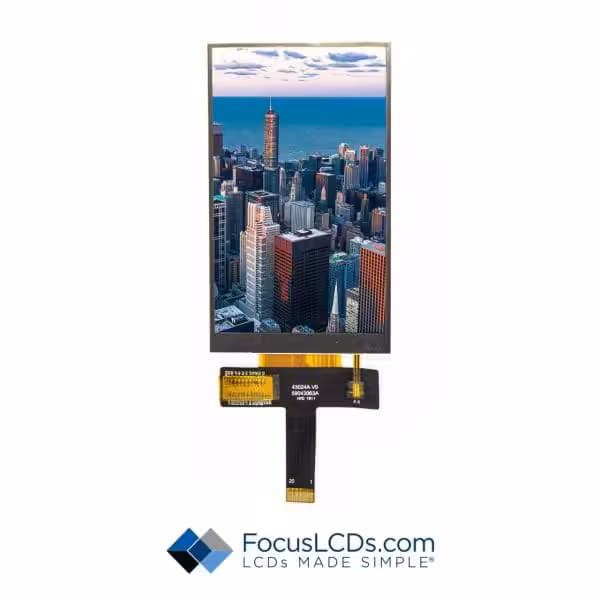

E43RB-I-MW450-N

$52.90

Out of stock

SKU: E43RB-I-MW450-N
Attribute Value
Diagonal Size 4.3 Inches
Module Size 62.50 x 105.55mm
Viewing Area 57.96 x 95.72mm
Resolution 480 x 800
Interface 2-Lane MIPI DSI
Brightness 450 Nits
Touch Panel Type No Touch Panel
TFT Controller ILI9806E
CTP Controller None
Display Type IPS
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

4.3-inch TFT Display

Specification SheetsQuality Documentation
E43RB-I-MW450-N Specification SheetRoHS
E43RB-I-MW450-N DWGREACH
ILI9806E Specification SheetCMRT

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

MIPI-DSI Interface: Our MIPI-DSI Interface TFT LCDs deliver high-resolution visuals and rapid data transfer for a superior display experience. These advanced displays are perfect for cutting-edge applications such as smartphones, tablets, and other high-performance devices, where stunning graphics and ultra-fast refresh rates are essential.

WVGA Resolution: Our WVGA (Wide Video Graphics Array) TFT LCDs feature a resolution of 800x480 pixels, providing an immersive widescreen experience for your devices. These displays are ideal for applications that require high-quality visuals and an expansive aspect ratio, such as digital signage, automotive displays, and multimedia systems.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
