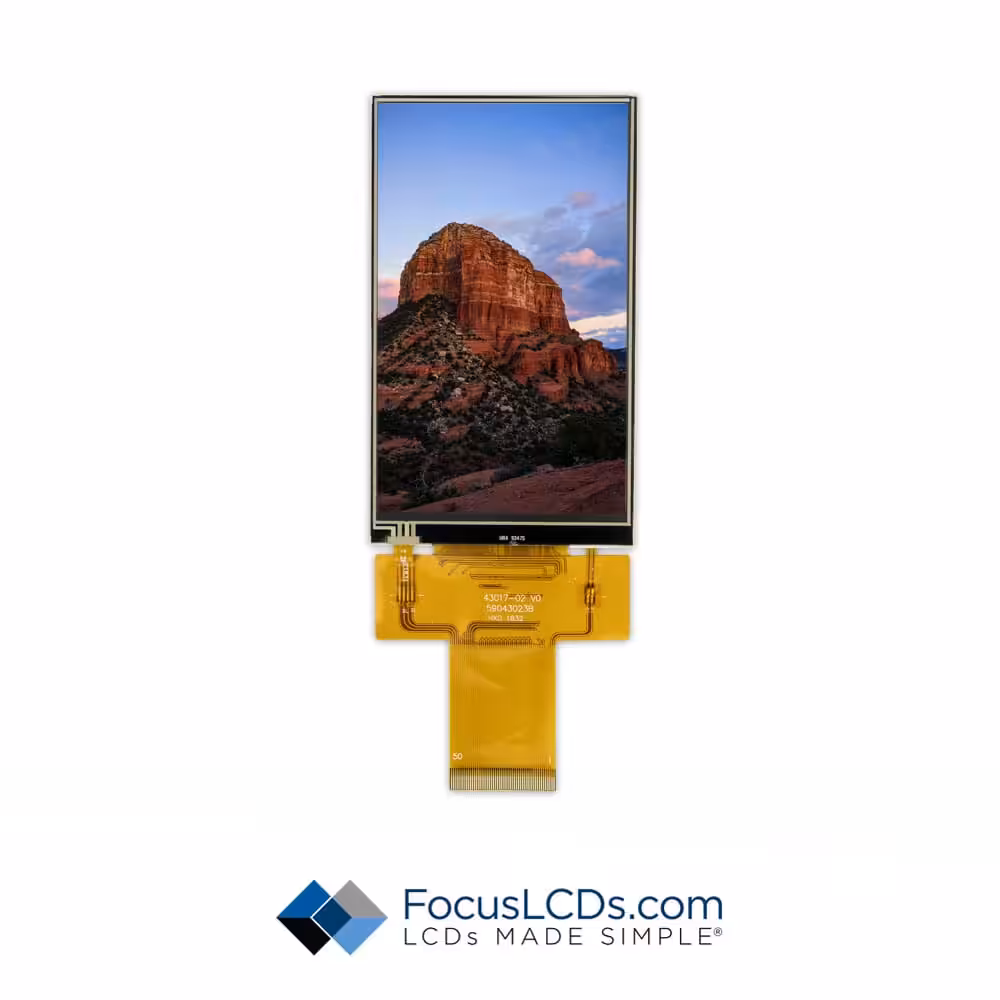

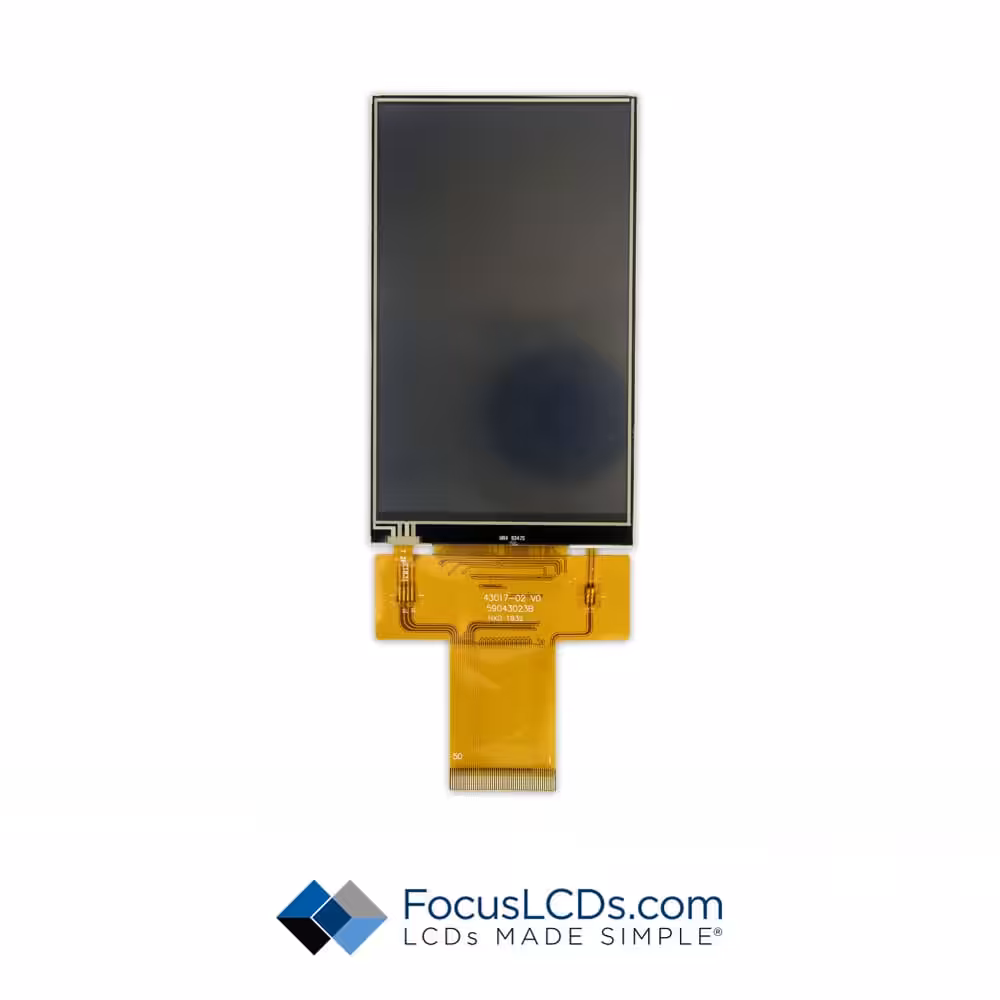

E43RG54880LWAM400-R

$59.40

3 in stock

SKU: E43RG54880LWAM400-R
AttributeValue
Diagonal Size4.3 Inches
Module Size62.66 x 105.95mm
Viewing Area56.16 x 93.60mm
Resolution480 x 800
Interface16/18/24-Bit RGB, 3 SPI
Brightness400 Nits
Touch Panel TypeResistive
TFT ControllerILI9806E
CTP ControllerNone
Display TypeIPS
PolarizerTransmissive
Operating Temperature-10C to 60C

Documentation

4.3-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E43RG54880LWAM400-R Specification Sheet16-Bit RGB Schematic16-Bit RGB CodeRoHS
E43RG54880LWAM400-R DWG18-Bit RGB Schematic18-Bit RGB CodeREACH
ILI9806E Specification Sheet24-Bit RGB Schematic24-Bit RGB CodeCMRT

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

SPI Interface: Our SPI Interface TFT LCDs provide a fast and efficient communication channel, ideal for low-power and compact devices such as wearables, IoT gadgets, and portable electronics. These displays enable quick updates and seamless data transfer, ensuring a responsive and smooth user experience.

WVGA Resolution: Our WVGA (Wide Video Graphics Array) TFT LCDs feature a resolution of 800x480 pixels, providing an immersive widescreen experience for your devices. These displays are ideal for applications that require high-quality visuals and an expansive aspect ratio, such as digital signage, automotive displays, and multimedia systems.

Resistive Touch Panel: Our Resistive Touch Panel TFT LCDs offer a cost-effective and highly responsive touch interface. They are perfect for use in environments where gloves are worn, such as industrial settings or cold climates, and are resistant to liquids and contaminants, ensuring durability and long-lasting performance.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
