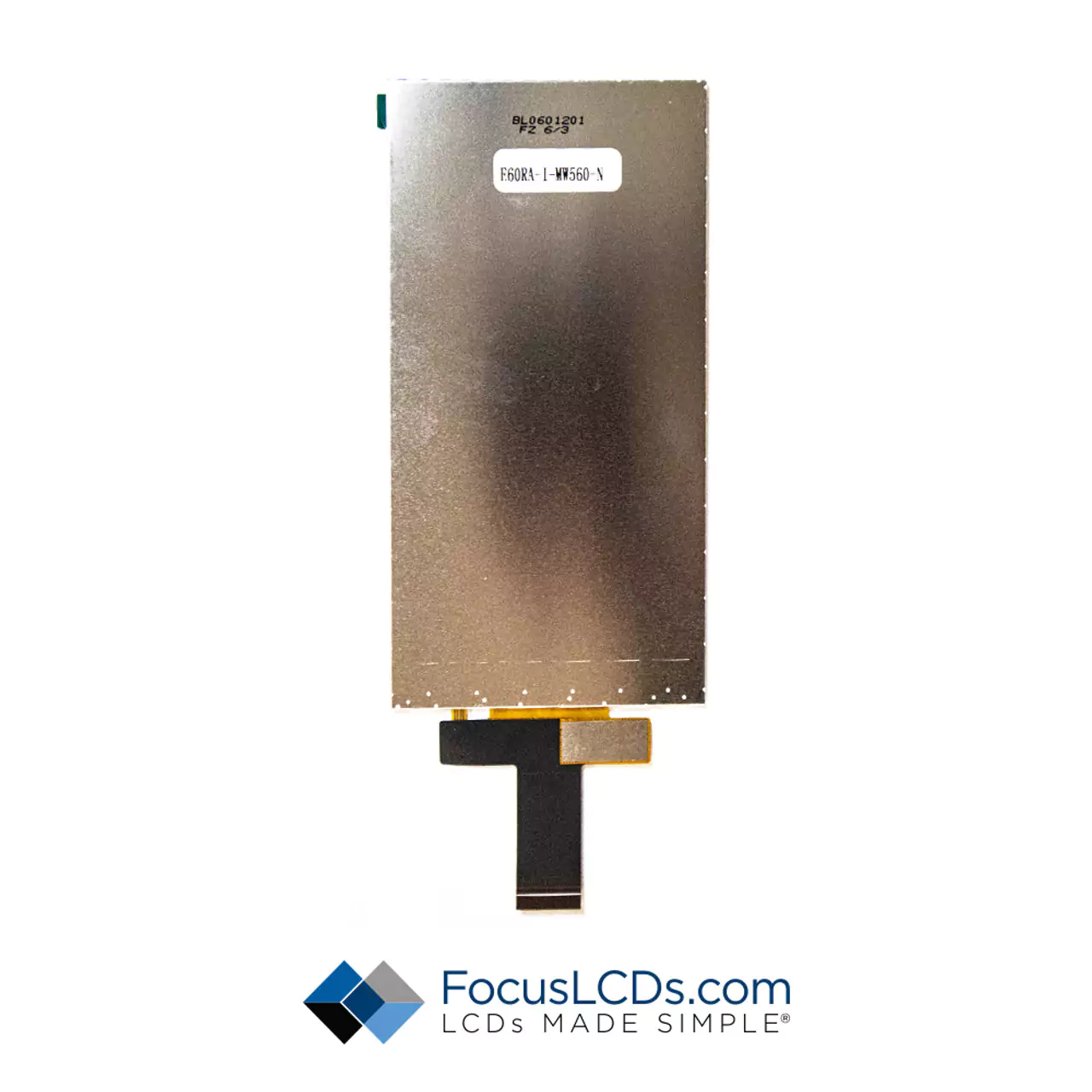

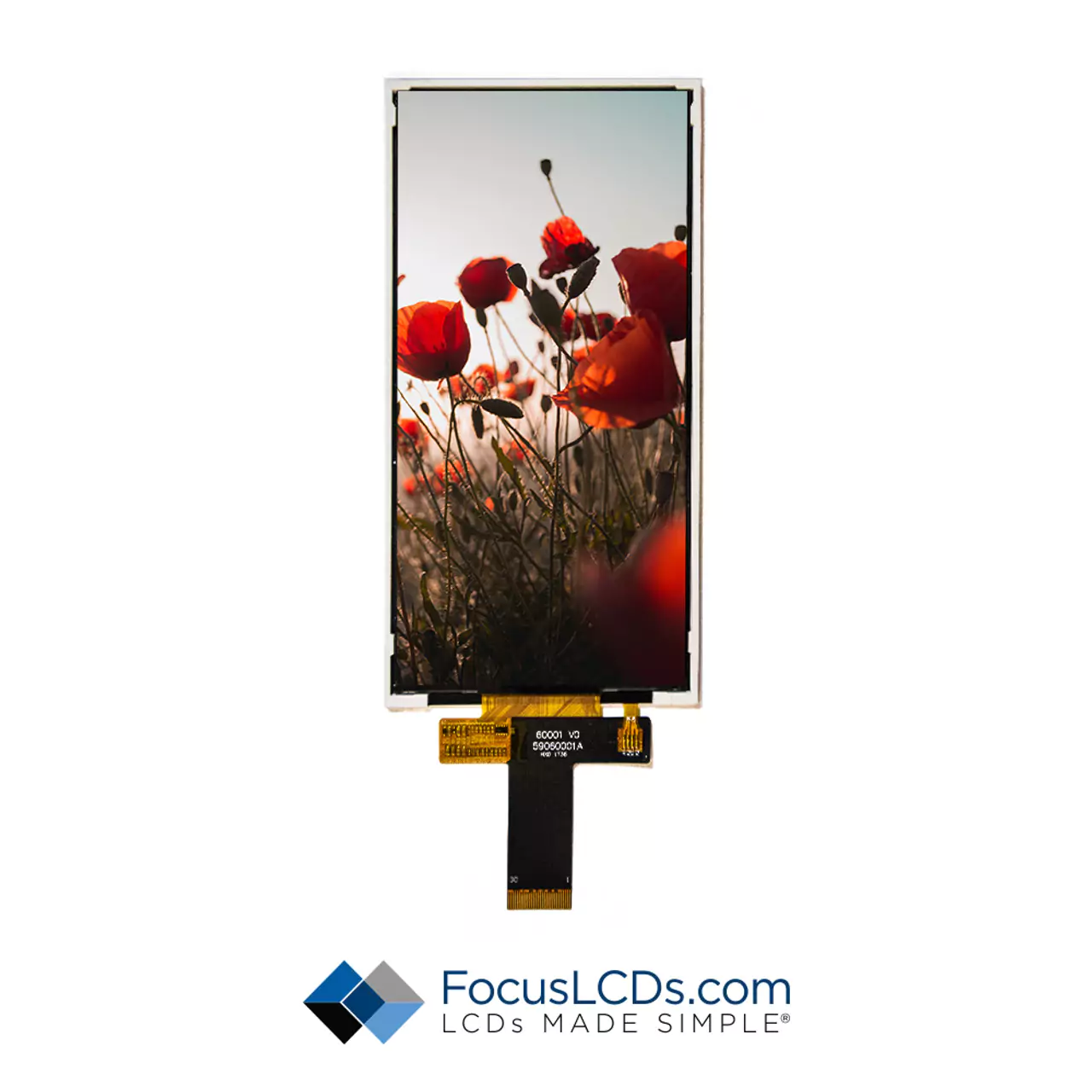

E60RA-I-MW560-N

$68.76

5 in stock

SKU: E60RA-I-MW560-N
Attribute Value
Diagonal Size 6 Inches
Module Size 75.04 x 147.63mm
Viewing Area 70.04 x 141.90mm
Resolution 720 x 1440
Interface 4-Lane MIPI DSI
Brightness 560 Nits
Touch Panel Type No Touch Panel
TFT Controller ILI9881C
CTP Controller None
Display Type IPS
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

6.0-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E60RA-I-MW560-N Specification Sheet4 Lane MIPI Schematic4 Lane MIPI CodeRoHS
E60RA-I-MW560-N DWGREACH
ILI9881C Specification SheetCMRT

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

MIPI-DSI Interface: Our MIPI-DSI Interface TFT LCDs deliver high-resolution visuals and rapid data transfer for a superior display experience. These advanced displays are perfect for cutting-edge applications such as smartphones, tablets, and other high-performance devices, where stunning graphics and ultra-fast refresh rates are essential.

High Brightness: Our High Brightness TFT LCDs, with brightness levels between 500 and 700 nits, ensure a luminous and vivid display even in bright indoor conditions. These high-brightness screens provide excellent visibility and color fidelity, making them an excellent choice for indoor applications that experience bright lighting, such as retail displays, commercial signage, and industrial control systems.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Development Accessories

Connectors


FH12-30S-0.5SH(55)

TFT Connector
