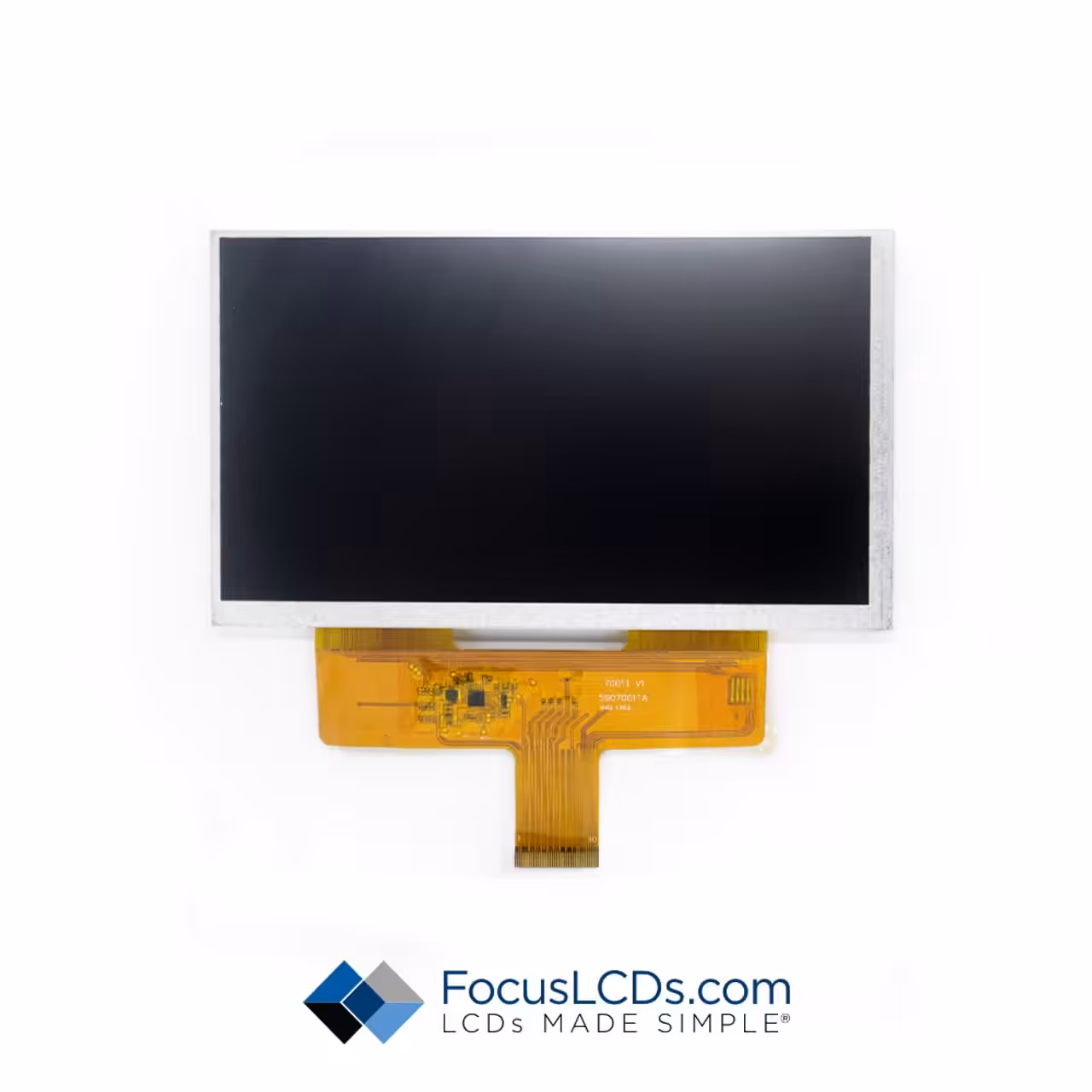

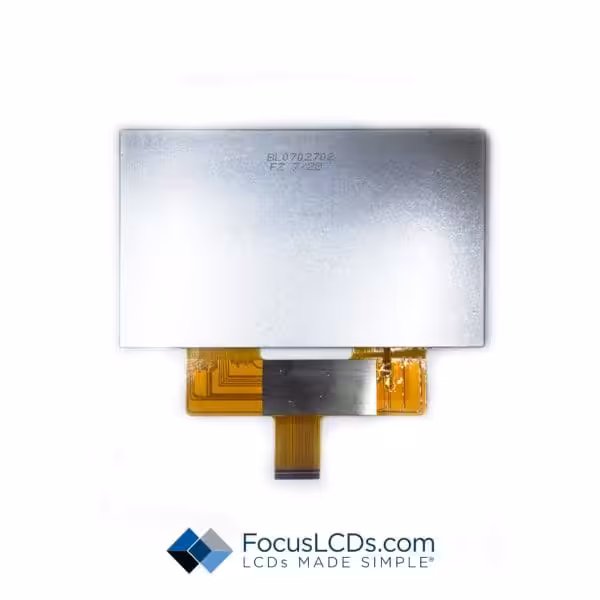

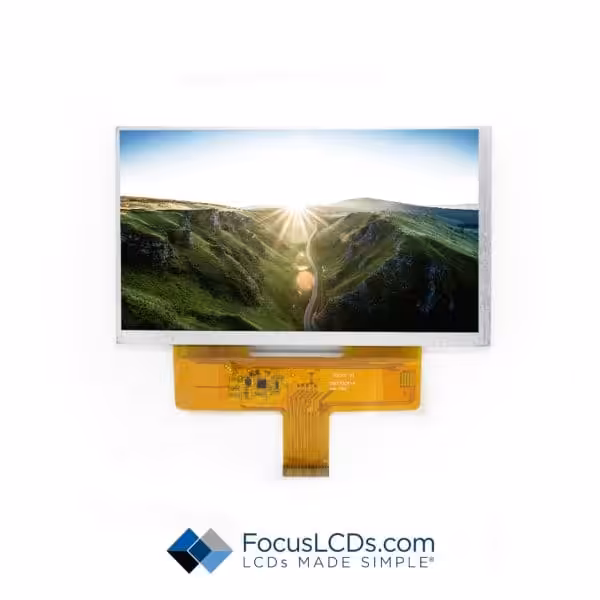

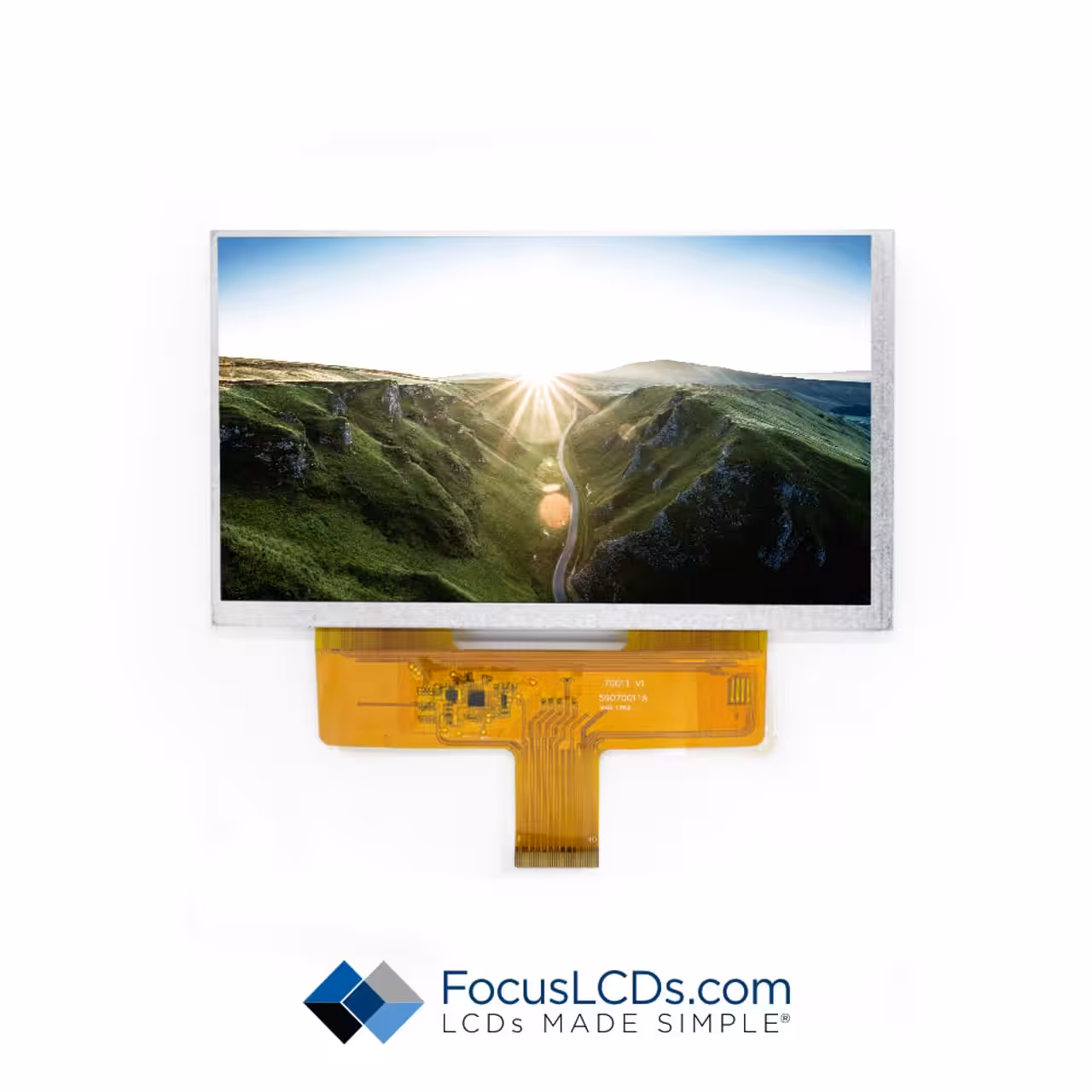

E70RB-FS400-N

$117.60

4 in stock

SKU: E70RB-FS400-N
Attribute Value
Diagonal Size 7 Inches
Module Size 165.40 x 104.59mm
Viewing Area 152.40 x 91.44mm
Resolution 800 x 480
Interface 6/8-Bit LVDS
Brightness 400 Nits
Touch Panel Type No Touch Panel
TFT Controller SC5004, SC5005
CTP Controller None
Display Type IPS
Polarizer Transmissive
Operating Temperature -30C to 85C

Documentation

7.0-inch TFT Display

Specification SheetsSchematicsQuality Documentation
E70RB-FS400-N Specification Sheet6-Bit LVDS SchematicRoHS
E70RB-FS400-N DWG8-Bit LVDS SchematicREACH
SC5004 Specification SheetCMRT
SC5005 Specification Sheet

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

LVDS Interface: Our TFT LCDs with LVDS Interface provide robust and reliable high-speed data transmission for exceptional image quality and performance. These displays are well-suited for use in demanding environments, such as medical imaging, avionics, and high-end computing systems, where data integrity and visual accuracy are crucial.

WVGA Resolution: Our WVGA (Wide Video Graphics Array) TFT LCDs feature a resolution of 800x480 pixels, providing an immersive widescreen experience for your devices. These displays are ideal for applications that require high-quality visuals and an expansive aspect ratio, such as digital signage, automotive displays, and multimedia systems.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
