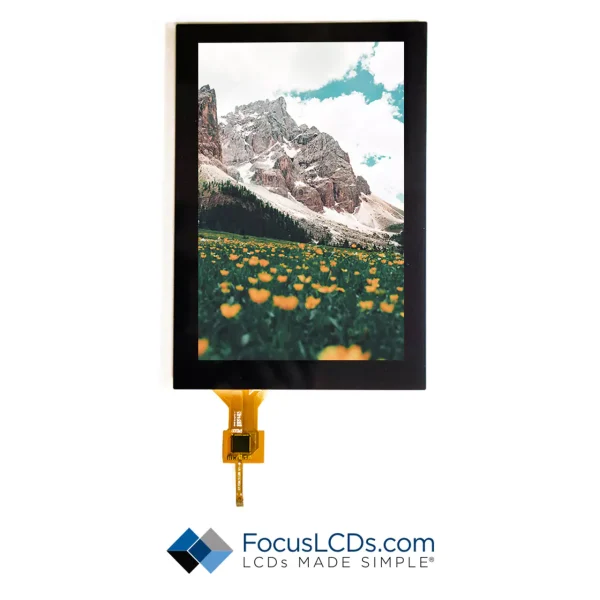

E70RD-FS400-C

$178.67

Out of stock

SKU: E70RD-FS400-C
AttributeValue
Diagonal Size7 Inches
Module Size119.46 x 176.70mm
Viewing Area95.30 x 151.82mm
Resolution1200 x 1920
Interface4-Lane MIPI DSI
Brightness400 Nits
Touch Panel TypeCapacitive
TFT ControllerR69429
CTP ControllerGT9271
Display TypeTN
PolarizerTransmissive
Operating Temperature-10C to 60C

Documentation

7.0-inch TFT Display

Specification SheetsQuality Documentation
E70RD-FS400-C Specification SheetRoHS
E70RD-FS400-C DWGREACH
GT9271 Specification SheetCMRT

Description

TN TFT: Our TN types of TFTs offer rapid response times making them ideal for fast-paced applications. With a cost-effective production process, the TN type of display is suitable for any application requiring a dynamic and responsive color display.

MIPI-DSI Interface: Our MIPI-DSI Interface TFT LCDs deliver high-resolution visuals and rapid data transfer for a superior display experience. These advanced displays are perfect for cutting-edge applications such as smartphones, tablets, and other high-performance devices, where stunning graphics and ultra-fast refresh rates are essential.

WUXGA Resolution: Our WUXGA (Wide Ultra Extended Graphics Array) TFT LCDs feature a resolution of 1920x1200 pixels, providing a broader aspect ratio for an even more captivating display experience. These widescreen displays are ideal for high-resolution applications such as digital cinema, professional graphics workstations, and large-scale digital signage systems.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Development Accessories

Connectors


FH12-6S-0.5SH(55)

CTP Connector
