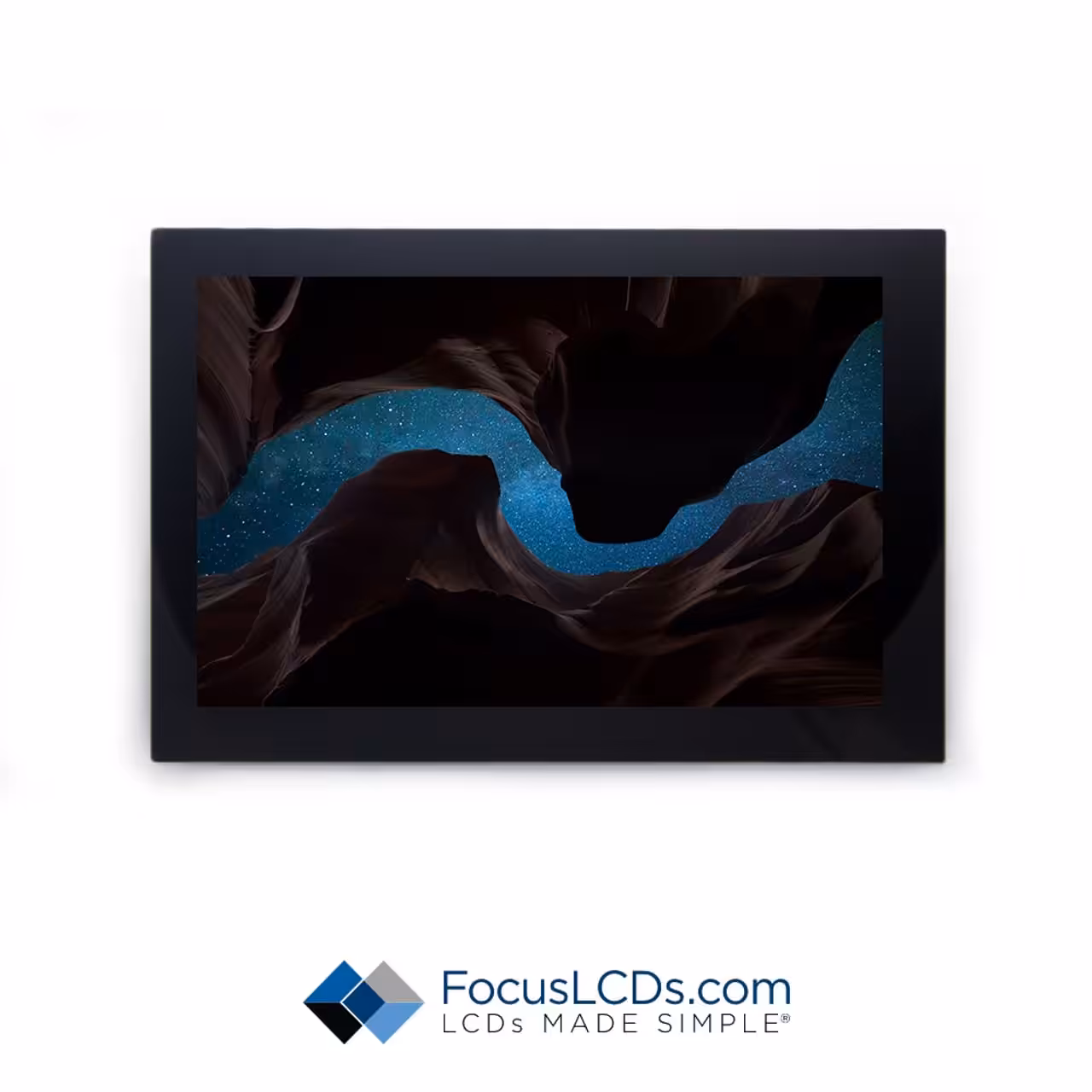

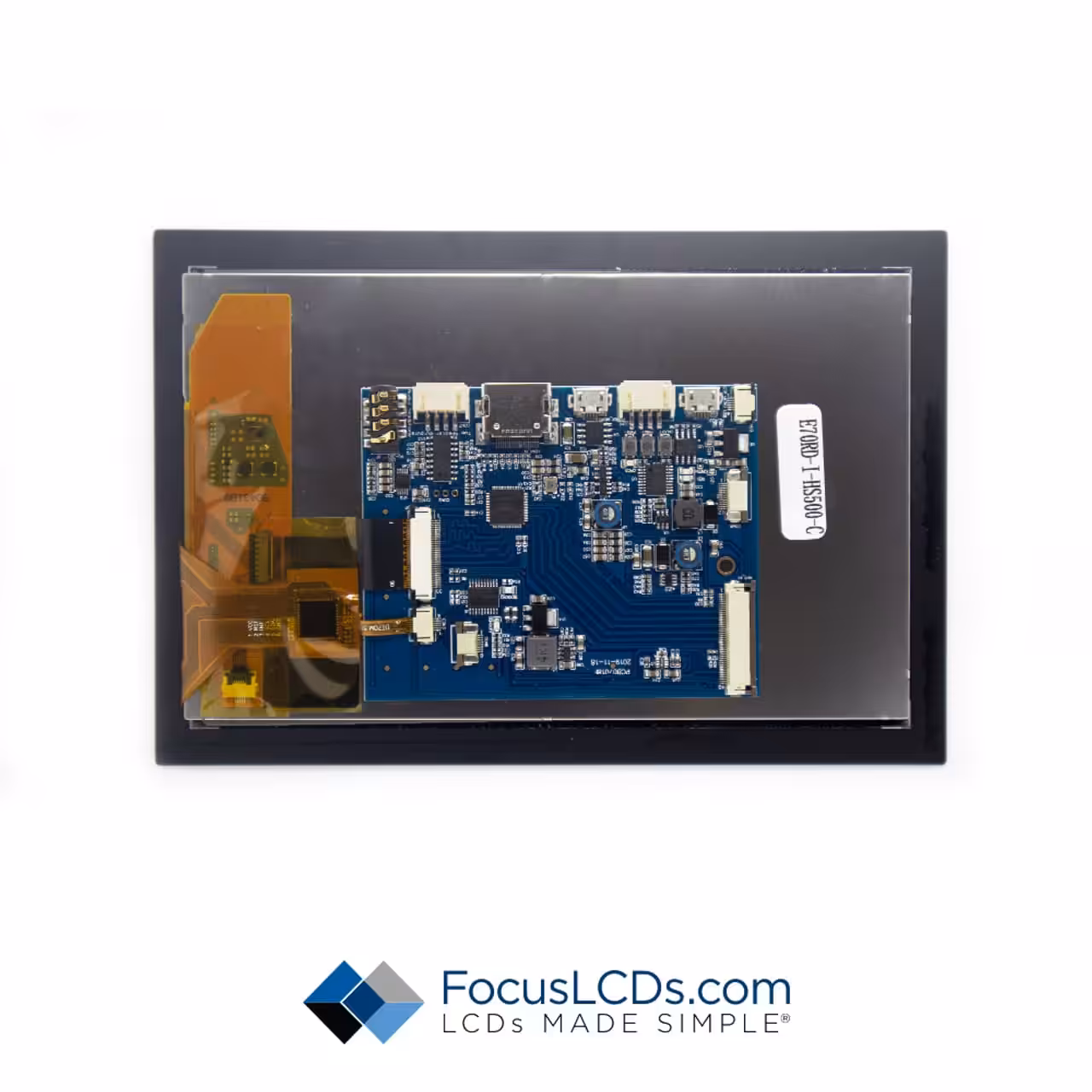

E70RD-I-HS500-C

$177.27

Out of stock

SKU: E70RD-I-HS500-C
AttributeValue
Diagonal Size7 Inches
Module Size119.46 x 176.78mm
Viewing Area151.82 x 95.30mm
Resolution1200 x 1920
InterfaceHDMI, 4-Lane MIPI DSI
Brightness500 Nits
Touch Panel TypeCapacitive
TFT ControllerILI9881C
CTP ControllerGT911
Display TypeIPS
PolarizerTransmissive
Operating Temperature-10C to 60C

Documentation

7.0-inch TFT

Specification SheetsQuality Documentation
E70RD-I-HS500-C Specification SheetRoHS
E70RD-I-HS500-C DWGREACH
ILI9881C Specification SheetCMRT
GT911 Specification Sheet

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

MIPI-DSI Interface: Our MIPI-DSI Interface TFT LCDs deliver high-resolution visuals and rapid data transfer for a superior display experience. These advanced displays are perfect for cutting-edge applications such as smartphones, tablets, and other high-performance devices, where stunning graphics and ultra-fast refresh rates are essential.

HDMI Interface: Our TFT LCDs equipped with HDMI Interface offer high-definition display capabilities, delivering exceptional image quality, vibrant colors, and crisp detail. The HDMI interface ensures reliable high-speed data transmission, enabling our displays to handle high-definition video and audio for a superior multimedia experience. These displays are the perfect solution for high-performance applications such as home entertainment systems, digital signage, and advanced computing devices, where crystal-clear visuals and sound are paramount.

WUXGA Resolution: Our WUXGA (Wide Ultra Extended Graphics Array) TFT LCDs feature a resolution of 1920x1200 pixels, providing a broader aspect ratio for an even more captivating display experience. These widescreen displays are ideal for high-resolution applications such as digital cinema, professional graphics workstations, and large-scale digital signage systems.

High Brightness: Our High Brightness TFT LCDs, with brightness levels between 500 and 700 nits, ensure a luminous and vivid display even in bright indoor conditions. These high-brightness screens provide excellent visibility and color fidelity, making them an excellent choice for indoor applications that experience bright lighting, such as retail displays, commercial signage, and industrial control systems.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
