E70RG88048LB2M450-C

$116.88

4 in stock

SKU: E70RG88048LB2M450-C
AttributeValue
Diagonal Size7 Inches
Module Size182.07 x 117.60mm
Viewing Area155.08 x 86.92mm
Resolution800 x 480
Interface16/18/24-Bit RGB
Brightness450 Nits
Touch Panel TypeCapacitive
TFT ControllerEK7330, EK9713
CTP ControllerGT9271
Display TypeTN
PolarizerTransmissive
Operating Temperature-20C to 70C

Documentation

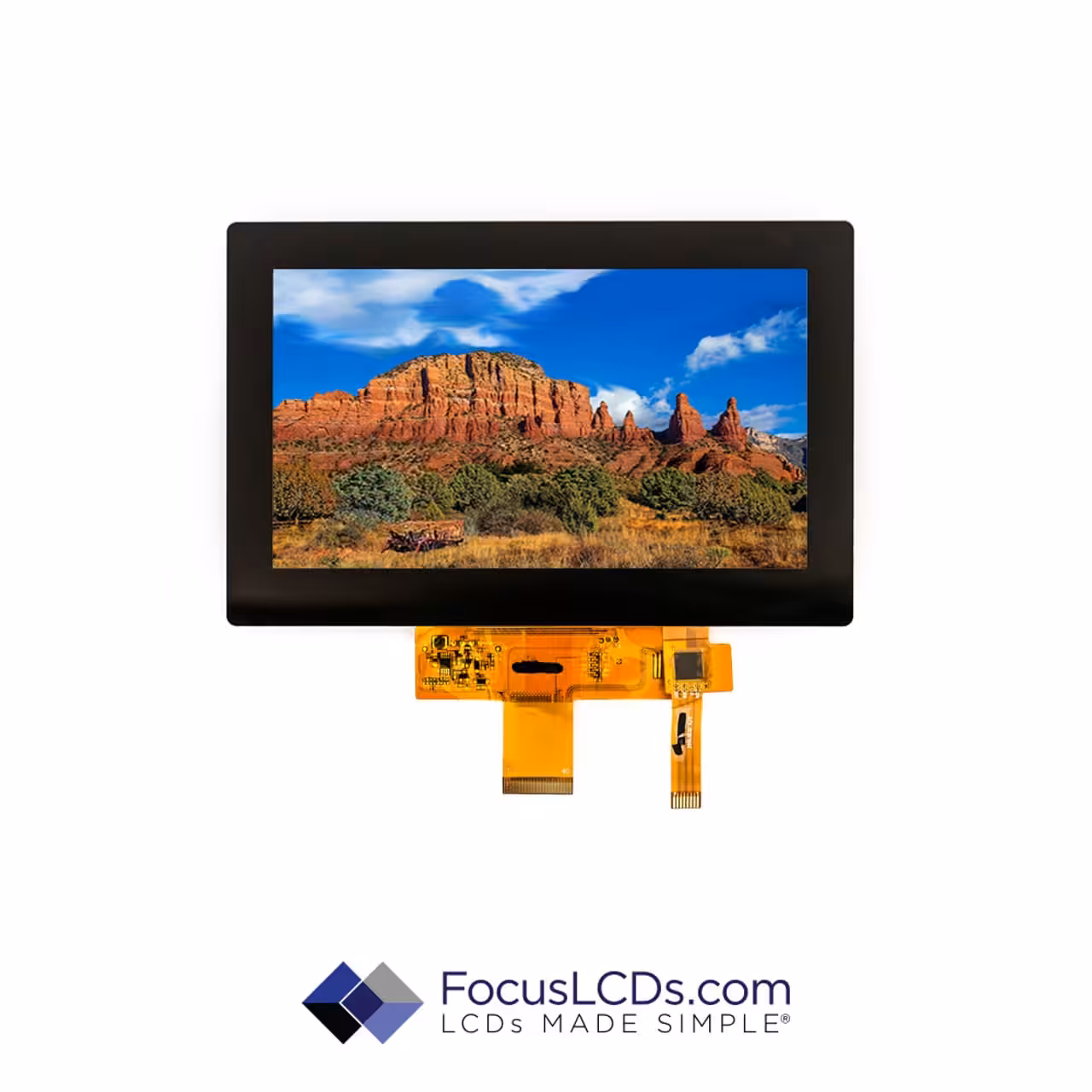

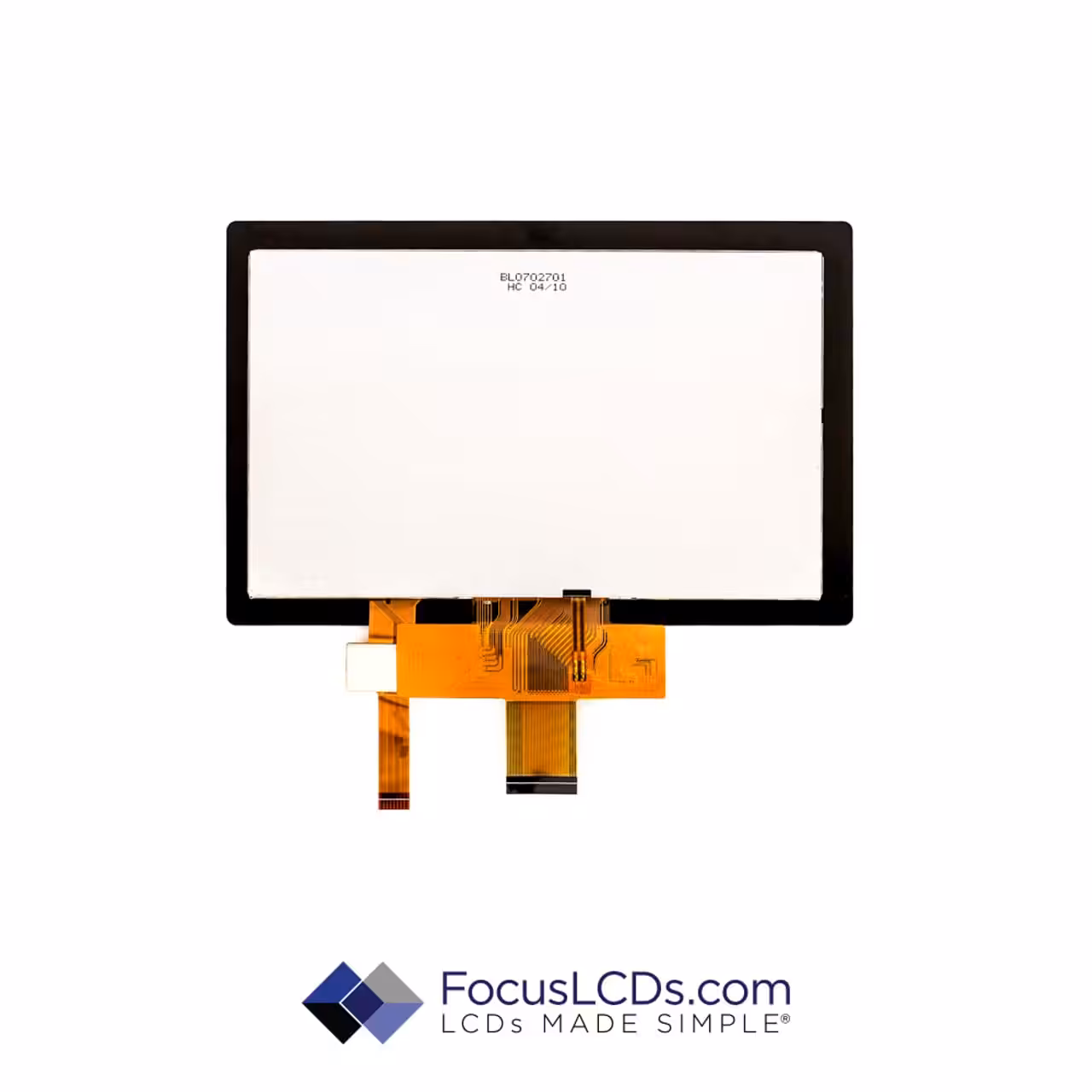

7.0-inch TFT Display

Specification SheetsSchematicsQuality Documentation
E70RG88048LB2M450-C Specification Sheet16-Bit RGB SchematicRoHS
E70RG88048LB2M450-C DWG24-Bit RGB SchematicREACH
EK9713 Specification SheetCMRT
GT9271 Specification Sheet

Description

TN TFT: Our TN types of TFTs offer rapid response times making them ideal for fast-paced applications. With a cost-effective production process, the TN type of display is suitable for any application requiring a dynamic and responsive color display.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

WVGA Resolution: Our WVGA (Wide Video Graphics Array) TFT LCDs feature a resolution of 800x480 pixels, providing an immersive widescreen experience for your devices. These displays are ideal for applications that require high-quality visuals and an expansive aspect ratio, such as digital signage, automotive displays, and multimedia systems.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
