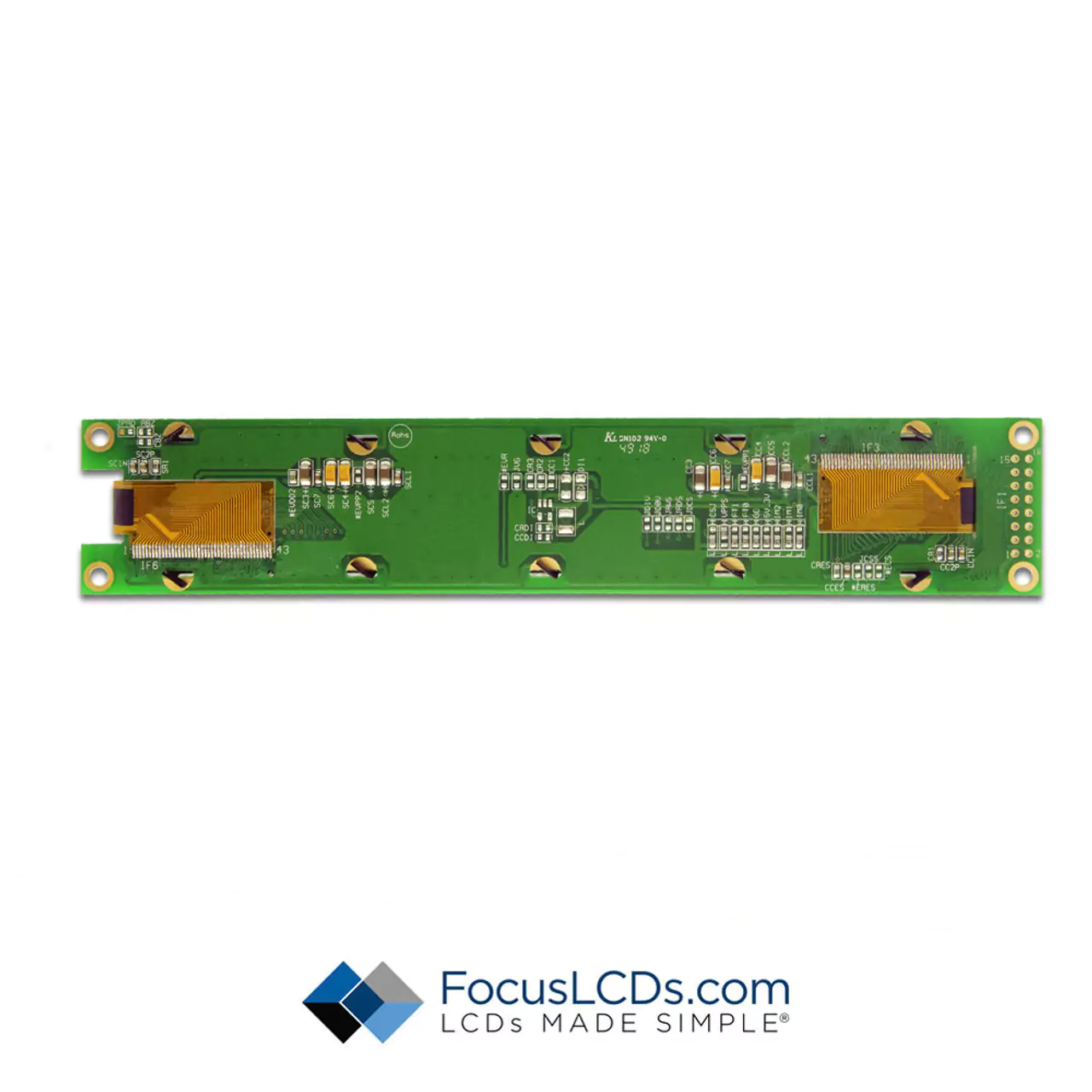

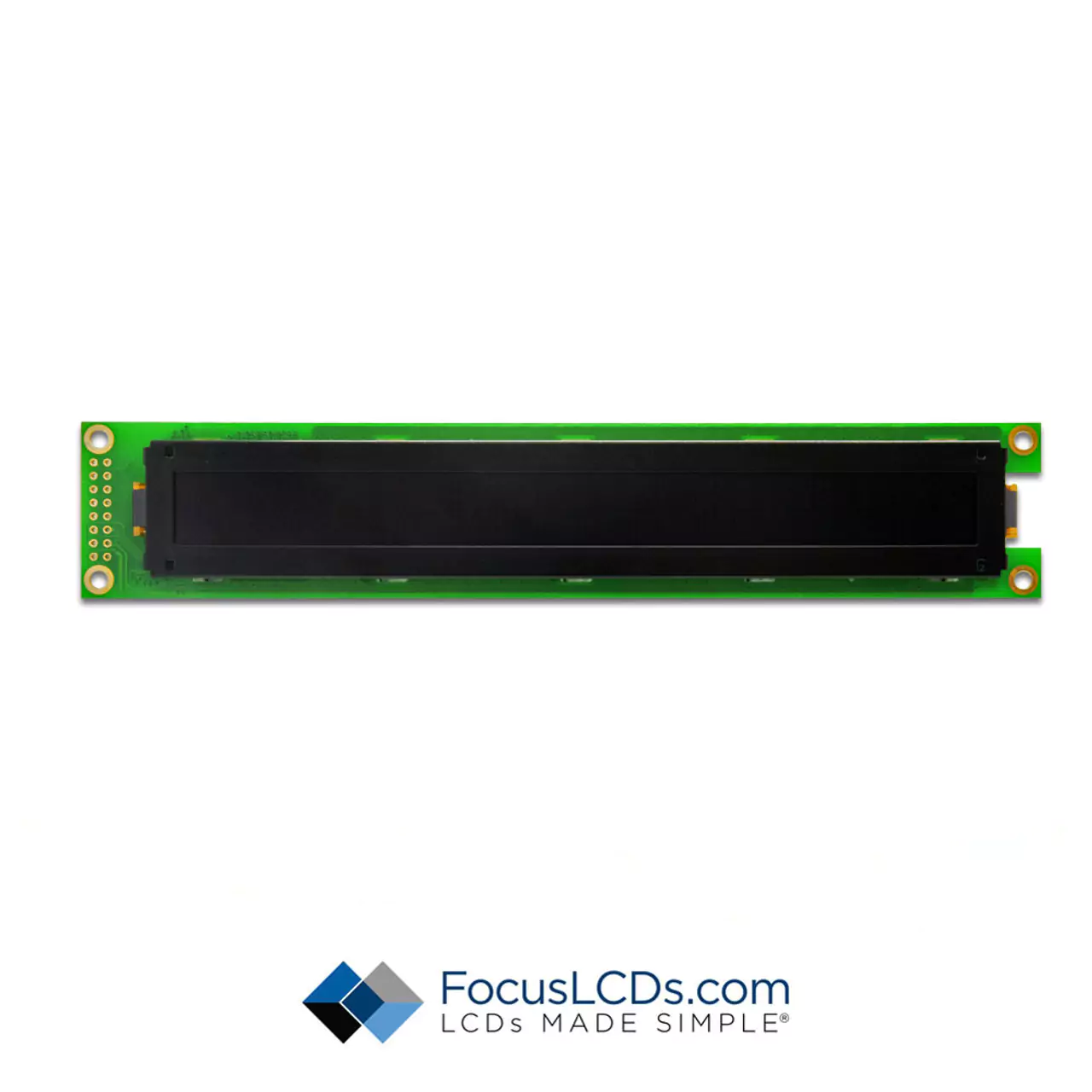

O402A-CW-SW3

$66.75

16 in stock

SKU: O402A-CW-SW3
Attribute Value
Diagonal Size N/A
Characters 40x2
Module Size 182.00 x 33.50mm
Viewing Area 149.70 x 13.50mm
Resolution N/A
Interface 8-Bit Parallel
Voltage 3.3V
Operating Temperature -40C to 70C
OLED Controller KS0066

Documentation

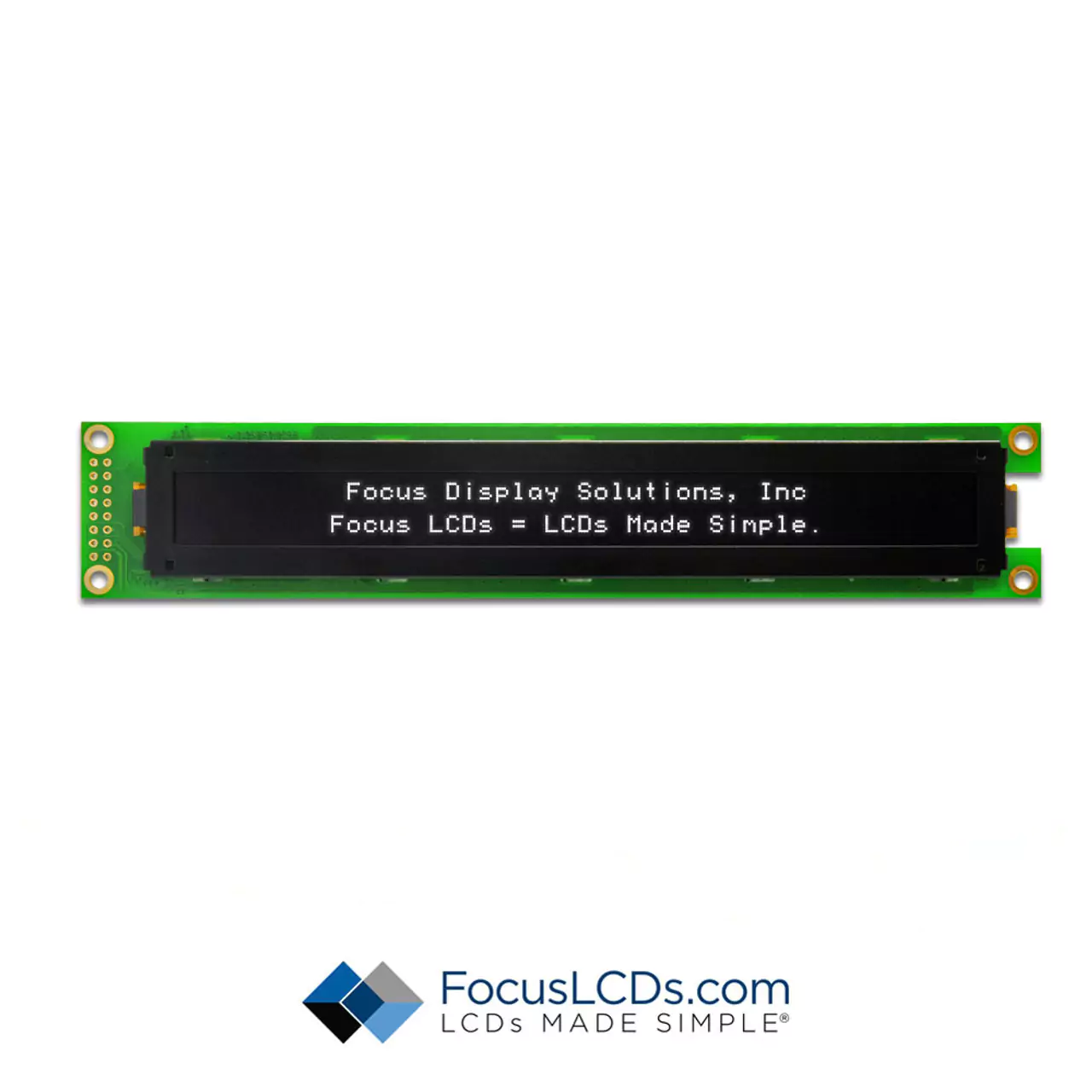

40x2 Character OLED Display

Specification SheetsQuality Documentation
O402A-CW-SW3 Specification SheetRoHS
KS0066 Specification SheetREACH
 CMRT

Description

High Contrast: Our High Contrast OLED displays offer true blacks and an extraordinary contrast ratio that is unmatched by other monochrome displays.

Full Viewing Angles: Experience viewability from every angle with our OLED displays. Designed to deliver an impeccable viewing experience, these displays offer consistent, accurate colors and brightness at any perspective, ensuring that every user enjoys the same high-quality visuals, regardless of their viewing position. Our OLEDs are ideal for collaborative displays, wall mounted applications, and devices where clear visibility from all angles is essential.

Thin Form Factor: Perfect for applications where space and style are critical, our OLEDs offer exceptional display quality without the bulk. Without the requirement of a backlight to illuminate, not only will they save power, but they will also allow a thinner display option for products without room to spare.

40x2 Character OLED: The 40x2 Character OLEDs, with their extended line length, are ideal for applications requiring wide-ranging text information in a two-line format. These displays excel in scenarios such as lengthy menu displays in commercial equipment or detailed monitoring systems in industrial applications.

Parallel Interface: Equipped with a Parallel Interface, these OLEDS facilitate rapid data transfer, essential for high-performance industrial and commercial applications. They are exemplary for use in robust industrial control systems, heavy mining equipment, or commercial appliances where direct and swift communication with the display enhances operational efficiency and user interaction.

3.3V Supply Voltage: Requiring only a 3.3V supply voltage, our 3.3V LCDs are specifically engineered to optimize power efficiency. Designed with energy-sensitive applications in mind, these 3.3V displays provide crisp, clear visuals while minimizing power consumption. This makes them exceptionally suitable for battery-operated devices where power management is crucial. Their low-voltage design significantly extends battery life, making these displays a perfect choice for portable electronics and other devices where energy efficiency is key.

Wide Operating Temperature Range: Our Wide Operating Temperature Range OLEDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Fully Customizable: While our OLEDs come in a wide range of off-the-shelf solutions, at Focus LCDs, we pride ourselves on our extensive customization capabilities. Understanding that one size does not fit all, we offer tailor-made solutions to meet the specific needs of your application. Whether it's adapting dimensions, enhancing display characteristics, or integrating unique interface options, we specialize in crafting displays that align perfectly with your project's requirements. From modifying backlight colors to adjusting connector positions, we're equipped to make precise changes down to the smallest detail. With our comprehensive customization services, you can transform a standard product into a specialized component that not only fits your device but improves its overall functionality, reduces assembly overhead on the production line and enhances the user experience.
