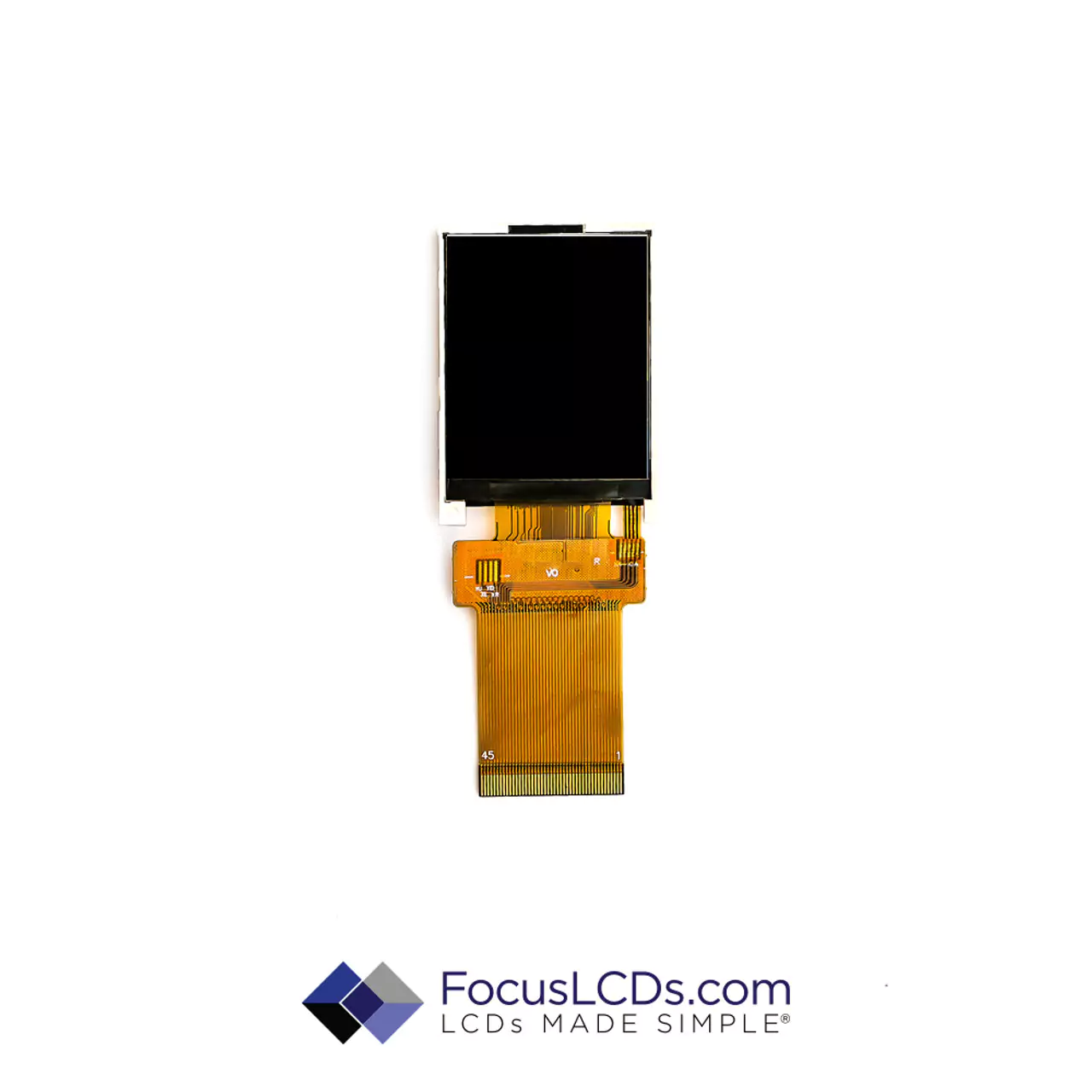

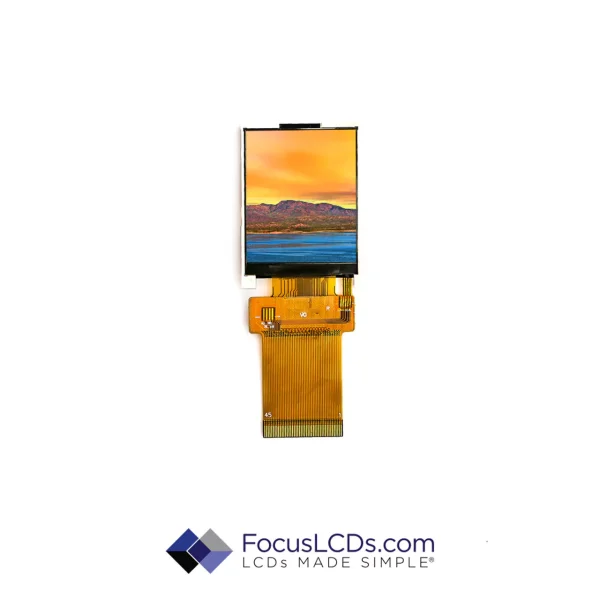

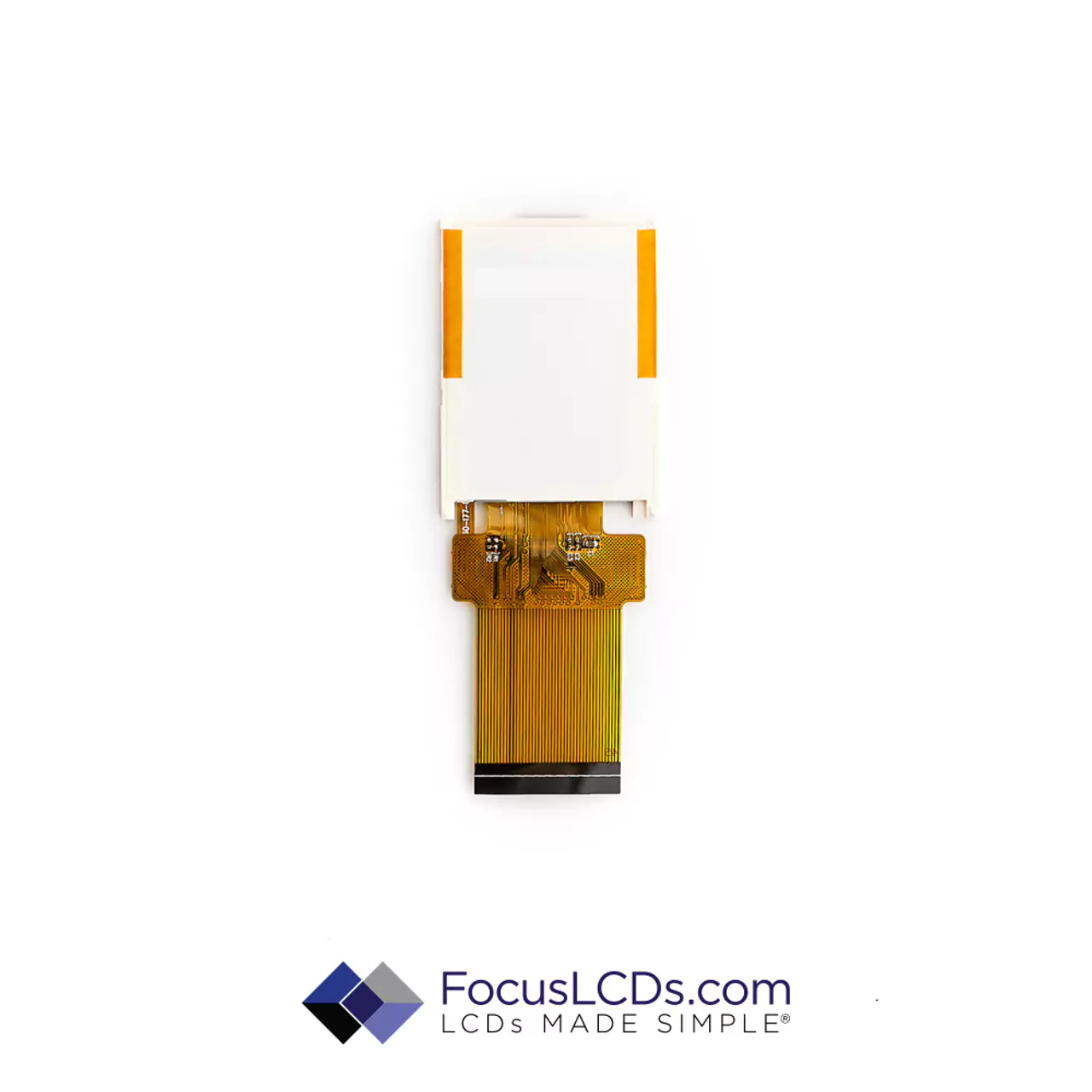

E17RG11216LW6M300-N

$15.42

37 in stock

SKU: E17RG11216LW6M300-N
Attribute Value
Diagonal Size 1.77 Inches
Module Size 34.00 x 47.00mm
Viewing Area 28.03 x 35.04mm
Resolution 128 x 160
Interface 8/9/16/18-Bit MCU, 16/18-Bit RGB, 3/4-SPI
Brightness 280 Nits
Touch Panel Type No Touch Panel
TFT Controller ILI9163
CTP Controller None
Display Type TN
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

1.8-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E17RG11216LW6M300-N Specification Sheet8-bit MCU Schematic8-Bit MCU CODERoHS
E17RG11216LW6M300-N DWG16-bit MCU Schematic16-Bit MCU CODEREACH
ILI9163 Specification Sheet18-bit MCU Schematic18-Bit MCU CODECMRT
 3SPI Schematic3SPI CODE
 3SPI+16Bit RGB Schematic--
 4SPI Schematic4SPI CODE
 4SPI+16Bit RGB Schematic--

Description

Small LCDs: Offering compact efficiency, our range of small LCDs are expertly engineered to deliver exceptional visual performance in a diminutive package. These displays are the optimal choice for applications where space is limited and quality cannot be compromised. From sophisticated medical instruments to handheld test and measurement devices, our small LCDs provide clear and vibrant visuals, ensuring optimal readability and user interaction.

TN TFT: Our TN types of TFTs offer rapid response times making them ideal for fast-paced applications. With a cost-effective production process, the TN type of display is suitable for any application requiring a dynamic and responsive color display.

Selectable RGB, MCU, or SPI Interface: Our versatile TFT LCDs with selectable RGB, MCU, or SPI interfaces offer unparalleled flexibility for integration with various systems and devices. These adaptable displays cater to a wide range of applications, from multimedia systems to embedded solutions, ensuring optimal compatibility and performance regardless of your project requirements.

160x128 Resolution: Our TFT LCDs boasting a 160x128 resolution offer a unique blend of compactness and clarity. This resolution is perfect for compact applications requiring high-density pixel arrangement for clear, sharp images. Despite their smaller size, these LCDs do not compromise on quality or clarity. They deliver clear, vibrant visuals making them an excellent choice for wearable technology, portable devices, and other applications where size, energy efficiency, and image quality are key factors.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
