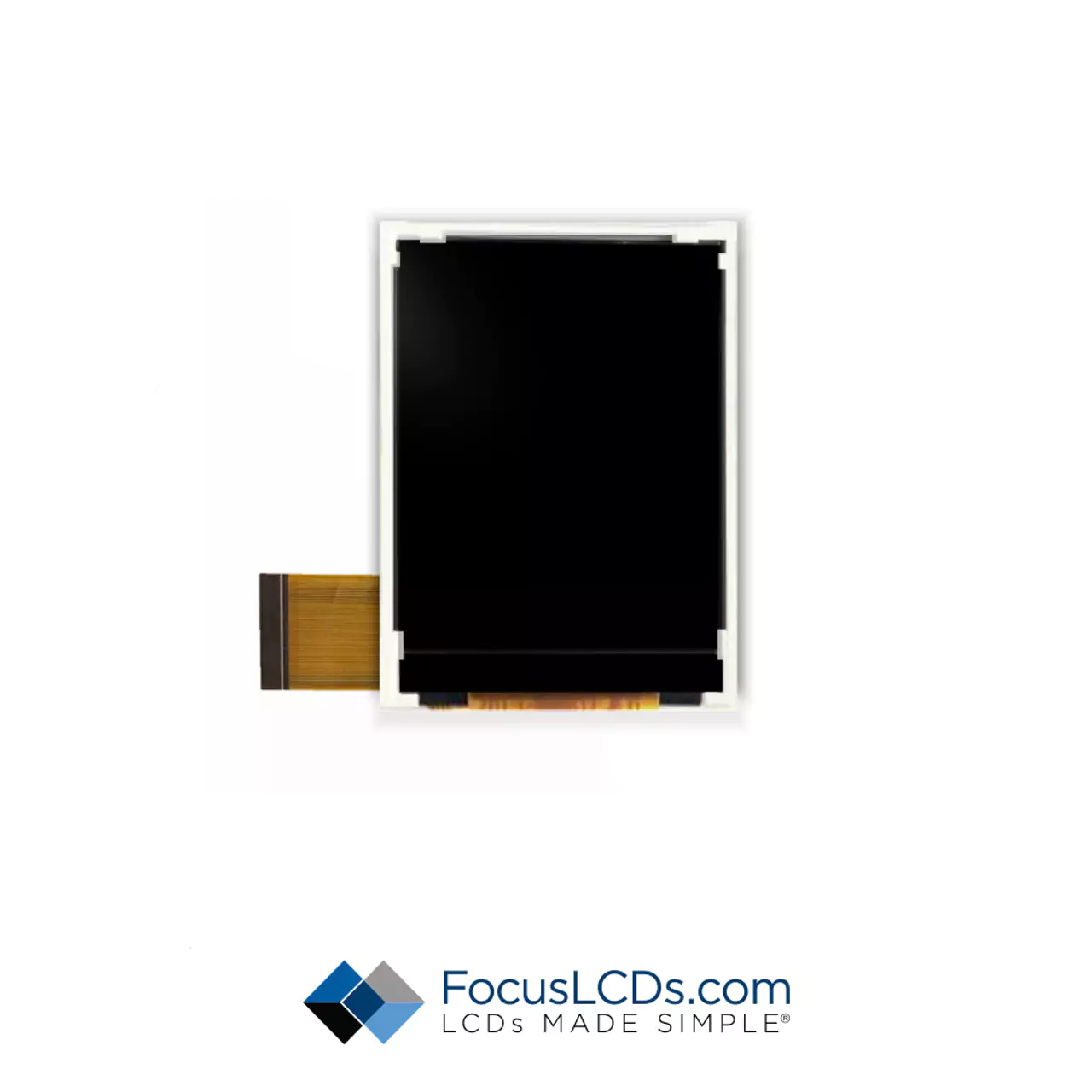

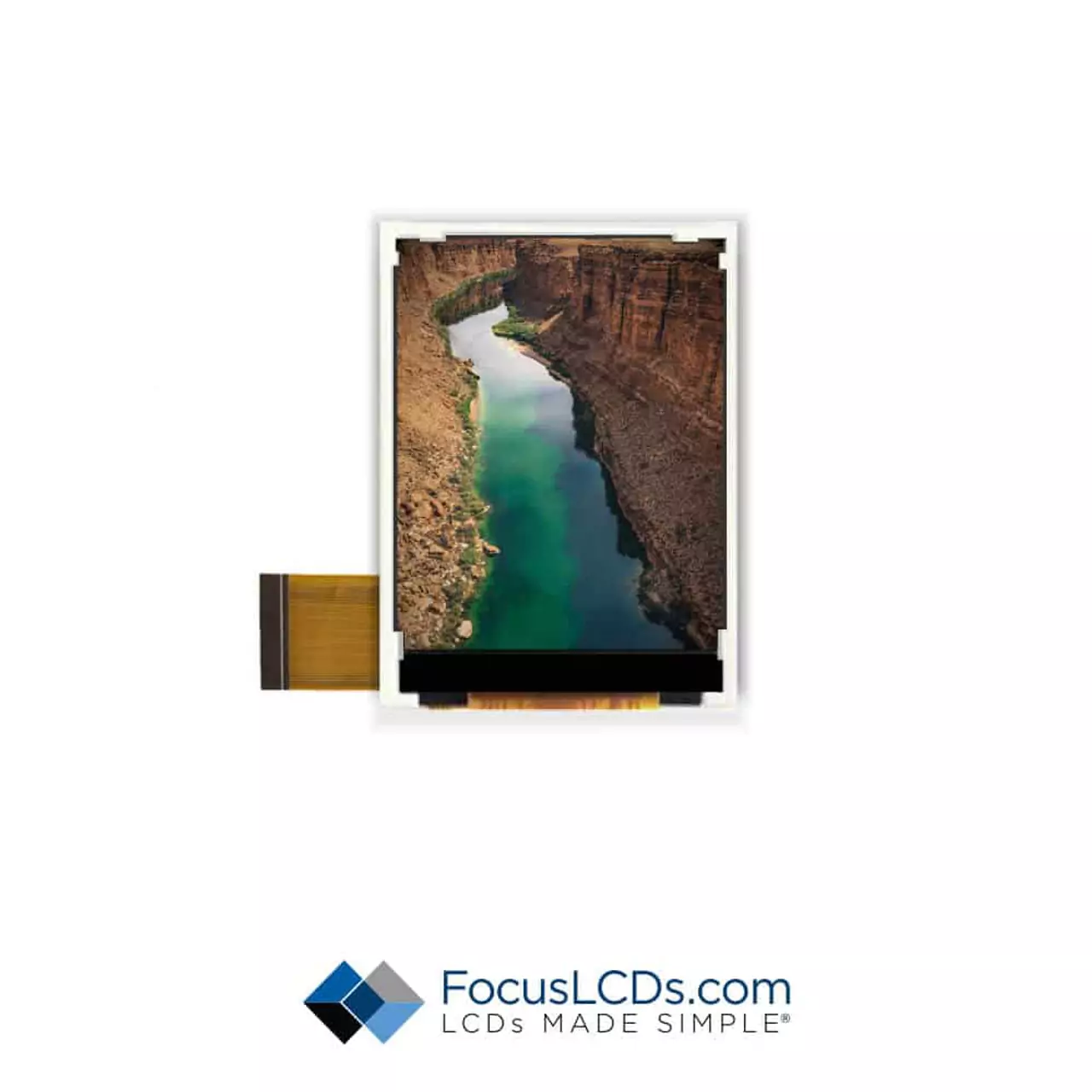

E22RB-FW1180-N

$41.04

17 in stock

Attribute Value
Diagonal Size 2.2 Inches
Module Size 41.70 x 56.16mm
Viewing Area 33.84 x 45.12mm
Resolution 240 x 320
Interface 8/9/16/18-Bit MCU, 16/18-Bit RGB, 3/4-wire Serial, 3/4-SPI
Brightness 1180 Nits
Touch Panel Type No Touch Panel
CTP Controller None
Display Type IPS
Polarizer Transmissive
Operating Temperature -20C to 70C

Documentation

2.2-inch TFT Display

SchematicsCode
8Bit MCUMCU CODE
9Bit MCU3SPI+16BIT CODE
16Bit MCU3SPI+18BIT CODE
18Bit MCU4SPI+16BIT CODE
3SPI 16Bit RGB4SPI+18BIT CODE
3SPI 18Bit RGB3SPI CODE
4SPI 16Bit RGB4SPI CODE

Description

Extreme Brightness: Our Extreme Brightness TFT LCDs, featuring brightness levels of over 1000 nits, are designed for optimal visibility even in the brightest environments. These ultra-bright displays provide clear, vibrant images, ensuring outstanding performance for high-brightness demanding applications such as marine displays, outdoor advertising, or any setting where maximum brightness and visibility are essential.

string(20) "lcd_tft_display_type"

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

MCU Interface: Our TFT LCDs featuring an MCU Interface are designed for easy integration with microcontroller-based systems, making them ideal for embedded applications and industrial control systems. These displays offer straightforward communication and control, simplifying development and reducing time-to-market for your projects.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

SPI Interface: Our SPI Interface TFT LCDs provide a fast and efficient communication channel, ideal for low-power and compact devices such as wearables, IoT gadgets, and portable electronics. These displays enable quick updates and seamless data transfer, ensuring a responsive and smooth user experience.

Wide Operating Temperature Range: Our Wide Operating Temperature Range TFT LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

RoHS Compliant: Our TFT LCDs are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
