12 in stock

Attribute Value
Diagonal Size 2.6 Inches
Module Size 46.76 x 65.85mm
Viewing Area 39.84 x 53.78mm
Resolution 320 x 432
Interface 8/9/16/18-Bit MCU, 16/18-Bit RGB, 3/4-wire Serial, 3/4-SPI
Brightness 500 Nits
Touch Panel Type No Touch Panel
CTP Controller None
Display Type VA
Polarizer Transflective
Operating Temperature -30C to 85C

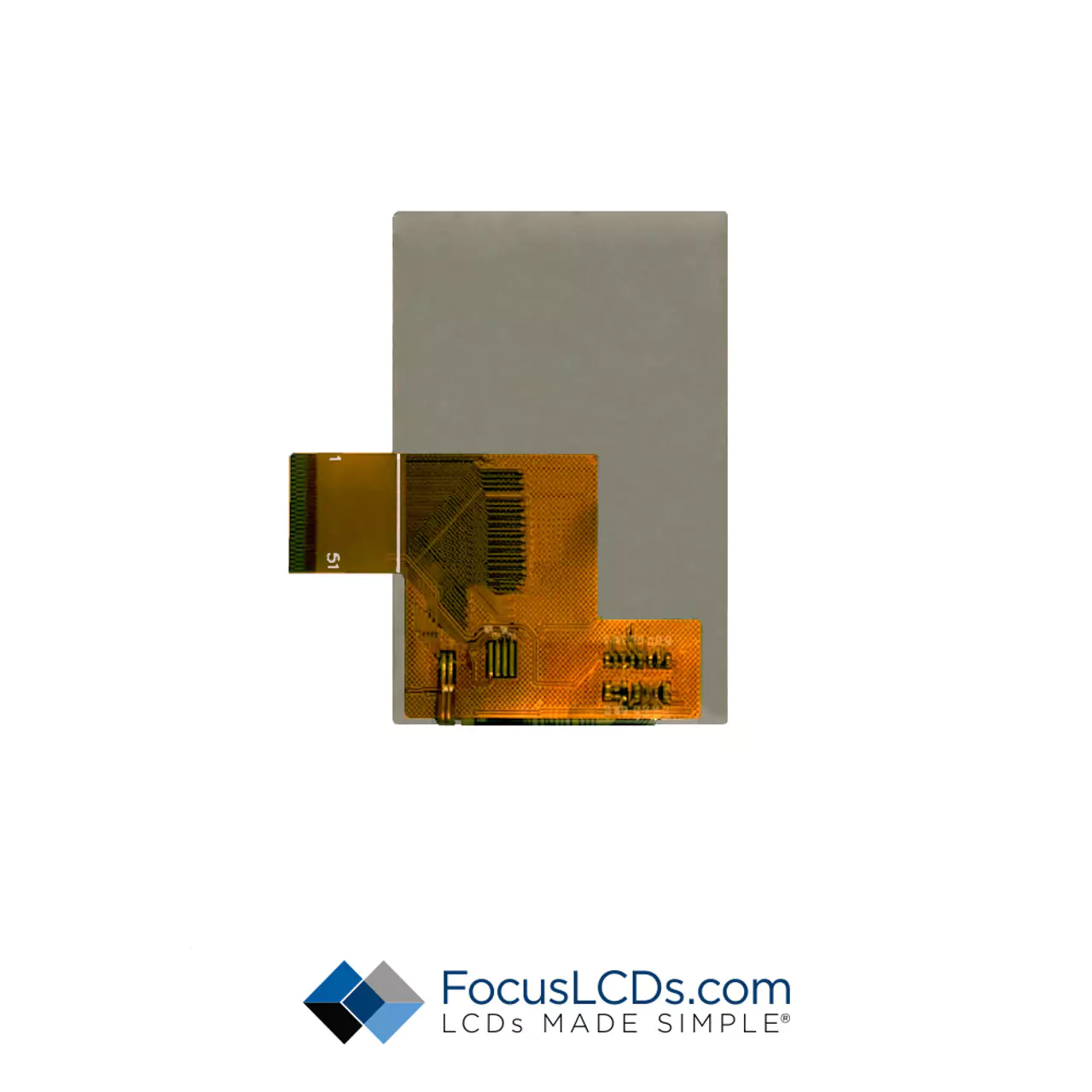

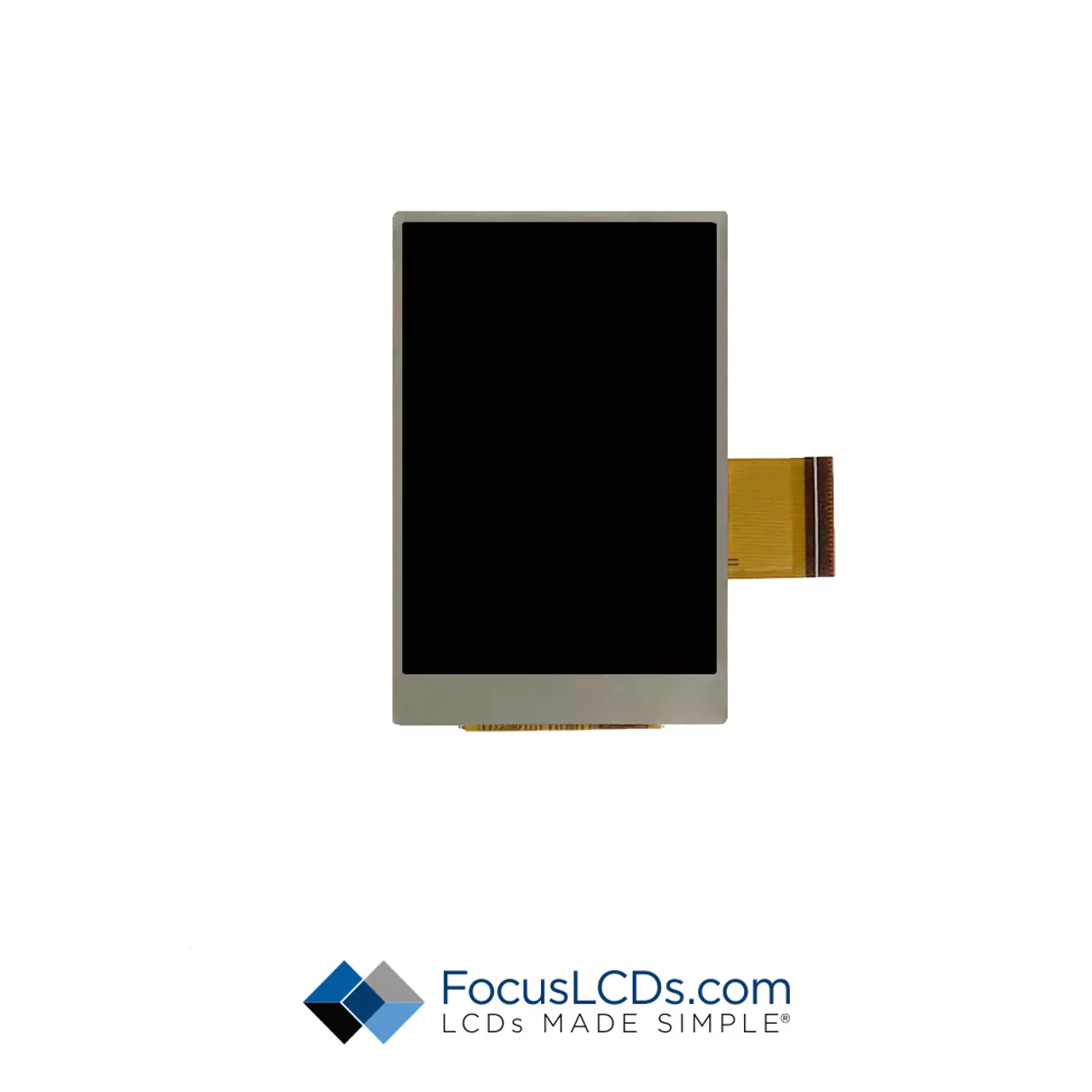

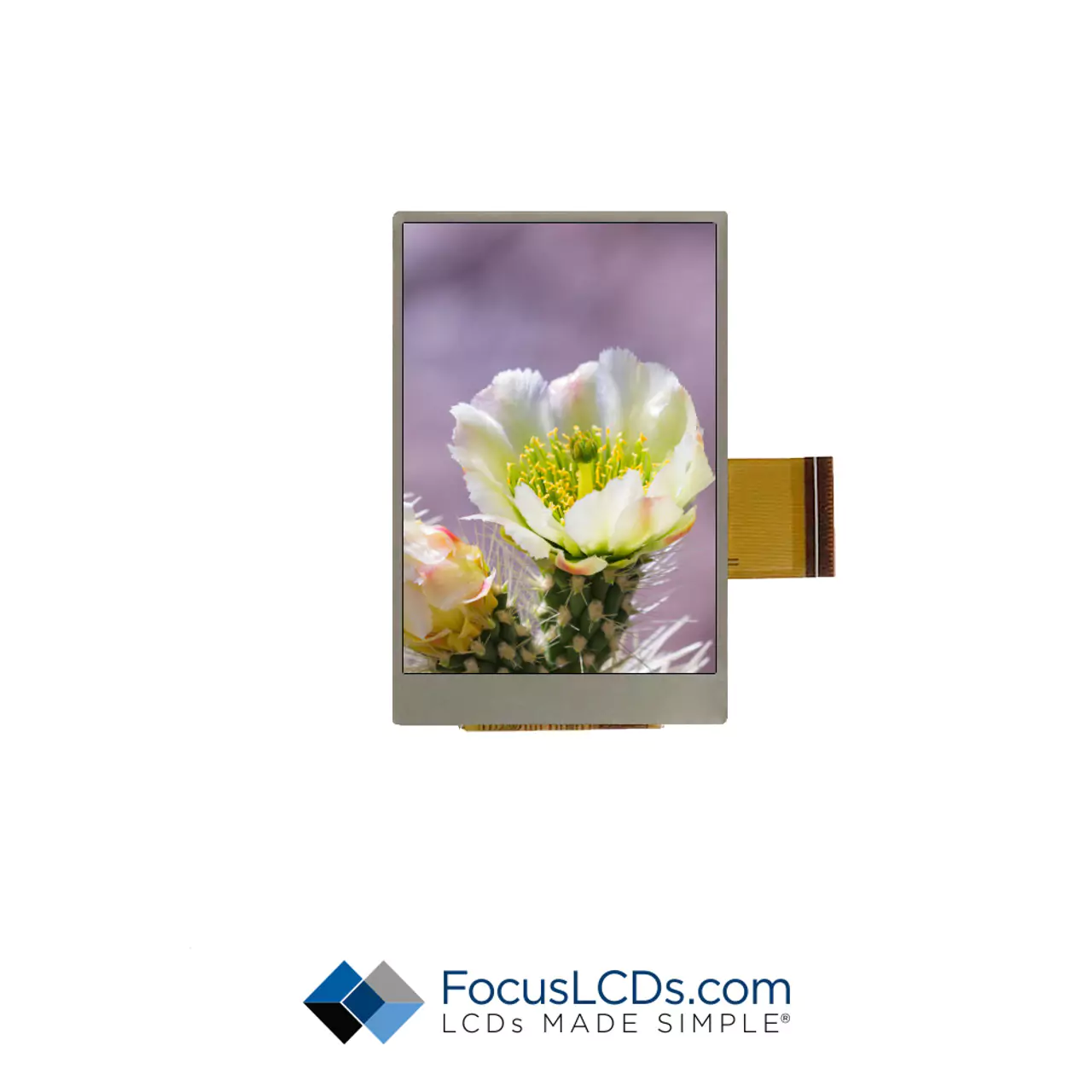

2.6-inch TFT Display

8-bit Schematic MCU8/16-bit MCU CODE
9-bit Schematic MCU18-bit MCU CODE
16-bit Schematic MCU24-bit MCU CODE
18-bit Schematic MCU3SPI+16BIT CODE RGB
24-bit Schematic MCU3SPI+18BIT CODE RGB
3SPI+16Bit Schematic RGB3SPI+24BIT CODE RGB
3SPI+18Bit Schematic RGB4SPI+16BIT CODE RGB
3SPI+24Bit Schematic RGB4SPI+18BIT CODE RGB
4SPI+16Bit Schematic RGB4SPI+24BIT CODE RGB


Sunlight Readable: Our Sunlight Readable TFT LCDs, with brightness levels ranging from 700 to 1000 nits, are designed to deliver clear, vivid visuals even under direct sunlight. With advanced brightness technology, these displays offer superior visibility and color accuracy, enhancing usability in outdoor environments or high ambient light conditions. Ideal for outdoor kiosks, digital signage, and other sunlight-exposed applications.

string(20) "lcd_tft_display_type"

MCU Interface: Our TFT LCDs featuring an MCU Interface are designed for easy integration with microcontroller-based systems, making them ideal for embedded applications and industrial control systems. These displays offer straightforward communication and control, simplifying development and reducing time-to-market for your projects.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

SPI Interface: Our SPI Interface TFT LCDs provide a fast and efficient communication channel, ideal for low-power and compact devices such as wearables, IoT gadgets, and portable electronics. These displays enable quick updates and seamless data transfer, ensuring a responsive and smooth user experience.

Wide Operating Temperature Range: Our Wide Operating Temperature Range TFT LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

Transflective Polarizer: Our Transflective Polarizer TFT LCDs provide a perfect balance between transmissive and reflective properties, ensuring optimum visibility in various lighting conditions. These versatile displays work well in both indoor and outdoor environments, such as retail signage and mobile devices, where adaptability to lighting is crucial.

RoHS Compliant: Our TFT LCDs are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
